Alemite 9950-A1 Service Manual

High-Pressure Pump (Stationary and Portable)

Description

The major components of the high-pressure pump
Assembly in the 9950-A1 and 9951-1 model series consist of
a(n):
• air-operated motor
• double-acting reciprocating pump tube
• cover assembly
• follower plate
• control valve, z-swivel, and hose (Model 9951-1 series)
• dolly (Model 9951-1)
• two-wheel hand truck (Model 9951-T1)
Pump Assembly
The high-pressure (50:1 ratio) pump included with the
assembly is designed to deliver a range of greases
[up to NLGI # 3] and operate directly from their original
120-pound container.
Models 9950-A1 and 9951-1 Series
Each model in the 9951-1 series includes a control valve,
z-swivel, and delivery hose.
Model 9951-1 also includes a dolly while model 9951-T1
is equipped with a hand truck.
Stationary
Model 9950-A1 is stationary. See Figure 1.

Specifications

IMPORTANT: For detailed information on the
pump tube (including specifications and perfor-
mance data) refer to SER 9911-1/9950-1.
For information on the motor, please refer to
SER 339413.
670829
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Portable
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
This document contains confidential information that is the property of Alemite, LLC
Control
Pump
Valve,
Swivel
Model
& Hose
9950-A1
9951-1
9951-S1
9951-T1

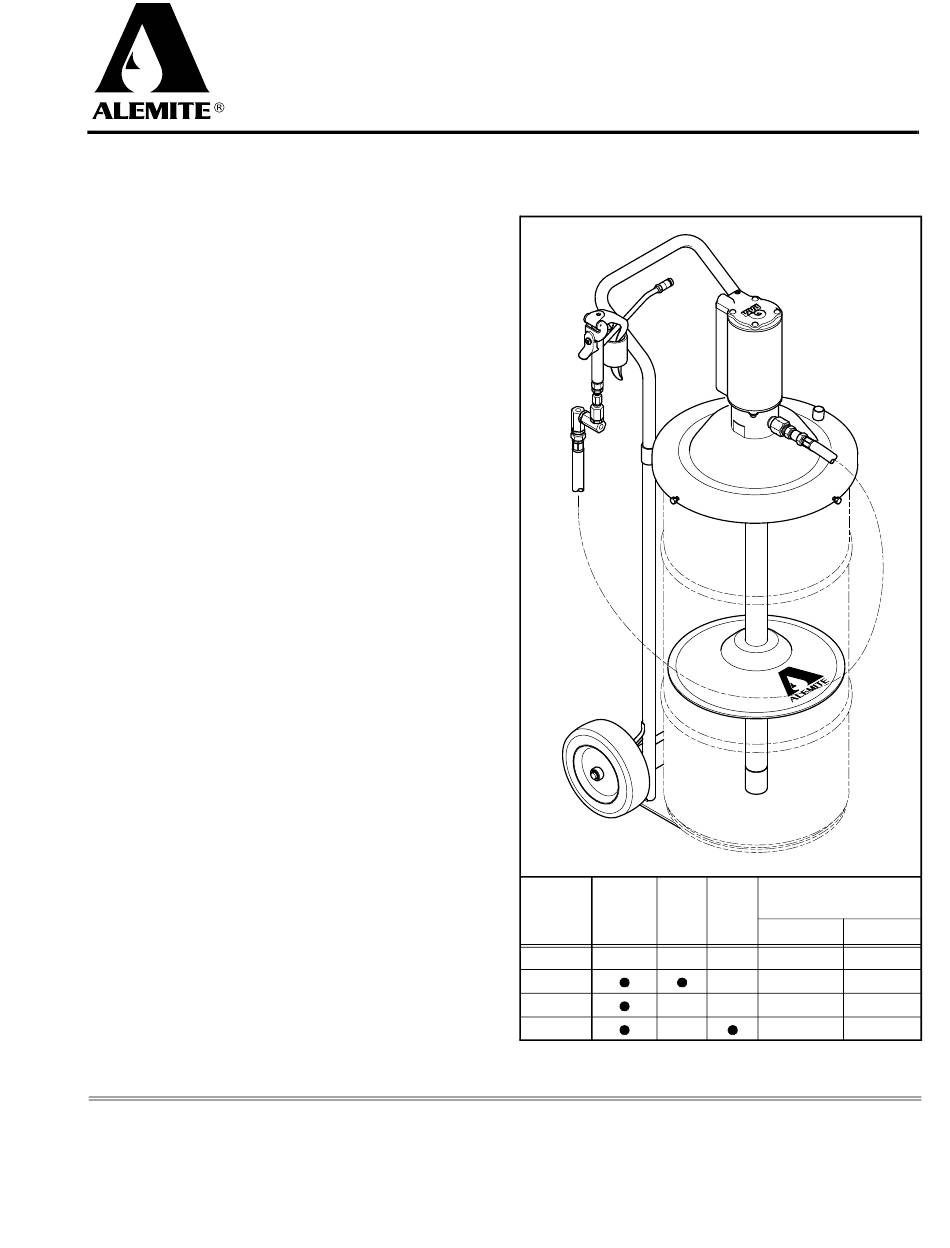

Figure 1 High-Pressure Pump
Models 9950-A1 and 9951-1 Series - Model 9951-T1 Shown
Alemite, LLC
©
2005 by Alemite, LLC
9950-A1
9951-1
9951-S1
9951-T1
Width x Height
Hand
(including container)
Dolly
Truck
Inches
15 x 36-1/2
20-1/4 x 39
15 x 36-1/2
15 x 38
SER 9950-A1
Revision (1-05)
Cm
38.1 x 92.7
51.4 x 99.1
38.1 x 92.7
38.1 x 96.5
