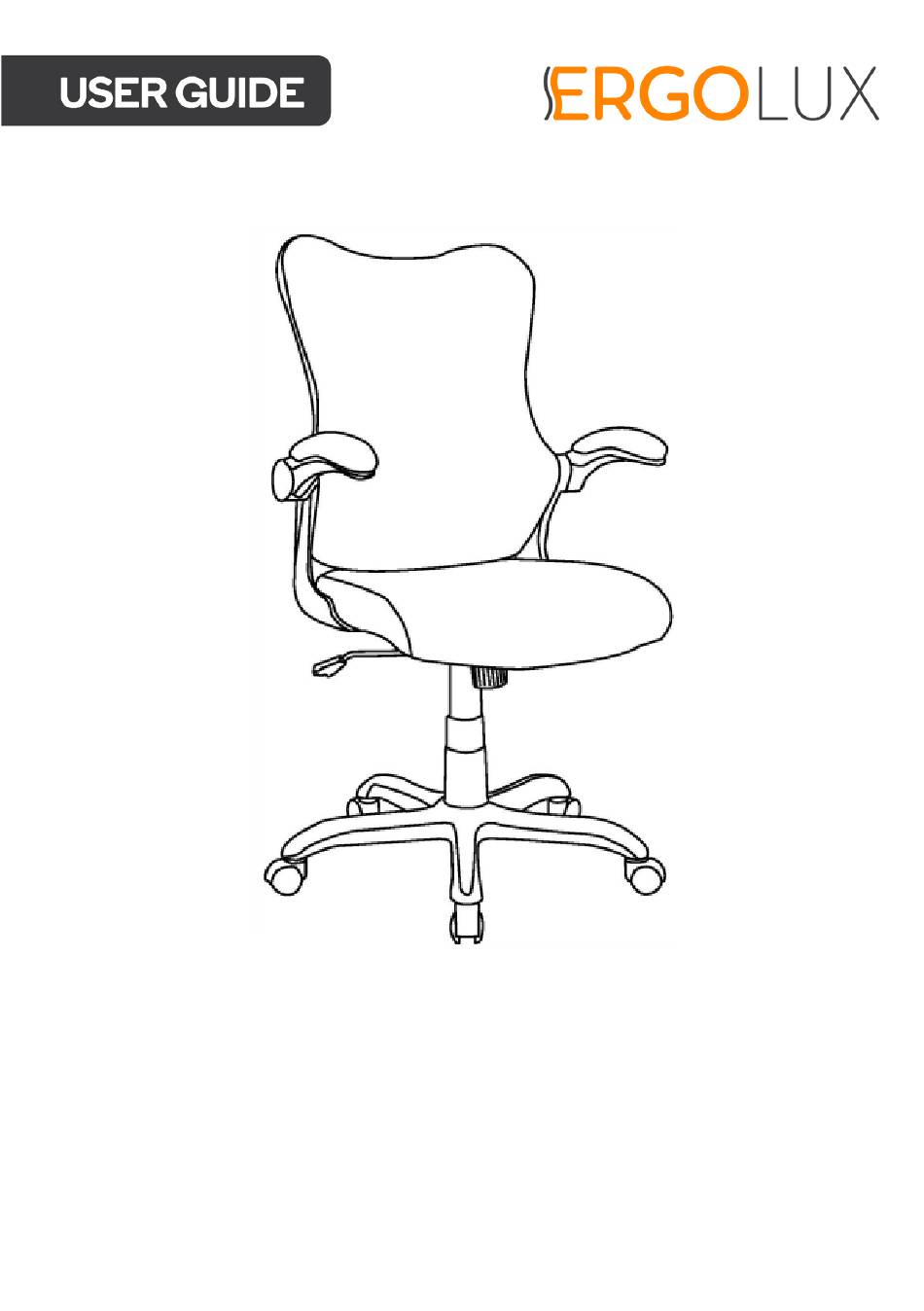

  • Page 1 PALO ALTO LOW BACK OFFICE CHAIR ELPALOAOCBA...
  • Page 3 COMPONENTS A Castor wheel (x5) B Base (x1) C Gas lift (x1) D Gas lift cover (x1) E Mechanism (x1) F Seat (x1) G Chair back (x1) H Armrests (x1 pair)
  • Page 4 Hardware I 50mm M6 screw (x2) J 30mm M6 screw (x4) K 18mm M6 screw (x6) L Lock washer (x2) M1 Upper armrest cover (x2) M2 Lower armrest cover (x2) N Allen key (x1)
  • Page 5 ASSEMBLY Step 1: Attach the castor wheels (A) to the base (B). Step 2: Insert the gas lift (C) into the base (B). Place the gas lift cover (D) over the gas lift (C).
  • Page 6 Step 3: Align the two holes on the right armrest (H-R) with those on the chair back (H). Place a lock washer (L) over the upper aligned hole, then using the Allen key (N), secure the lock washer (L) with a 50mm M6 screw (I). Using the Allen key (N), secure an 18mm M6 screw (K) through the bottom aligned hole.
  • Page 7 Step 4: Align the holes on the seat (F) with those on the armrests (H-L, H-R). Using the Allen key (N), secure the seat (F) to the armrests (H-L, H-R) with 30mm M6 screws (J). J (x4) N (x1) Step 5: Align the holes on the mechanism (E) with those on the seat (F). Using the Allen key (N), secure the mechanism (E) to the chair back (G) with 18mm M6 screws (K).
  • Page 8 Step 6: Place the chair assembly onto the gas lift (C). Press firmly to ensure it is secure. Step 7: Place the upper and lower armrest covers (M1, M2) onto the armrests (H-L, H-R). M1 (x2) M2 (x2)
  • Page 9 Assembly complete.
  • Page 10 NOTES...
  • Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
