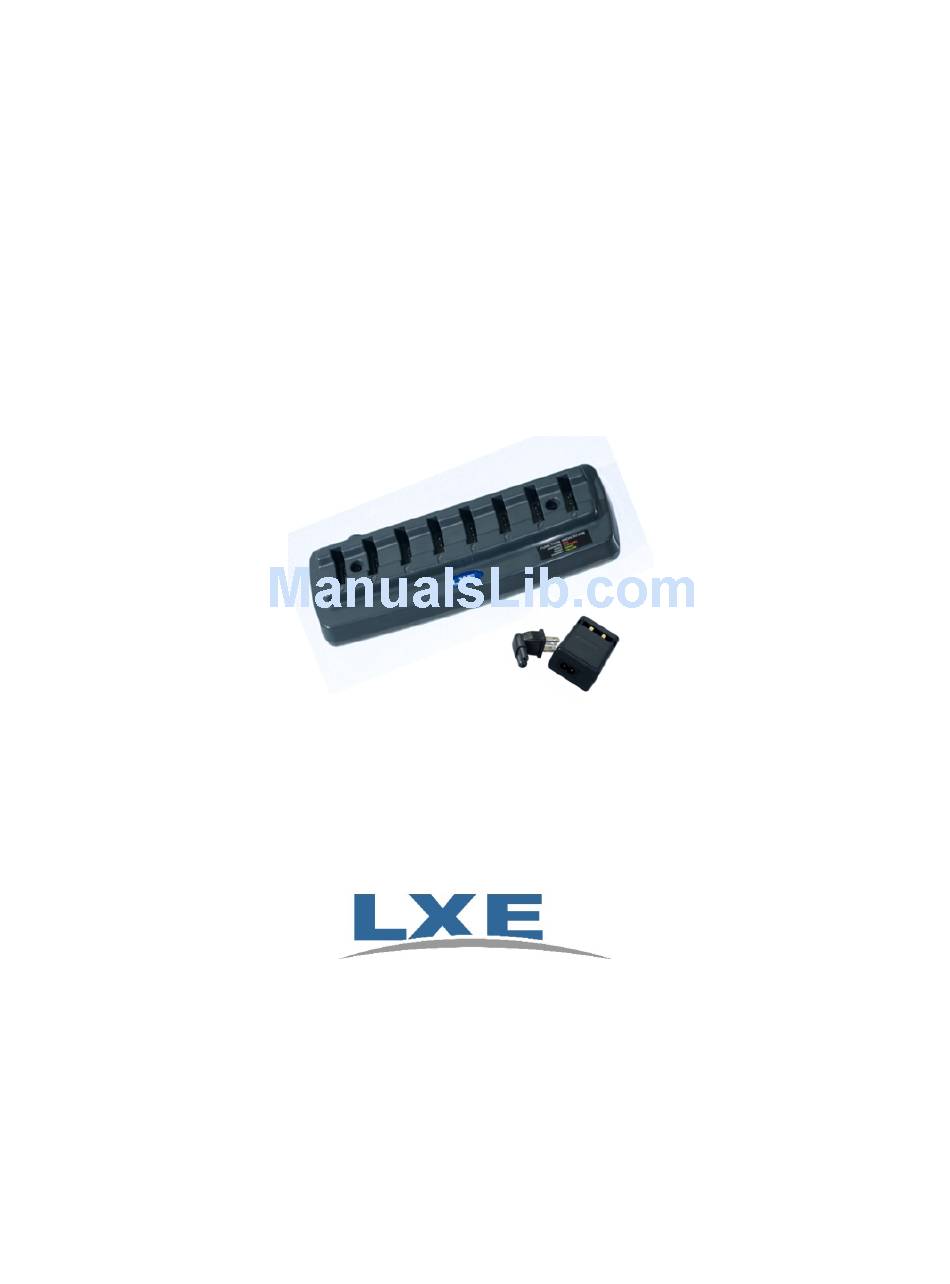

- Page 1 Bluetooth Ring Scanner Battery Charger User’s Guide Models 8650A380SINGLECHGRWWS and 8650A378BTBOHCHGRWW For Use with LXE (8650A376BTBOHBATTERY) Lithium Ion Battery Packs Copyright © 2008 by LXE, Inc. All Rights Reserved E-EQ-BRSCHGROGWW-B...
- Page 2 Notices LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein.
- Page 3 Keep dirt and foreign objects out of the battery pocket. Do not short circuit any of the contacts in the battery pocket, this could result in injury or property damage. Do not operate the charger if it has been dropped or damaged in any way. Return the charger to LXE. Storing the Bluetooth Ring Scanner Battery Single-bay Charger or Multi-Charger Disconnect charger by pulling the plug;...
- Page 4 Do not operate the chargers with a damaged AC cord or plug. LXE does not recommend the use of any extension cord with the Bluetooth Ring Scanner Battery Single-bay Charger or Multi- Charger.
-
Page 5: Table Of Contents
NTRODUCTION Purpose of this Manual... 1 Quick Start... 1 Intended Use ... 1 Multi-Charger... 2 Multi-charger Footprint... 3 Single-bay Charger ... 3 Battery Well ... 4 Rechargeable Lithium Ion Battery Pack ... 5 Getting Help... 6 Accessories ...6 NSTALLATION AND PERATION Overview ... - Page 6 Multi-Charger ...13 Single-bay Charger ...13 Electrical ... 13 Physical Dimensions ... 14 Illustrations Figure 1 Bluetooth Ring Scanner Battery Multi-Charger ... 2 Figure 2 AC Power Supply, Multi-charger ... 2 Figure 3 Multi-charger Footprint and Mounting Hole Locations... 3 Figure 4 Bluetooth Ring Scanner Battery Single-bay Charger ... 3 Figure 5 Battery Pockets ...
-
Page 7: Introduction
Rechargeable Lithium Ion Battery Packs in less than three hours, depending upon battery pack temperature and conditions The LXE Bluetooth Ring Scanner Battery Single Charger is designed to charge one Rechargeable Lithium Ion Battery Pack in less than three hours, depending upon battery pack temperature and... -
Page 8: Multi-Charger
4. On initial power-up, LEDs light up for a few seconds. The external power supply for the multi-charger is shipped with the multi-charger. If there is no AC cable, please contact your LXE representative. The multi-charger power supply is intended for use with the Bluetooth Ring Scanner Battery Multi-charger only. -
Page 9: Multi-Charger Footprint
Multi-charger Footprint Multi-charger Footprint Figure 3 Multi-charger Footprint and Mounting Hole Locations Single-bay Charger Figure 4 Bluetooth Ring Scanner Battery Single-bay Charger The charger plug mounts the single-bay charger to an AC outlet. 1. Connect the power plug to the single-bay charger. 2. -
Page 10: Battery Well
Battery Well Multicharger Battery Well Single-bay Charger Battery Well Battery charging and recharging cannot occur until the battery pack’s terminals are in contact with the charging contacts in the battery pocket of a powered multi-charger or single-bay charger. If the multicharger LED turns orange after inserting a battery instead of red, it means the battery is in backwards. -
Page 11: Rechargeable Lithium Ion Battery Pack
Rechargeable Lithium Ion Battery Pack Rechargeable Lithium Ion Battery Pack New batteries should be charged for 3 hours before first use or after battery storage of more than three months. Battery Pack Model Number is 8650A376BTBOHBATTERY Figure 6 Lithium Ion Battery Pack Charging Contacts Note: Do not allow cleaning agents of any kind to contact the battery charging contacts;... -
Page 12: Getting Help
To determine the age of the battery, check the LXE ship date on the battery. The ship date is marked and shows the month and the year that the battery was shipped. The first field (labeled J, F, M, A, etc.) is the month the battery was shipped. The second field (numbers) is the last number of the year. -
Page 13: Installation And Operation
Normal Operations The optimal operating temperature range for the chargers is between 0°C (32°F) and 40°C (100°F). While charging, the charger and battery pack will generate enough heat to feel warm. This is normal and does not indicate a problem. -
Page 14: Using The Battery Charging Pocket
Using the Battery Charging Pocket Inserting the Battery Pack It is important that battery packs are inserted into the charging pocket correctly, Caution! using the direction of the arrow on the battery label as a guide. Inserting the battery incorrectly may result in damage to the battery pack or the charger. When preparing the battery pack for insertion into the charger well, hold the battery with its three charging contacts in line with the three charging terminals in the battery pocket (using the direction of the arrow on the battery label as a guide). -
Page 15: Progress Monitoring
Progress Monitoring Progress Monitoring The LED located below each charging pocket indicate the status of the battery in the pocket. Charge Timers Multi-charger The battery pocket timers are dynamic and based upon the capacity of the battery pack. There is a timeout period for the soft start and another timeout period for the overall time required to charge the battery to full capacity. -
Page 16: Interpreting The Multi-Charger Leds
Interpreting the Multi-charger LEDs - on any pocket Continuous Battery pack - Flashing Battery pack fault or failure. Battery charger timeout period expiration. GREEN - on any pocket Continuous Battery pack charge complete - Ready. Amber - on any pocket Continuous Battery pack temperature is out of range - Standby. -
Page 17: Troubleshooting
LED is flashing RED at any station. E-EQ-BRSCHGROGWW-A Cause Solution Different manufacturer's battery Check if the battery pack is LXE part pack, or there is an object in the number 8650A376BTBOHBATTERY. If battery well. not, do not use. Remove the object from the battery well. -
Page 18: Maintenance
The battery pack may discharge through the charger rather than hold its charge. Service There are no user serviceable parts in the Rechargeable Lithium Ion Battery Pack or the chargers. Should your battery charger require service, contact LXE. Bluetooth Ring Scanner Battery Charger User’s Guide... -
Page 19: Technical Specifications
Operating Temperature Ranges Multi-Charger Minimum Maximum Operating 0°C (32°F) +45°C (113°F) Charging 0°C (32°F) +45°C (113°F) Storage -10°C (14°F) +50°C (120°F) Single-bay Charger Minimum Maximum Operating 0°C (32°F) +40°C (100°F) Storage -10°C (14°F) +50°C (120°F) Electrical Parameter Power Supply Input 100 VAC Voltage (V AC-IN... -
Page 20: Physical Dimensions
Physical Dimensions Multi-Charger Weight Battery: 0.55oz / 15.6g Without batteries: 9.10oz / 258g With 8 batteries: 13.85oz / 392g AC Adapter: 6.40oz / 181g Plug Type IEC; 2-prong Length 9” / 23cm Width 3.25” / 8.25cm Height 1.25” / 3.17cm (with batteries 2.5” / 6.3cm) Mounting Distance between mounting holes: 5.9”...
