  • Page 1 Dino-Lite CONNECT WF-20 Instruction Manual...

  • Page 2: Table Of Contents

    Contents FCC Statement IC Statement Instroduction System Requirement Package Contents Overview and Function Getting Started DinoConnect 2 on iOS DinoConnect on Android Battery Information Specifications...

  • Page 3: Fcc Statement

    We, AnMo Electronics Corporation, of 5F-1, No. 76, Sec. 2, Dongda Road, Hsinchu City 300082, Taiwan, declare under our sole responsibility the product WF-20, to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the...

  • Page 4: Ic Statement

    IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 5: Instroduction

    Introduction The WF-20 is a Wi-Fi streamer, as well as a wireless router, to use combinedly with Dino-Lite Edge AF series for viewing and sharing observation without wire. With high quality image transmission and long battery life, the WF-20 is well suited for field applications.

  • Page 6: Overview And Function

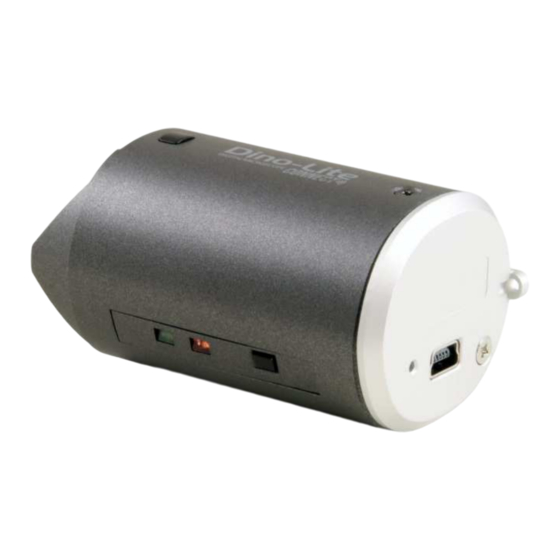

    Overview and Function Interface release button Wi-Fi signal LED indicator Battery LED indicator On / Off power button Reset pinhole button Mini USB port (for charging purpose) Button usage and description: Buttons Description On / Off Press and hold for 1.5 seconds to turn on/off. power button Reset Press and hold the pinhole button for 3 seconds...

  • Page 7: Getting Started

    Getting Started Charging the Battery Charge the WF-20 by connecting to a computer or a USB charger using the Mini USB charging cable. Assembling the Device The WF-20 needs to be used with Dino-Lite AF series. The assemble procedure is as described below.
  • Page 8 Powering on Press the power button for 1.5 seconds to power on. The startup process may take about half minute until the Dino-Lite’s LED lit up. To power off Press the power button again for 1.5 seconds. Setting the Network iOS/Android 1.
  • Page 9 WF-20. The device will remember the last connected wireless network. iOS & android WF-20 Access Points devices Note: The WF-20 may connect up to 10 mobile devices at the same time, however, image fluency may be affected as more devices are connected.

  • Page 10: Dinoconnect 2 On Ios

    DinoConnect 2 is an iOS app, compatible with iOS 12 or later, for using with WF-20 Wi-Fi streamers. Function Description Battery To indicate battery level of the WF-20. LED control To control Dino-Lite’s illumination. Text To create, edit, or format text.
  • Page 11 Measurement DinoConnect 2 allows users to perform measurements on the live preview or images captured with magnification recorded. How to do measurement 1. Check the magnification has been entered correctly for models without AMR. 2. Tap the measurement toolbox and select a measurement tool.

  • Page 12: Dinoconnect On Android

    DinoConnect on Android Overview DinoConnect is an Android app, compatible with Android 4.4 or later, for using with WF-20 Wi-Fi streamers. Swipe right to show more on the tool bar. Function Description LED control To control Dino-Lite’s illumination. Refresh To refresh the live preview.
  • Page 13 Measurement DinoConnect allows users to perform measurements on the live preview. How to do measurement 1. Check the magnification has been entered correctly for models without AMR. 2. Select a measurement tool. Each measurement consists of two or three points. Tap to specify a point on the preview.

  • Page 14: Battery Information

    The WF-20 was designed to have more than 2.5 hours battery life, but may vary with different Dino-Lite model and the way of using. Charging the WF-20 may take 3-4 hours by a USB charger or a power bank. The WF-20 can still be used while charging, but be noted that extra heat will be generated and may affect circuit performance under poor ventilation.

  • Page 15: Specifications

    WF-20 Support protocol Wi-Fi IEEE802.11b / g / n Antenna 2.4 GHz Wi-Fi FPCB antenna Frequency 2.412 GHz~2.485 GHz SSID (default) Dino-Lite WF-20 Battery 1600 mAh Power consumption 2.5 W Battery continuous 2.5 hours operation time (tested by using with AF4915) Operation temperature 10~45°C (50~113°F)
  • Page 16 Copyright © 2022 AnMo Electronics Corporation P/N:WF12101A...
