1.1 Package Contents The package contains the following items: PoE Switch • Power Cord • 19” Rack Mounting Kit • Quick Installation Guide • 1.2 Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your equipment from potential damage.

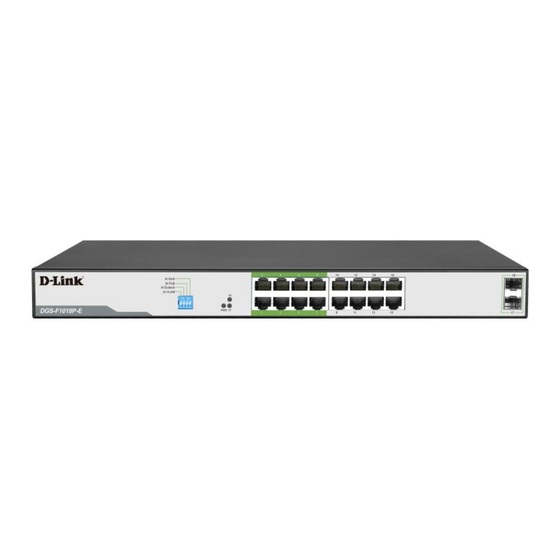

1.4 Product Connection Diagram 1.5 Product Installation The DGS-F1018P-E switch can be installed on a desktop, shelf or mounted in a standard 19-inch rack. To install the switch in a rack, attach the supplied mounting brackets to the side of the switch and...
Page 4
Align the brackets and rack holes. Fasten each bracket to the rack. 1.6 Product Ports Description Port Description PoE Port: Support IEEE802.3af/at standard Power over Ethernet, used to connect PD devices; PoE 1-16 Ports 1 – 8 PoE support cable lengths up to 250m @ 10Mbps (“Extend”...
1.7 Product Specifications Extend: Supports long reach PoE delivery, up to 250m. (Cat 5 or better cabling is recommended) VLAN: Isolates ports from each other. Adds security and improves network performance by constraining broadcast traffic. Switch Modes QOS: Introduces application prioritisation. Traffic with higher priority (e.g. Voice over IP) will be forwarded ahead of the queue.
