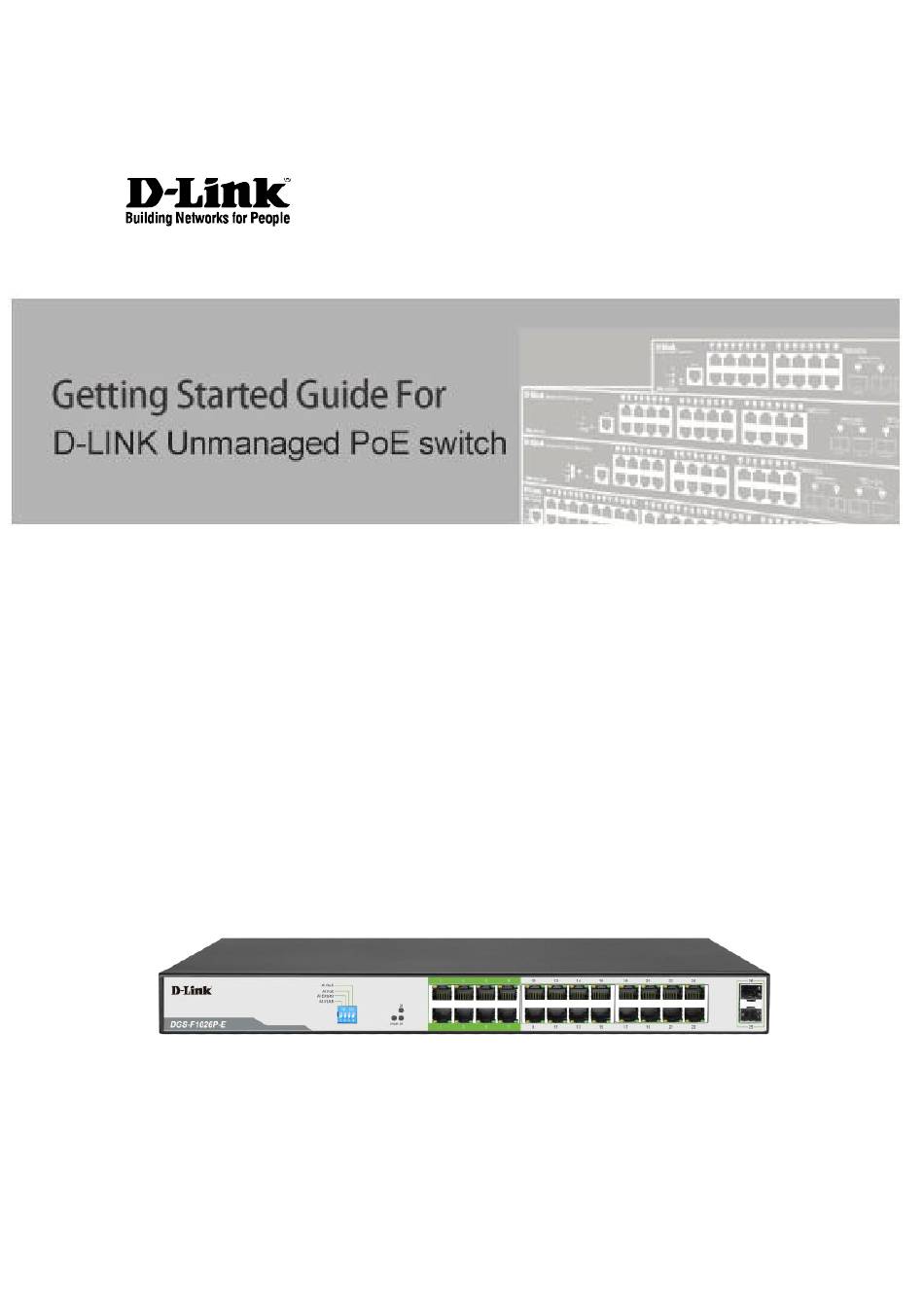

- Page 1 Product Quick Installation Guide DGS-F1026P-E 26-Port Gigabit Switch with Long Reach PoE+ and 2 SFP Ports...
-
Page 2: Package Contents
1.1 Package Contents The package contains the following items: PoE Switch • Power Cord • 19” Rack Mounting Kit • Quick Installation Guide • 1.2 Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your equipment from potential damage. -
Page 3: Product Connection Diagram
1.5 Product Installation The DGS-F1026P-E switch can be installed on a desktop, shelf or mounted in a standard 19-inch rack. To install the switch in a rack, attach the supplied mounting brackets to the side of the switch and fasten the... - Page 4 Align the brackets and rack holes. Fasten each bracket to the rack. 1.6 Product Ports Description Port Description PoE 1-24 PoE Port: Support IEEE802.3af/at standard Power over Ethernet, used to connect PD devices; Ports 1 – 8 PoE support cable lengths up to 250m @ 10Mbps (“Extend” mode enabled);...
-
Page 5: Product Specifications
1.7 Product Specifications Extend: Supports long reach PoE delivery, up to 250m. (Cat 5 or better cabling is recommended) VLAN: Isolates ports from each other. Adds security and improves network performance by constraining broadcast traffic. Switch Modes QOS: Introduces application prioritisation. Traffic with higher priority (e.g. Voice over IP) will be forwarded ahead of the queue.
