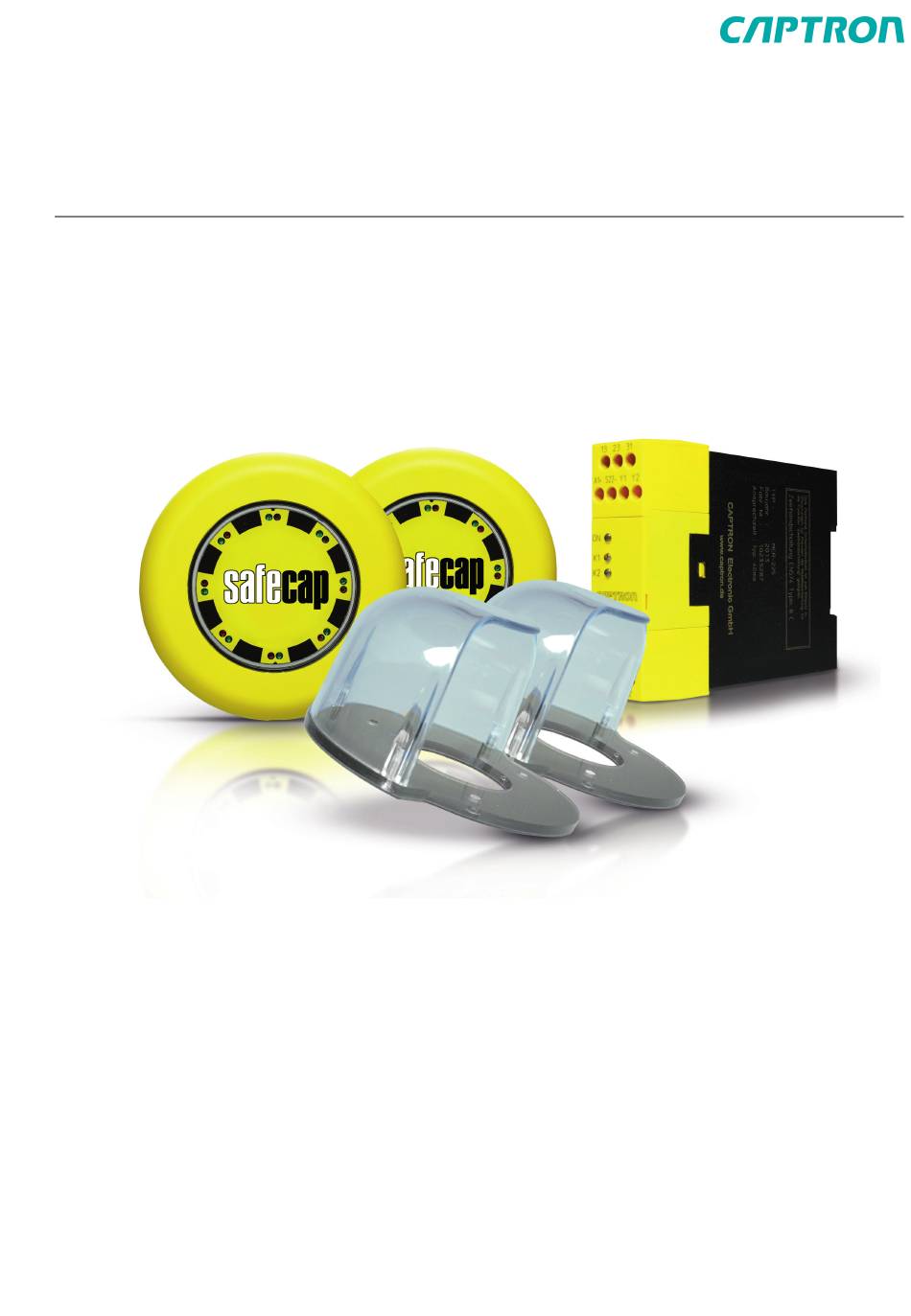

- Page 1 SC4 safeCAP SC4 Original operating instructions Original operating instructions safeCAP SC4 with MCR-225 safeCAP SC4 with MCR-225...
-
Page 2: Table Of Contents
MCR-225 connection plan..............12 5.5.2 Connecting SC4 to a spare safety relay..........12 Testing the safety function of the SC4........12 6 Maintenance................13 Maintenance operations............13 7 Disposal..................14 8 Technical specifications............14 Technical specifications, safety relay MCR-225......15 2/19 safeCAP SC4 safeCAP SC4 with MCR-225... - Page 3 Dimensional drawing...............16 8.2.1 SC4A....................16 8.2.2 SC4B....................17 9 Declaration of conformity............18 10 Imprint..................19 safeCAP SC4 3/19 safeCAP SC4 with MCR-225...
-
Page 4: Foreword
Read these operating instructions carefully and make sure that you have fully understood the contents before installing or working with the safeCAP SC4. The operator is responsible for validating the entire safety system. Safety... -
Page 5: General Safety
Before working on electrical systems, disconnect them from their voltage supply and secure them against being switched on again. Wear appropriate personal protective equipment (PPE). Defects that are ascertained, such as damaged or loose cables, must be remedied immediately. safeCAP SC4 5/19 safeCAP SC4 with MCR-225... -
Page 6: Intended Use
Intended use Combined with safety relay MCR-225, safeCAP SC4 ensures safety- related release and interruption of a safety circuit. safeCAP SC4 is used to protect people from work machines with dangerous closing movements. If safeCAP SC4 is used without the aforementioned safety relay, the operator is responsible for safety-related release and interruption of the safety circuit. -
Page 7: Equivalent T-Network
For other relays, values such as B or T can be specified. These values are not considered here and can be requested from CAPTRON. Equivalent T-network If an equivalent T-network is used for the relay, the entire FIT value for the equivalent T-network must be determined via an FMEDA or an equivalent method. -
Page 8: General Description
Red LEDs lit up. Button surface being actuated. Green LEDs lit up. SC4 not working Red LEDs flashing. Insufficient actuation speed The button surface is excessively dirty or wet There are objects on the button surface 8/19 safeCAP SC4 safeCAP SC4 with MCR-225... -
Page 9: Storage
An improperly assembled two-hand control device can result in death or life-threatening injuries. Select mounting surfaces for the safeCAP SC4 based on the dimensions and spacing specified in DIN EN ISO 13851. Protect safeCAP SC4 against unintended actuation, for example SCP-4. -
Page 10: Prepare Sc4 For Assembly
DIN EN ISO 1207 M4 DIN EN ISO 7045 M4 DIN EN ISO 1481 Ø3.9 mm DIN EN ISO 7049 Ø3.9 mm Maximum dimensions of the screws The drawing shows the maximum dimensions of the screws. 10/19 safeCAP SC4 safeCAP SC4 with MCR-225... -
Page 11: Sc4 Assembly Without Scp4
Do not use grease or oils to apply the cover ring (A). NOTICE The SC4 is not short circuit-proof and can be damaged if connected incorrectly. Before applying the operating voltage, check to ensure correct connection. safeCAP SC4 11/19 safeCAP SC4 with MCR-225... -
Page 12: Connecting Sc4 To The Safety Relay
Connecting SC4 to a spare safety relay The SC4 can also be connected to another safety relay or integrated in an SRP/CS and must be coordinated with CAPTRON Electronic GmbH. The safety of the system in which the SC4 is integrated is the responsibility of the operator. -
Page 13: Maintenance
Carry out the following maintenance operations at the specified intervals. Maintenance operation annually Testing interval needed Clean the button surface Test the safety function Check cables for intactness and firm fit Check screw connections for tightness safeCAP SC4 13/19 safeCAP SC4 with MCR-225... -
Page 14: Disposal
Minimum current 10 mA per contact Switching capacity at 24 V 200 mA per contact Reliability Semi-conductor level Input SC4 Operating voltage 24 V DC Ripple max. 10% Power consumption < 65 mA 14/19 safeCAP SC4 safeCAP SC4 with MCR-225... -
Page 15: Technical Specifications, Safety Relay Mcr-225
Circuit breaker C 8 A Safety figures Value Unit Category MTTF a, years 99.0 7.77 e-9 [1/h] average usage d [days/year] average usage h [hours/day] [s/cycle] cycle Lifetime years Test Time Interval months safeCAP SC4 15/19 safeCAP SC4 with MCR-225... -
Page 16: Dimensional Drawing
Refer to the safety relay instructions for more technical specifications. Dimensional drawing 8.2.1 SC4A 16/19 safeCAP SC4 safeCAP SC4 with MCR-225... -
Page 17: Sc4B
8.2.2 SC4B safeCAP SC4 17/19 safeCAP SC4 with MCR-225... -
Page 18: Declaration Of Conformity
Declaration of conformity 18/19 safeCAP SC4 safeCAP SC4 with MCR-225... -
Page 19: Imprint
Imprint The operating instructions have been authored and published by CAPTRON Electronic GmbH Johann-G.-Gutenberg-Straße 7 82140 Olching – Germany Tel +49 (0) 8142 - 44 88 – 160 sales@captron.com www.captron.com Copyright 2020 03.03.2021 safeCAP SC4 19/19 safeCAP SC4 with MCR-225...
