Summary of Contents for Enapter Electrolyser 4.0

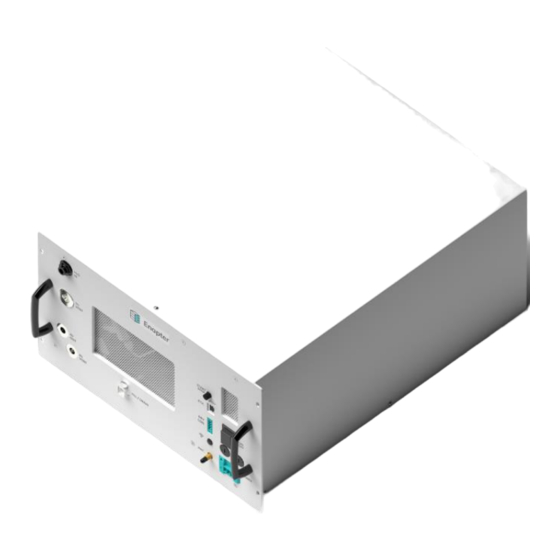

- Page 1 RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 Battery Limits Electrolyser 4.0 Please study these battery limits carefully before unpacking, installing, and operating the device. Rev. 01 – October 2022 EL – Battery Limits – Rev.01 – September 2022...
- Page 2 Reading this document does not replace the intensive studying of the owner’s manual. The purpose of this document is to define and describe the battery limits of the Electrolyser 4.0. It illustrates the physical interface ports of the device, to allow the operator to integrate it with the other equipment that composes his system.
- Page 3 To simplify reading, this document only refers to the operator to distinguish from Enapter but may also include the user, customer, client, owner, installer, instructor, system integrator or persons who are responsible for a safe operation of the device.
-
Page 4: Table Of Contents
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 TABLE OF CONTENTS 1.Device Interfaces ........................ 7 2.Interfaces specifications ...................... 9 O IN ..........................9 O2 VENT ..........................9 COOLING WATER IN / OUT.................... -
Page 5: Device Interfaces
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 1. DEVICE INTERFACES The following figure shows the position of the EL4.0’s physical interfaces. EL4.0 air cooled AC version front view EL4.0 liquid cooled DC version front view EL –... - Page 6 VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 EL4.0 bottom view EL – Battery Limits – Rev.01 – September 2022...
-
Page 7: Interfaces Specifications
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 2. INTERFACES SPECIFICATIONS The interfaces described in the following refer to the figures above. Not meeting these requirements may result in a higher degradation and damages to the device. The requirements in this document must always be met. -
Page 8: Cooling Water In / Out
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 Make sure that this line is exhausting safely to the atmosphere. Make sure to install an appropriate water trap at the lowest point of the O2 vent line to allow the H2O to drain freely. -
Page 9: H2 Vent
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 Make sure to connect H2 compatible and pressure resistant materials only. 2.5 H2 VENT This outlet port allows water which has been extracted from the H2, to leave the device. This venting happens twice during ramp up, every 6 h during operation (35 barg version) / every 3 h (8 barg version) and once during ramp down. -
Page 10: Start / Stop
VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 2.7 START / STOP This button allows the operator to start and stop the hydrogen production. Make sure to never start the device without a proper installation, inspection, and approval according to all relevant local safety guidelines, rules, directives, and regulations. -
Page 11: Wifi Button
Make sure to always keep the meshes free of dust and dirt. 2.17 The LED shows the status of the device. For more information, please refer to handbook.enapter.com. 2.18 LEAKAGE DRAIN HOLE The leakage drain hole allows the operator to drain the tray in case of an electrolyte or water leakage. - Page 12 VE RS I ON D O CU MEN T TI TLE RELEAS E DAT E EL 4.0 – Battery Limits 2022-10-24 EL – Battery Limits – Rev.01 – September 2022...
