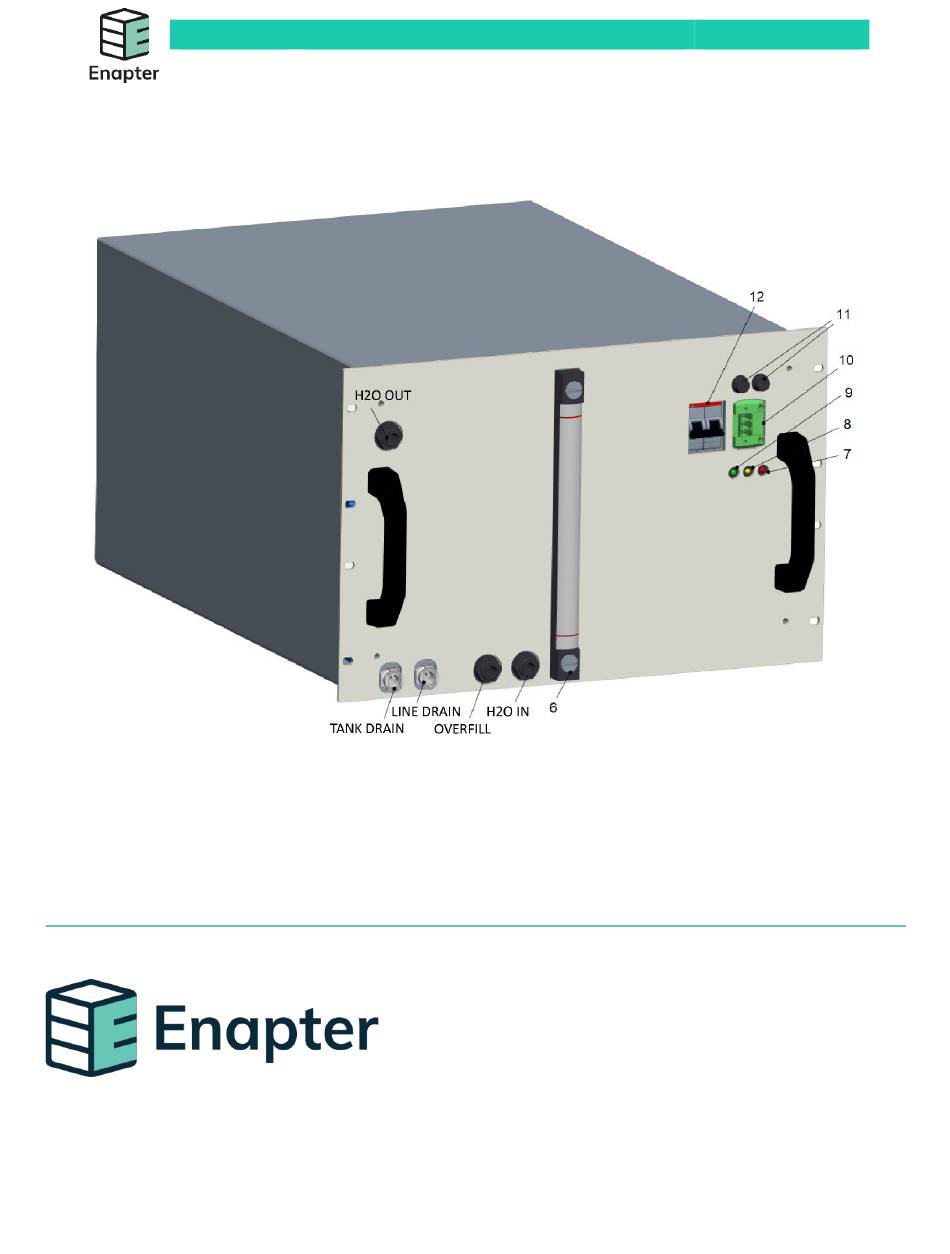

- Page 1 Version Document Title Release Date Enapter Water Tank Module 2.0 2021-03-18 Water Tank Module 2.0 For Enapter Systems Installation Manual Water Tank Module 2.0 Manual Rev. 2 – DECEMBER 2018 Enapter Water Tank Module 2.0 – Rev.10 – March 2021...
- Page 2 The following exception applies: photocopying pages from the manual for instruction for or by lecturers is allowed. Subject to change without prior notice. Enapter Water Tank Module 2.0 – Rev.10 – March 2021...
-
Page 3: Table Of Contents
WATER TANK MODULE 2.0 INSTALLATION ................. 14 Water connection ..............................14 Electric connection ..............................17 Power ON ................................. 17 CONFIGURATION 1 ........................18 CONFIGURATION 2 ........................19 LEDS MEANING ......................... 19 TROUBLESHOOTING ........................20 Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 4: Welcome
Scope of the document This installation Manual provides the installer with the information needed to install the Water Tank Module 2.0. The information contained in this manual will help you to install the Water Tank Module 2.0 safely and as intended. -
Page 5: Approved Use
2021-03-18 Approved use The Water Tank Module 2.0 has been designed to pressurize low-conductivity water that can be used directly for the Enapter Electrolyzers. According to the specifications and instructions provided in this manual, the unit must only be operated for this purpose. -
Page 6: Preface
Do not open or dismantle Keep away from sources of heat and ignition. No naked flames No smoking Minimum two persons required to handle the item Wear Personal Protective Equipment Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 7: General Safety Instructions
11. Only use demineralized water according to the specification stated in this manual 12. Only operate the unit in a room with sufficient ventilation Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 8: Hazards Description
It must be ensured that the system is installed and operated in compliance with local regulations and standards. Mechanical Hazards As for the generic mechanical hazard that can occur during operations requiring hand tools, Enapter Srl recommends wearing appropriate Personal Protective Equipment (PPE) and using suitable tools. Operators protections Before performing any operation, the operators must wear the appropriate PPE, such as cut- resistant gloves, safety shoes, protective goggles, etc. -
Page 9: Electrical Hazards
(in the absence of seismic or hydrogeological events of particular intensity). Furthermore, the Water Tank Module 2.0 has not been designed for outdoor use. It is the User’s responsibility to protect the system and all its accessories against atmospheric phenomena such as direct sunlight, rain, snow, and lightning. -
Page 10: Technical Specifications
Relative humidity: 20-95% non-condensing Demineralized water input (when coupled to Enapter’s Electrolyzers) Max conductivity at 25°C: < 20 µS/cm (at 25° C) Pressure values are intended as relative pressure values. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 11: Water Tank Module 2.0 Overview
Waterline Drain, only used if needed LINE DRAIN W1.7 to “clean” the tank for maintenance LINE DRAIN purposes. Water level indicator: used to indicate the level of water inside the tank. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 12: Internal Components
WORKING PRINCIPLE Thanks to a self-priming pump, the stored water is pumped towards the electrolysers: a check valve is installed downstream of the pump to avoid backflow towards the water tank. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... - Page 13 Although the pump can run between the maximum and minimum level in normal operating conditions, if the power fails at the WTM, the pump won’t work unless the medium level is reached again after restarting the system. Enapter Water Tank Module 2.0 – Rev.10 – March 2021...
-
Page 14: Water Tank Module 2.0 Installation
When using the WTM to feed Enapter’s electrolysers you must provide to this port (H2O IN) de- ionized water, with a conductivity < 20 microSiemens/cm. - Page 15 WTM and observing that the water discharges into an empty container. When you’re using the WTM to feed Enapter’s electrolysers, be sure that this port is connected to the homonym port on the electrolyser’s front side.
- Page 16 2. Quick-connect the provided 10 mm Ø LLDPE pipe to port LINE DRAIN. A little water comes out from the quick-connected pipe, depressurizing the module. 3. Disconnect the pipe. 4. Now it is possible to disconnect the pipe connected to port H2O OUT. Enapter Water Tank Module 2.0 – Rev.10 – March 2021...
-
Page 17: Electric Connection
Power ON When the water connections and the electrical connection are performed (see possible configurations below), it is possible to activate the magnetothermic switch (12) and let the WTM work. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 18: Configuration 1
This process requires some time; it depends on the adopted Water Purification System; • If the electrolysers require water, the pump starts to work, provided that the green LED is “on” and the red LED is “off”. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 19: Configuration 2
LED). Yellow led “on”: Not enough water inside the water tank. Green led “on”: Proper functioning of the system. Except if also the red LED is “on”. Enapter Water Tank Module 2.0 – Rev.10 – March 2021... -
Page 20: Troubleshooting
The water outlet line may have air inside that triggers an error. Make sure to fill the tube before turning on the WTM again. You are ready to use the Water Tank Module 2.0. Enjoy it! Enapter Water Tank Module 2.0 – Rev.10 – March 2021...
