ROOMS TO GO SYNE 2111-85PHR-Air Assembly Instructions

Manufactured for Rooms To Go
***CAUTION: The item is heavy, assembly should be performed by two people in soft surface.

Parts#

A
C
1) Please note that the arm pad has left side and right side. We stick the label " Front/left" and "Front/right" on the arm
pad and arm base.
2) The bolts package with a sticker "hardware" is attached to the bottom of base rail.(See Figure 1)
3) Attached each bolt to corresponding pre-drilled holes by hand turning on clockwise direction as figure underneath.
(See Figure 2) Please attached to Screw the shorter threaded end of the bolt into the armrest and follow the arrow
direction to Insert the longer threaded end of the bolt into the hole in the base (Figure 3).
4) Please place the washers and Butterfly nut into the bolt as show by hand and then turning in clochwise direction until
it is tight.(See Figure 4)

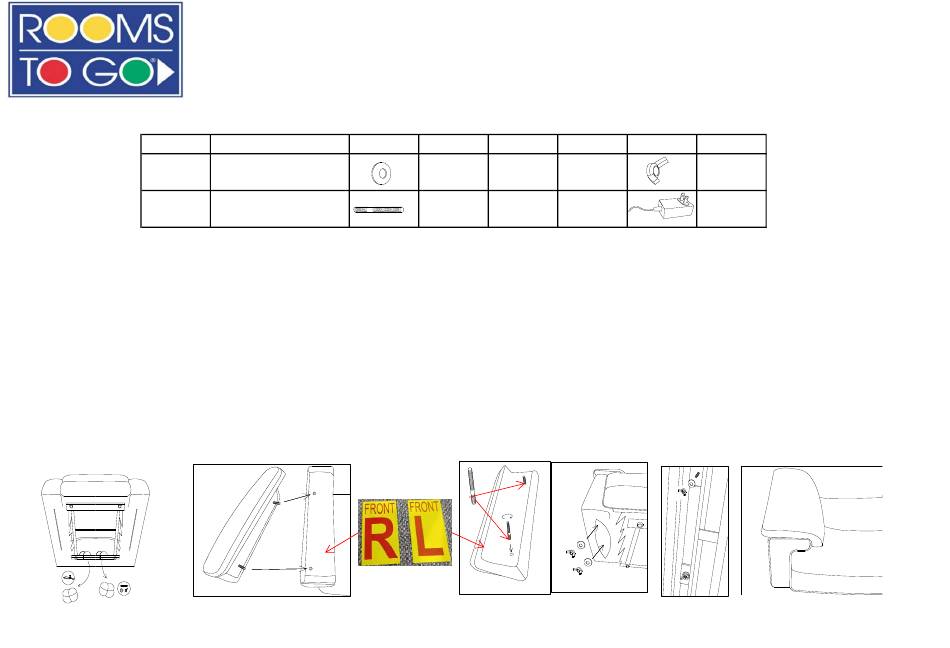

Figure 1
Assembly Instructions
SYNE 2111-85PHR-Air Recliner w/power Headrest, Air Massage
SKU# 15702118/15702120
Desc. Pattern
Washer
Bolt (M8*3.14"，18
threads per inch)
Label
Figure 2
Q'ty Parts# Desc.
Butterfly
4 pieces B
nut
Transfor
4 pieces D
mer
C
A
Label
B
Figure 3
Pattern Q'ty
4 pieces
1 pieces
Figure 4
