ROOMS TO GO SYNE 2111-52PHR-Air Assembly Instructions

Reclining sofa w/power headrest, air massage

Advertisement

Quick Links

Manufactured for Rooms To Go
***CAUTION: The item is heavy, assembly should be performed by two people in soft surface.
Parts#
A
C

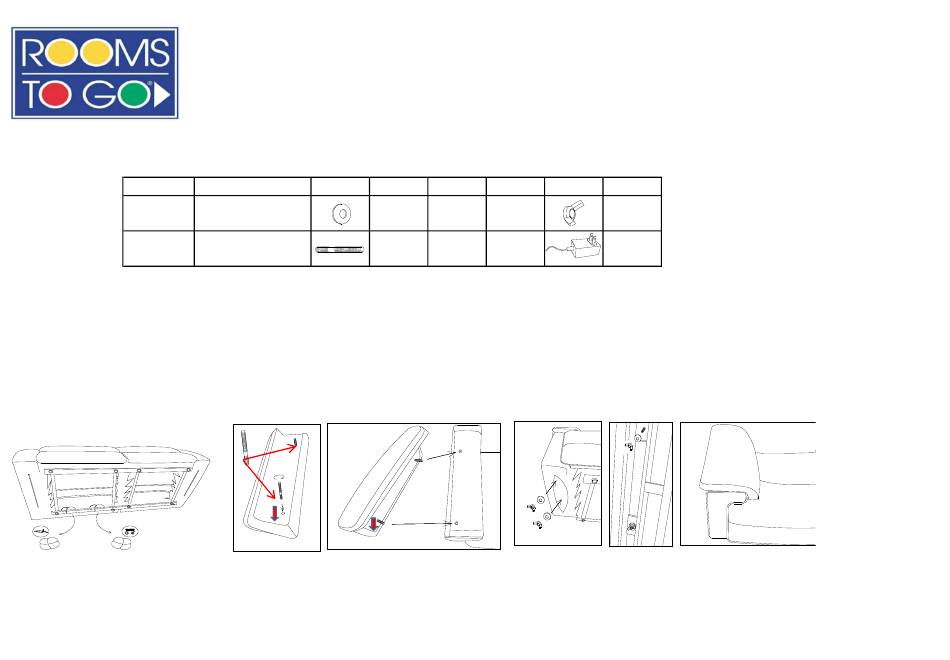

1) The bolts package with a sticker "hardware" is attached to the bottom of base rail.(See Figure 1)
2) Attached each bolt to corresponding pre-drilled holes by hand turning on clockwise direction as figure underneath.
(See Figure 2) Please attached to Screw the shorter threaded end of the bolt into the armrest and follow the arrow
direction to Insert the longer threaded end of the bolt into the hole in the base (Figure 3).
3) Please place the washers and Butterfly nut into the bolt as show by hand and then turning in clochwise direction until
it is tight.(See Figure 3)
Figure 1
Assembly Instructions
SYNE 2111-52PHR-Air Reclining Sofa w/power
Headrest, Air Massage
SKU# 15121128 15121116
Desc.
Pattern
Washer
4 pieces
Bolt (M8*3.14",
4 pieces
18 threads per
C
Front
Figure 2
Figure 3
Q'ty
Parts#
Desc.
Pattern
Butterfly
B
nut
Transfor
D
mer
A
B
Q'ty
4 pieces
2 pieces
Figure 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYNE 2111-52PHR-Air and is the answer not in the manual?

Questions and answers

Summary of Contents for ROOMS TO GO SYNE 2111-52PHR-Air

  • Page 1 Assembly Instructions SYNE 2111-52PHR-Air Reclining Sofa w/power Headrest, Air Massage SKU# 15121128 15121116 Manufactured for Rooms To Go ***CAUTION: The item is heavy, assembly should be performed by two people in soft surface. Desc. Parts# Pattern Q'ty Parts# Desc. Pattern...
  • Page 2 Step 1 Please located the hand controller at the beside of metal bracket. Step 2 Slide the metal receiver over the metal post.Press both sides of back firmly downward until locked in place. Step3 Locate the power cord C attached to the bottom back and connect to Step 6 plug D located at the rear of seat.
