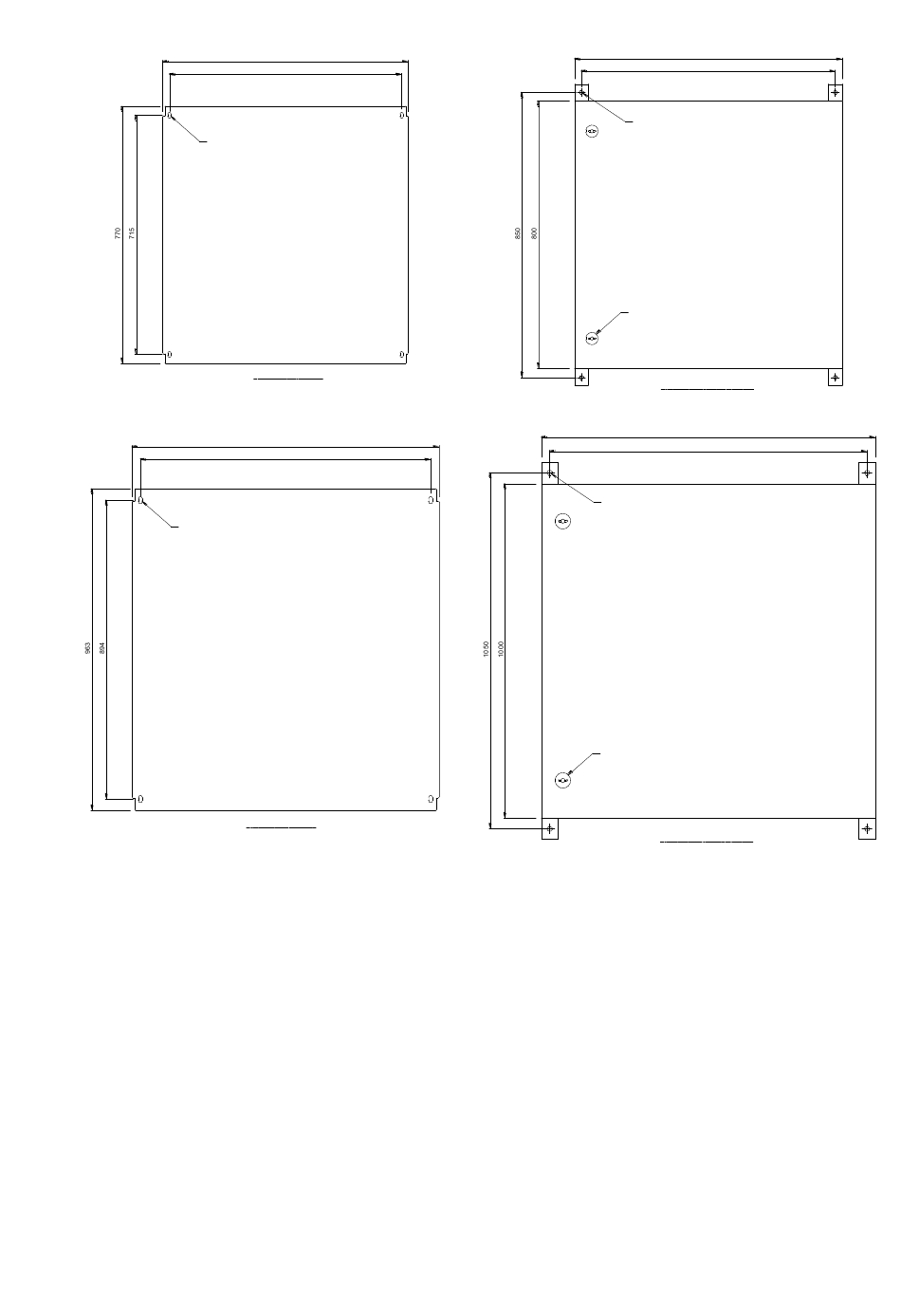

PROMET EExd Process Moisture Analyzer Sampling Systems
____________________________________________________________
M8 MOUNTING
HOLES
M8 MOUNTING
HOLES
____________________________________________________________
735
695
1 CHANNEL PANEL
919
869
2 CHANNEL PANEL
www.michell.com
Installation, Operation & Maintenance Manual and User Guide
M10 MOUNTING
HOLES
3mm DOUBLE
BIT LOCKS
M10 MOUNTING
HOLES
3mm DOUBLE
BIT LOCKS
800
760
1 CHANNEL ENCLOSURE
1000
950
2 CHANNEL ENCLOSURE
