Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM03 and is the answer not in the manual?

Questions and answers

Carlos Mario Carmona
January 22, 2025

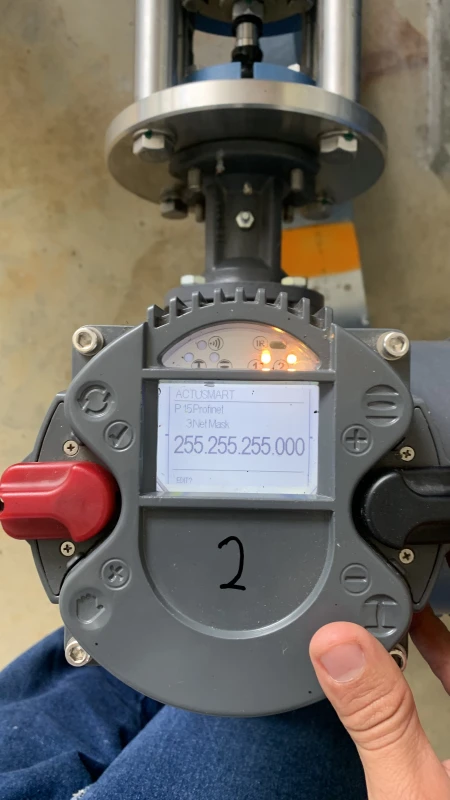

Hola buenos días, mi consulta es qué tipo de lubricante se le aplica

User image 6790ed4c48008
0
1 comments:
Mr. Anderson
February 10, 2025

The type of lubricant to be applied to the Schiedel CM03 depends on the operating instructions and the temperature range. The lubricant specification and quantity should follow the guidance provided in the operating manual. Additionally, all moving parts and internal surfaces are coated during initial assembly or after complete disassembly.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Schiedel CM03

Summary of Contents for Schiedel CM03

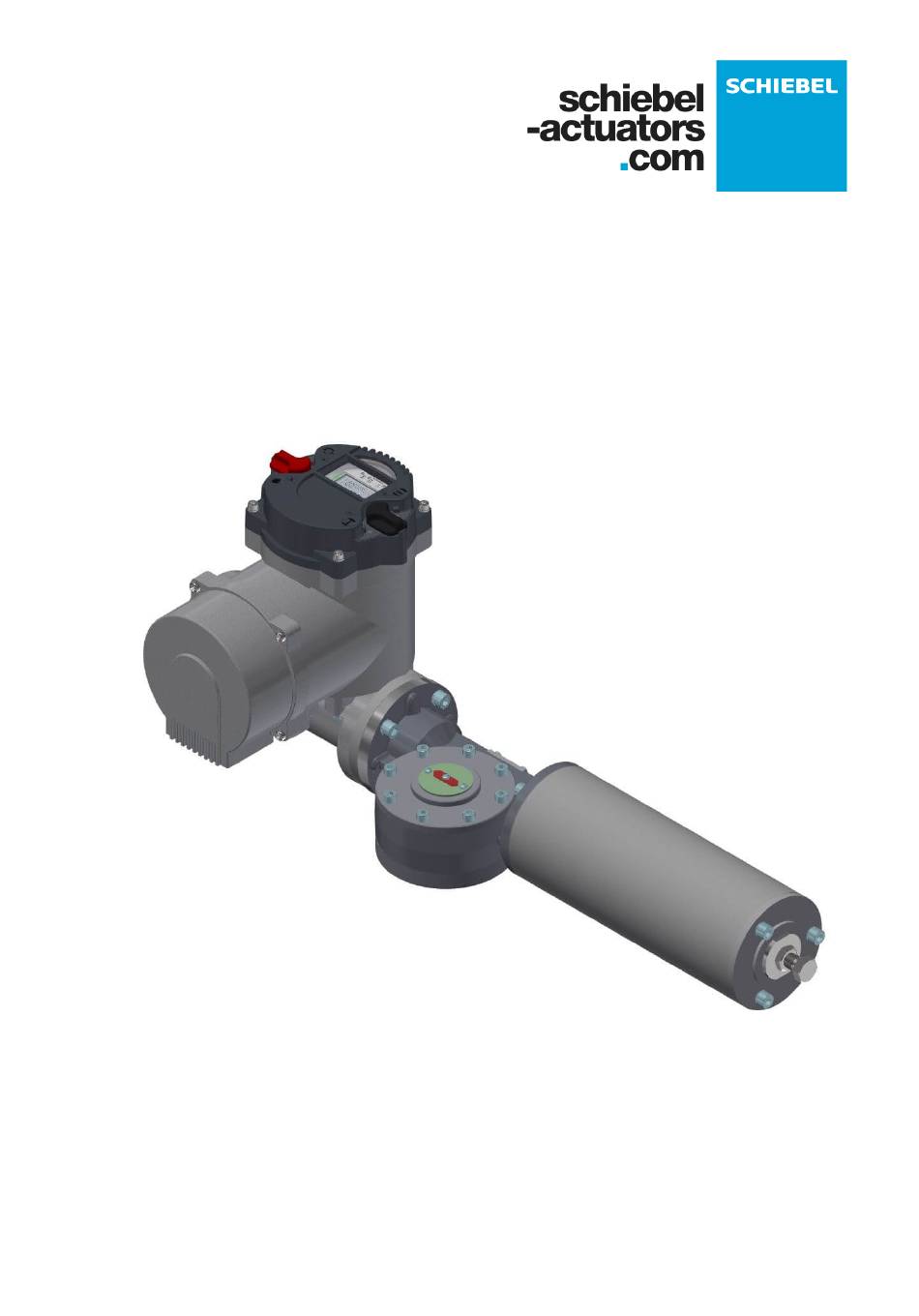

  • Page 1 Operating Manual 90° ACTUSAFE CMF(S)QT OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01...
