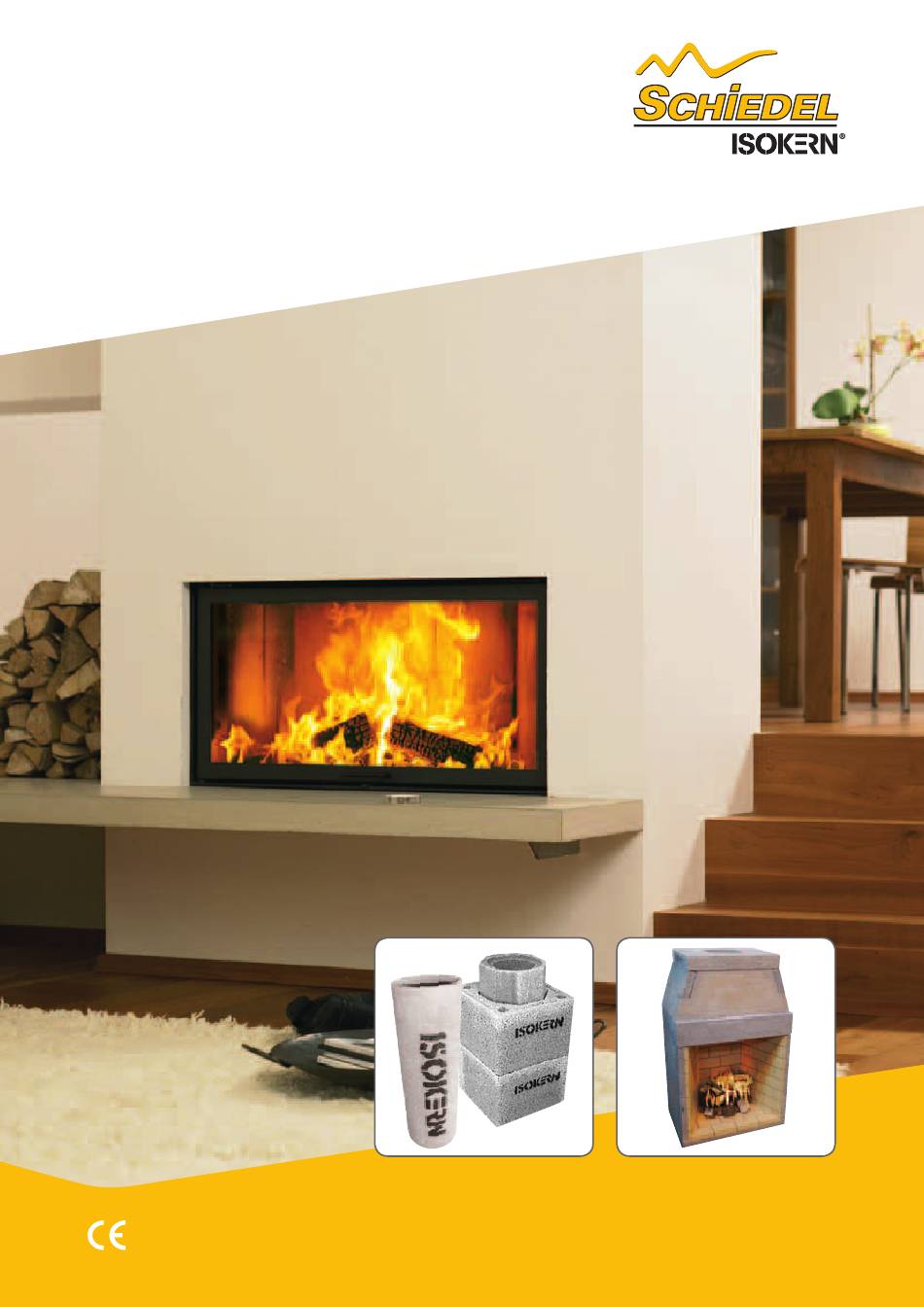

- Page 1 PUMICE SYSTEM CHIMNEYS & LINERS ...naturally better Part of the BRAAS MONIER BUILDING GROUP DOC/CP3/64 SAP Issue 4 940002642 March 2016...
-
Page 2: Product Description

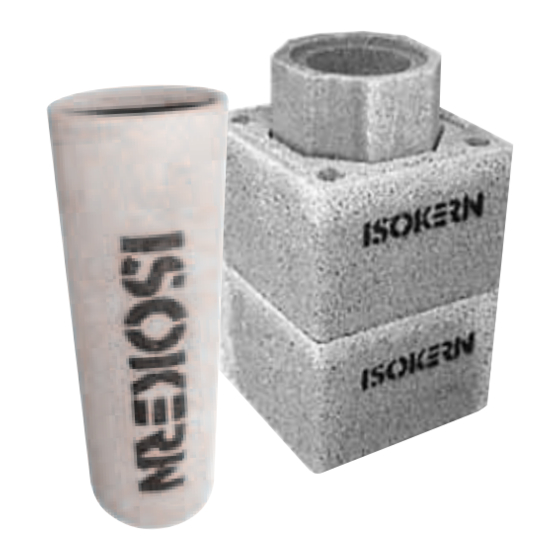

Product Description Schiedel Isokern products can be used for new chimneys and for the refurbishment of existing chimneys. The Isokern chimney systems provide a lightweight, easily installed and versatile chimney which can be used internally or externally. The systems are suitable for use with burning appliances in new and refurbished projects. - Page 3 DM Double Module Chimney System When the ease of construction and maximum insulation matter then the Double Module System comes into its own. The system is designed to be quick and easy to install. The lightweight blocks are easy to handle. The outer and inner blocks are laid at the same time but with staggered joints for safety and stability.
- Page 4 FREE STANDING STOVE FREE STANDING STOVE IN A RECESS. WITH EXTERNAL CHIMNEY AND System includes a Stainless Steel adaptor for ease of PREFORMED FLUE ENTRY KIT connection between the stove and the DM Chimney. Downloadable drawings available from our web site www.schiedel.co.uk...
- Page 5 DM 36 - for smaller output inserts, stoves and cookers Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated S-803636 130714 360mm square casing 250mm high S-803637 130712 360mm square access casing 250mm high (150mm i/d access hole) S-803641 130713 360mm square casing &...
- Page 6 38mm clearance ≤ 590 x 550mm) from structural timber Support block and Suitable foundation adaptor for connection to flue pipe OPEN FIRE USING STANDARD FIRECHEST Glass fronted inset fire INSET FIRE Downloadable drawings available from our web site www.schiedel.co.uk...
- Page 7 DM 44 - for inserts, stoves and small open fires Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated S-44433 130727 440mm square casing 300mm high S-44437 130725 440mm square access casing 300mm high (220mm i/d access hole) S-44441 130726 440mm square casing &...
- Page 8 DM casings can be finished with plaster Joints sealed with lip glue Staggered joints between casing and flue block Magnum firechest complete with damper Fiirebrick lining inside firechest LARGE FIRE OPENING CREATED WITH MAGNUM FIRECHEST Downloadable drawings available from our web site www.schiedel.co.uk...
- Page 9 DM 54 - for larger open fires and appliances Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated S-45433 130708 545mm square casing 300mm high S-70002 129031 300mm i/d 420 x 420 starter flue block 150mm high S-70003 129093 345mm i/d 420 x 420 starter flue block 150mm high...
- Page 10 Typical DM Installation Detail FOUNDATIONS STOVE IN RECESS OPTION Construction begins by providing a suitable foundation Pre-stressed lintels or a suitable cast-in-situ concrete slab and constructional hearth in accordance with Building must be provided above the stove recess, please make sure Regulations and site requirements.
- Page 11 Typical DM Installation Detail CHIMNEY CONSTRUCTION Bed the first outer casing using lip glue making sure the On a rendered stack with a top ring fitted (see p.12 for rebate (raised lip) is uppermost. The starter flue block is example), where a straight chimney passes through a floor then put inside the casing bedded with lip glue.
- Page 12 (not supplied) electrical consumer unit. The checklist and notice plate are available from Schiedel Isokern. RENDERED STACK USE AND MAINTENANCE The chimney should be left for at least 72 hours before...
- Page 13 100 x 65mm lintels Support block and adaptor for connection to flue pipe Support plate 140 x 140mm lintels Cast in situ slab to support chimney Glass fronted inset fire FREE STANDING STOVE INSET FIRE Downloadable drawings available from our web site www.schiedel.co.uk...
- Page 14 Liners and Accessories Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated Round Liners 10015 126372 150mm i/d 600mm high rebated liner (200mm o/d) 10017 126498 175mm i/d 600mm high rebated liner (235mm o/d) 10020 127685 200mm i/d 600mm high rebated liner (250mm o/d) 10022...
- Page 15 Liners and Accessories Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated Liner Bends (Larger diameters available on request) 10810 126364 150mm i/d 15˚ rebated bend 10811 126365 150mm i/d 30˚ rebated bend 10812 126367 150mm i/d 45˚...
- Page 16 Liners and Accessories Old Code SAP Code Description Weight (kg) All dimensions are external unless otherwise stated Access Blocks 10415 126362 150mm i/d 215mm square 205mm high rebated access block 10420 127678 200mm i/d (also for 175mm) 280mm square 280mm high rebated access block Soot Door 142837...
- Page 17 Typical Liner Installation Detail Construction begins by providing a suitable foundation and constructional hearth in accordance with Building 45˚ T liner Regulations and site requirements. STOVE IN RECESS OPTION 45˚ Wall sleeve Our pre stressed lintels must be installed above the fireplace recess , for this method a support plate is required under the support block.
-
Page 18: Use And Maintenance
The checklist and notice plate are offset distance. A steel collar as well as lip glue must be available from Schiedel Isokern. used for any cut joints. A maximum of 2 complete offsets (4 bends) are allowed per chimney and the angle must not be greater than 45˚... - Page 19 Useful Charts and Information FLUE AREA AND LIP GLUE QUANTITY CHART Int. Diameter of Liners Ext. Diameter Int. Area Approx number of & Flue Blocks (mm) of Liner (mm) of Liner (cm joints per bag of glue 1256 1590 1963 2826 DM36 Casing DM44 Casing...
- Page 20 Useful Charts and Information OFFSET DIMENSION CHART Int. Diameter Angle Overall Offset of Liner (mm) of Bend Combined Height Distance (mm) 15˚ 30˚ 45˚ 15˚ 30˚ 45˚ Offset distance 15˚ 30˚ Angle 30˚ 45˚ 15˚ 30˚ 45˚ Height 15˚ 30˚ 45˚...
- Page 21 Useful Charts and Information VENTILATION REQUIREMENTS It is very important that sufficient air for combustion The carbon monoxide alarms should comply with BS EN and ventilation is provided to the room containing the 50291:2001. appliance, to enable correct and efficient working of the The carbon monoxide alarm must be located in the same appliance and chimney system.
- Page 22 The Schiedel Isokern firechest complements the Isokern chimney systems which are designed to create a complete system, avoiding many of the variable factors that lead to draught problems and smoky fireplaces.
- Page 23 Firechests Magnum Firechests Model Opening Opening Ext. Ext. Ext. Weight Code Code Width Height Width Height Depth (mm) (mm) (mm) (mm) (mm) (kg) 80120 130773 500 1540 82036 129371 950 1090 1761 82042 129568 1100 1130 1230 1761 82048 129767 1200 1246 1346 1761...
- Page 24 IGNIS-PROTECT Designed specifically for Air Tight, Energy Efficient and Timber Framed Buildings Use of 90° Ignis-Protect System in accordance with BS EN 15287-1 Acceptable alternative methods of connection methods Wall Wall Band Where a horizontal connecting flue of more than 150mm is required to connect a solid fuel fired appliance to a chimney, Twin Wall an installation method as per the examples below may be used provided the following criteria is met:- Chimney System...
-
Page 25: Typical Installation
Typical Installation IGNIS-PROTECT Insulation - 45˚ Version Damp proof barrier Vapour barrier membrane Schiedel Isokern Double Module System Plasterboard Permanently elastic sealing strip Ignis-Protect - 45° External version Prima Smooth Stove Pipe Timber framework for Ignis-Protect Plasterboard Hearth Components CP Ignis-Protect...
