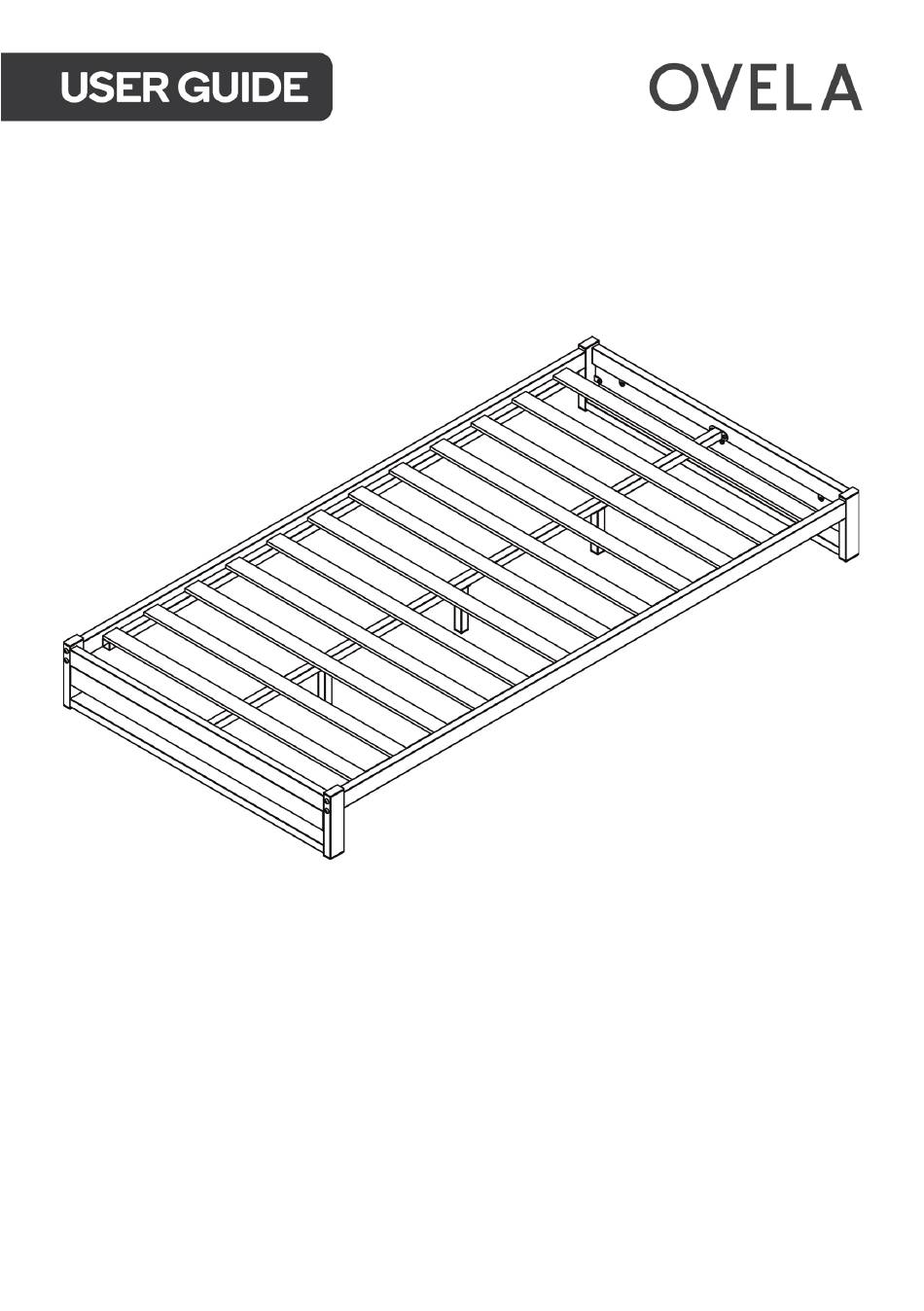

- Page 1 HENDON METAL BED DOUBLE/QUEEN/KING OVHENDMBWDA, OVHENDMBWQA, OVHENDMBWKA...
- Page 3 COMPONENTS 2 Upper board (x2) 3 Side frame pole (x2) Large board (x2) 4 Middle frame pole (x1) 5a Lower slat assembly (x1) 5b Upper slat assembly (x1) 6 Leg (x3) 7 Protective cover (x8) 8 Leg cover (x3)
- Page 4 Hardware A 70mm M8 screw (x8) B 16mm M6 screw (x10) C 12mm M4 screw (x10) S4 M6 Allen key (x1) S5 M8 Allen key (x1)
- Page 5 ASSEMBLY Step 1: Using a Phillips screwdriver (not supplied), secure one large board (1) to one upper board (2) with 12mm M4 screws (C). Place a protective cover on the top and bottom corners of the large board (1). Repeat this process with the remaining large board (1) and upper board (2). This will result in two board assemblies.
- Page 6 Step 2: Place leg covers (8) under each leg (6). Align the screw holes on each leg (6) with the screw holes on the middle frame pole (4). Using the M8 Allen key (S4), secure the legs (6) to the middle frame pole (4) by inserting and tightening 16mm M6 screws (B). B (x6) S4 (x1)
- Page 7 Step 3: Align the holes on one end of the side frame poles (3) with one board assembly. Using the M8 Allen key (S5), secure the side frame poles (3) to the board assembly with 70mm M8 screws (A). Align the holes on one end of the leg assembly with the board assembly. Using the M6 Allen key (S4), secure the leg assembly to the board assembly with 16mm M6 screws (B).
- Page 8 Step 4: Align the holes on the other end of the side frame poles (3) with the remaining board assembly. Using the M8 Allen key (S5), secure the side frame poles (3) to the remaining board assembly with 70mm M8 screws (A). Align the holes on the other end of the leg assembly with the remaining board assembly.
- Page 9 Step 5: Place the lower and upper slat assemblies (5a, 5b) on top of the frame.
- Page 10 Assembly complete.
-
Page 11: Cleaning And Care
CLEANING & CARE Depending on the extent of use, it may be necessary to tighten the fixings from time to time. This is normal for any flat pack furniture. Use a damp cloth, feather duster or normal furniture polish to clean the bed. - Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
