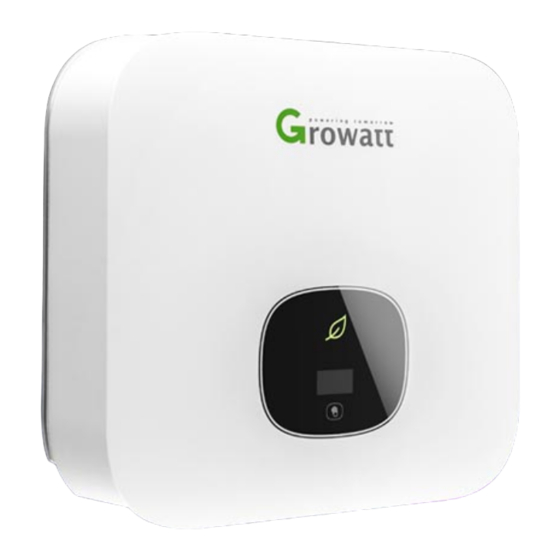

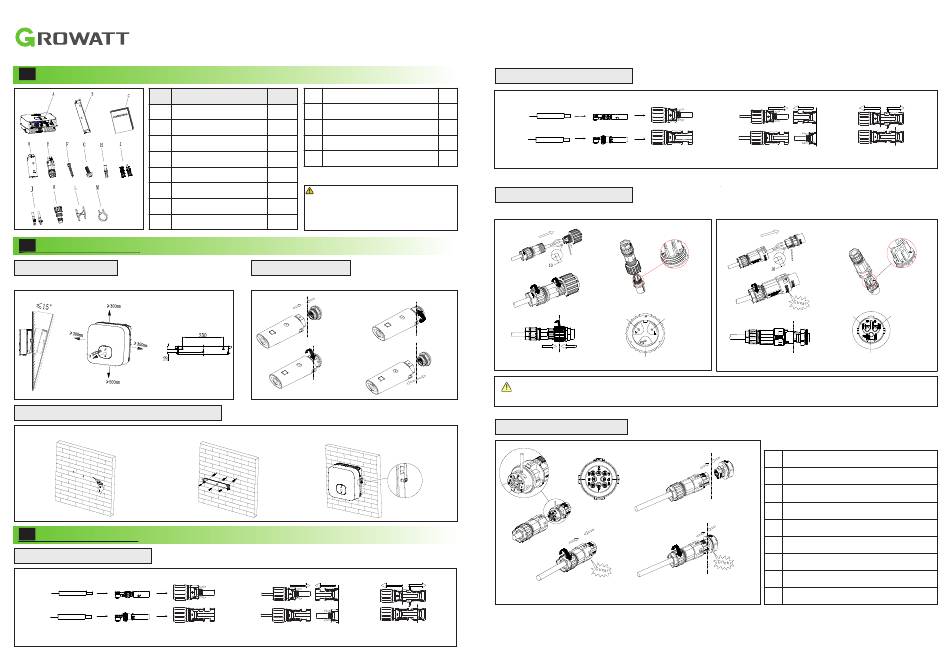

Growatt MIN 2500 TL-XH Quick Manual

1.

Overview

Object
A Inverter
B Mounting bracket
C Quick Guide
D Monitor(Optional)
E Signal connector
F Self-tapping screws
G Safety-lock screw
H Plastic expansion pipe
2.

Installing the Device

2.1 Installation Requirements
Tilt and Space

2.2 Installing the Mounting Bracket And Min 2500-6000 TL-XH

Drilling holes
3.

Connecting Cables

3.1 Installing the PV Input Power Cable

Positive metal Positive connector
terminal
Cables
4~6mm²
4~6mm²
Cables
Negative metal
Negative connector
termina
MIN 2500-6000 TL-XH
Quick Guide
Description Quantity I PV+/PV- terminal
1 J
PV+/PV- and BAT+/BAT- metal terminal
1 AC connector
K
1
L Uninstall signal or AC connector tool
1 M Uninstall PV or BAT terminal tool
2
Notice：
3
Before installing the device,check that the pack-
1
age contents are intact and complete against
the packing list.If any damage is found or any c-
3
omponent is missing,contact your dealer.

2.3 Installing the Monitor

Ensure that the Monitor is installed securely.
Install The Inverter Remove
Side
The Inverter
Side
Installation & Tighten
Fix the wall bracket
screw assemblies
Pull the PV input power cable back to ensure that it is connected securely.
The Inverter Side

3.2 Installing the BAT Input Power Cable

2/2
Cables
3/3
4~6mm²
1
4~6mm²
1
Cables
1

3.3 Installing the AC Output Power Cable

Connect the AC output power cable to the AC connector.
The Inverter
Side
The Inverter
Side
Lock the housing
Notice: On the right is the Australian special AC connector.
Suggest using 6mm2 cables Ensure the exposed core wire is totally inserted into the cable hole and connected securely.

3.4 Installing the SYS COM Signal Cable

The Inverter Side
Positive metal Positive connector
Pull the BAT input power cable back to ensure that it is connected securely.
terminal
Negative metal
Negative connector
termina
The Client Side
The Client Side
N
The Inverter
L
Side
L---Line
N---Neutral
PE-Ground
PE
The Inverter
side
The Inverter
side
The Inverter Side
The Inverter Side
The Client Side
L
N
The Inverter
Side
L---Line
N---Neutral
PE-Ground
Lock the housing PE
SYS COM Port Pin Definitions
NO Definition
Enable-: Connect BDC enable signal
1
port negative
Enable+: Connect BDC enable signal
2
port positive
RS485A2:Connect Min ShineBus or Third
3
party monitoring equipment
RS485B2:Connect Min ShineBus or Third
4
party monitoring equipment
5 RS485A1:Signal for meter
6 RS485B1:Signal for meter
BAT-B: Connect BDC communication RS485B
7
or CANL
BAT-A: Connect BDC communication RS485A
8
or CANH
