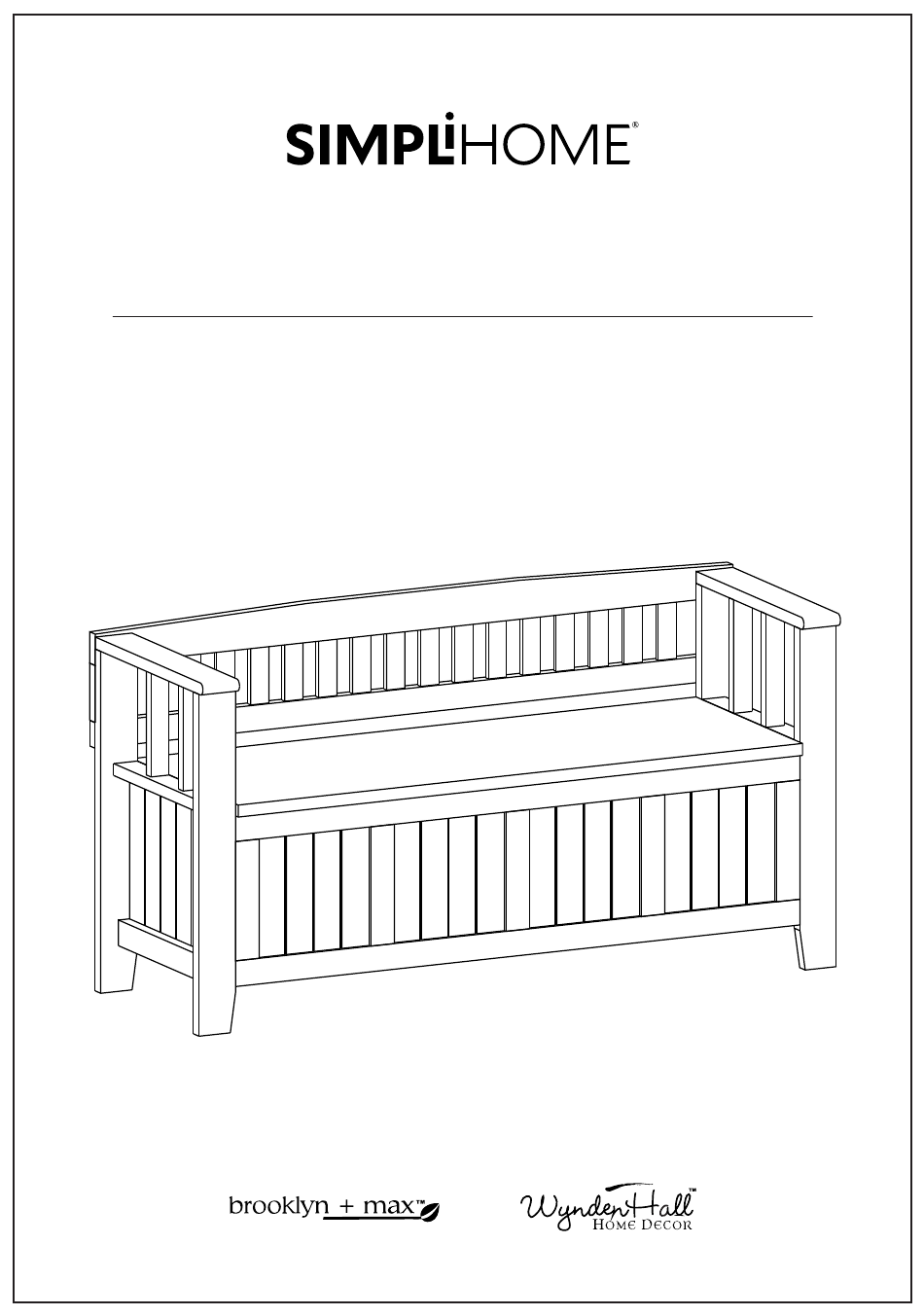

- Page 1 Acadian / Normandy / Brunswick Entryway Storage Bench Model # AX2370-RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AX2370-RNAB Part Description V16-AL V16-AR V16-B SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-D V16-E DIVIDER FRONT BACKREST QTY 1 QTY 1 QTY 1 V16-F V16-G V16-H BACK PANEL BOTTOM PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1...
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AX2370-RNAB Hardware Description ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY SCREW M6 X 40 mm M6 X 30 mm M6 x 30 mm QTY 8 QTY 4 QTY 2 WOOD DOWEL LID SUPPORT ALLEN KEY 8 X 30 mm QTY 1 QTY 1... - Page 9 Components - Key Diagram Model # AX2370-RNAB V16-F V16-B V16-C V16-AR V16-D V16-AL V16-G V16-E V16-H...
- Page 10 Assembly Model # AX2370-RNAB Step 1 V16-F Hinge V16-C Small pre-drilled holes 1. Insert Dowel 6 into Divider V16-C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 11 Assembly Model # AX2370-RNAB Step 2 V16-G V16-C V16-F V16-G V16-C V16-F 1. Attach Bottom Panel V16-G to Divider V16-C & Back V16-F by sliding on the gap between Divider V16-C & the long rail on Back V16-F .
- Page 12 Assembly Model # AX2370-RNAB Step 3 NOTE: The screwdriver is not included in the hardware pack. V16-D V16-C 1. Insert Dowel 6 into Divider V16-C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AX2370-RNAB Step 4 V16-D V16-F V16-AL V16-D V16-AR V16-F 1. Insert 4 Dowels 6 into each Side V16-AL , V16-AR at specified location. 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 14 Assembly Model # AX2370-RNAB Step 5 NOTE: The screwdriver is not included in the hardware pack. V16-G V16-H V16-H 1. Attach Bottom Support Leg V16-H into pre-drilled holes of Bottom Panel V16-G using 4 Phillips Screws 8 . 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AX2370-RNAB Step 6 NOTE: The screwdriver is not included in the hardware pack. V16-B V16-F 1. Attach Seat V16-B to 3 Hinges on Back V16-F using Phillips Screws 7 ( using guide holes underneath of Seat ). 2.
- Page 16 Assembly Model # AX2370-RNAB Step 8 V16-AR V16-AL V16-E 1. Attach Backrest V16-E to back of Sides V16-AL , V16-AR using Allen Key Bolt 2 into pre-drilled holes. 2. Use Allen Key 5 to tighten Bolts. Do not over-tighten.
