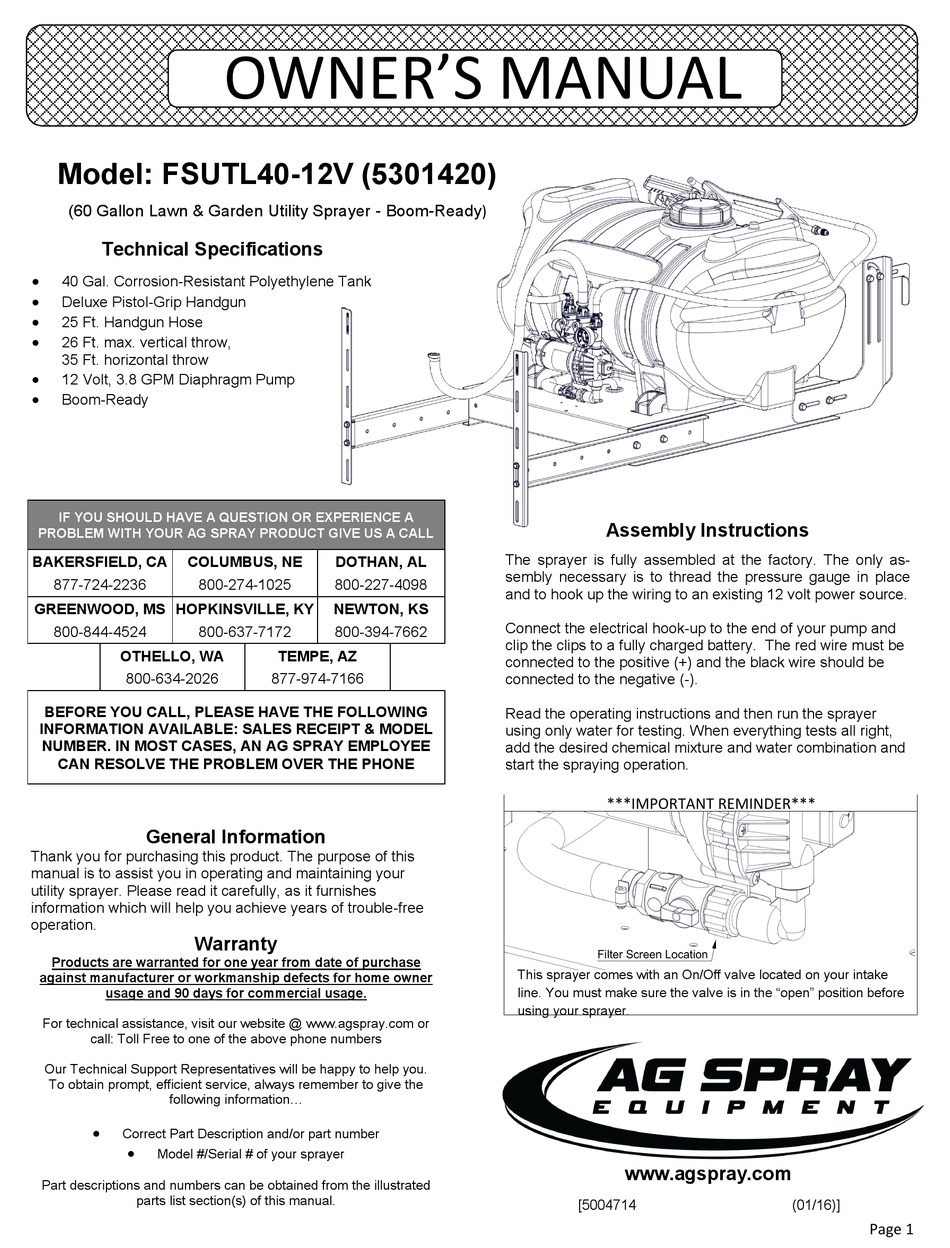

AG SPRAY FSUTL40-12V Owner's Manual

60 gallon lawn & garden utility sprayer - boom-ready

Advertisement

Quick Links

Model: FSUTL40-12V (5301420)
(60 Gallon Lawn & Garden Utility Sprayer - Boom-Ready)

Technical Specifications

40 Gal. Corrosion-Resistant Polyethylene Tank
Deluxe Pistol-Grip Handgun
25 Ft. Handgun Hose
26 Ft. max. vertical throw,
35 Ft. horizontal throw
12 Volt, 3.8 GPM Diaphragm Pump
Boom-Ready
IF YOU SHOULD HAVE A QUESTION OR EXPERIENCE A
PROBLEM WITH YOUR AG SPRAY PRODUCT GIVE US A CALL
BAKERSFIELD, CA
COLUMBUS, NE
877-724-2236
800-274-1025
GREENWOOD, MS HOPKINSVILLE, KY
800-844-4524
800-637-7172
OTHELLO, WA
800-634-2026
BEFORE YOU CALL, PLEASE HAVE THE FOLLOWING
INFORMATION AVAILABLE: SALES RECEIPT & MODEL
NUMBER. IN MOST CASES, AN AG SPRAY EMPLOYEE
CAN RESOLVE THE PROBLEM OVER THE PHONE

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
utility sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @ www.agspray.com or
call: Toll Free to one of the above phone numbers
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
DOTHAN, AL
800-227-4098
NEWTON, KS
800-394-7662
TEMPE, AZ
877-974-7166

Assembly Instructions

The sprayer is fully assembled at the factory. The only as-
sembly necessary is to thread the pressure gauge in place
and to hook up the wiring to an existing 12 volt power source.
Connect the electrical hook-up to the end of your pump and
clip the clips to a fully charged battery. The red wire must be
connected to the positive (+) and the black wire should be
connected to the negative (-).
Read the operating instructions and then run the sprayer
using only water for testing. When everything tests all right,
add the desired chemical mixture and water combination and
start the spraying operation.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.agspray.com
[5004714
(01/16)]
Page 1
