FrSky TWIN X Lite Manual

Introduction

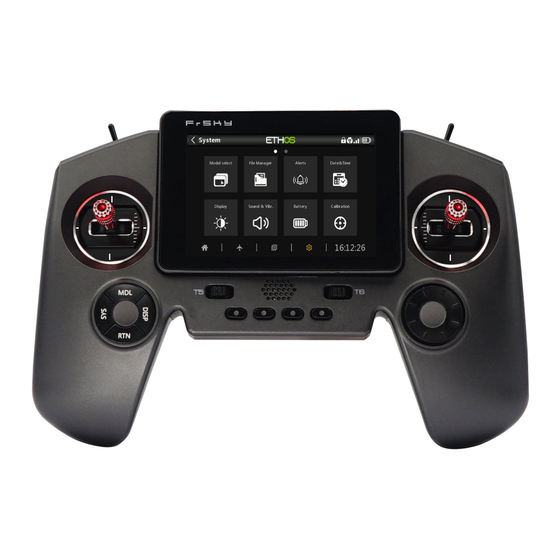

The TWIN X Lite transmitter works with built-in dual 2.4GHz simultaneous working RF module and ETHOS radio
system with touchable Screen.The transmitter includes easy-to-reach sliders and switches, 4 standard stick trims
with additional 2 extra trims added to provide more flexibility with flight attitude adjustments while operating the
radio.

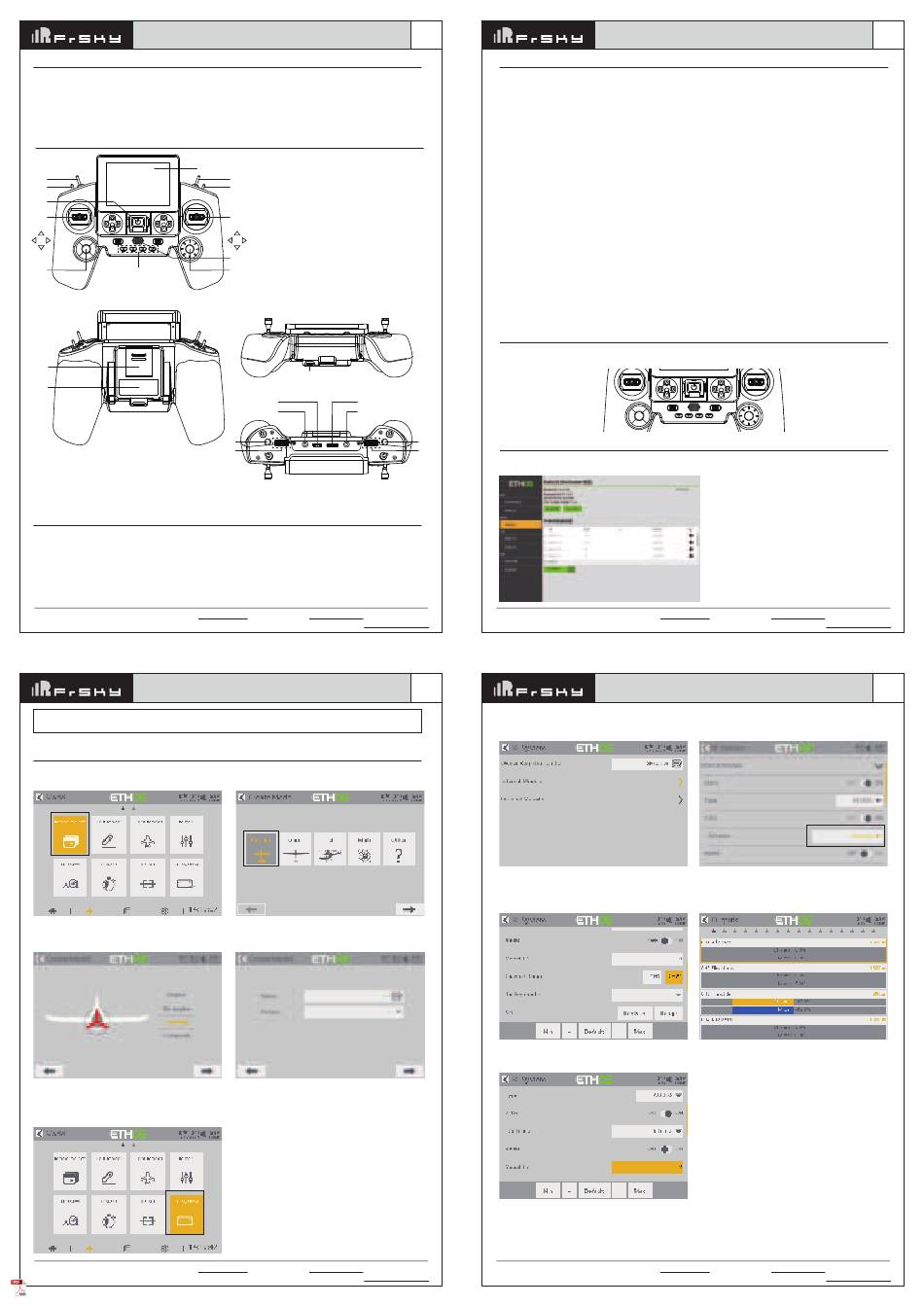

Layout
SA
SC
Power
Switch
Stick
T4
T3
T5 T6
SYS,
MDL,
DISP, Custom button
RTN
Module
Bay
Battery
Cover
Specifications
● Dimension: 197*131*68mm (L*W*H)
● Weight: 459g / 392g
● Operating System: ETHOS
● Internal RF Module: TANDEM
● Number of Channels: Up to 24 channels
● Rated Voltage Range: 7. 4V
● Operating Temperature: -10°C~60°C (14°F~140°F)
● Charging Current: ≤1A ±200mA
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Note: To use the Ethos Suite application with a FrSky radio, the radio bootloader must be version 1.2.0
or newer.
ETHOS Operating System
Create the model
Step 1: First go to System Settings, then click Model Select to select the model type.
Step 2: Configure the model channel and create the model name.
Model Setup Procedure-Internal Module
Step 1:
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TWIN X Lite Manual
Switch
● SA: 2 positions; Long Lever
Display Screen
● SB: 2 positions; Long Lever
SB
● SC: 2 positions; Short Lever
SD
● SD: 2 positions; Short Lever
You can choose the Switch and define its
Stick
position in the HARDWARE menu.
T2
T1
1. Micro SD card is not provided with shipment.
2. USB port is for upgrading, reading/writing
Speaker
Micro SD cards and internal memory of radio
contents and charging.
Encoder
3. Smart Port is for firmware upgrade for all
FrSky S.Port devices.
Type-C USB Port
Smart Port Micro SD Card Port
Training port Earphone Port
SE
Slider
● USB Adaptor Voltage: 5V+0.2V
● USB Adaptor Current: >2.0A
● Backlit touchable LCD resolution: 480*320
●
Compatibility: TW & ACCST D16 & ACCESS &
TD receivers
● RF parameters:
Dual 2.4GHz ISM
Power 100mw for 2.4GHz
www.frsky-rc.com Contact us: frsky@frsky-rc.com
FrSky TWIN X Lite Manual
Touch the screen or use the navigation keys to enter the
RF system menu.
www.frsky-rc.com Contact us: frsky@frsky-rc.com
Version
1.0
Features
● A 3.5inch sliding touch screen, angled 5? towards the user for ease of use.
● Rounded hand grips with comfortable design
● 4 standard trims with 2 extra trims
● TWIN 2.4G RF module running on the ETHOS
● Supports 4 RF protocols
* ACCST D16
* ACCESS
* ELRS 2.4G (Compatible)
* TW Mode (ETHOS Radio Compatible)
- Highly resilient RF Module providing dual 2.4 signals working simultaneously together
- Long range control (>30KM)
- Low latency (<4ms) supporting full telemetry
- Compatible with upcoming dual 2.4G TW receivers
● Clear and Intuitive UI Design
● Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
● Supports Multi-Language Switching
● Hardware/Software Version and Factory Version Detection
● Supports running LUA Scripts
Navigation Controls
The left navigation control does RTN, SYS, MDL, DISP, and Page UP/Down. The right navigation control
does scroll and enter. Both navigation controls and touch screen can be used to control the system.
SF Ethos Suite
Slider
With Ethos Suite,you can update the radio bootloader, firmware, SD card, flash, and also convert image
format and audio format. Find and download the ETHOS Suite at www.frsky-rc.com.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Version
1.0
Choose the INT MODULE. Then turn ON INTERNAL RF, select the OUTSIDE or INSIDE ANTENNA.
Set the Mode for TWIN X Lite internal RF corresponding to your receiver (ACCESS, ACCST D16, ELRS, TW
MODE).
Step 2: Set the Channel Range
The RF module supports 24 channels, the channel range is configurable, and it needs to be double checked before
use.
Step 3: Set the Receiver Number
Step 4 : Registration
In ACCESS model, select the STATE [Register] into Registration status on radio side. Then Press the F/S button
and power on your receiver, and select the "RX Name XX" and [REGISTER] to complete the Registration process
then power down the receiver.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TWIN X Lite Manual
www.frsky-rc.com Contact us: frsky@frsky-rc.com
FrSky TWIN X Lite Manual
The system will assign you the receiver a number
automatically, when you create a new model, and this
can be easily changed. The range of the Model ID is
00-63, with the default number being 01. Once the
receiver is set to the desired number and is bound to the
TWIN X Lite, the bind procedure will not need to be
repeated unless the receiver number is changed. At this
point, set the receiving number to your preferred
number and repeat the binding operation.
