Operating Instructions
Using VIEW INPUT
How to Store the
Waveform
1–20
When pushed, the VIEW INPUT button displays the input at the front panel
CABLE connector. When VIEW INPUT is turned off and no other buttons are
pushed, the display will not have a waveform on it (see Figure 1–16). The
default condition when the instrument is powered up is to have VIEW INPUT
on.
ac
O
F
F
O
F
F
O
F
F
O
F
F

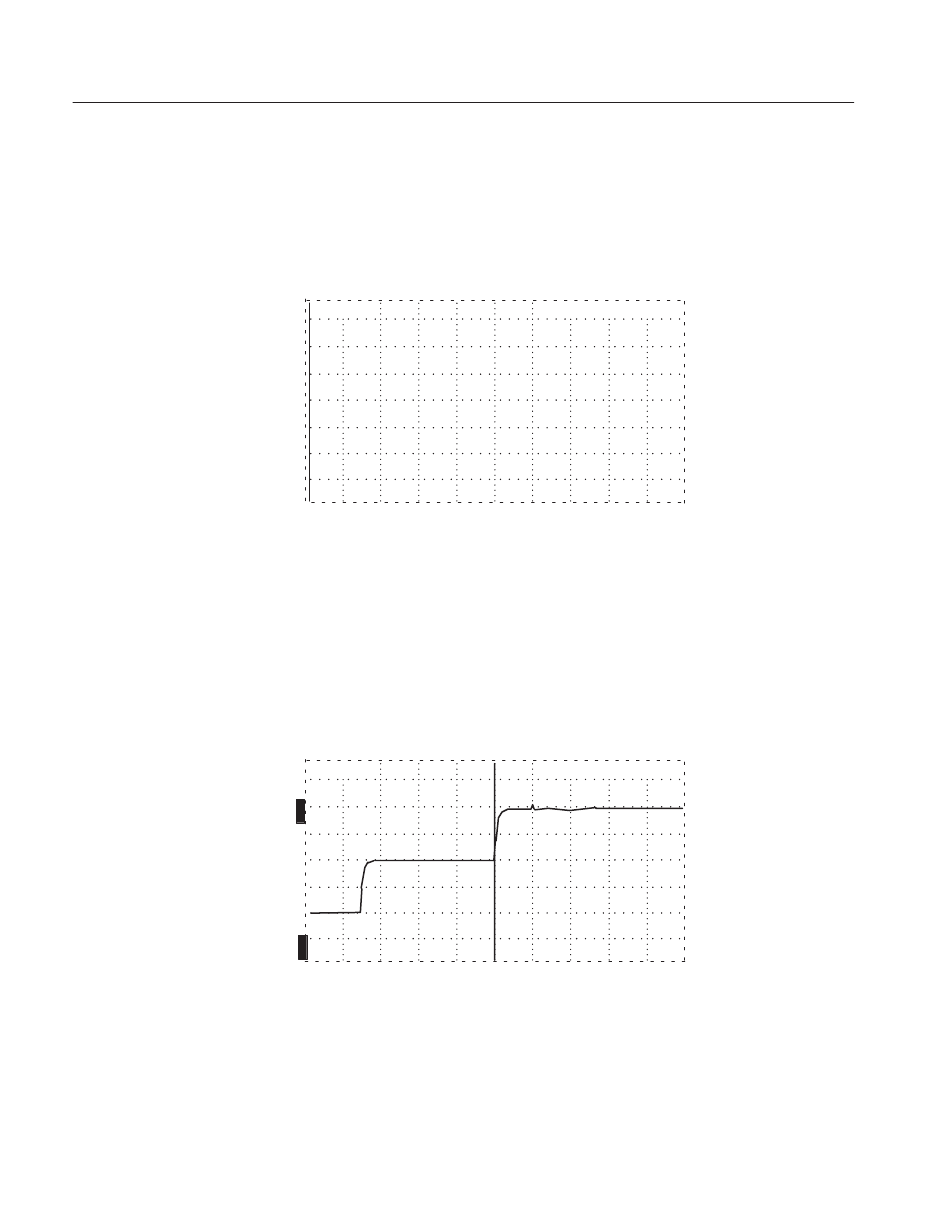

Figure 1–16: Display with VIEW INPUT Turned Off
When pushed, the STORE button puts the current waveform being displayed into
memory. If already stored, pushing STORE again will erase the stored wave-
form.
The front panel control settings and the menu-accessed settings are also stored.
They are accessed under View Stored Waveform Settings in the first level of the
menu.
ac
O
N
O
F
F
O
F
F
O
N
Figure 1–17: Display of a Stored Waveform
0.000 ft
3.000 ft
1502C MTDR User Manual
