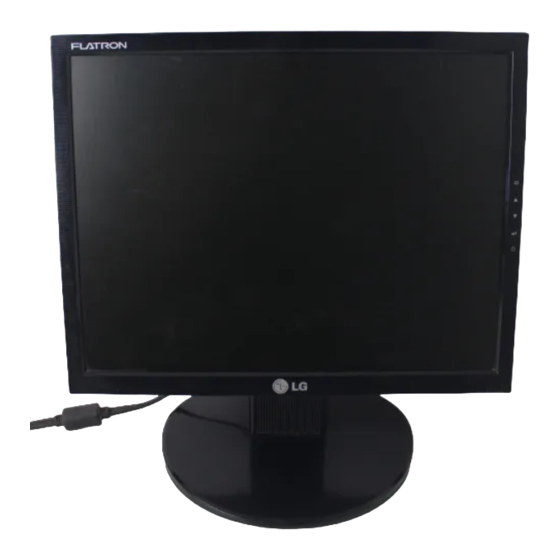

LG L1553S-BF User Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Monitor
  5. L1553S-BF
  6. User manual

LG L1553S-BF User Manual

Hide thumbs Also See for L1553S-BF:
Table of Contents

Advertisement

Quick Links

User's Guide
L1553S
M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L1553S-BF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG L1553S-BF

Summary of Contents for LG L1553S-BF

  • Page 1 User’s Guide L1553S ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the product and give the information to your dealer when you ask for service.

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth. Assemble the Stand Body into the product in the correct direction as shown in the picture.

  • Page 5: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort. Tilt Range : -5˚~20˚...

  • Page 6: Using The Computer

    Connecting the Display Using the Computer Place the monitor in a convenient, well-ventilated location near your computer. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connect the adapter with the power cord , then the adapter is easily accessible and close to the display.

  • Page 7: Front Panel Controls And Functions

    Control Panel Functions Front Panel Controls Control MENU Button Buttons Side Function Use this button to enter or exit the On Screen Display. OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds.
  • Page 8 Control Panel Functions Control AUTO/SET Button Power Button Power Indicator Function Use this button to enter a selection in the On Screen Display. AUTO IMAGE ADJUSTMENT When adjusting your display settings, always press the AUTO/SET button before entering the On Screen Display(OSD).

  • Page 9: On Screen Display (Osd) Control Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.
  • Page 10 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu PICTURE BRIGHTNESS CONTRAST GAMMA COLOR PRESET 6500K GREEN BLUE POSITION HORIZONTAL VERTICAL TRACKING CLOCK PHASE SHARPNESS SETUP LANGUAGE POSITION WHITE BALANCE POWER INDICATOR...

  • Page 11: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 12 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE P I C T U R E MENU : Exit : Decrease : Increase SET : Select another sub-menu COLOR C O L O R MENU : Exit : Decrease : Increase SET : Select another sub-menu POSITION P O S I T I O N...
  • Page 13 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING T R A C K I N G MENU : Exit : Decrease : Increase SET : Select another sub-menu SETUP S E T U P S E T U P MENU : Exit : Adjust : Adjust...

  • Page 14: Flatron F-Engine

    On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the right side of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE When you execute F-ENGINE, two tones will appear on the screen as shown. The applied screen will appear on the left side, whereas the non-applied screen will appear on the right side.Touch the SET button to use the adjusted screen.

  • Page 15: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears ● Is the power cord of the display connected? ● Is the power indicator light on? ● Is the power on and the power indicator blue or green? ●...

  • Page 16: Display Image Is Incorrect

    Troubleshooting Display image is incorrect ● Display Position is incorrect. ● On the screen background, vertical bars or stripes are visible. ● Any horizontal noise appearing in any image or characters are not clearly portrayed. ● The screen color is mono or abnormal.

  • Page 17: Have You Installed The Display Driver

    Troubleshooting Have you installed the display driver? ● Have you installed the display driver? ● Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Be sure to install the display driver from the display driver CD (or diskette) that comes with your display.

  • Page 18: Specifications

    Specifications Display 15 inches (38 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 15 inches viewable 0.297 mm pixel pitch Horizontal Freq. Sync Input Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug&Play DDC 2B Power 0n Mode Sleep Mode Consumption...

  • Page 19: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) Display Modes (Resolution) 640 x 350 720 x 400 640 x 480 VESA 640 x 480 VESA 800 x 600 VESA 800 x 600 832 x 624 VESA 1024 x 768 Indicator MODE On Mode Sleep Mode Off Mode Horizontal Freq.
  • Page 20 How to Install the VESA Standard wall mounting This monitor meets VESA-compliant mounting interface pad specifications. Place the monitor with its front facing downward on a soft cloth. Hold the body of the stand as shown in the image right. Pull the stand to the direction as shown in the image Install the VESA standrad wall mounting.
  • Page 21 Digitally yours...
