ILLUSTRATED SERVICE INSTRUCTIONS

50/60 Hz

Table of Contents

Need help?

Do you have a question about the MQ and is the answer not in the manual?

Questions and answers

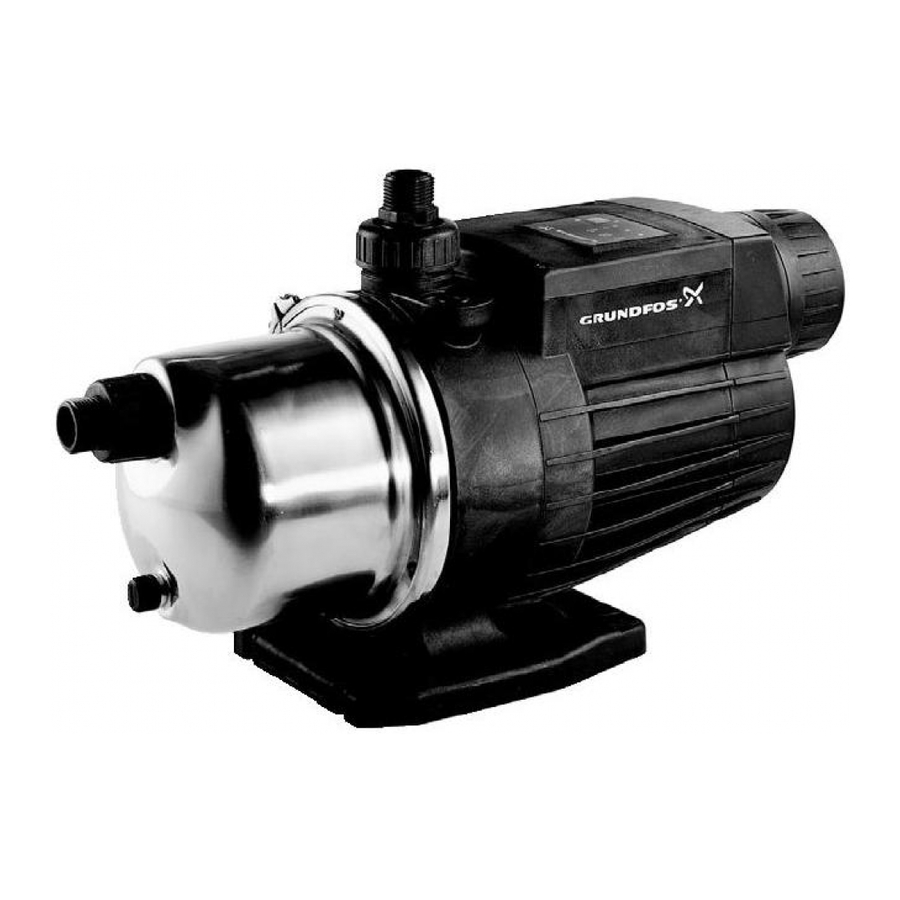

Summary of Contents for Grundfos MQ

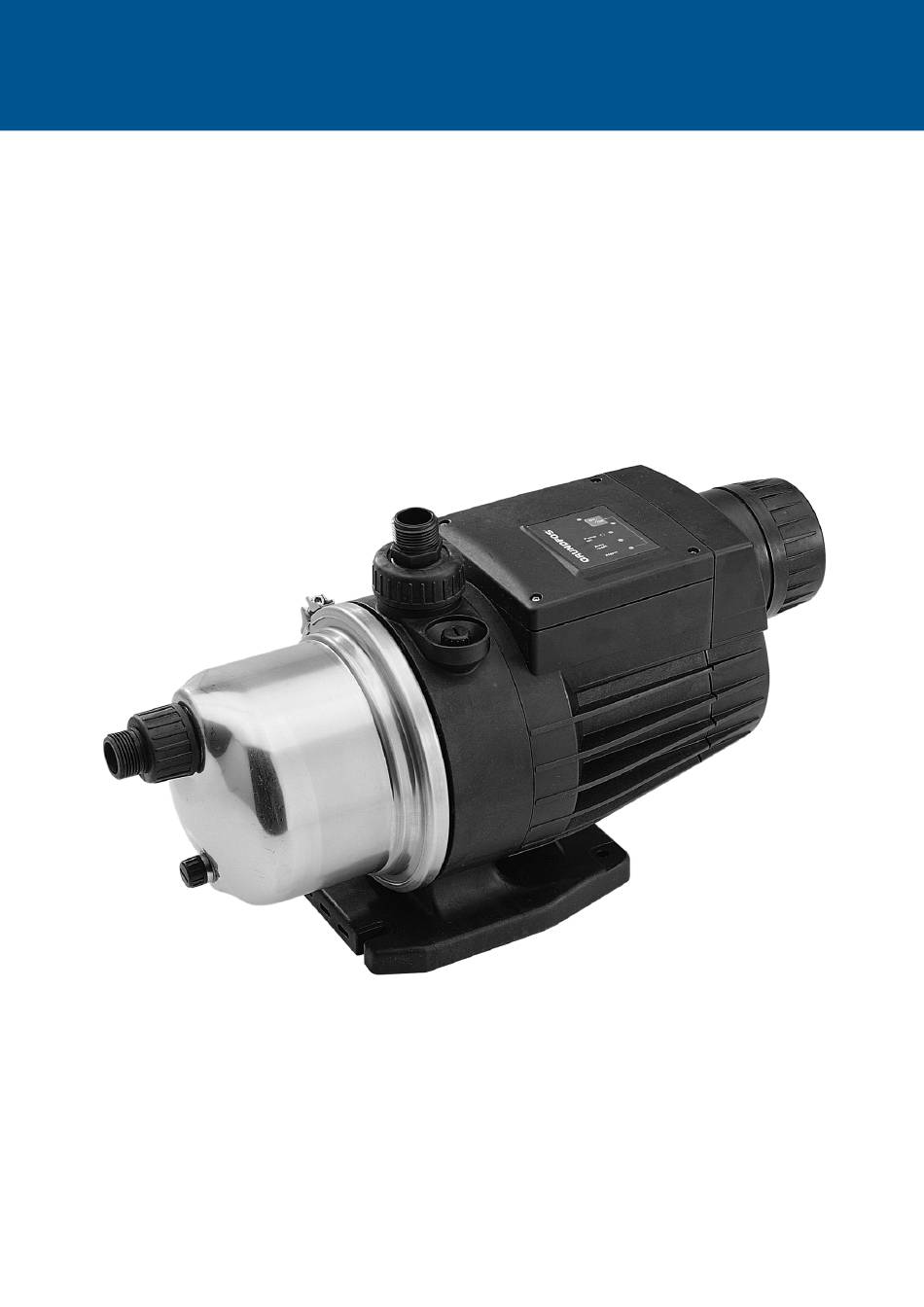

Page 1 GRUNDFOS ILLUSTRATED SERVICE INSTRUCTIONS 50/60 Hz...
Page 2: Table Of Contents
Contents Fitting the non-return valve in the suction port ..............2 Dismantling the pump......................3 Assembling the pump ......................10 Replacing the capacitor ..................... 18 Replacing the flow sensor ....................20 Replacing the pressure switch................... 24 Replacing the non-return valve of the outlet..............27...
Page 3: Fitting The Non-Return Valve In The Suction Port
Fitting the non-return valve in the suction port Fit the non-return valve into the suction port. Remove the suction port. Fit and tighten the suction port.
Page 4: Dismantling The Pump
Dismantling the pump Remove the clamp. Remove the screw of the clamp. Remove the screws of the pump sleeve. Loosen the pump sleeve using a screwdriver.
Page 5 Pull out the self-priming part. Remove the pump sleeve. Remove the inlet part. Remove the O-ring from the self-priming part. Pull the valve seat out of the self-priming part. Remove the O-ring from the valve seat.
Page 6 Remove the O-ring from the inlet part. Remove the plug in the middle of the motor cover. Hold the shaft with a screwdriver. Slacken the impeller nut while holding the shaft. Remove the washers. Remove the impellers and chambers.
Page 7 Remove the washers. Pull off the rotating shaft seal part using two screw- drivers. Remove the stationary shaft seal part if the motor is Insert a screwdriver between the pump housing and not to be pulled out. the rubber ring, and prise out the stationary shaft seal part.
Page 8 Take off the cover. Remove the screws of the control unit. Remove the retaining clip of the capacitor. Disconnect the red and white motor conductors from the capacitor. Disconnect the blue motor conductor from the terminal Slacken the screw which fixes the earth conductor of block.
Page 9 Loosen the cover of the pressure tank with a light Unscrew the pressure tank. blow. The pressure tank. Remove the screws of the end cover. Remove the four screws in the hole for pressure tank. Disengage the end cover from the pump using a screwdriver.
Page 10 Pull out the motor conductors. Push out the motor. Remove the O-ring from the motor. Remove the O-ring on the shaft using a screwdriver. Remove the stationary shaft seal part if it has not been Remove the rubber ring. removed (picture 19).
Page 11: Assembling The Pump
Assembling the pump Fit the O-ring on the motor, and lubricate it with O-ring Lubricate the O-ring for the motor shaft with O-ring grease. grease, and fit it on the shaft. Push the motor home in the pump housing. Take the motor conductors through the hole into the terminal box.
Page 12 The conductors enter the terminal box through the Lubricate the O-ring of the end cover with O-ring bottom. grease. Fit the end cover. Lubricate the O-ring of the pressure tank with O-ring grease. Screw the pressure tank into the hole. Tighten the Fit the cover on the pressure tank.
Page 13 Connect the motor conductors to the capacitor. The Fit the blue conductor from the motor into the terminal red conductor together with the blue one. The white block, and fix it. one by itself. Fit the retaining clip on the capacitor. Fasten the control unit.
Page 14 Spray soapy water on the shaft. Fit the stationary shaft seal part on the shaft. Press the stationary shaft seal part home in the pump Fit the rotating shaft seal part on the shaft. housing with a punch. Push the rotating shaft seal part against the stationary Fit the washers on the shaft.
Page 15 Fit the first chamber. Fit the first impeller. Fit an O-ring on each of the remaining chambers. Lubricate the O-rings with O-ring grease. Fit the remaining chambers and impellers. Fit the washers and the impeller nut on the shaft.
Page 16 Hold the shaft with a screwdriver. Tighten the impeller nut while holding the shaft with the screwdriver. Tightening torque: 7 Nm. Fit the O-rings on the inlet part. Lubricate the O-rings with O-ring grease. Lubricate the O-ring of the self-priming part. Fit the inlet part in the self-priming part.
Page 17 Fit the O-ring on the valve seat, and lubricate it with O- Fit the valve seat in the self-priming part. ring grease. Fit the self-priming part in the pump sleeve. Fit the O-ring on the pump housing. Lubricate the O-ring with O-ring grease. Fit the pump sleeve to the pump housing with the holes opposite the holes in the pump housing.
Page 18 Fasten the pump sleeve. Fit the clamp on the pump. Fit the screw in the clamp and tighten. Fit the plug into the end cover. Tigten the drain plug lightly.
Page 19: Replacing The Capacitor
Replacing the capacitor Take off the terminal box cover. Remove the screws of the terminal box cover. Remove the screw between the earth terminals. Remove the other screw in the control unit.
Page 20 Remove the conductors from the capacitor. Note their Remove the retaining clip of the capacitor. colour and position. Connect the conductors with the new capacitor. The Fit the retaining clip of the capacitor. red conductor together with the blue one. The white one by itself.
Page 21: Replacing The Flow Sensor
Replacing the flow sensor Take off the terminal box cover. Remove the screws of the terminal box cover. Remove the screw between the earth terminals. Remove the other screw in the control unit.
Page 22 Prise off the cover. Remove the screws of the flow sensor cover. Unplug the flow sensor from the control unit. Lift up the flow sensor wheel. Pull up the shaft. Remove the washer. It may be necesssary to apply a little grease to the finger to make the washer stick to the finger.
Page 23 Fit the shaft. Fit the washer on the shaft. Fit the wheel. The magnet of the wheel must point Fit the cover on the flow sensor. upwards. Tighten the screws. Connect the flow sensor to the control unit.
Page 24 Fix the control unit and earth terminals with two Fit the terminal box cover. screws.
Page 25: Replacing The Pressure Switch
Replacing the pressure switch Take off the terminal box cover. Remove the screws of the terminal box cover. Remove the screw between the earth terminals. Remove the other screw in the control unit.
Page 26 Remove the three screws of the pressure switch. Unplug the pressure switch from the control unit. Lift up the pressure switch. Remove the O-ring using a screwdriver. Lubricate the O-ring with O-ring grease, and fit it. Fit the pressure switch.
Page 27 Fix the pressure switch. Connect the pressure switch to the control unit. Fix the control unit and earth terminals with two Fit the terminal box cover. screws.
Page 28: Replacing The Non-Return Valve Of The Outlet
Replacing the non-return valve of the outlet Unscrew the pressure tank. Loosen the cover of the pressure tank with a light blow. Pull out the non-return valve. Lubricate the O-rings of the non-return valve with O- ring grease.
Page 29 Fit the non-return valve in the pump housing. Fit the pressure tank. Tighten it by hand. Fit the cover.
