Summary of Contents for Bowa ERGOeco

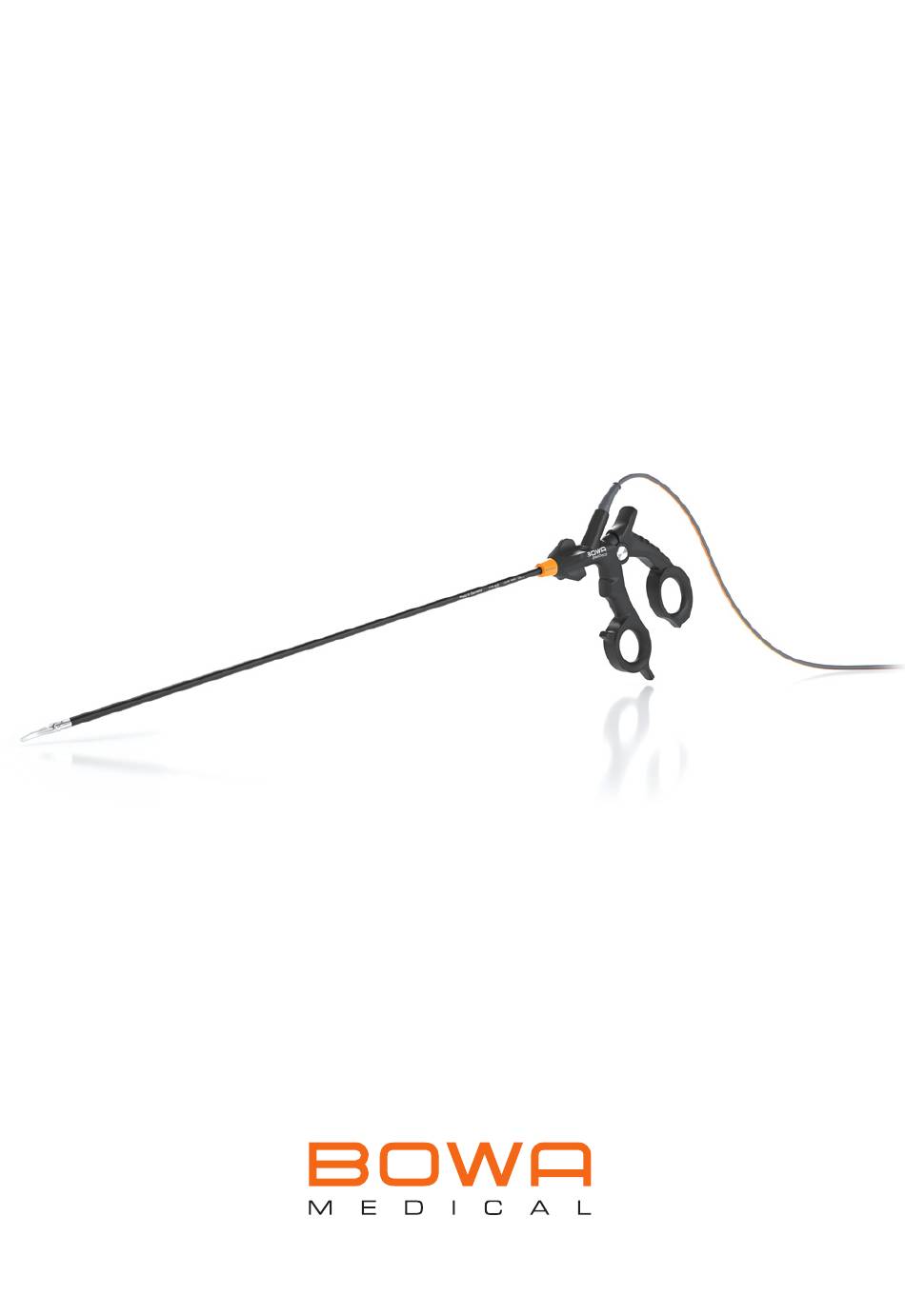

- Page 1 Instructions for Use ERGOeco 13120EN-S0...
-
Page 3: Key
Shaft tube Release button for disassembly Insert with Jaw Rotation wheel Erbe plug Handle Maryland insert Kelly insert Fenestrated insert BOWA-IFU-13120-ERGOECO-S0-EN-20220420 Instructions for Use ERGOeco... - Page 4 Handle with plug versions Erbe 2-pin 22mm 2-pin 28 mm Shaft tube Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420...
-
Page 5: Table Of Contents
9.1 General information ....................17 9.2 Device-specific information ..................17 9.3 Check for damage ....................19 9.4 Sterilisation packaging ...................20 10 Ambient conditions ..................20 10.1 Storage and transport ..................20 11 Technical data ....................21 12 Symbols on packaging ................. 21 BOWA-IFU-13120-ERGOECO-S0-EN-20220420 Instructions for Use ERGOeco... -
Page 6: Using The Instructions For Use
1 Using the Instructions for use These Instructions for use are part of the device. BOWA-electronic GmbH & Co. KG assumes no liability and provides no warranty whatsoever for any damage or consequential damage arising from non-compliance with these Instructions for use. -
Page 7: Kits
360 mm 460 mm ERGOeco, handle for Erbe, cable 4.5 m 770-605 ERGOeco, handle for 2-pin 22 mm, cable 4.5 m 770-606 ERGOeco, handle for 2-pin 28 mm, cable 4.5 m 770-607 ERGOact / ERGOeco, shaft tube, Ø 5 mm... -
Page 8: Symbols And Markings
Immediate hazard Death, severe injury WARNING Possible hazard Death, severe injury CAUT ION Possible hazard Minor injury NOTICE Possible hazard Property damage Tips: Tips to make your work easier or supplementary information explaining a work procedure. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 9: Purpose
2 Purpose Electrosurgical equipment for tissue cutting and coagulation. 2.1 Indications The ERGOeco instruments are designed for the grasping, bipolar coagulation and dissection of biological tissue during minimally invasive surgery. 2.2 Contraindications The medical device must not be used if, in the opinion of an experienced physician or according to the current technical literature, such usage could endanger either the patient, e.g. -
Page 10: Safety Instructions
• Do not repair or service defective devices: Check the device for damage, in particular for the integrity of the insulation, after reprocessing and before use. Replace and dispose of defective devices immediately. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 11: Use-Related
electrosurgical operations! • If necessary, use a suitable tester (e.g. BOWA REF 050-230) to check if the device is in proper working order. • The "BF" / "CF" applied part of the HF device used is extended by the instrument connected to it. -
Page 12: Patients With Pacemakers
Since medical electrical devices are subject to special EMC precautions, please comply with the following information. The BOWA accessory is only intended to be connected to BOWA-specified HF devices. Using the accessory with medical devices from other manufacturers may result in ... -
Page 13: Mode Of Operation
In bipolar HF surgery, tissue coagulation is achieved by applying a high-frequency AC current, which generates heat. The ERGOeco bipolar coagulation instrument is a surgical instrument for use in laparoscopic surgery. It is used through surgical incisions in conjunction with devices for endoscopic use, such as trocars and optics. -
Page 14: Assembly
When the shaft with insert is aligned correctly and fully seated inside the handle, moving the rear handle shank will cause the instrument’s jaws to move. The instrument is now completely assembled. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 15: Operation
1. Check whether the jaws can be easily opened and closed using the handle. 2. Check the activation by means of the foot switch. The activation signal is emitted during activation of the foot switch. BOWA-IFU-13120-ERGOECO-S0-EN-20220420 Instructions for Use ERGOeco... -
Page 16: During The Surgery
4. Close the jaws to grasp the tissue. Never grasp too much tissue. 5. Use the foot switch to activate the HF current of the HF generator for coagulation: A continuous acoustic signal is emitted during the entire activation period. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 17: Removal
7.5 After use 7.5.1 Spare parts For an overview of the available spare parts, please refer to chapter 1.1.2 “Spare parts”. To order spare parts, contact your BOWA dealership or visit our website: www.bowa-medical.com. BOWA-IFU-13120-ERGOECO-S0-EN-20220420 Instructions for Use ERGOeco... -
Page 18: Disassembly
You have now separated the shaft from the handle. 4. Gently rotate the insert until it detaches. 5. Pull the insert out of the shaft tube. The instrument is now disassembled. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 19: Reprocessing
The medical device manufacturer shall not be held liable if other types of cleaning agents and disinfectants are used. 9.2 Device-specific information Insulated parts must not come into contact with hard, sharp or heavy devices, as this could damage the electrical insulation. BOWA-IFU-13120-ERGOECO-S0-EN-20220420 Instructions for Use ERGOeco... - Page 20 An A value of >3000 must be attained. Thermal BOWA recommends a temperature of 90°C for at least 5 minutes and disinfection the use of demineralised water for this purpose. Drying is carried out according to the WD programme and depends on Drying the total load.
-
Page 21: Check For Damage
Steam sterilisation The device can be sterilised while it is assembled or dismantled. Steam BOWA recommends steam sterilisation using the fractionated vacuum sterilisation method with a sterilisation time of 3–20 minutes and a temperature of 134–137°C in a suitable sterilisation packaging. -
Page 22: Sterilisation Packaging
The original packaging is intended for storing non-sterile instruments prior to their first use. Protect the packaging from moisture and both direct and indirect sunlight. The shipping box is not intended for storing the sterilised device. Instructions for Use ERGOeco BOWA-IFU-13120-ERGOECO-S0-EN-20220420... -
Page 23: Technical Data
Technical data 11 Technical data Maximum voltage COAG instruments: 250 V BOWA recommends using this device on the BOWA ARC generators. HAZARD Risk of infection due to transmission of germs! To avoid transmitting germs and infections, sterilise the instrument ... - Page 24 BOWA MEDICAL BOWA-electronic GmbH & Co. KG Heinrich-Hertz Strasse 4–10 72810 Gomaringen l Germany Phone: +49 7072-6002-0 Fax: +49 7072-6002-33 CE marking as per info@bowa-medical.com regulation 2017/745 www.bowa-medical.com...
