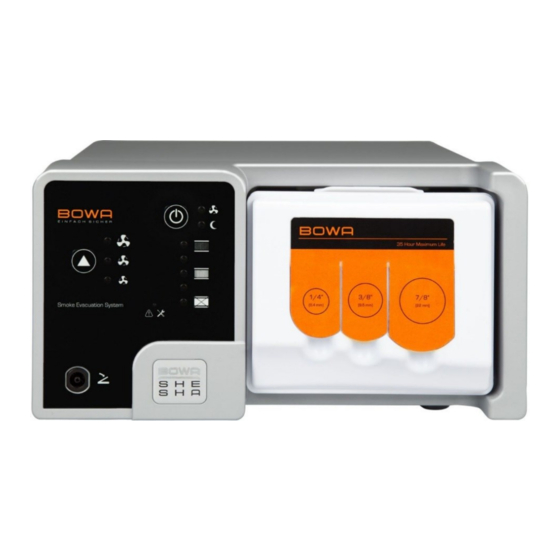

- Page 1 SHE SHA SMOKE EVACUATION UNIT OPERATING MANUAL...
- Page 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. BOWA SHE SHA smoke evacuation unit MN009-940-S0 EN...
-
Page 3: Table Of Contents
Cautions……………………………………………………………….. 8 Operating Instructions………………………………………………………... 10 User Interface Components…………………………………………………... 10 SHE SHA Filter Instructions…………………………………………………... 13 Set-up and Operation………………………………………………………….. 15 Technical data SHE SHA smoke evacuation system……………………..16 Electromagnetic Compatibility Information per IEC60601-1-2…………….. 17 Maintenance…………………………………………………………………….. 22 General Maintenance Information……………………………………………. 22 Cleaning…………………………………………………………………………. 22 Periodic Inspection……………………………………………………………... -
Page 4: System Description
The ultra-quiet motor is used to draw the surgical smoke from the surgical site through the vacuum tubing and into the SHE SHA filter where the surgical smoke is processed by a series of filters. A single disposable filter is used to simplify the installation and removal during filter changes. -
Page 5: Inspection
Service and Repair Instructions, including Circuit Diagrams and Parts List 9. The fuses on the circuit board are to be serviced by an authorized BOWA technician as follows: 220/240 VAC, 50/60 Hz use 8 Amp 250 Volt Fuse (Slo-Blo), (F1,F2) - Page 6 15. Potential Equalization Conductor: Terminal located on back panel for connection of potential equalization. Conductor complies with requirements per IEC 60601-1 (2005). The SHE SHA Smoke Evacuation System(s) and all filters are not intended for contact with patients. BOWA SHE SHA smoke evacuation unit...
-
Page 7: Cautions And Warnings
• Disconnect the unit from the electrical outlet prior to inspecting system components. • The SHE SHA system is only intended and suitable for the applications that are mentioned in the operating instructions. • The smoke evacuator produces a strong vacuum. Adjust the airflow and the position of the inlet end of the wand or tubing to prevent patient injury and to prevent suction of surgical materials and surgical specimens. -
Page 8: Cautions
• The SHE SHA filter should be changed according to the life of the filter. The SHE SHA filter, used with the SHE SHA Smoke Evacuation System(s), should not be used for more the time specified for each filter. - Page 9 Protection against ingress of water as detailed in IXP1 IEC 60529 Alternating current Protective earth, (ground) Equipotentiality Denotes the date the equipment was manufactured Denotes the manufacturer of the device Non-ionizing radiation Consult instructions MN009-940-S0 EN BOWA SHE SHA smoke evacuation unit...
-
Page 10: Operating Instructions
Operating Instructions User Interface Components The electronic system controls on the SHE SHA Smoke Evacuation System are easy to understand and simple to use. The membrane control panel contains the suction on/off switch, suction power adjustment, filter life indicator, and service indicator light. - Page 11 The filter life indicator on the membrane control panel provides a visual indication of the status of the life of the filter in use. The filter life indicator for the SHE SHA Smoke Evacuation System will automatically adjust according to the flow setting selected.
- Page 12 Reading the Filter Life Indicator: Install an unused SHE SHA filter into the system per the installation instructions contained in this operator’s manual. When the system is turned on, the filter life indicator will light up the top orange filter life indicator LED, indicating 100% filter life. The indicator will progress through vertically allocated LED and the lowest LED will begin flashing RED to indicate that the filter has expended its useful life and requires replacement.
-
Page 13: She Sha Filter Instructions
The Orange Standby LED stops blinking if the occlusion detection is disabled SHE SHA Filter Instructions BOWA Filter REF 951-001 Configuration Portable or tabletop SHE SHA Filter - Multi Port Filter 4-Stage Filtration in One Casing, (Pre-Filter, ULPA, Carbon, Post-Filter) Filter(s) ULPA Particle Size, µm... - Page 14 WARNING: This device is not intended for evacuation of fluid. If fluid is expected to be aspirated using the filter or the BOWA SHE SHA system, fluid collection devices must be installed with the vacuum hose assembly. Failure to install a fluid collection device may cause filter blockage and/or electrical damage.
-
Page 15: Set-Up And Operation
Set-Up and Operation The operation of the SHE SHA Smoke Evacuation System is as follows: Install the filter. Attach unit power cord to the receptacle on the rear of the system. Plug the pronged power cord into an appropriate grounded power outlet. Route power cord in such a way as to minimize potential trip hazard by users or patients or pinch hazard that could cause electric shock. -
Page 16: Technical Data She Sha Smoke Evacuation System
Technical data SHE SHA Smoke Evacuation System Performance Model Number 950-001 Maximum Flow Setting (CFM-U.S.) 22 mm (7/8’’) - 708 LPM (25 CFM) Standard Hose I.D. 9.5 mm (3/8’’) - 130 LPM (4.5 CFM) 6.4 mm (1/4’’) - 57 LPM (2 CFM) Dimensions (H x W x D ) 152 mm x 279 mm x 394 mm (6’’... -
Page 17: Electromagnetic Compatibility Information Per Iec60601-1-2
Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The Surgical Smoke Plume Evacuator model SHE SHA is intended for use in the electromagnetic environment specified below. The customer or user of the SHE SHA should assure that it is used in such an environment. - Page 18 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The Model SHE SHA is intended for use in the electromagnetic environment specified below. The customer or user of the Model SHE SHA should assure that it is used in such an environment. IEC 60601...
- Page 19 Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The model SHE SHA is intended for use in the electromagnetic environment specified below. The customer or user of the model SHE SHA should assure that it is used in such an environment. IEC 60601...
- Page 20 If the measured field strength in the location in which the Model EVL is used exceeds the applicable RF compliance level above, the model SHE SHA should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model SHE SHA.
- Page 21 Recommended Separation Distance Between Portable and Mobile RF Communications Equipment and the Model @ 3 Vrms The model SHE SHA is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model SHE SHA can help prevent...
-
Page 22: Maintenance
Wipe dry with a clean cloth. Do not steam sterilize. Periodic Inspection The SHE SHA Smoke Evacuation System should be visually inspected at least every year. This inspection should include checks for: ... -
Page 23: Troubleshooting
ON button is 2. Fuses are blown. 2. / 3. Call BOWA Technical Services depressed. 3. Electronic system 4. Replace filter with a genuine BOWA SHE SHA failure. filter. 4. Filter life has expired or invalid filter inserted. - Page 24 (716) 835-7000 or (716) 835-3414 fax Molenstraat 15 www.buffalofilter.com NL-2513 BH The Hague The Netherlands Distributed by: BOWA-electronic GmbH & Co. KG Heinrich-Hertz Straße 4-10 72810 Gomaringen | Germany Phone: +49 (0) 7072-6002-0 Fax: +49 (0) 7072-6002-33 info@bowa-medical.com | www.bowa-medical.com...
