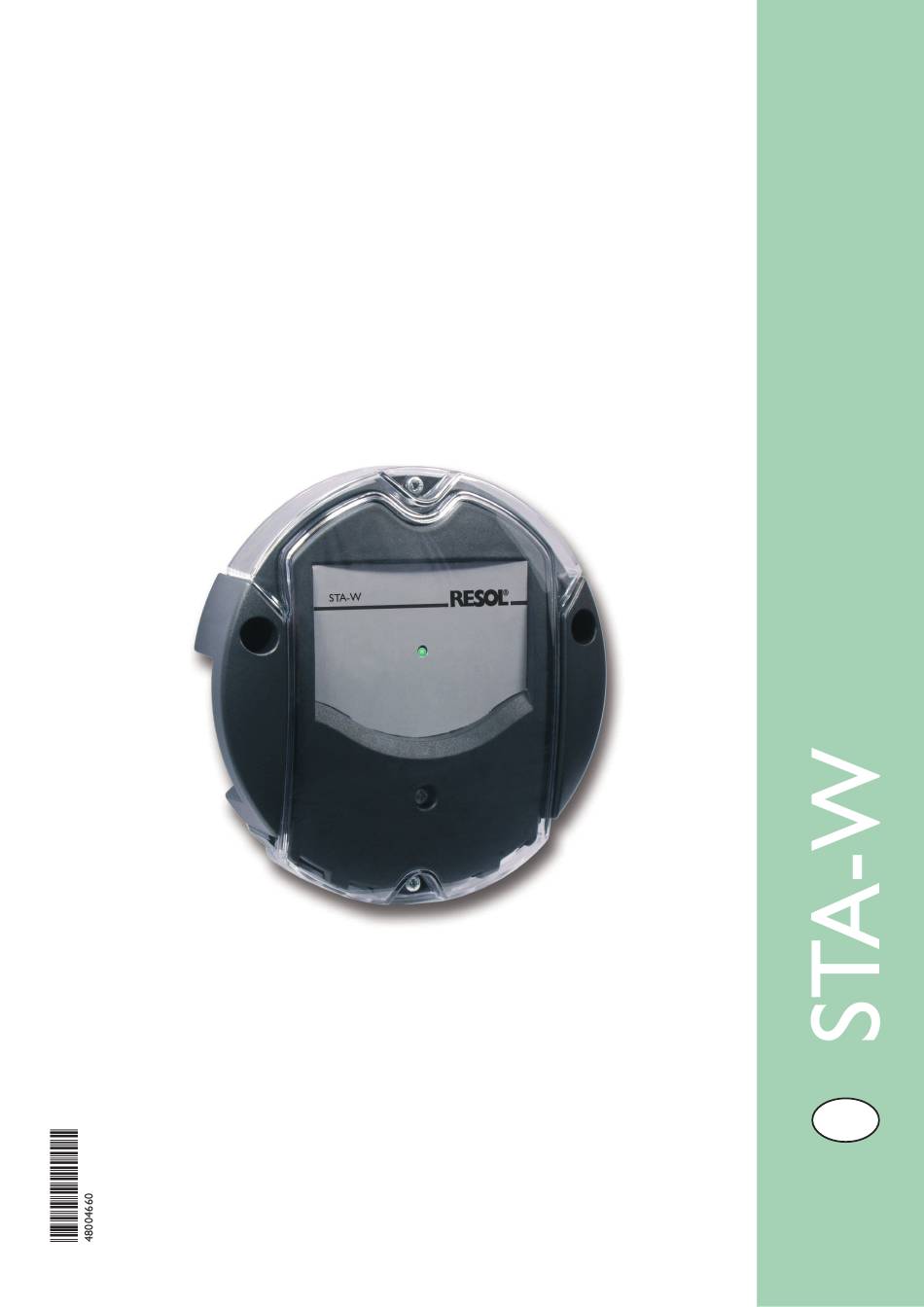

- Page 1 RESOL STA-W Mounting Connection Function Manual Thank you for buying this RESOL product. Please read this manual carefully to get the best performance from this unit. www.resol.com Please keep this manual carefully.
- Page 2 Description of symbols Information about the product WARNING! Proper usage Warnings are indicated with a The STA-W may only be used as an interface between RESOL warning triangle! controllers and devices with VBus ® output and external appli- ances in compliance with the technical data specified in this Signal words describe the danger that may occur, when it manual.
- Page 3 Overview STA-W The STA-W is an interface that transmits heat quantity measurement values bet- ween RESOL devices and external appliances. It is to be connected to a RESOL controller or calorimeter via the RESOL VBus ® . Whenever the new kWh value exceeds the previous by 1 kWh, the STA-W operates a potential-free contact which can e.g.
- Page 4 (3). Opening the housing is not necessary for mounting, con- nection and operation of the STA-W. The cables necessary for the normal operation of the STA-W are pre-connected. Should the access to the terminals become necessary, the housing can be opened as follows: «...
- Page 5 (BMS). For example: if the new value exceeds the previous by 5 kWh, the STA-W will operate the contact five times. The number of accumulated contacts can thus be visualised as a heat quantity value in the BMS software.
- Page 6 STA-W...
- Page 7 STA-W...
- Page 8 Another use outside the copyright requires manual and to the best of our knowledge and consent. the approval of RESOL - Elektronische Regelungen GmbH. As faults can never be excluded, please note: Your own This especially applies for copies, translations, microfilms calculations and plans, under consideration of the current and the storage into electronic systems.
