Explorer/Patroller PLUS Power Kit USER GUIDES
3. If the controller is disconnected due to the user
falling into the water or other reasons, and there is
no command from throttle within 1s after the
controller is reconnected, the controller will also be
automatically locked.

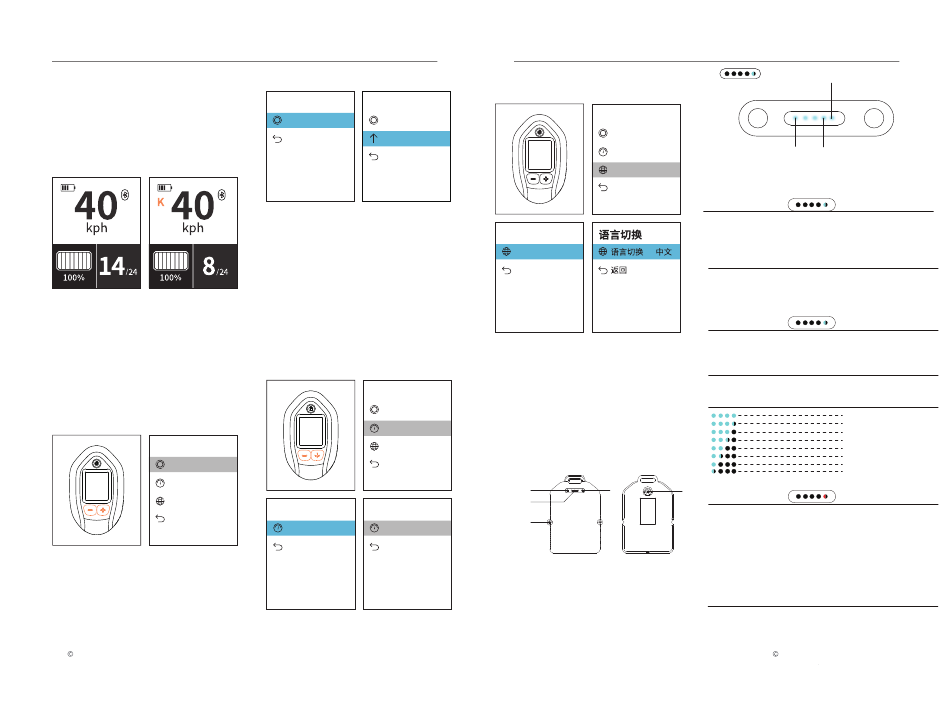

Normal Mode Speed Limit Mode
The Controller Plus offers 24 speed gear option.
In speed limit mode, speed options can be limited
to 10 gears, and the highest gear can be adjusted.
Working Mode Setting
Menu
Mode
Units
Language
return
Short press"+" and"-" simultaneously
when the Controller Plus is powered on
to enter Settings.
Scroll through the menu by pressing
the"+" or"-" and press the Power
Button to confirm.
5
All rights reserved by Waydoo
Mode Mode
speed limit off speed limit on
return top gear
24
return
After entering the sub-menu, use "+" or "-"
to scroll and press the Power Button to select
the Mode. Press "+" or "-" to switch and
press the Power Button to confirm. The
highest gear can be adjusted in speed limit
mode.
Finally press"+" or"-" to scroll to the
return option, and press the Power Button to
confirm until you exit the Settings.
Units Setting
Menu
Mode
Units
Language
return
Units Units
Units kph Units mph
return return
Language Setting
Menu
Mode
Units
Language
return
Language
Language
EN
return
PowerFlight Battery
Powerflight battery is a smart battery specially
designed for Waydoo Flyer ONE Efoil products.
It supports uses on Flyer ONE and Flyer ONE
Plus products. It adopts a plug-in-free design
and is easy to install. The fully waterproof
design insurers the battery is free from
seawater erosion when in use after proper
installation.The PowerFlight battery is not
included in this plus power kit. It needs to be
purchased separately.
1 4
2
3
(Front) (Back)
1. Linking Button 4. Power Button
2. Battery Status Display 5. DC Port
3. Rotary Lock
Explorer/Patroller PLUS Power Kit USER GUIDES
Battery status indicator
half grid stands for
flashing light
25% 100%
When your battery fails to be charged, please short
press the power button six times to check the cause
of the failure.
Status Light Light meaning
Blue light flashes 3 times Fully charged
Blue light flashes 4 times Set up to be charged to 80%
Blue light flashes 5 times Charger fault
Blue light flashes 6 times Battery self-protection
Blue light flashes 7 times Non-battery error
Blue light flashes 8 times OVP prohibits charging
Self-discharge
Self-discharge means that the battery's charge gradually
reduces over time during storage, which extends battery
life for better usability.
Status Light Light meaning
Blue light flashes once Self discharge to 70%(automatically)
Blue light flashes twice Self discharge to 30% (short press
power button 4 times and long
press to set up and cancel)
Battery capicity
One grid represents 25% power; half grid (blue light flashing)
represents 12.5% power
LED Light Light meaning
capacity 87.5%-100%
capacity 75%-87.5%
capacity 62.5%-75%
capacity 50%-62.5%
capacity 37.5%-50%
capacity 25%-37.5%
capacity 12.5%-25%
capacity 0-12.5%
Battery Fault indiator
5
Status Light Light meaning
Red light flashes 2 times Under voltage protection
(please charge your battery
in time)
Red light flashes 3 times Over-temperature protection
(please cool down the battery
before charging)
Red light flashes 4 times Over current protection
(the battery will automatically
recover after 30 seconds)
Red light flashes 5 times Short circuit protection
(please reboot your battery)
Note: When the battery has the above fault indicator, it is generally caused
by improper use, please follow the corresponding solution.If the fault
continues and there are other abnormal lights , please contact Waydoo
after-sales in time.
