Summary of Contents for Fantom PROVAC P 5000

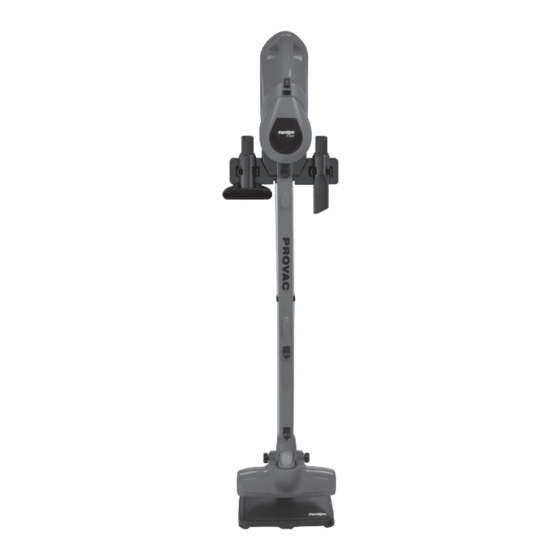

- Page 1 PROVAC P 5000 Cyclone Stick Vacuum Cleaner USER MANUAL...
-
Page 2: Component Parts
COMPONENT PARTS 1-Motor Body 2-On/Off Switch 3-Body Locking Latch 4-Hepa Filter 5-Dustbin Upper Cover 6-Cyclone Chamber 7-Dustbin 8-Cable Winding Latch 9-Pipe Locking Latch 10-Dustbin Bottom Cover 11-Dustbin Locking Latch 12-Extension Tubes 13-Floor Nozzle... - Page 3 COMPONENT PARTS 14-Hanger 15-Upholstery Nozzle 16-Crevice Nozzle 17-Stand Pipes 18-Stand Pipe Joint Adapter 19-Stand Pallet...
-
Page 4: Safety Rules
IF THESE INSTRUCTIONS ARE NOT FOLLOWED. WARRANTY IS VOID. • The PROVAC P 5000 Stick Vacuum Cleaner is designed for domestic use. Use your device for its intended purpose and only for dry cleaning. Do not use for vacuuming water or other liquids. - Page 5 ASSEMBLY AND DRY VACUUMING Before use vacuum cleaner, put the hepa filter in the chamber, as shown in the picture. To connect the extension tubes, lock them by pushing the lock slots facing each other. Lock the floor nozzle by pushing it so that the lock slots on the extension tube are facing each other.
- Page 6 ASSEMBLY AND DRY VACUUMING You can use your vacuum cleaner by plugging in your vacuum cleaner and turning on the on/off switch. In order to use your vacuum cleaner in hard-to-reach and narrow areas, you can attach the crevice nozzle to the end of the extension tube as shown in the picture.
-
Page 7: Cleaning And Storage
CLEANING AND STORAGE Note: Before cleaning your device, be sure to unplug it from the socket. Before cleaning, remove the extension tubes by pressing the lock latch on the extension tubes of your vacuum cleaner and pulling it downwards. For cleaning, first open the bottom cover of the dustbin and ensure that the dust is emptied into the trash. - Page 8 CLEANING AND STORAGE Remove the dustbin cover by turning and separate it from the dustbin. Remove the cyclone chamber from the dustbin. Clean the plastic parts by shaking them. For hepa filter cleaning, pull out the hepa filter from the dust chamber top cover, shake it and replace it.
- Page 9 CLEANING AND STORAGE After cleaning, fix the tubes by pressing the extension tubes of your device so that they coincide with the lock latches as seen in the picture. Put your vacuum cleaner on the stand hanger as shown in the picture. Make sure the vacuum cleaner is stable on the stand.
- Page 10 CLEANING AND STORAGE You can easily wind the power cable on the extension tubes as shown in the picture. When you are not using your device, you can store it without taking up space by placing it on its stand as shown in the picture.
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS TYPE P XY Net Weight : 2.30 kg Rated Voltage : 220-240 V AC Rated Frequency : 50 / 60 Hz Power : 850 W... - Page 12 Fanset Elektrikli Ev Aletleri San. Ve Tic. A.Ș. Halkalı Merkez Mahallesi Sönmez Sokak No:8/1 34303 Küçükçekmece - İstanbul - Türkiye T. +90212 697 57 70 (pbx) T. 444 5 770 F. +90212 548 98 78 www.fanset.com - info@fanset.com...
