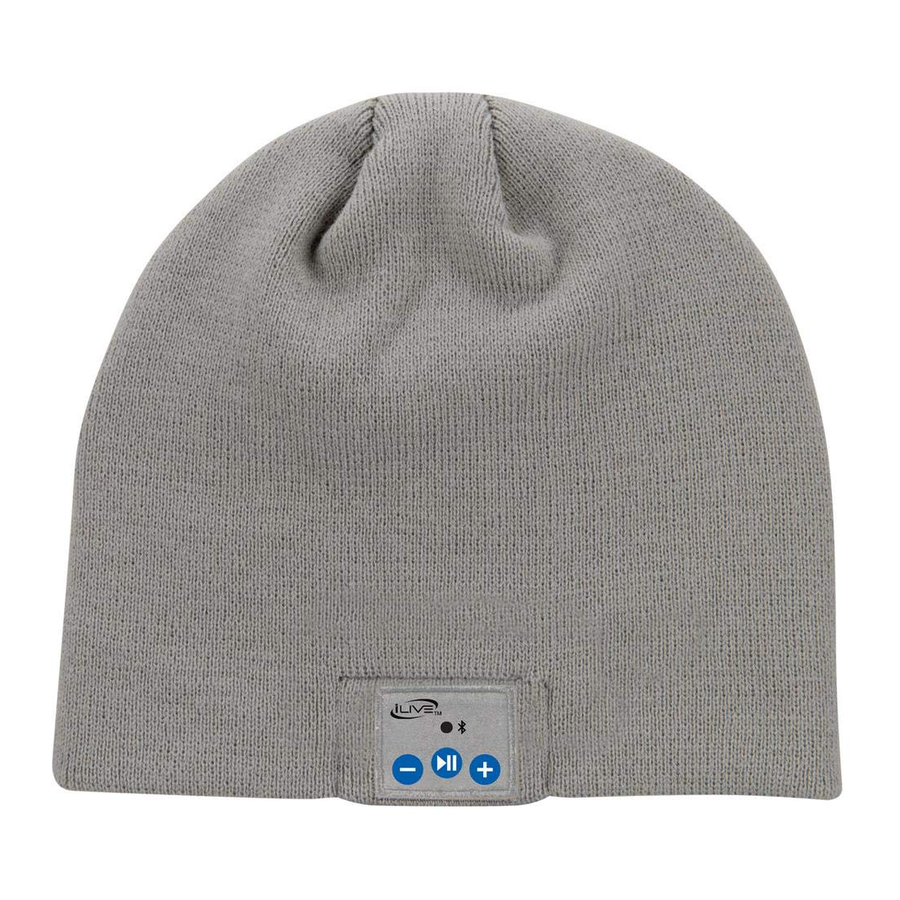

iLIVE IAKB45 - Wireless Music Beanie Manual

Features

Supports Bluetooth
Built-in microphone
DC battery power: built-in rechargeable lithium ion battery
Battery life: approx. 3 hours

Includes

Micro-USB port for battery recharge
Removable electronics for easy cleaning

Controls

Power/Pairing Indicator Light
Volume −/+, Skip Rev/Fwd
Press to skip ahead or back an audio track.
Press and hold to set the volume level.
Power/Pair/Play/Pause/Answer
Press and hold for 7 sec. to turn the unit on and begin pairing.
Press and hold to turn the unit On or Off.
Press to play or pause an audio track.
Press to answer an incoming call.

Charging the Battery

Requires a Micro-USB to USB cable (included). Charge fully before use.

Using a Micro-USB to USB cable (included), connect to the USB port of a powered on computer or USB power adaptor (not included) to charge the unit.

Be sure the computer is not in sleep mode.

LED Indicators

STATUS	INDICATOR
Power On	Flashing blue light
Low Battery	Flashing red light
Charging	Solid red light
Charging Complete	No light
Pairing	Flashing red and blue lights

Pairing a Bluetooth Device

Simultaneously power on the unit and begin the pairing process by pressing and holding the Power/Pair button for approximately 7 seconds. The indicator will flash red and blue. When pairing, remain within 3 feet of the unit.
Using the controls on your Bluetooth device, select the IAKB45 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0. Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
When successfully paired, the Pairing Indicator will turn solid and an audible chime will sound through the speakers.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.

Playing Audio Wirelessly

Use the connected Bluetooth device to select and start playing audio.
Once audio is heard playing through the unit, you can use the controls on the connected Bluetooth Device or the unit to play, pause, and skip audio tracks.

Speaker Removal - Smooth Knit version

Sewn into the interior of the Smooth Knit beanie is a pocket which holds the speakers and controller in place. This pocket can be accessed through an opening along the inside seam of the beanie. To remove the electronic components, gently work them out by hand through this opening. A combination of squeezing/pushing the speaker and controller from the outside, and pulling the wires through the opening on the inside, is the best removal method.

Install is the reverse of the removal. Be sure to fit the controller and speaker snugly into their places on the sides of the beanie, and pull the wires all the way through and into the pocket.

Speaker Removal - Cable Knit version

Sewn into the outer fold of the Cable Knit beanie is a pocket which holds the speakers and controller in place. This pocket can be accessed through an opening along the top of the fold. To remove the electronic components, gently work them out by hand through this opening.

Install is the reverse of the removal. Be sure to fit the controller and speaker snugly into their places on the sides of the beanie, and push the wires all the way down and into the outer fold.

Washing Instructions

Do not wash this product with the electronic components still inside! They must be removed or damage and injury may result. See previous sections on speaker removal.

Machine washing is not recommended for this product.

Hand wash only. Do not tumble dry in a dryer. Do not dry clean.

Remove the electronic components before getting wet.
Wash below 85°F (30°C) and do not use bleach.
Reshape while damp. Lay flat to dry.
If using an appliance to dry, use an iron on a low setting.

FCC WARNINGS

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

WARNINGS AND PRECAUTIONS

Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.
To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your speakers. After placing speakers in / on your ears, gradually turn up the volume until you reach a comfortable listening level.
This product may contain chemicals known to the State of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling.
This product meets and complies with all Federal regulations.
