iLIVE IAEB06 - Wireless Stereo Earbuds Manual

Table of Contents

Contents

1 Features
2 Includes
3 Overview & Controls
4 Features
5 LED Indicators
6 Pairing a Bluetooth Device
7 Playing Audio Wirelessly
8 Using the Speakerphone
9 FCC WARNINGS
10 ADDITIONAL WARNINGS
11 Contact Information
12 Warranty
13 Documents / Resources
- 13.1 Download manual

Features

Supports Bluetooth
Wireless range: 33 feet
Supports profile A2DP (Advanced Audio Distribution Profile)
Voice prompts announce earbud operations
Built-in microphone
Digital volume control
Micro-USB port for battery recharge
DC battery power: built-in rechargeable lithium ion battery
Battery life: approx. 4 hrs at 100% volume, 6 hrs at 50%

Includes

3 pairs of eartips: 1 small, 1 medium, 1 large
Micro-USB to USB charging cable
User's guide

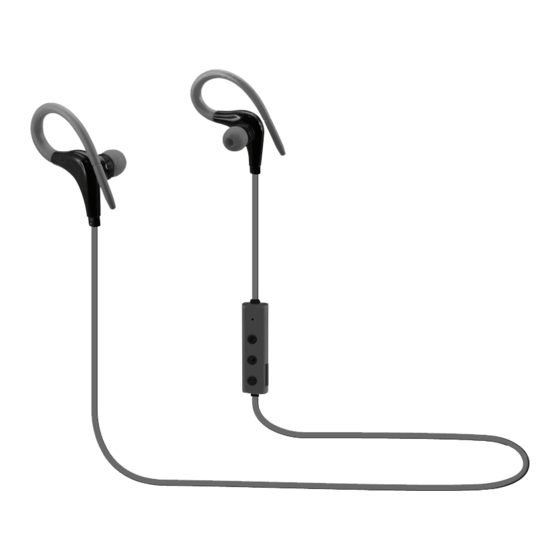

Overview & Controls

Overview

Microphone/Indicator Light
Volume Up
Power / Pair / Play / Pause / Speakerphone
Press and hold for aprrox. 7 seconds to turn the unit on and began pairing.
Press and hold to power ON or OFF.
Press to play or pause audio.
Press to answer incoming phone call.
Volume Down
DC Power Input
Use with USB charging cable (included).

Features

Initial charge time is approximately 2 hours. Charge fully before use.

Using a Micro-USB to USB cable (included), connect to the USB port of a powered on computer or USB power adaptor (not included) to charge the unit.

LED Indicators

Status	Indicators
Power On	Flashing blue light
Low Battery	Flashing red light
Charging	Red light
Fully charged	Off
Pairing Wireless	Flashing red and blue lights

Pairing a Bluetooth Device

If your device should become unpaired, or you find it is unable to connect normally, repeat the steps below.

Power on the unit by pressing and holding the Play/Pause/Speakerphone/Pair button for approximately 7 seconds. When pairing, remain within 3 feet of the unit.
Using the controls on your Bluetooth device, select IAEB06 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0.
Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

Playing Audio Wirelessly

Use the controls on the connected Bluetooth device to select and begin playing an audio track. Audio from the connected Bluetooth device should now be heard through the earbuds.
To play or pause audio, press the Play/Pause button or use the controls on the connected Bluetooth device.

Using the Speakerphone

To accept a call, press the Speakerphone button or use the controls on the connected phone.
To end a call, press the Speakerphone button or use the controls on the connected phone.

FCC WARNINGS

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

ADDITIONAL WARNINGS

To prevent fire or shock hazards, do not expose this unit to rain or moisture.
Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.
This product may contain chemicals known to the State of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling.
This product meets and complies with all Federal regulations.
