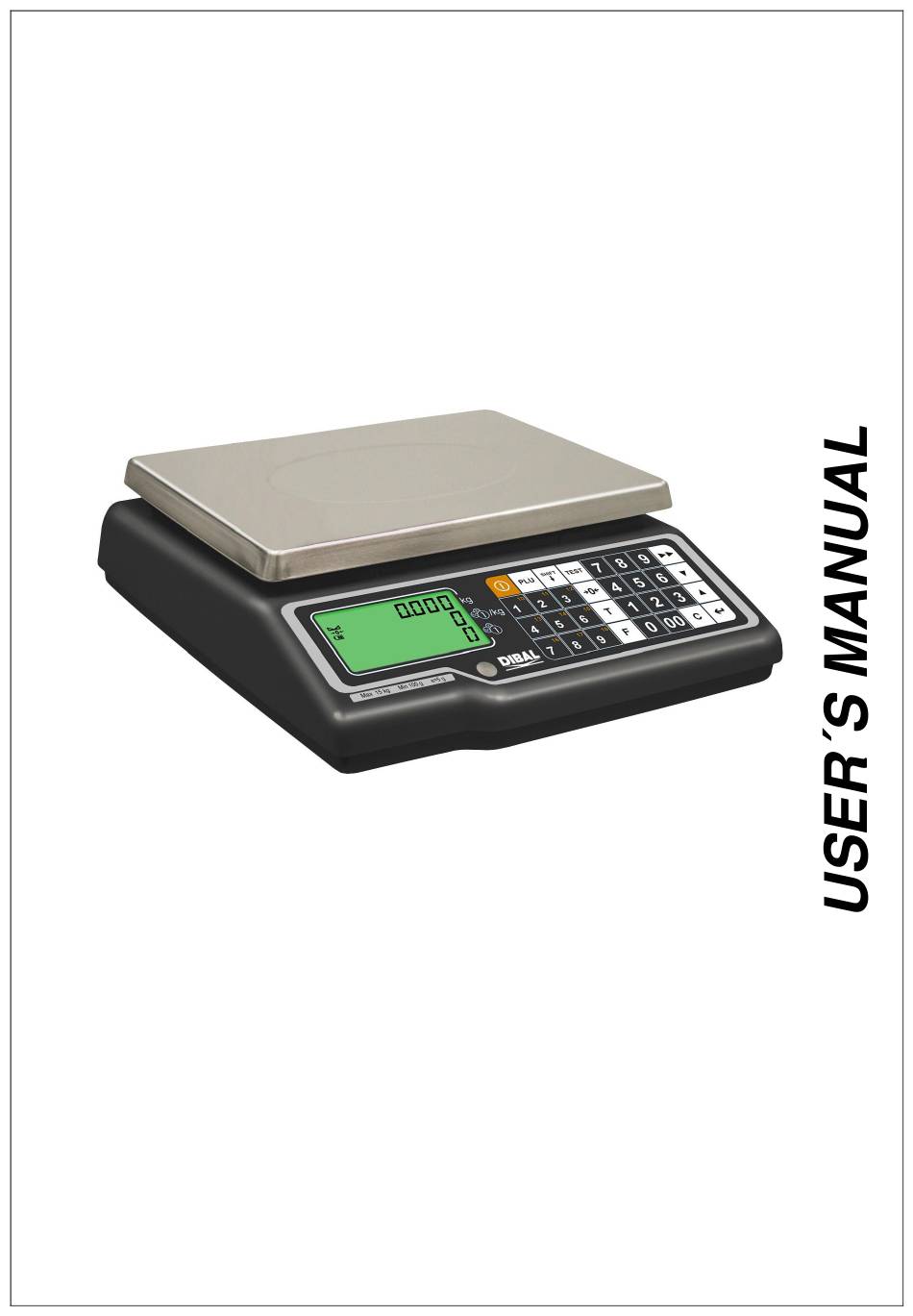

- Page 1 G300 SERIES Ref.49BG300EN10...
-
Page 2: Table Of Contents
USER´S MANUAL Index 1. DESCRIPTION OF THE SERIE G SCALE ............ 1 1.1. KEYBOARD ....................1 2. INTRODUCTION ..................2 2.1. GENERAL SPECIFICATIONS ..............2 2.2. OPERATIONAL AND METROLOGICAL SPECIFICATIONS ....... 2 2.3. INSTALLING THE SCALES ............... 2 2.4. USE AND MAINTENANCE ADVICE ............3 2.4.1. -
Page 3: Description Of The Serie G Scale
USER´S MANUAL 1. DESCRIPTION OF THE SERIE G SCALE Plate On/Off Key Tare Indicator Stable weight indicator Battery indicator Direct Numeric keyboard Keyboard Level indicator Setting button & communication connector (on bottom) 1.1. KEYBOARD... -
Page 4: Introduction
(1) We recommended only using power supply adaptors supplied by DIBAL S.A.. If for any reason, a power supply adaptor is used that has not been supplied by DIBAL S.A., it must be provided with double insulation between the primary and secondary. The scales’ guarantee does not cover damage caused as a result of using parts that are not supplied by DIBAL S.A. -
Page 5: Use And Maintenance Advice
BATTERY OPERATION Optionally, the scales may be provided with one 6VDC 4.5Ah lead battery. Use original batteries supplied by DIBAL S.A. the use of any other type will render the scales’ guarantee void and may be dangerous. New batteries are partly charged. Before you can use your scales, you should put in the battery and charge it as follows: To charge the battery, simply plug the scales into the mains. -
Page 6: Switching The Scales On And Off
SERIE G300 2.5. SWITCHING THE SCALES ON AND OFF Ensure that the scales is properly installed, then hold down the ON/OFF button until the scales comes on. The screen will display the version and range of the scales. After A Few Second All Digits Will Display 9, And Will Gradually Count Down To 0. -
Page 7: Segment Test
USER´S MANUAL 3.4. SEGMENT TEST When is pressed all segments should light up. 3.5. AUTOMATIC ZERO The scale has a manual auto-zeroing device. If the reading does not return to zero when the weight is removed from the scales, and if it is within a certain margin, pressing will re-set the reading to zero. -
Page 8: Item Programming
SERIE G300 4.1. ITEM PROGRAMMING This enables the prices of 100 items to be programmed. Enter programming and select item programming (1) 0 7 9 0 1 The code and price will be displayed, and the datum to be programmed will flash. Key functions are as follows: Function Back to initial programming status... -
Page 9: Configuration Programming
USER´S MANUAL 4.2. CONFIGURATION PROGRAMMING This enables the operation of the scales to be personalised. 0 7 9 0 1 go into programming and select configuration (0) The key functions are as follows: Function Back to initial programming status Set datum to zero Increase figure programmed Decrease figure programmed Record datum and move on to next... -
Page 10: Euro Phase
SERIE G300 4.2.4. EURO PHASE This indicates the euro phase in which the scales are set: Phase 1: all sums are calculated in national currencies, but can also be shown in euros (until 31-12-01). Phase 2: sums are calculated in euros, but can also be shown in national currencies ( from 1-1-02 to 28-2-02). -
Page 11: Declaration Of Conformity
USER´S MANUAL 5. DECLARATION OF CONFORMITY Scan the QR code or click on the link below to view the declaration of conformity. http://www.dibal.com/DeclaracionesConformidad/ The information in this manual may be modified by the manufacturer without prior notice. REF.: 49BG300EN10 REV 10...
