Related Manuals for Dibal 500 Series
Summary of Contents for Dibal 500 Series

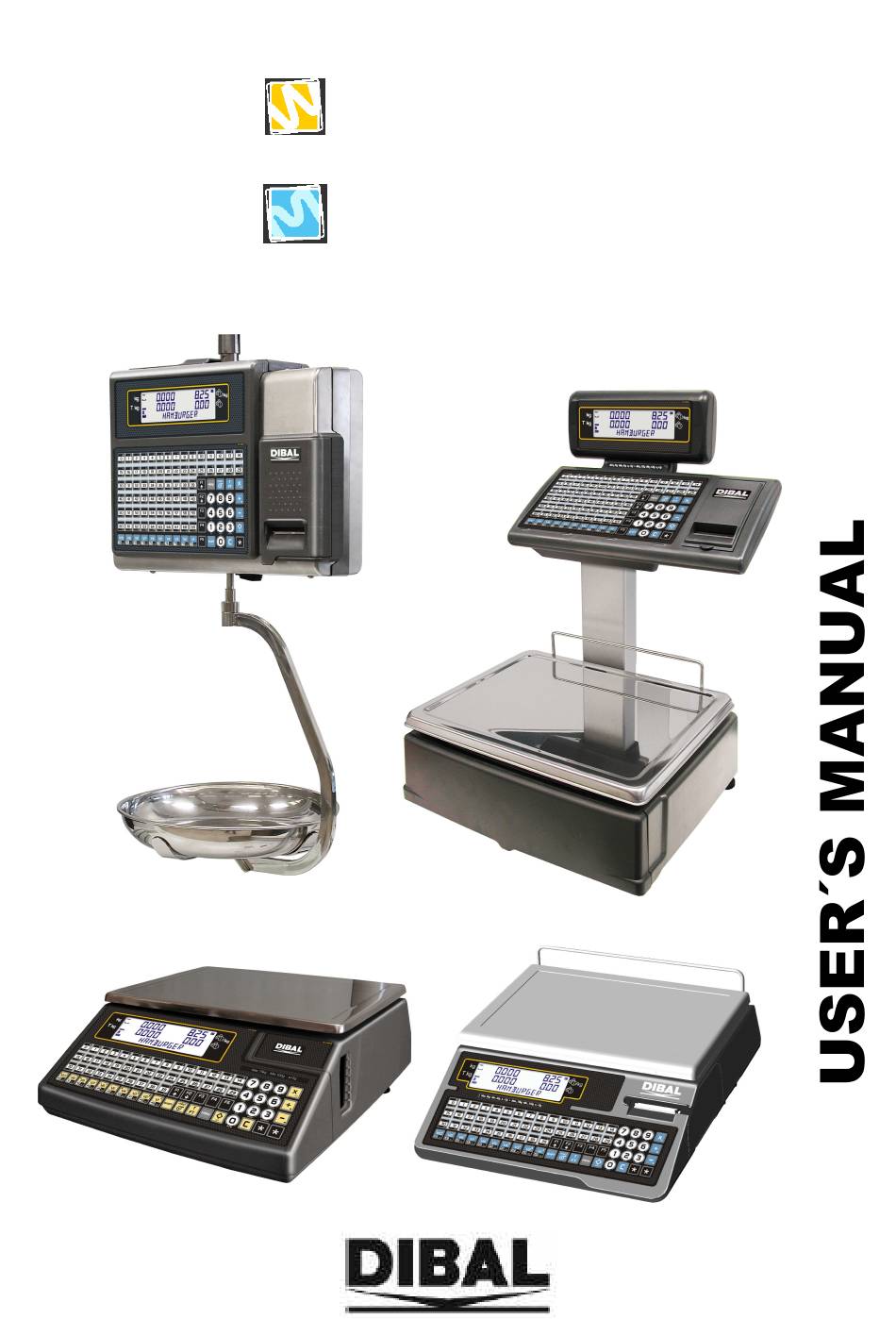

- Page 1 500 RANGE 49-M500WMEN11 W-010, W-015, W-020, W-025 49-M500WMEN11 M-510, M-515, M-520, M-525 49-U500WMEN11...
-
Page 3: Table Of Contents
500 Range CONTENTS INTRODUCTION ..............................1 1.1. PRESENTATION ............................1 1.2. MAIN CHARACTERISTICS ........................1 1.3. WEIGHING SCALES SPECIFICATIONS ....................2 1.3.1. General..............................2 1.3.2. Accessories..............................2 1.4. INSTALLATION OF SCALES ........................3 1.5. MAINTENANCE ADVICE AND HOW TO LOOK AFTER YOUR 500 RANGE SCALES ....4 OPERATION.................................5 2.1. - Page 4 7.2.1. Flat Model.............................48 7.2.2. Hanging and Doble Body Model ......................50 APPENDIX ON BATTERIES ...........................51 8.1. WORKING MODES OF THE 500 SERIES BATTERY ................51 8.2. BATTERY CONTROL PARAMETERS ......................51 8.3. OPERATION DEPENDING ON THE BATTERY CONTROL PARAMETER VALUE......51 8.3.1. Battery control to 1(default mode)......................51 8.3.2.
-
Page 5: Introduction
500 Range 1. INTRODUCTION 1.1. PRESENTATION The 500 weighing scale Range are the top of the DIBAL range, especially designed for use in direct sales to the public. DIBAL’s 500 weighing scale Range are a powerful work tool that will permit you to reap maximum benefit from your business. -
Page 6: Weighing Scales Specifications
USER´S MANUAL 1.3. WEIGHING SCALES SPECIFICATIONS 1.3.1.General POWER SUPPLY......... 110/230 VAC,50Hz, 1,3A PRINTING METHOD ..........THERMAL PAPER DISPLAY..............According to model* * DISPLAY SUPERLUX or DISPLAY BLUE L PAPER SIZE OF LABELLING MACHINE ..Dimensions: Width x Length Maximum Length: 100*mm Max. -
Page 7: Installation Of Scales
500 Range 1.4. INSTALLATION OF SCALES Follow the instructions below to ensure correct installation and operation of the scales. Check that the mains voltage corresponds to that stated on the specifications label on the scales and that it does not fluctuate in excess of 10% of nominal voltage. -
Page 8: Maintenance Advice And How To Look After Your 500 Range Scales
USER´S MANUAL 1.5. MAINTENANCE ADVICE AND HOW TO LOOK AFTER YOUR 500 RANGE SCALES By following these recommendations, your scales will remain in perfect working order, thus obtaining a better performance and a longer life. Never place a weight on the scales that exceeds the maximum limit. -
Page 9: Operation
500 Range 2. OPERATION 2.1. SWITCHING ON Check that the weighing scales are correctly installed and then turn on the switch on the bottom of the scales. 99999 99999 While the scales are checked for any possible errors, the 99999 99999 display shows a countdown from 9 to 0, and information on the H5XX... -
Page 10: Starting Up
USER´S MANUAL 2.2. STARTING UP Each of the following steps must be completed to start operating the scales: STEP 1: Install scales described sect 1.4.INSTALLATION OF SCALE and switch on as described in sect. 2.1.SWITCHING ON. STEP 2: Programme the weighing scale communications, i.e., set up the scales as MASTER or SLAVE and assign the corresponding address. -
Page 11: How To Operate The Scales
500 Range 2.3. HOW TO OPERATE THE SCALES DIBAL 500 Range weighing scale are specially designed to simplify the sales assistant’s work, ensuring a high level of speed and reliability on the part of the system, whether the latter is one set of weighing scales or a network of MASTERS and SLAVES connected to a PC. -
Page 12: Non-Weight Operations (Adding, Subtraction And Multiplication)
USER´S MANUAL 4.Memorise the operation for the corresponding sales assistant by 0.410 pressing one of the, V1, V2..., Vxx keys. These memory keys 0.000 ^Euros^ must have been registered beforehand. 5.Remove the article and then start again with the next one. 0.410 5.00 0.000... -
Page 13: Manual Zero
500 Range 2.3.4. Manual zero The scales are equipped with a manual reset to zero mechanism. 0.000 0.00 If, for any reason the value of the weight is not zero, but it is within SHIFT 0 0.000 0.00 a certain range, press keys SHIFT and 0, to reset the weight to zero. -
Page 14: Review Receipt
USER´S MANUAL 5. If the option DISCOUNT ON TOTAL is activated, then the memory number, number of articles and sum total will be shown. The scales will request the discount percentage to be 4.10 applied to the receipt. Enter the desired value (for example total 4.10 ∗... -
Page 15: Receipt Reopening
500 Range 2.3.7.1 Complete deleting receipt If you wish to cancel the entire ticket, Follow the next steps: ◊ ◊ ◊ ◊ 1. Press the subtotal key ◊ ◊ ◊ ◊ . SUBTOTAL SALES ASSIST 2. Press the corresponding sales assistant’s memory key. Subto 0.36 M: 04... -
Page 16: Fix Price
USER´S MANUAL The label will be printed when the memory key is pressed corresponding to the sales assistant who has effected the operation. ∗ ∗ ∗ ∗ 3. If you wish to make a certain number of COPIES* of the last Total label issue, press ∗... -
Page 17: Net Weight Operations
500 Range • This procedure compatible with adding subtraction of one or more articles to be weighed. • In-line discount is not compatible with this procedure. Effect the following procedure: 1. Place the required article on the platform and select the article 0.590 7.89 0.000... -
Page 18: Free Price
USER´S MANUAL 2.3.13. Free price If you wish to FREE THE PRICE of a product at any time: Check that configuration parameter 323: FREE PRICE has 0.205 0.00 the default value and place the product on the platform. 0.000 0.00 The article should have enabled Modify Price. -
Page 19: Best Before
• Models: W-020, W-025 & M-520,M-525 2.3.16.Batch number* In the Dibal 500 Range scales it is possible to programme a batch number, which can be alphanumeric with a maximum of ten digits, in which a global reference to labels of articles may be assigned when the scales are in label mode. -
Page 20: Totals Labels
USER´S MANUAL 2.3.17.Totals labels With this procedure it is possible to issue a label with the totals of the previously issued labels. There are two modes of operation: 2.3.17.1 Normal Accumulation Label After issuing several labels, you can request a label with the totals of the previous operations. -
Page 21: Forms Of Payment
500 Range 2.3.18.Forms of payment This Function permits sales to be associated with a form of payment so that later they can be listed separately. There are nine forms of payment, four of which are defined: PLU1 Cash PLU4 To account PLU7 Programmable Card or... -
Page 22: Two Pay Mode
USER´S MANUAL 4. Press MENU 8 1 16 to enter the Lists menu. Enter number 21, which is the number that corresponds to the customers’ list. This list shows each customer, name and amount owed. MENU To ensure that the balance of the cash drawer adds up correctly, in list 8 1 16 TOTAL SALES ASSIST. - Page 23 500 Range payment (if you press C, the amount will be left at zero). At any time you may change forms of payment by pressing a PLU key. The choice of the first form of payment and the amount to pay through this form are confirmed by pressing ∗...
-
Page 24: Selecting A Default Vendor
USER´S MANUAL Use the number keys to enter the amount the customer wishes to pay by cheque. Press ∗ ∗ ∗ ∗ again. If the amount entered differs from the amount due (i.e. if it is less) a second form of payment will be requested. -
Page 25: Self-Service Mode
500 Range 2.3.23.SELF-SERVICE MODE The way it works in this mode is performed by placing a weight on the plate and when pressing the corresponding key label, without 0.135 0.00 requiring the intervention of a vendor, the label of the required 0.000 0.00 03 - POTATOES... - Page 26 USER´S MANUAL The movements we can have are the following ones 100.525 STOCK + + + + Add the stock: The indicated amount is added to the 12- POTATOES current stock. − − − − Subtract the stock: The indicated amount is subtracted from the current stock.
-
Page 27: Programming
500 Series 3. PROGRAMMING DIBAL 500 Range scales offer a menu-based programming system, i.e. there is a hierarchical coded structure of programming menus that provides fast and simple access to the different programmes by using their corresponding codes. PROG Access to the main programming menu is gained by pressing the 1 - 9 key MENU for 2 seconds. - Page 28 USER´S MANUAL OPTION 2: MENU Press MENU Pressr 7 4 1 3 7 4 1 3 PROG 1 – 9 Enter the value of the parameter, in this case 5. ARTICLES Press MENU to exit the Programming menu. PROG 7.4.1.3 MENU The menus structure is the following: FORMAT LBL...
-
Page 29: Articles [ 1 ]
500 Series 3.1. ARTICLES [ 1 ] 3.1.1.Creating/modifying a PLU In this section articles are programmed on the scales. The 500 model scales. The models Wind: W-010, W-015 and Mistral: M- 510, M515 allow to program 2000 articles. On the other hand, the models W-020, W-025, M-520 and M-525 allow to program 5000 articles. - Page 30 USER´S MANUAL Proceed to programme the type of article. Articles may be of the following types: price/Kg. (WEIGHT), unit price (UNIT), fixed weight (FIXED W.) o. Use C to select type of article desired: - WEIGHT. Type of article by default; the price per kilo will be programmed, and the amount will be the weight of the product multiplied by the price.
- Page 31 500 Series 9. Assign the barcode format (from 1 to 10) that is to appear on the article label and/or receipt. All 10 barcode types can be defined by the user in C 000001 FOR EAN 13 sect..11.1.8.1. CONF. EANC01...EANC10.
- Page 32 USER´S MANUAL Therefore, if a customer purchases 5 kg or less of potatoes, he/she will not benefit from any price offer. If the purchase is over 5 kg but under 10 kg, the customer will obtain a price offer of 0.50 Euro/kg. If you select Free Quantity, it will program the quantity from which you offer another amount free of charge, press X to programme the value of the free amount.
- Page 33 500 Series 15. Enter an extra date (best before date, etc...). If you wish to T/FT C 000001 enter an expiry time, press T/FT and enter it directly. EXTRA DATE Press X to proceed to define the PLU tare. 00/00/00 16.
-
Page 34: Copy An Article
USER´S MANUAL *Only models W-020, W-025, M-520 y M-525 C 000001 LOGO 22. Logo. MILK The logo associated with the article is programmed here. The ∗ ∗ ∗ ∗ scale has one set of programmed logos. ∗ ∗ ∗ ∗ Press in order to save 23.- Alter price... -
Page 35: Vendors [ 2 ]
500 Series 4. VENDORS [ 2 ] The maximum number of vendors available on each scale will depends on the model. • For models: W-010, W-015, M-510 & M-515 Max.: 5 vendors.( V5 ) • For models: W-020, W-025, M-520 & M-525 Max.: 10... -
Page 36: Consulting Active Vendors
In order to change the code or name of a sales assistant, they must first be removed and then registered. 4.1.2.Training model The DIBAL 500 Range scale has a special working mode for training new sales assistants. In this working position, the transactions carried out are not accumulated in the scale’s totals, and the receipts issued include... -
Page 37: Removing Vendors [ 2 2 ]
500 Series 4.2. REMOVING VENDORS [ 2 2 ] In order to remove a vendor, that is, free the memory occupied by the said sales assistant, take the following steps: MENU 1. Access vendors programming and select Remove Vendors MENU (2 sec) 2 2. -
Page 38: Cash Drawer Operation [ 2 3 ]
USER´S MANUAL 4.3. CASH DRAWER OPERATION [ 2 3 ] The 500 Range weighing scales permit joint operation with a cash drawer. To do this, a connection cable is required, and this operation mode must be activated. For cash drawer operation: 1. -
Page 39: Reports [ 8 ]
500 Series 5. REPORTS [ 8 ] 5.1. LISTS [ 8 1 ] To avoid manipulation in the management of the cash drawer, lists involving the sum total of sales cannot be issued until the CASH DRAWER LIST has previously been printed. -
Page 40: Sales Per Artcile By Code [ 8 1 4 ]
USER´S MANUAL 5.1.4.Sales per Artcile by Code [ 8 1 4 ] This list gives information about sold articles classified by code. Pressing the X key, you can select the range of codes, the department, the section or the VAT type. In this list does not appear the article number operation. -
Page 41: Sales By Vendor/Article [ 8 1 6 ]
500 Series 5.1.6. Sales by Vendor/Article [ 8 1 6 ] With the aid of the sales assistants’ keys V0... Vxx, you can enter the number of the sales assistant whose sales you wish to print. Si se desea obtener un listdo de todos los vendedores, pulse la tecla T/FT . -
Page 42: Sales Per Article By Code [Extended] [8 1 8]
USER´S MANUAL 5.1.8. Sales per Article by Code [Extended] [8 1 8] By pressing the X key you can select the range of codes, the department, the section or the VAT rate. This list contains the codes, the associated PLU, the designation, the number of operations, the weight and the amount of each of the articles sold, and at the bottom:... -
Page 43: Big Total Group [ 8 1 9 ]
500 Series 5.1.9. Big Total Group [ 8 1 9 ] This list shows the number of receipts (customers) and the total number per sales assistant (memory) broken down acc. to totals, wholesalers’ totals, negative totals, weighed articles, non-weighed articles, returned articles and finally, all totals acc. to forms of payment. -
Page 44: Totals [ 8 1 10 ]
USER´S MANUAL In the lists called GRAND TOTAL, WEIGHED ARTICLES and NONWEIGHED ARTICLES, the amounts shown are those before applying the discounts of totals, but after applying discounts to lines. In the list called TOTALS FORM OF PAYMENT, the amounts shown are those following the application of all discounts... -
Page 45: Sales Per Section [ 8 1 11 ]
500 Series 5.1.11.Sales per Section [ 8 1 11 ] This list shows the total sum of sales according to departments. SECTION – TOTAL There are different types of levels: 1 → level 1 (day’s sales) 2 → level 2 (weekly sales) 3 →... -
Page 46: Cash Drawer Report [ 8 1 14 ]
USER´S MANUAL 5.1.14.Cash Drawer Report [ 8 1 14 ] This list includes the totals, classified according to form of payment, and the state of the cash drawer when first opened, as well as the balance. If you print the list for the first time after starting up the scale, at the end of the day with or without deletion or clearance to zero of partial accumulation, you must enter the amount of money there is in the cash drawer with the numeric keypad, for its subsequent check with... -
Page 47: Stock Report [ 8 1 18 ]
500 Series To edit the date, press X when positioned over the start or end date and enter the date with the number keypad using the format “ddmmyy”. The Fiscal list can be printed on the receipt printer (by default) or the labeller. -
Page 48: Deletions [ 9 ]
USER´S MANUAL 6. DELETIONS [ 9 ] 6.1. Z DELETION [ 9 1 ] To carry out this operation: 1. Access to the list menu pressing MENU for 2 seconds. 2. Press the 9 1 keys. 3. Press the ∗ ∗ ∗ ∗ key 6 times. 4. -
Page 49: Parcial Deletings [ 9 3 ]
500 Series 6.3. PARCIAL DELETINGS [ 9 3 ] 6.3.1. Articles Deletion [ 9 3 1 ] This menu option deletes the article store in the memory of the scale. To carry out this operation: Access to the menu pressing MENU during 2 seconds. -
Page 50: Configuration Deletion [ 9 3 4 ]
USER´S MANUAL 6.3.3.2 Deleting Only Products [ 9 3 3 2 ] To carry out this operation: Access to the menu pressing MENU during 2 seconds. Press the 9 3 3 2. keys. Press the∗ ∗ ∗ ∗ 3 times. The scale gives 2 options: Press the ∗... -
Page 51: Change Of Paper
500 Series 7. CHANGE OF PAPER 7.1. CHANGING PAPER IN THE PRINTER To change the paper in the printer, proceed as follows: • Open the new reel of paper and remove the part containing glue. • Open the cover. Remove the remains of the paper and the reel holder. -
Page 52: Changing Paper In The Labelling Machine
USER´S MANUAL 7.2. CHANGING PAPER IN THE LABELLING MACHINE 7.2.1. Flat Model Scale 500 Range Model Flat can operate with continuous paper, adhesive labels or continuous adhesive paper. To replace continuous paper (only ticket): 1. Open the printer and releasing on the right side. Remove the spent roll. 2. - Page 53 500 Range To replace adhesive paper (Labels): 1. Remove the weighing platform by lifting it from the right as described above. 2. Open the printer and release the paper from the head by working the lock. Remove the spent roll. 3.
-
Page 54: Hanging And Doble Body Model
USER´S MANUAL 7.2.2. Hanging and Doble Body Model The scale is fitted with a cartridge system to facilitate the job of changing the paper in the labelling machine. Open the front drawer of the machine by pressing the button located on the left hand side of the machine. -
Page 55: Appendix On Batteries
8.1. WORKING MODES OF THE 500 SERIES BATTERY Depending on whether the scale is connected to the electricity supply source or not, regardless of whether it is switched on or not, or during operation, the scale is in one of the following states: ‘0’... -
Page 56: Battery Control To 1(Default Mode)
USER´S MANUAL 8.3.2. Battery control to 1(default mode) There is average saving in battery. The Backlight operates in timer mode, with a NON-MODIFIABLE timing of 10 seconds, in such a way that, if there are no variations in the weight on the tray or in key pressing in this period of time, the backlight switches off. -
Page 57: Messages In Operating Mode Changes
500 Range INDICATIONS OF BATTERY LEVEL LEVEL BATTERY LOAD ICON ONLY BATTERY Contour in the shape of a Load>= 100% Fixed battery 3 (clignotement optionnel) Segments Contour in the shape of a Allumé battery 100% > Load >= 90% 3 allumés Segments Contour in the shape of a Allumé... - Page 59 The information contained in this manual can be changed by the manufacturer without prior notice. Ref.: 49-U500WMEN11 04/08/2011...
