Summary of Contents for Dibal D-900

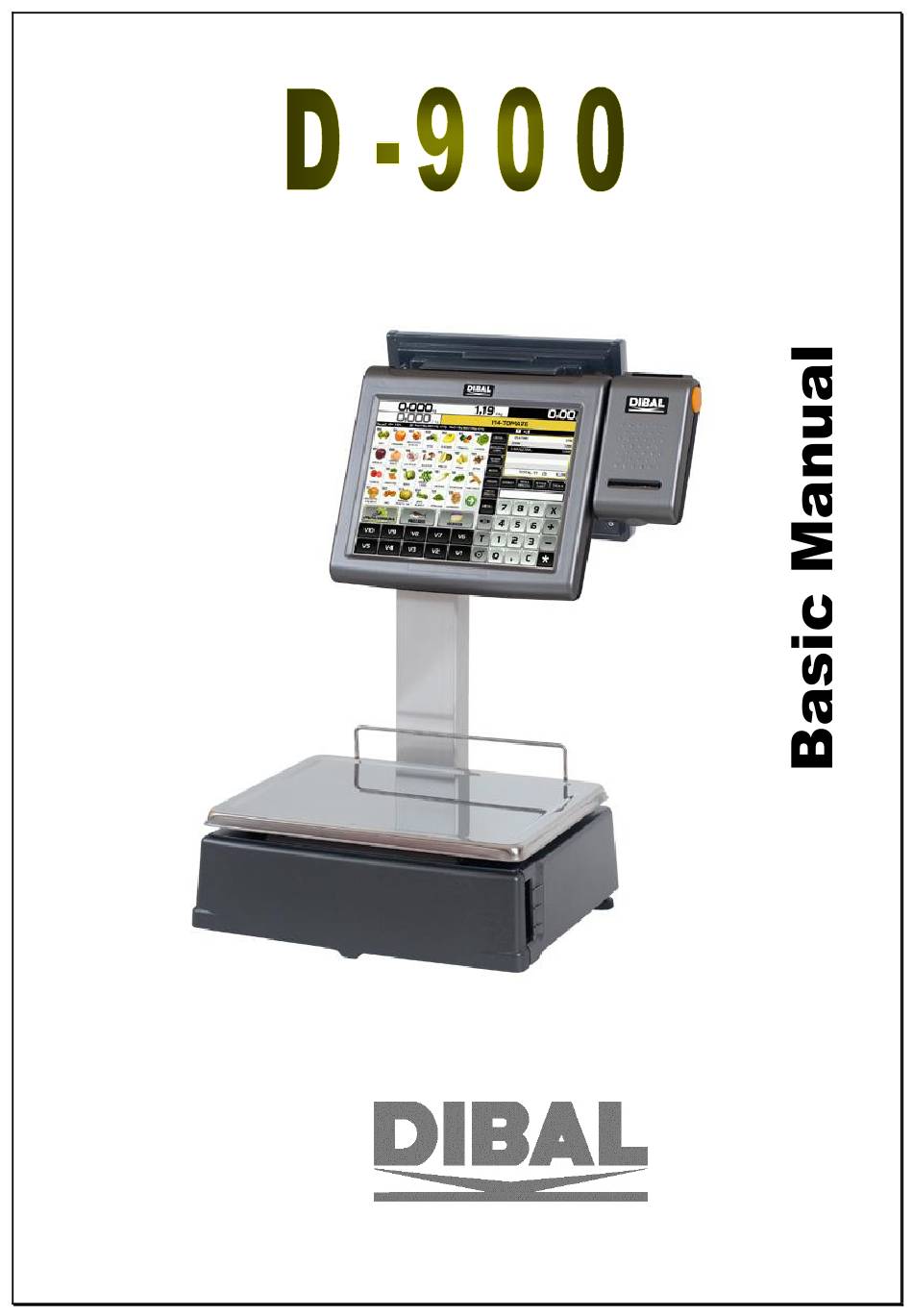

  • Page 1 49BD900EN03...

  • Page 3: Table Of Contents

    Contents Basic Manual D900 CONTENTS 1. CHECKLIST ........................... 1 2. MAINTENANCE ........................1 3. WORKING MODE SELECTION ..................2 3.1. S ........................2 ALES CREENS 3.1.1. Receipt / Label ......................3 3.1.2. Self-service ........................3 4. OPERATING PROCEDURE ....................4 4.1.

  • Page 5: Checklist

    Adhesive label paper roll or Receipt paper roll (Depending on the model) MAINTENANCE The DIBAL Gama D-900 scales with touch screen come with a programming system based on menus, i.e. a hierarchical and coded menu structure, which allows for quick and easy programming.

  • Page 6: Working Mode Selection

    WORKING MODE SELECTION Basic Manual D900 WORKING MODE SELECTION The scale offers a variety of working modes depending on the required use. When a working mode is selected, the keyboard (sales screen), the scale’s operating procedure and printing parameters are automatically configured.

  • Page 7: Receipt / Label

    WORKING MODE SELECTION Basic Manual D900 3.1.1. Receipt / Label Receipt: With this mode you can make the sale of 1 or several items and print the total accumulated. Label: The scale prints a label for each recording made, i.e., one per item. You can also work in Pre- packaging Mode (Automatic weighing).

  • Page 8: Operating Procedure

    OPERATING PROCEDURE Basic Manual D900 OPERATING PROCEDURE 4.1. Quick PLU Entry 10000 items (PLU) can be programmed. User Menu  Items  Press and edit the fields, for example, Name, PLU/Direct key, WEIGHED/UNITARY…, Price and VAT type. 4.2. Quick Cashier Entry Maximum 20 cashiers, User Menu ...

  • Page 9: Manual Zero

    OPERATING PROCEDURE Basic Manual D900 . Enter the price and press .Record the operation in the corresponding cashier. If you wish to add or subtract more than one unit before recording, enter the number of products and press x. 3. Record the operation in the corresponding cashier. 4.6.

  • Page 10: Discount On Line

    OPERATING PROCEDURE Basic Manual D900 Mode: (Normal), Frame: (No), Effect: (No effect), Pos: (Centred) Font: (5), Magnification: (2), Location: (0) and Text: (Header Line Text). 2. Global Format of receipt. User Menu Receipt Printer Settings  Form. of Receipt  0,…3. 4.12.2.Discount on line Percentual discount on a given item.

  • Page 11: Label Mode

    OPERATING PROCEDURE Basic Manual D900 4.13. Label Mode Carry out the required operation (weighing, etc.). When you press the memory key corresponding to the cashier who has carried out the operation the label is printed. If you wish to make a given number of COPIES* of the last label issued, enter the number of copies using the numeric keypad.

  • Page 12: Paper Change

    PAPER CHANGE Basic Manual D900 PAPER CHANGE 5.1. Paper change in the receipt printer Take the following steps to change the paper in the printer: 1. Open the new roll. 2. Open the printer cover. Remove any remains of the previous paper roll.

  • Page 13: Flat Model

    PAPER CHANGE Basic Manual D900 5.2.2. Flat model The scale is fitted with a cartridge system to facilitate paper change in the labelling machine. 1. Open the side cover in the machine. 2. Once opened, you will see three blue levers. Turn the lever highest up anti-clockwise to release the cartridge.

  • Page 14: Icons

    ICONS Basic Manual D900 ICONS New/Addition Save Stable User menu Zero Disabled/No Delete Manual zero Minimum Enabled/Yes Copy Interval Tare Receipt Favourites Print Paper feed Label Back Edit PC connection Delete Next /Previous Page Visible WITHOUT Confirm Sale Delete 1 by 1 Connection Quit Delete 20...

  • Page 15: Declaration Of Conformity

    Basic Manual D900 DECLARATION OF CONFORMITY Scan the QR code or click on the link below to view the declaration of conformity. http://www.dibal.com/DeclaracionesConformidad/ The information contained in this manual can be changed by the manufacturer without prior notice. Ref.: 49BD900EN03 REV 03...
