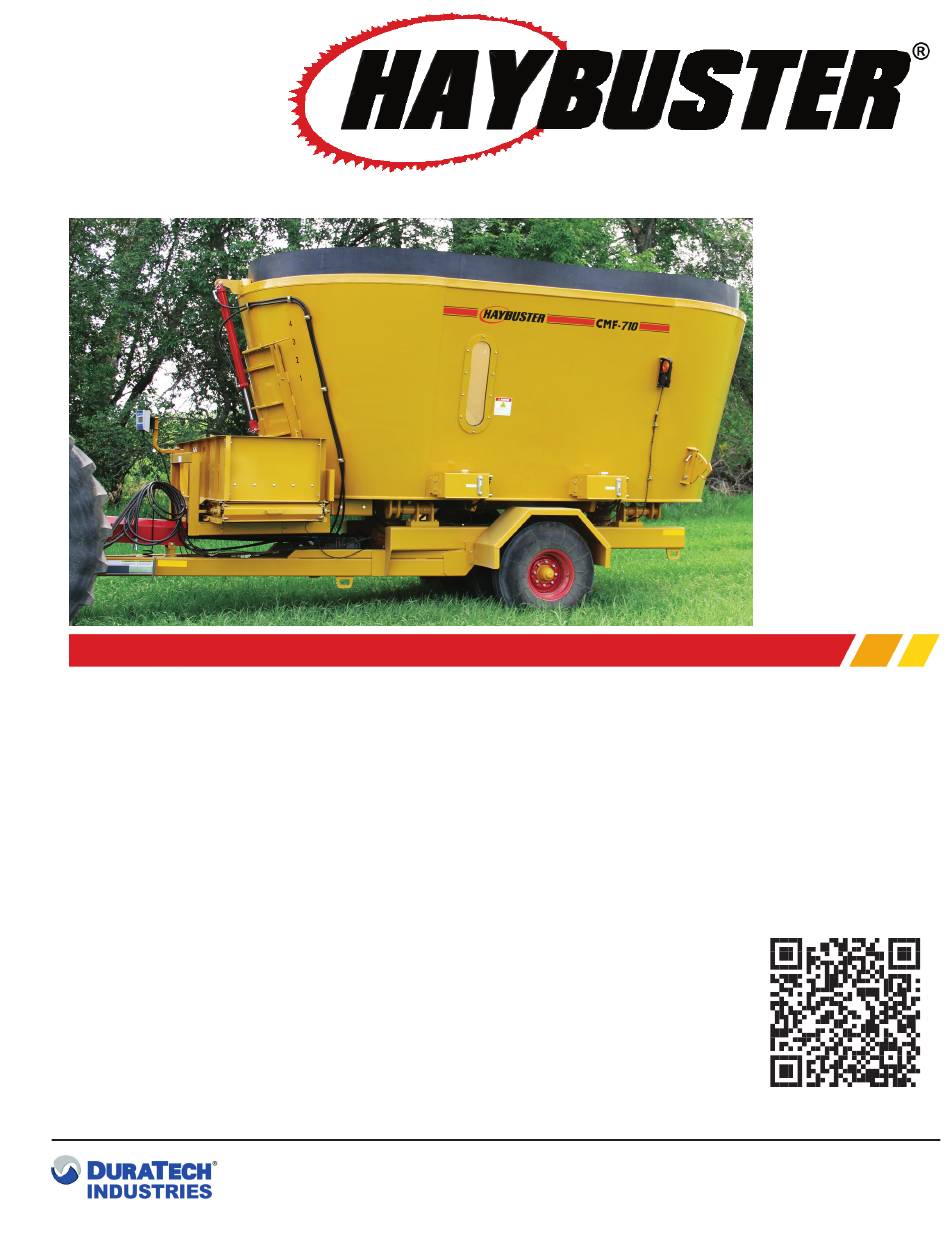

Operating Instructions and Parts Reference
CMF-710
V E R T I C A L M I X E R
0500151 • N
2019
ovember
o
i
rigiNal
NstructioNs
TM
D
T
I
ura
ech
nDusTrIes
Po B
1940, J
ox
T
: (701) 252-4601• F
el
.
www
DuraTechInDusTrIes
P
I
roduct
nformatIon
I
I
.
nTernaTIonal
nc
, nD 58402-1940
amesTown
: (701) 252-0502
ax
.
•
.
neT
www
hayBusTer
.
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAYBUSTER CMF-710 and is the answer not in the manual?

Questions and answers

Related Manuals for DuraTech Industries HAYBUSTER CMF-710

Summary of Contents for DuraTech Industries HAYBUSTER CMF-710

  • Page 1 Operating Instructions and Parts Reference CMF-710 V E R T I C A L M I X E R roduct nformatIon nDusTrIes nTernaTIonal Po B 1940, J , nD 58402-1940 amesTown : (701) 252-4601• F : (701) 252-0502 • 0500151 • N 2019 DuraTechInDusTrIes hayBusTer...
  • Page 2 A Tradition of Innovation Since 1966...
  • Page 3 This manual, as well as materials provided by component suppliers to DuraTech Industries are all considered to be part of the information package. Every operator is required to read and understand these manuals, and they should be located within easy access for periodic review.
  • Page 4 A Tradition of Innovation Since 1966...
  • Page 5 This vertical mixer is not to be used for any purpose other than for which it is intended as explained in the operator’s manual, advertising material and other pertinent written material prepared by DuraTech Industries. Any machine subject to misuse may cause personal injury or death, and void manufactures warranty.
  • Page 6 F O R E W O R D Purpose The purpose of this owner’s manual is to explain maintenance requirements and routine adjustments for the most efficient operation of your CMF-710. There is also a trouble shooting section that may help in case of problems in the field. Any information not covered in this manual may be obtained from your dealer.
  • Page 7 F O R E W O R D Dealer responsibilities • Read Section 2, “Dealer Preparation,” and perform the tasks outlined. Also perform a pre-operation inspection as described in Section 3. • Upon delivery of the unit to the customer, it is your responsibility to conduct a training session on the safe operation of the unit for primary operator(s).

  • Page 8: Table Of Contents

    T A B L E O F C O N T E N T S Part I: Operating instructions ..........1 Section 1: Safety ................. 2 1.1 Safety-alert symbols ..................2 1.2 Operator - personal equipment ................4 1.3 Machine safety labels ..................5 1.4 Shielding ......................
  • Page 9 T A B L E O F C O N T E N T S Section 4: Lubrication ............... 26 4.1 Lubrication ...................... 26 4.2 General appearance ..................31 Section 5: Troubleshooting ............32 Section 6: Options..............33 6.1 Rear bay door....................33 6.2 Magnetic extension spouts................
  • Page 10 T A B L E O F C O N T E N T S Part II : Parts Reference ..........39 TUB ASSEMBLY COMPLETE ................40 TUB ASSEMBLY DETAIL A ................41 TUB ASSEMBLY DETAILS B,C & D ..............42 TUB ASSEMBLY DETAIL E ................
  • Page 11 T A B L E O F C O N T E N T S OPTIONAL-LH DOGLEG DISCHARGE CONVEYOR (FOR S.N. UP TO VM18004071) ................78 OPTIONAL-LH DOGLEG DISCHARGE CONVEYOR PARTS LIST (FOR S.N. UP TO VM18004071) ................79 OPTIONAL-LH DOGLEG DISCHARGE CONVEYOR DETAILS A & B (FOR S.N.
  • Page 12 T A B L E O F C O N T E N T S OPTIONAL DOGLEG CONVEYOR HYDRAULIC SCHEMATIC DETAIL A ......................111 OPTIONAL DOGLEG CONVEYOR HYDRAULIC SCHEMATIC DETAIL B ......................112 OPTIONAL DOGLEG CONVEYOR HYDRAULIC SCHEMATIC DETAILS C AND D ..................... 113 OPTIONAL DOGLEG CONVEYOR HYDRAULIC SCHEMATIC DETAIL E ......................

  • Page 13: Part I: Operating Instructions

    CMF-710 VERTICAL MIXER PART 1: Operating Instructions C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 14: Section 1: Safety

    Section 1: Safety The safety of the operator is of great importance to DuraTech Industries. We have provided decals, shield and other safety features to aid you in using your machine safely. In addition, we ask you to be a careful operator who will properly use and service your Haybuster equipment.
  • Page 15 DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations, typically for machine components that, for functional purposes, cannot be guarded. WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and includes hazards...

  • Page 16: Operator - Personal Equipment

    1.2 Operator - personal equipment THE OPERATOR Physical Condition You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol) which might impair vision, dexterity or judgment. Do not operate a CMF-710 VERTICAL MIXER when you are fatigued. Be alert ‑ If you get tired while operating your CMF-710 VERTICAL MIXER, take a break.

  • Page 17: Machine Safety Labels

    Machine safety labels The safety decals located on your machine contain important information that will help you operate your equipment. Become familiar with the decals and their locations. DANGER: ROTATING DRIVELINE, KEEP AWAY! ENTANGLEMENT CAN CAUSE SERIOUS INJURIES OR DEATH. DO NOT OPERATE WITHOUT •...
  • Page 18 WARNING: PINCH POINT STAY BACK 6500339 WARNING: FOR YOUR PROTECTION AND SAFETY OF OTHERS, FOLLOW THESE SAFETY RULES. Read and understand operators manual before operating machine. Place all controls in neutral, stop engine, remove ignition key, lock out power source, and wait for all motion to stop before servicing, 6500208 adjusting, repairing, or unplugging.
  • Page 19 WARNING: Risk of eye injury Eye Protection required 6500487 WARNING: Moving parts can crush and cut. Keep hands clear. 6500488 WARNING: Noise hazzard. Ear protection required. 6500489 WARNING: NO STEP DO NOT STEP, STAND, OR SIT ON THIS SURFACE. MAY CAUSE INJURY AND/OR EQUIPMENT DAMAGE. 6500490 C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...
  • Page 20 CAUTION: ADJUST TRACTOR DRAWBAR SO THAT THE DISTANCE FROM THE END OF THE PTO SHAFT ON THE TRACTOR TO THE CENTER OF THE DRAWBAR HITCH PIN IS EQUAL TO THE DISTANCE SHOWN IN DIAGRAM. SEE OWNER’S MANUAL FOR MORE INFORMATION. 6500440 C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 21: Shielding

    1.4 Shielding Shields are installed for your protection. Keep them in place, and replace damaged shields. figure 1.1 PTO driveline shield shield CAUTION! NO STEP! DO NOT STEP OR STAND AT THIS LOCATION figure 1.2 Orbit motor auger drive shield shield 1.5 Safety review section BEFORE OPERATING...
  • Page 22 Allow only responsible, properly instructed individuals to operate your machine. Provide proper training • and carefully supervise inexperienced operators. Use a tractor which meets the tractor requirement contained within this manual. Additional weights may • be necessary. Make sure all bystanders and other workers are clear before starting the tractor and CMF‑710. •...
  • Page 23 If equipment has been altered in any way from its original design, DuraTech Industries does not accept any liability for injury or warranty.

  • Page 24: Towing/Road Transport

    1.6 Towing/road transport Use good judgment and drive slowly over rough or uneven terrain. • Avoid loose fill, rocks and holes; they can be dangerous for equipment operation or movement. Allow for • unit length when making turns. Be sure tractor brakes are properly adjusted and foot pedals are locked together. •...

  • Page 25: Section 2: Dealer Preparation

    Section 2: Dealer Preparation 2.1 Pre-delivery inspection Instructions: Before delivering the machine, check the following items carefully and make corrections when necessary. Place an “X” in the box after each item has been checked and found to be acceptable. Check machine for missing items or damage in transit. Check for loose bolts.

  • Page 26: Section 3: Operation

    Section 3: Operation To insure long life and economical operation, we highly recommend the operator of the CMF‑710 be thoroughly instructed in the maintenance and operation of the machine. There is no substitute for a sound preventative maintenance program and well trained operator. Prior to starting the engine of the tractor, we recommend the operator make a visual inspection of the unit.

  • Page 27: Pre-Starting Inspection Instructions

    3.1 Pre-starting inspection instructions WARNING: Before inspecting the machine, use the normal shut‑down procedure in Section 3.11. Check the following: Hydraulic components for leaks or damage. Warning: Hydraulic fluid escaping under pressure can be almost invisible and can have sufficient force to penetrate the skin.

  • Page 28: Setup And Adjustments

    3.2 Setup and Adjustments 3.2.1 Hitch Adjustments The hitch is adjustable so that the machine is parallel to the ground when attached to the tractor drawbar. This is accomplished by removing the two mounting bolts and reinstalling them with the hitch at the proper height. The distance from the end of the P.T.O.

  • Page 29: Shield

    When hooking up the machine, install a proper hitch pin and secure it with a hairpin clip or comparable device, crank the jack until the foot of the jack is fully raised. Remove the jack pin and relocate the jack to the storage location. Reinstall the jack pin.

  • Page 30: Tires And Rims

    3.2.5 Tires and Rims Tires should be inflated to 44 PSI (300 KaPa) maximum, and should be free of cuts or cracks. Verify tire markings before inflating. There should also be adequate tread and no visible cords, wires or tread separation. Tires must also be of proper load rating, speed rating and size.

  • Page 31: Free Motion Automatic Clutch

    3.2.8 Free motion automatic clutch Torque protection is built into the PTO driveline with two free motion automatic clutches. These clutches are located on each driveline immediately before each gearbox. When overload occurs the clutch disengages and does not reengage until the driveline speed is reduced to near zero. The clutch makes a loud click when it disengages.

  • Page 32: Setting Chain Tensions On Conveyors

    3.2.12 Setting Chain Tensions on Conveyors Dogleg Conveyor Set tension while conveyor is running. Turn tensioning nut to compress the spring into the cup until either the nut reaches the cup or the spring is fully compressed. Do not tension beyond full compression of the spring. Tension other side, and then recheck the first one adjusted.

  • Page 33: Hitching The Cmf-710

    3.3 Hitching the CMF-710 Warning: Do not operate the CMF‑710 unless the tractor complies with the following requirements: Tractor has a minimum of 125 horsepower. (without two‑speed option) • Tractor has rollover protective structure and seatbelts. • Tractor’s hydraulic system has at least (2) two‑way valves, and a minimum •...

  • Page 34: Unhitching The Cmf-710

    This machine is set up to operate on 1000 rpm only! If required, install the safety chain. Check local regulations regarding safety chain requirements. Refer to figure 3.7 figure 3.7 Safety chain installation Connect the two hydraulic hoses from the hydraulic door cylinder to one set of hydraulic couplers on the tractor.

  • Page 35: Operation Precautions And Instructions

    3.5 Operation precautions and instructions Make sure there are no bystanders in the way. • Before loading, run the mixer empty and check all operations. • Do not overload the mixer. Maximum load is 18,340 lbs. (8,319 kg) Maximum load is determined by •...

  • Page 36: Unloading

    3.8 Unloading To unload the CMF‑710, perform the following steps: If possible, move the mixer to the unloading site while finishing the mixing stage to avoid the need for loaded PTO start‑up. Align CMF with bunk and lower the conveyor extension to desired angle (if equipped). Engage the chain conveyor;...

  • Page 37: Removing The Cmf-710 From Storage

    3.10 Removing the CMF-710 from storage To remove the CMF‑710 from storage, perform the following steps: Remove all protective coverings. Remove blockings from under the CMF‑710. Check tire pressure. Lubricate machine in accordance with lubrication instructions found in this manual. Check the conveyor chain tension.

  • Page 38: Section 4: Lubrication

    Section 4: Lubrication The operator should make a check of all grease fittings on the unit before beginning to operate it so as to become familiar with their location and correct service schedule. Warning: Use normal shut‑down procedure (Section 3.11) before lubricating the machine. Lubrication Use only a high quality, #2 multi‑purpose grease when lubricating the unit.
  • Page 39 figure 4.1 P.T.O. Universal joint (1 of 8) P.T.O. universal joint lubrication zerk figure 4.2 P.T.O. Universal joint (2, 3, & 4 of 8) P.T.O. universal joint lubrication zerks figure 4.3 P.T.O. Universal joint (5 of 8), and P.T.O stand bearing (1 of 1) P.T.O.
  • Page 40 figure 4.4 P.T.O. Universal joint (6 of 8), and automatic clutch automatic clutch P.T.O. universal joint lubrication zerk figure 4.5 P.T.O. Universal joint (7 of 8) P.T.O. universal joint lubrication zerk figure 4.6 P.T.O. Universal joint (8 of 8), and automatic clutch automatic clutch P.T.O.
  • Page 41 figure 4.7 Conveyor bearings lubrication point (1 of 2) conveyor bearings lubrication zerk figure 4.8 Extention conveyor bearings lubrication point (1 of 4) extention conveyor bearings lubrication zerk figure 4.9 Telescoping P.T.O. shaft telescoping shaft figure 4.10 Auger grease lines auger grease lines lubrication zerks C M F - 7 1 0...
  • Page 42 Lubrication cont. Wheel bearings: repack annually Gearbox: Grease 20‑30 pumps every 250 hours (each gearbox), located on the bottom of the tub in front of the left tires. Chains: Oil conveyor chains every 15 hours. When to change oil in gearboxes: After the first 50‑100 hours of operation, drain initial oil, preferably when box is warm.

  • Page 43: General Appearance

    chart 4.1 lubrication chart for reduction gears 4.2 General appearance Clean all mud, dirt, grease and other foreign material from the exterior of the machine. Wash the entire machine. Repaint places where bare metal is exposed. C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 44: Section 5: Troubleshooting

    Section 5: Troubleshooting chart 5.1 Troubleshooting chart C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 45: Section 6: Options

    Section 6: Options Rear bay door figure 6.1 Optional rear door rear door Magnetic extension spouts figure 6.2 Magnetic extension spout extension spout magnets Non-magnetic extension spout figure 6.3 Non-magnetic extension spout angle adjustment bolt extension spout C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 46: Two-Speed Gearbox

    Two-Speed Gearbox figure 6.4 Two speed gearbox in low speed position speed selector low speed position figure 6.5 Two speed gearbox in high speed position speed selector high speed position figure 6.6 Two speed gearbox in neutral speed position speed selector neutral speed position C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 47: Dogleg Conveyor

    Dogleg Conveyor C M F - 7 1 0 O P E R A T I N G I N S T R U C T I O N S...

  • Page 48: Section 7: Maintenance

    Section 7: Maintenance Welding Procedure CMF‑710 welding procedures for machines with a weight scale Precautions are required for welding on machines with electronic components. Electronic components including but not limited to: electronic scales. Proper welding procedures are necessary with in order to avoid damage to the components, their sensors, and associated components.

  • Page 49: Appendix A: Warranty

    This warranty is limited to the replacement if any defective part or parts if DuraTech Industries is notified within thirty (30) days of failure.

  • Page 50: Appendix B: Cmf-710 Specifications

    Appendix B: CMF-710 Specifications General specifications Max. Weight ..............13,660 LBS (6,196.07 kg) Overall length, including trailer ..........22’‑2 11/16” (6.774 m) Overall width ................10’‑1 1/2” (3.086 m) Tractor P.T.O speed …(1‑3/8” 21 spline) ............1000 Minimum horsepower required ................125 Mixing capacity, cu.

  • Page 51: Part Ii : Parts Reference

    CMF-710 VERTICAL MIXER Part 2: Parts Reference...
