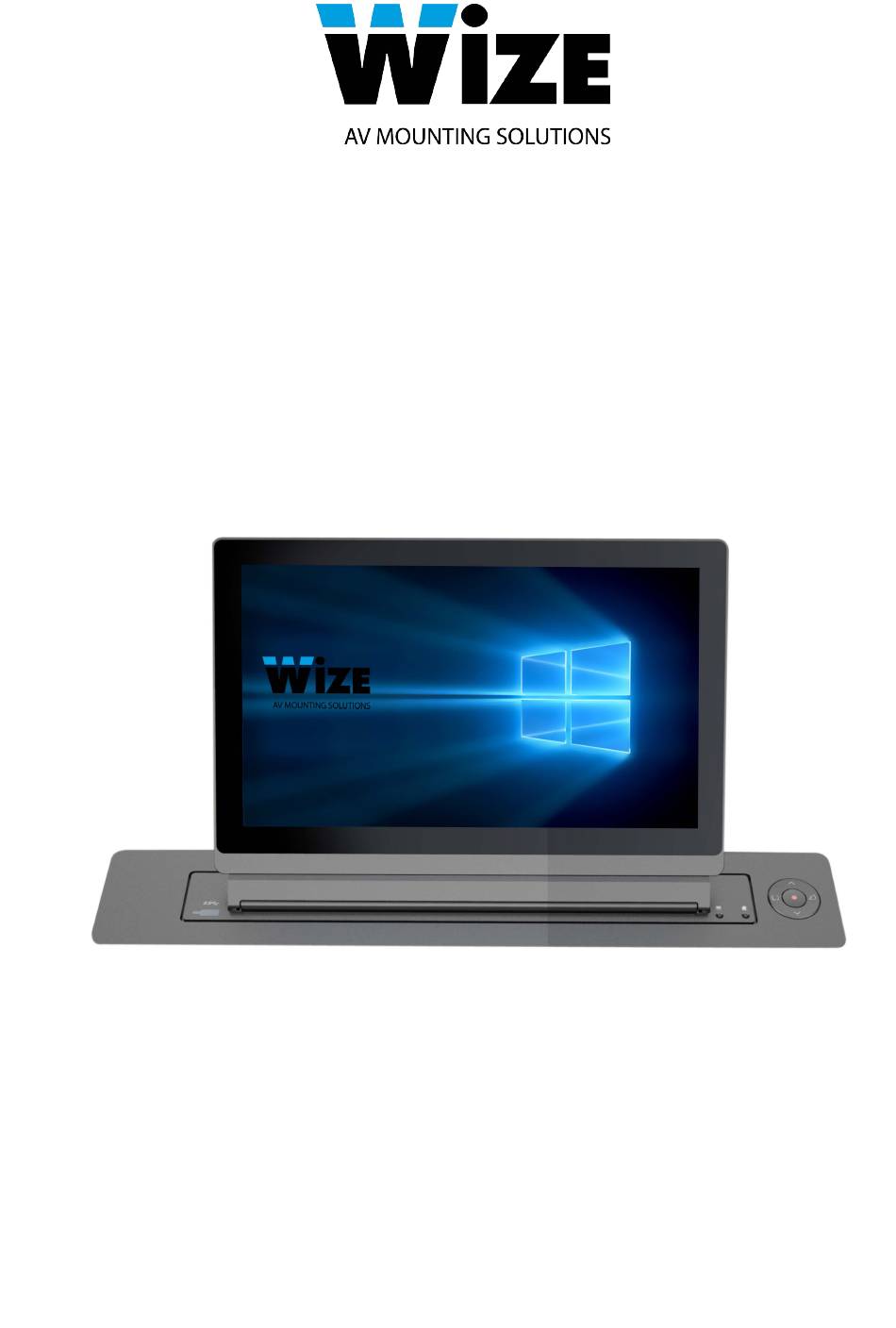

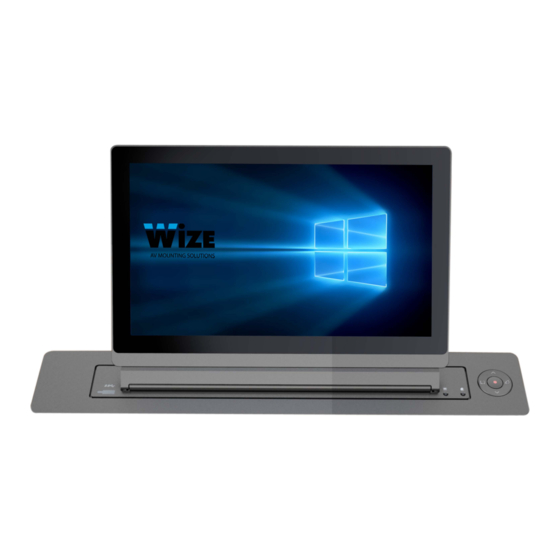

- Page 1 WR-17GT Motorized retractable monitor User manual Screen size: 17.3 inch Signal input: HDMI, VGA Tilt angle: 0-30 degree, adjustable Touch function: optional...
- Page 2 1. Listing.Shape and Panel Key Description 1.1 Packing list Name LIFT SYSTEM 1PCS POWER CABLE 1PCS RS485 CABLE 1PCS USER MANUAL 1PCS 1.2 Panel key Functions English Button show STOP DOWN FORCF(adjust angle) BACK(adjust angle) 1.3 Interface board features(from left to right) FIG1 surface 1.3.1 HDMI Video signal input.
- Page 3 1.4 Control Introduction： 1.4.1 RS485 Software Control:9 holes interface with the computer serial port. 232/485 intermediate bridge converter. FIG2 connector(female） 1.4.2 Control Button：（Please see Panel Key function, Red means light power indicator) FIG 4 Panel control button 1.4.3 Screen button function： （Pls see the 7 point, screen menu to adjust the guide）...
- Page 4 optical axis transmission and low noise and stable structure. Angle tilt of part 30 degrees. Screen is drive independently, adjust from 0 to frame is adopt pure aluminum with tempered glass front and rear, high- end atmosphere. And product is adopt desktop embedded design, can achieve seamless hidden with desktop.
- Page 5 3. Structural dimensions and installation instructions： 3.1 Size of structure figure. FIG 7 Size of structure figure. 3.2 User installed out-cut size figure. FIG8 OUT-CUT SIZE...
- Page 6 3.3 Installation Notes： 3.3.1 Before operation, please remove two "transport fixing screws" on the cover and clean the inside of the clamshell door foam filler. 3.3.2 The lifter embedded inside the opening, panel flush with the desktop. 3.3.3 Video Signal connector Cable（VGA or HDMI or DVI） 3.3.4 Connect the touch USB Cable(not need to connect the touch USB cable if without touch function) 3.3.5 If need Central-controlled system, please connect the control line...
- Page 7 Display is blank · Power switch is turned off? · Signal source is interrupted? Blurred characters · Is match with the resolution of the computer? Contrast and brightness adjustments are correct？ · No signal may be turned off Black Screen automatically Brightness？...
