Summary of Contents for Wize WR-15CL

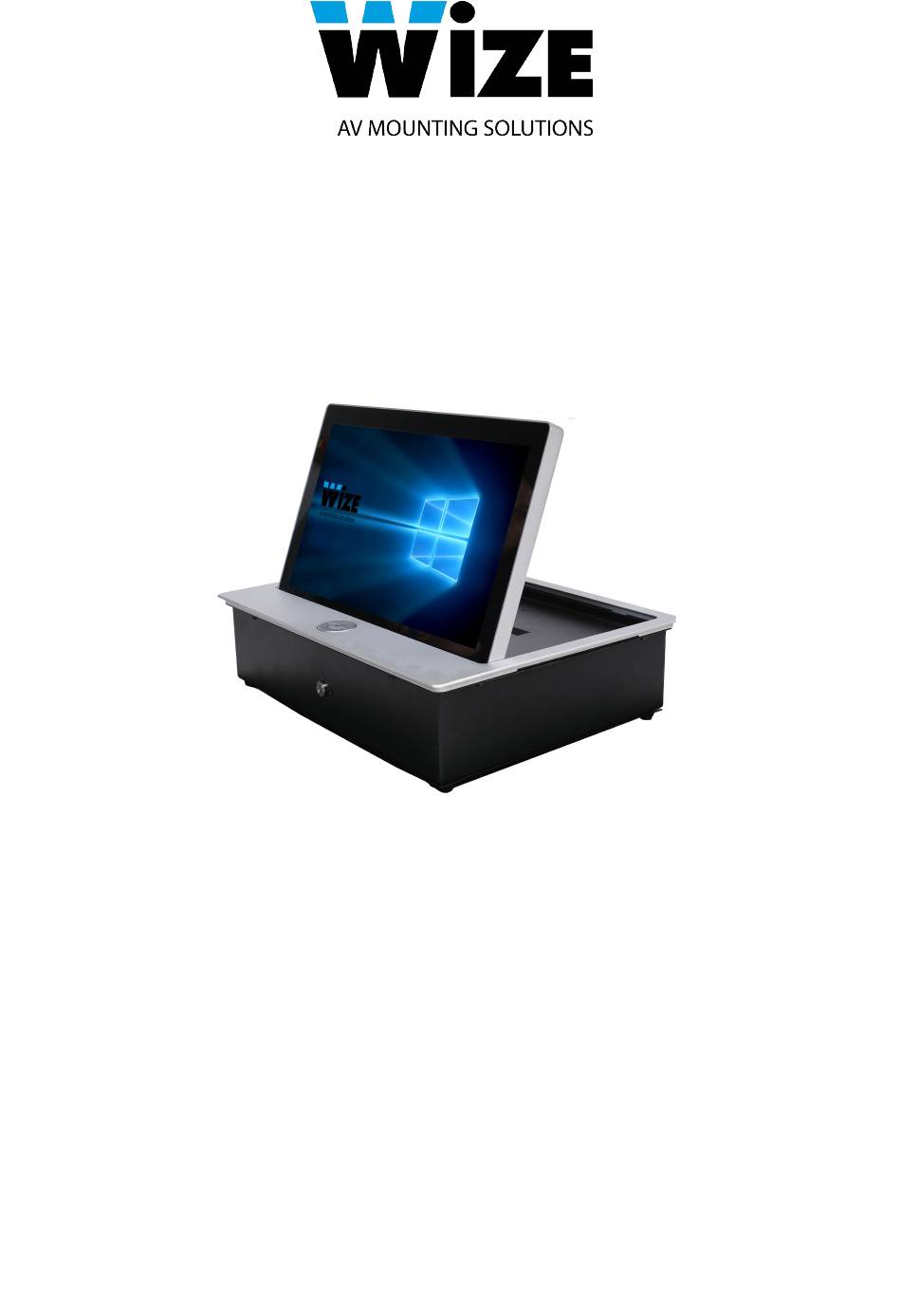

- Page 1 WR-15CL Flipped-up LCD monitor lift User manual Screen size : 15.6 inch Signal input : HMDI, VGA Tilt angle : 0-80 degrees, adjustable Touch function: optional...
- Page 2 List .Shape and Panel Key Description 1.1 Packing list 备注说明 No.: Items LCD monitor lift Power cable VGA cable User manual 1.2 Panel key Functions No.: English Signal STOP DOWN PC SW SA SW...
- Page 3 1.3 Interface board Function（from left to right） 1.3.1 HDMI Video signal input.。 1.3.2 DVI Video signal input。 1.3.3 VGA Video signal input。 1.3.4 Audio signal input(3.5mm stereo)。 1. 3. 5 Audio signal output(3.5mm stereo). 1.3.6 USB input,up for USB put, down for the touch screen control card interface。...
- Page 4 1.4.2 Remote control： （Will be give with goods when customer requested) 1.4.3 Control Button： （Please see Panel Key function, Red means light power indicator) 1.4.4 Screen button function： （Pls see the 7 point, screen menu adjust the guide） Me nu Auto ▲...
- Page 5 2. Structure Features and MainTechnical Indicator 2.1 Structure Features The part of screen Lift is adopt bilateral synchronous belt wheel with linear optical axis transmission and low noise and stable structure.。Screen frame is pure aluminum with tempered glass and nice outlooking . 2.2 Main Technical Indicator：...
- Page 6 Viewing angle 70/70/60/60 Video signal mode VGA/DVI/HDMI 3. Structure dimensions and install instructions： 3.1 Structure dimensions： Cutting out size：...
-
Page 7: Install Instructions
3.4 Install instructions： 3.4.1 Before setup,please remove two "fixing screws" on the cover and clean the foam filler inside of the clamshell . 3.4.2 Embedded the lift case inside the cutting in the table ,make the panel level with the table top. 3.4.3 Connect the Video Signal Cable（VGA or HDMI or DVI). - Page 8 5. Solutions for the monitor common problems： No.: Common problems Analysis reason · The screen is light but No please check the Power switch if it is Display turned off? · ·The Signal is interrupted? · The word is blurred ·Please check if it matches the resolution of the computer? ·...
- Page 9 6.2 Solutions for the main board common problems： 6.1.1 Please check if the lock screws of the AC IN (3P terminal) power input cable is loose? If yes, please refixed them . 6.1.2 If 5P cable of the Key board does not connect well , it would cause the indocator light and the buttons out of working, It seems like no power.
- Page 10 6.3 Circuit schematic diagram ：...
- Page 11 Screen menu (the guide of adjustment) 7.1 Color adjust： P ict ur e B righ tn es s C on tra s t G amm a O SD OS D 1080 60 1Hz 1920 Press “Menu” Button into the display adjustment,and Press “Menu” button to make the cursor moveing to the “brightness”.
- Page 12 7.3 Color setting： C olo r olo r em pe rat ure R ed G re n B lue OS D 1080 60 1Hz 1920 Press“Menu”button ， and then press“ ”twice “color” .Press“Menu”button moving cursor to color temperature 。 Press“Auto”for back。Press“Menu”button ,you can choose 5000K／...
-
Page 13: Language Setting
7.5 Language setting: S et up L ang uag e M u te I n pu t D C R D is play S iz e OS D O SD R es et 1080 60 1Hz 1920 ▲ To press “Menu” button, and press “ ”...
