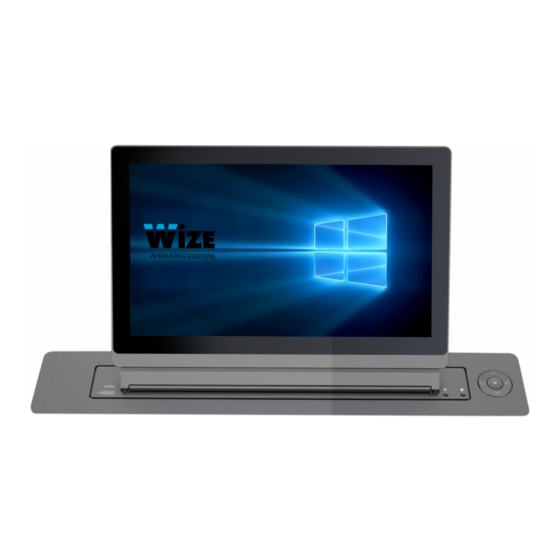

- Page 1 WR-17GF Motorized retractable monitor User Manual Screen size : 17.3 inch Signal input : HDMI, VGA Tilt angle : 15 degree, fixed Touch function : optional...
- Page 2 1. Listing. Shape and Panel Key Description 1.1 Packing list Name LIFT SYSTEM 1PCS POWER CABLE 1PCS RS458 CABLE 1PCS USER MANUAL 1PCS 1.2 Panel key functions Button UP/DOWN /STOP 图 FIG1 panel surface Spare FIG2 Extended Button show...
- Page 3 1.2.1 Out connect USB input(FIG2). 1.2.2 Spare PC switch button： PC SW，it match with the connector input on the back connector board. 1.2.3 Spare image switch button ： SA SW, it match with the connector input on the back connector board. 1.2.4 One key to operate(FIG3)：Three kinds state of circulation，UP STOP DOWN。Blue Indicator light display the control board...
- Page 4 1.3.6 RS485 control output（group control） 1.3.7 Spare button connector port: match with top panel PC SW button, SA SW video signal SW button. 1.3.8 Radio remote control Antenna（433.92MHz） 1.3.9 Power input（AC 220V /10A 50/60Hz）on the right side. Screen button function instruction on the back side of lifter. 1.4.1 Screen button Manu function（Vertical installation mode）...
- Page 5 design, can achieve seamless hidden with desktop. 2.2 ：Major Technical Indicator 2.2.1. LIFT Technical Data（Sheet 1） Name Date Working Voltage frequency AC220-240V 50/60Hz ＜50W Consumed power single-working time 15° Elevation angle Product weight 15Kg 2.2.2 Screen Technical Data（Sheet 2） Name Date Signal Type Display Size...
- Page 6 3. Structural dimensions and installation instructions： 3.1 User out cut drawing size: FIG 7 out cut size 3.2 Product structure drawing size: Product structure drawing size...
-
Page 7: Technical Date
3.2 Installation Notes： 3.2.1 Before operation, please remove two "transport fixing screws" on the cover and clean the inside of the clamshell door foam filler. 3.2.2 The lifter embedded inside the opening, panel flush with the desktop. 3.2.3 Video Signal connector Cable（VGA or HDMI or DVI） 3.2.4 Connect the touch USB Cable(not need to connect the touch USB cable if without touch function) 3.2.5 If need Central-controlled system, please connect the control line... - Page 8 5.2.2 Prepare a RS232-485 or USB-RS485 protocol converter. 5.2.3 Uses Windows XP systems to install the software. 5.2.4 Connect the LIFT equipment. 5.2.5 According to the software that comes with help files, you can use to operate. 6. Solutions of monitor common problems： Common failure analysis（Sheet 5）...
- Page 9 FIG 1 Location of fuse socket GB 7.2 The control circuit board Common trouble diagnosis method： 7.2.1 Pls check the power supply socket "L" and "N" (between the circuit board of the LT3 terminal) resistance is about 1.1K or so, which is normal, if deviate from this range ,it has the problem.
