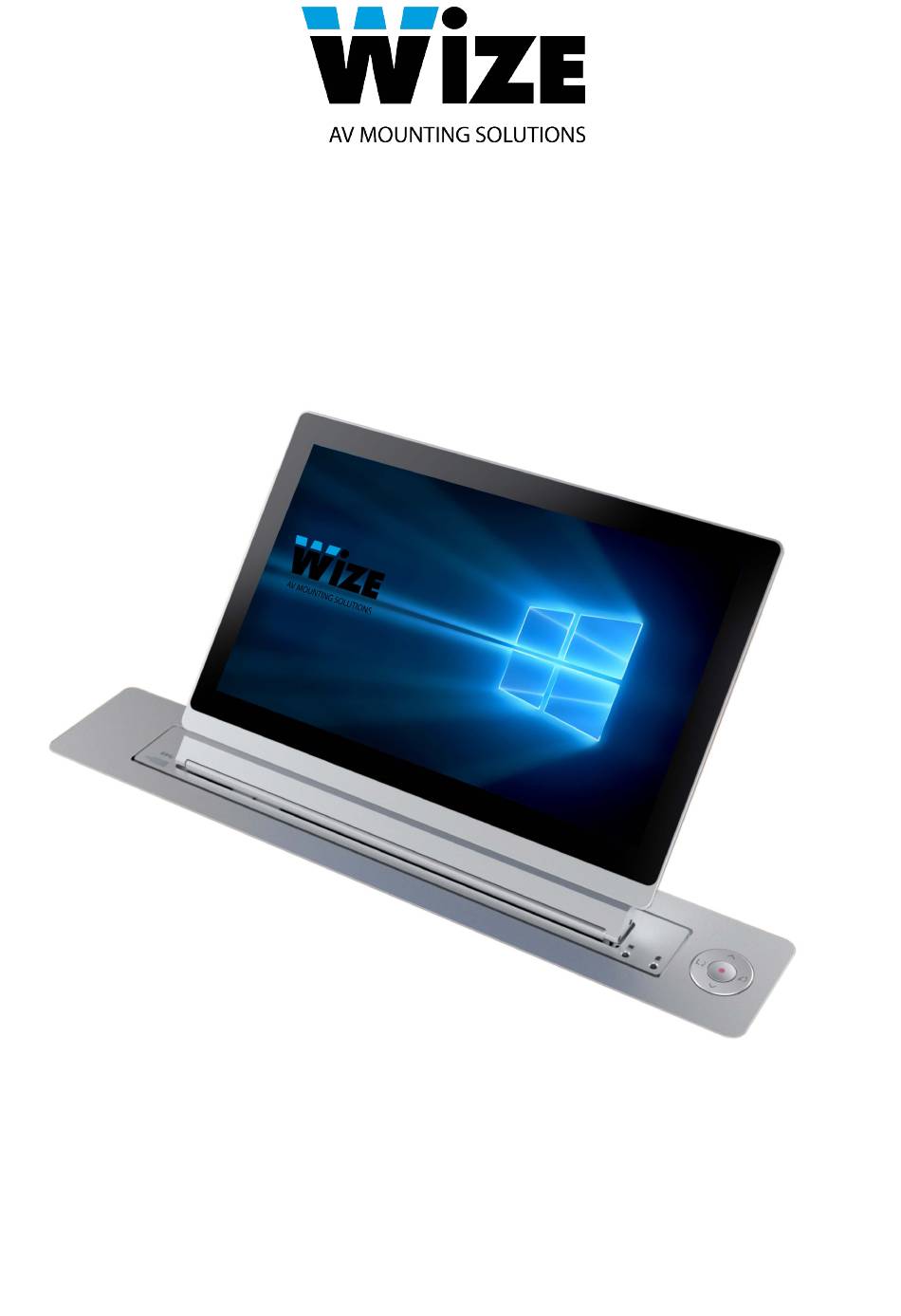

- Page 1 WR-15GT Motorized retractable monitor User manual Signal input : HDMI, VGA Screen size: 15.6'' Tilt angle : 0-30 degrees, adjustable Touch function : optional...
- Page 2 1. Listing.Shape and Panel Key Description 1.1 Packing list Name LCD MOTORIZED LIFT 1PCS POWER CABLE 1PCS VGA CABLE 1PCS USER MANUAL 1PCS 1.2 Panel key Functions English Button show STOP DOWN FORCF(adjust angle) BACK(adjust angle)
- Page 3 1.3 Interface board features(from left to right) FIG1 surface 1.3.1 HDMI Video signal input. 1.3.2 DVI Video signal input. 1.3.3 VGA Video signal input. 1.3.4 Audio signal input(3.5mm stereo) 1.3.5 Audio signal output(3.5mm stereo) 1.3.6 USB input,up for USB put, down for the touch screen control card interface 1.3.7 RS485 control input(1,2,5) 1.3.8 RS485 control input(When cluster control)
- Page 4 FIG 4 Panel control button 1.4.4 Screen button function： （Pls see the 7 point, screen menu to adjust the guide） ▲ Me nu Auto FIG 5 Screen Button ▲ “Menu” menu button， “Auto”Automatic adjustment key， “ ”Variable increment key， “ ”Variable reduced key，...
- Page 5 Name Date Working Voltage AC 220V 50Hz ＜60W Consumed power single-working time ≤30 Elevation angle Product weight 22Kg 3. Structural dimensions and installation instructions： 3.1 Size of structure figure.
- Page 6 FIG 6 Size of structure figure. 3.2 Package size: FIG 8 Package size 3.3 User installed out-cut size figure. FIG8 OUT-CUT SIZE 3.4 Installation Notes： 3.4.1 Before operation,please remove two "transport fixing screws" on the cover and clean the inside of the clamshell door foam filler. 3.4.2 The lifter embedded inside the opening, panel flush with the desktop.
-
Page 7: Technical Date
3.4.4 Connect the touch USB Cable(not need to connect the touch USB cable if without touch function) 3.4.5 If need Central-controlled system,please connect the control line RS485. 3.4.6 Connected the antenna with antenna base together 3.4.7 Turn on AC220V power supply, panel indicator is light, press UP key to complete the automatic elevation, the screen lights up, the red indicator is no signal, the green indicator is signaled. - Page 8 Display is blank ·Power switch is turned off? ·Signal source is interrupted? Blurred characters · Is match with the resolution of the computer? Contrast and brightness adjustments are correct？ ·No signal may be turned off automatically Brightness？ Black Screen Brightness adjustment if adjust to the minimum？...
- Page 9 by poor contact. 6.2.3 Circuit boards 12V abnormal, check L7812 if it's damage. 6.2.4 Circuit boards 5V abnormal, check L7805 if it's damage. 6.2.5 Up limit switch belong pulse level control, after the pulse remains stopped. But the display power required to maintain the state of shading for photoelectric control.
- Page 10 FIG11 Image adjustment display First press “Menu” button, and then press“▲” button to display the image adjust, and press “Menu” again, the cursor can move to the automatic adjustment.If need return back, please press”Auto”button. 7.3 Menu adjust: FIG12 Menu adjust display. ▲...
- Page 11 FIG 13 Function adjust display Remark:“Auto” button is signal source selection button when using it independently, and the order of selection is "VGA", "DVI", "HDMI". When using the auxiliary, it's return back button.
