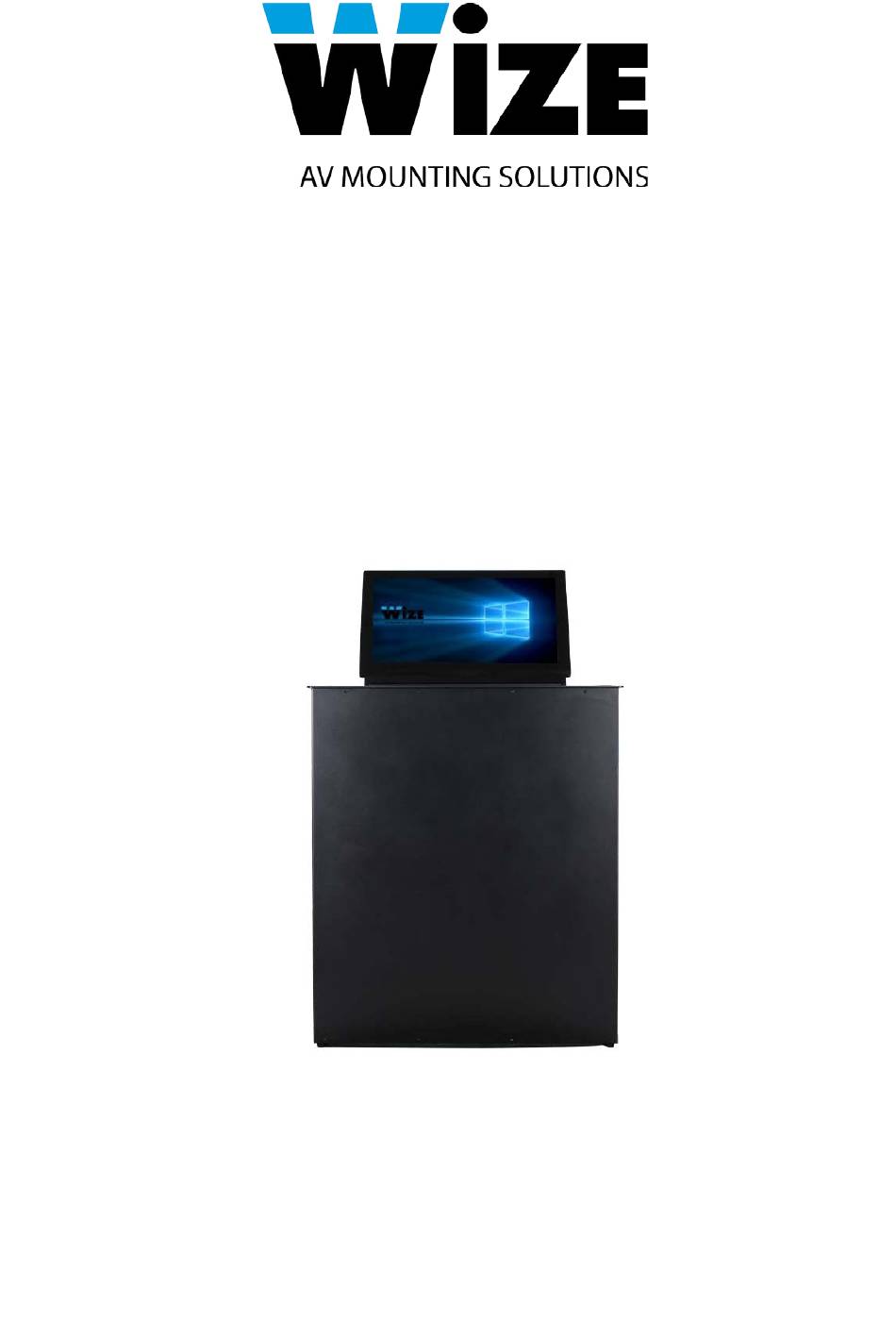

- Page 1 WR-22GF Motorized retractable monitor User Manual Screen size : 21.5 inch Tili angle: 15 degrees Signal input : HDMI, VGA Touch function : optional...
- Page 2 1. Listing.Shape and Panel Key Description 1.1 Packing list Name LIFT SYSTEM 1PCS POWER CABLE 1PCS VGA CABLE 1PCS NULLMODEM CABLE 1PCS USER MANUAL 1PCS 1.2 Panel key Functions English Button show STOP DOWN PC SW SA SW 1.3 Interface board features(from left to right) FIG1 surface 1.3.1 HDMI Video signal input.
- Page 3 1.3.2 DVI Video signal input. 1.3.3 VGA Video signal input. 1.3.4 Audio signal input(3.5mm stereo) 1.3.5 Audio signal output(3.5mm stereo) 1.3.6 USB input, up for USB put, down for the touch screen control card interface 1.3.7 RS485 control input(1,2,5) 1.3.8 RS485 control input(When cluster control) 1.3.9 ANT, Remote control receiver antenna（315MHz）。...
- Page 4 Custom backup keys for customer preparation,the corresponding function is connected with the interface board. 1.4.4 Screen button function： (Pls see the 7 point, screen menu to adjust the guide) FIG5 Screen Button “Menu” menu button “Auto” Automatic adjustment key ▲ “...
- Page 5 2.2 Major Technical Indicator 2.2.1. LIFT Technical Data Name Date Working Voltage frequency AC220-240V 50/60Hz ＜60W Consumed power single-working time 20° Elevation angle Product weight 25Kg 2.2.2 Product size and packing size Items Product size Packing size Weight WR-22GF 738mm*95mm*700mm 860mm*820mm*205mm 25KG...
- Page 6 3. Structural dimensions and installation instructions： 3.1 Size of structure figure. FIG 7 Size of structure figure. 3.2 User installed out-cut size figure. FIG8 OUT-CUT SIZE...
-
Page 7: Technical Date
3.3 Installation Notes： 3.3.1 Before operation, please remove two "transport fixing screws" on the cover and clean the inside of the clamshell door foam filler. 3.3.2 The lifter embedded inside the opening, panel flush with the desktop. 3.3.3 Video Signal connector Cable（VGA or HDMI or DVI） 3.3.4 Connect the touch USB Cable(not need to connect the touch USB cable if without touch function) 3.3.5 If need Central-controlled system, please connect the control line... - Page 8 5.2.4 Connect the LIFT equipment. 5.2.5 According to the software that comes with help files, you can use to operate. 6. Solutions of monitor common problems： Common failure analysis（Sheet 5） Fault phenomenon Analysis reason Display is blank ·Power switch is turned off? ·Signal source is interrupted? Blurred characters ·...
- Page 9 FIG 9 Location of fuse socket GB 7.2 The control circuit board Common trouble diagnosis method： FIG10. Control board 7.2.1 Pls check the power supply socket "L" and "N" (between the circuit board of the LT3 terminal) resistance is about 1.1K or so, which is normal, if deviate from this range ,it has the problem.
