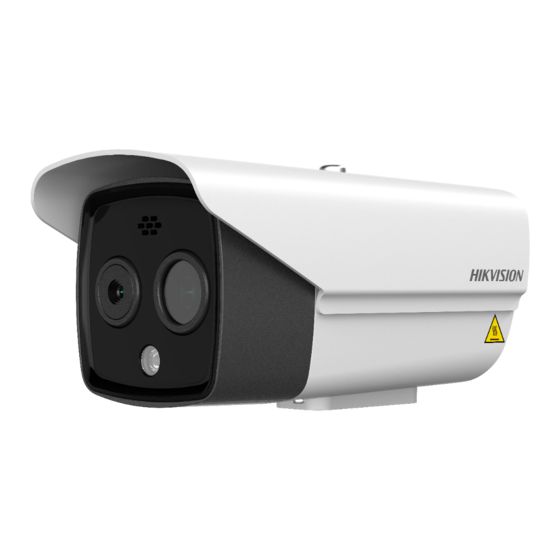

HIKVISION DS-2TD2628-10/QA/GLT Quick Start Manual

Solar-powered thermal camera kit
Hide thumbs Also See for DS-2TD2628-10/QA/GLT:
Table of Contents

Advertisement

Quick Links

Download this manual
Solar-Powered Thermal Camera Kit
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2TD2628-10/QA/GLT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-2TD2628-10/QA/GLT

Summary of Contents for HIKVISION DS-2TD2628-10/QA/GLT

  • Page 1 Solar-Powered Thermal Camera Kit Quick Start Guide...
  • Page 2 WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT...
  • Page 3 Solar-Powered Thermal Camera Kit · Quick Start Guide MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR...
  • Page 4 Solar-Powered Thermal Camera Kit · Quick Start Guide equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 5 Solar-Powered Thermal Camera Kit · Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Transportation ● Keep the device in original or similar packaging while transporting it. ●...
  • Page 6 Solar-Powered Thermal Camera Kit · Quick Start Guide ● DO NOT subject the battery to extremely low air pressure, which may result in an explosion or the leakage of flammable liquid or gas. Installation ● Never place the equipment in an unstable location. The equipment may fall, causing serious personal injury or death.
  • Page 7 Solar-Powered Thermal Camera Kit · Quick Start Guide equipment. ● Provide a surge suppressor at the inlet opening of the equipment under special conditions such as the mountain top, iron tower, and forest. ● Burned fingers when handling the parts with symbol .

  • Page 8: Table Of Contents

    Solar-Powered Thermal Camera Kit · Quick Start Guide Table of Contents 1 Preparation ....................1 2 Appearance Description ................2 2.1 Appearance......................2 2.2 Cable Description ..................... 2 3 Installation ....................4 3.1 Wiring ........................4 3.2 Install the Solar-Powered Thermal Camera Kit ............4 3.3 Install Single Camera (Optional) ................

  • Page 9: Preparation

    Solar-Powered Thermal Camera Kit · Quick Start Guide 1 Preparation Basic Requirement  All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.  Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included.

  • Page 10: Appearance Description

    Solar-Powered Thermal Camera Kit · Quick Start Guide 2 Appearance Description 2.1 Appearance Refer to the following figures for the appearance of the solar-powered thermal camera kit. Figure 2-1 Solar-Powered Thermal Camera Kit Overview Table 2-1 Description of Solar-Powered Thermal Camera Kit Description Camera Solar Photovoltaic Panel...
  • Page 11 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 2-2 Cables of Solar-Powered Thermal Camera Kit...

  • Page 12: Installation

    Solar-Powered Thermal Camera Kit · Quick Start Guide 3 Installation 3.1 Wiring Please fully take into consideration the installation environment and position of the device when you plan for the wiring. In order to make sure the stable power supply and signal transmission, please closely follow the rules below: ...
  • Page 13 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-1 Install Camera on Bracket 2. Thread the longer cables such as the power cable and RS-485 cable through the connecting bracket, and wrap other cables with waterproof tapes for sealing. Figure 3-2 Deal with Cables 3.
  • Page 14 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-3 Loosen Screws on Panel 2). Put the battery into the shift panel, align the holes on the battery with the holes on the shift panel, and fix the battery to the shift panel with four screws. Figure 3-4 Install Battery...
  • Page 15 Solar-Powered Thermal Camera Kit · Quick Start Guide 3). Align the holes on the shift panel (with battery) with the holes on the panel holder, and fix the shift panel to the panel holder with four screws. Make sure the battery cable is towards the wire box. Figure 3-5 Connect Shift Panel with Panel Holder 4.
  • Page 16 Solar-Powered Thermal Camera Kit · Quick Start Guide 5. Loosen and remove the screws to dissemble the wire box cover. Figure 3-7 Remove Wire Box Cover 6. Thread the solar panel output cable and the battery output cable through the holes of the wire box, and thread the power cable and RS-485 cable of the camera through the via holes of the shift panel and wire box.
  • Page 17 Solar-Powered Thermal Camera Kit · Quick Start Guide 7. Tighten the screws to install the wire box cover. Figure 3-9 Install Cover 8. Select a proper height to install the solar-powered thermal camera kit. Take out the vertical pole mount, screw packet for mount, and mount bar, thread the installation holes on the vertical pole mount and the mount bar with four M12 screws, and tighten each screw with a flat gasket and two nuts, as shown in Figure 3-10.
  • Page 18 Solar-Powered Thermal Camera Kit · Quick Start Guide 9. Hook the solar-powered thermal camera kit on the vertical pole mount bracket, and fix the kit with the flat gaskets, spring washers, and nuts, as shown in Figure 3-11. Figure 3-11 Install Kit 10.

  • Page 19: Install Single Camera (Optional)

    Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-13 Adjust Angle of Solar Panel Note: Only 10° and 30° are available in this product. Figure 3-14 Adjust Angle of Camera 3.3 Install Single Camera (Optional) If you purchase the camera only, you can install the camera following the two methods.

  • Page 20: Wall Mount

    Solar-Powered Thermal Camera Kit · Quick Start Guide 3.3.1 Wall Mount Steps: 1. Loosen and remove the screws on the side of the bracket to dissemble the base, and fix the base to the bottom of the camera with two UNC1-4 screws. Figure 3-15 Install Camera on Bracket Base 2.
  • Page 21 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-17 Drill Holes 4. Fix the camera on the wall with expansion screws, gaskets and nuts. Figure 3-18 Wall Mount 5. Loosen the screws at the joint to adjust the tilt angle of the camera, and loosen the screws at the bottom of the base to adjust the pan angle of the camera.

  • Page 22: Pole Mount

    Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-19 Adjust Angle 3.3.2 Pole Mount Steps: 1. Loosen and remove the screws on the side of the bracket to dissemble the base, and fix the base to the bottom of the camera with two UNC1-4 screws. Figure 3-20 Adjust Angle 2.
  • Page 23 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-21 Install the Camera on Bracket 3. Thread the pole mount bracket with three quick locking hoops, and fix the bracket on the pole. Figure 3-22 Install Pole Mount Bracket 4. Fix the camera to the pole mount bracket with four M4 screws.
  • Page 24 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-23 Install Camera 5. Loosen the screws at the joint to adjust the tilt angle of the camera, and loosen the screws at the bottom of the base to adjust the pan angle of the camera. Tighten the screws after the adjustment.

  • Page 25: Waterproof Measures (Optional)

    Solar-Powered Thermal Camera Kit · Quick Start Guide 3.4 Waterproof Measures (Optional) Purpose: If the camera is installed outdoor, you should use the waterproof accessory or tapes to waterproof the cables. Otherwise the cables might get wet or a short circuit might occur. 3.4.1 Install Network Cable Waterproof Jacket ②...
  • Page 26 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 3-26 Waterproof Cables...

  • Page 27: Setting The Network Camera Over The Lan

    Solar-Powered Thermal Camera Kit · Quick Start Guide 4 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 28: Activation Via Sadp Software

    Solar-Powered Thermal Camera Kit · Quick Start Guide For the camera enables the DHCP by default, you need to use the SADP software to  search the IP address. Figure 4-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED–...

  • Page 29: Modifying The Ip Address

    Solar-Powered Thermal Camera Kit · Quick Start Guide The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details. 3. Create and input the new password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED–...
  • Page 30 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 4-5 Modify the IP Address Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 6.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP.

  • Page 31: Accessing Via Web Browser

    Solar-Powered Thermal Camera Kit · Quick Start Guide 5 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 32 Solar-Powered Thermal Camera Kit · Quick Start Guide Figure 5-2 Download Plug-in 6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login. Note: For detailed instructions of further configuration, please refer to the user manual of network camera.

  • Page 33: Operating Via Hik-Connect App

    Solar-Powered Thermal Camera Kit · Quick Start Guide 6 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so on. Note: Hik-Connect service is not supported by certain camera models. 6.1 Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using the service.

  • Page 34: Enable Hik-Connect Service Via Web Browser

    Solar-Powered Thermal Camera Kit · Quick Start Guide Confirm the settings. 6.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. Refer to Chapter 4.2. Steps: 1. Access the camera via web browser. Refer to Chapter 5. 2.

  • Page 35: Initializing The Memory Card

    Solar-Powered Thermal Camera Kit · Quick Start Guide 1. Use a network cable to connect the camera with a router if the camera does not support Wi-Fi. Figure 6-3 Connect a Router Note: After the camera connects to the network, please wait one minute before any operation on the camera using Hik-Connect app.

  • Page 36: Appendix

    Solar-Powered Thermal Camera Kit · Quick Start Guide Appendix Frequently Asked Questions (FAQ) Device Running Error Question:  The device fails to start up or reboots repeatedly.  The device constantly powers off unexpectedly when you pan/tilt the device or call preset. ...
  • Page 37 Solar-Powered Thermal Camera Kit · Quick Start Guide Live view fails with good network connection. Answer:  Examine if the IE plug-in is well installed. Change the Website Blocker settings if necessary.  For cross-domain routing, enable the UPnP of device, or set manual mapping to port No.

  • Page 38: Common Material Emissivity Reference

    Solar-Powered Thermal Camera Kit · Quick Start Guide Common Material Emissivity Reference Material Emissivity Human Skin 0.98 0.91 Cement Concrete 0.95 Ceramics 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Asphalt 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cotton 0.98 Cardboard 0.90 White Paper 0.90...
  • Page 39 UD27833B...
