- Page 1 Thermal Driving Assistance System User Manual COPYRIGHT © 2017 Hikvision. ALL RIGHTS RESERVED...
- Page 2 YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. ...
- Page 3 User Manual REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;...
- Page 4 Thermal Driving Assistance System | User Manual 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Table Of Contents
Thermal Driving Assistance System | User Manual Table of Contents About This Manual ................... 1 Overview of Contents ....................... 1 Overview ................... 2 Description ......................2 Functions ......................... 2 Appearance ......................2 1.3.1 Dimensions ...................... 3 1.3.2 Interface Description ..................5 Installation .................. -
Page 6: About This Manual
Thermal Driving Assistance System | User Manual About This Manual This document introduces the Thermal Driving Assistance System. It covers what is night vision driving assistance system, device powering on/off, installation, how to set thermal view/visible light view. Besides, it shows concrete functions and descriptions of the system. -
Page 7: Overview

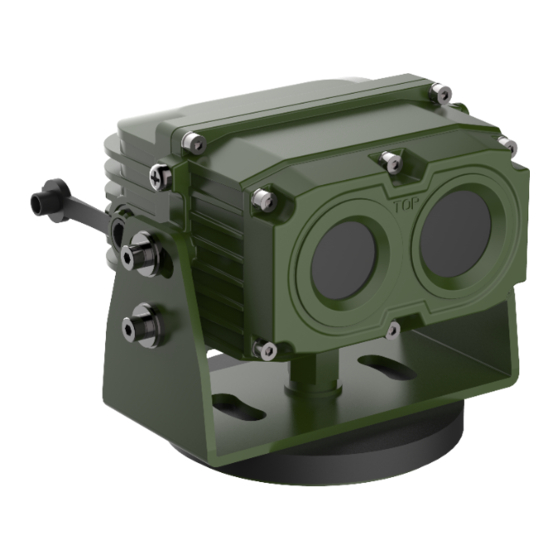

Thermal Driving Assistance System | User Manual 1 Overview Description Thermal Driving Assistance System (driver’s system for short) is an optical system for vehicle driving during the night, even without light. The driver can see the passengers, animals, or other objects in the view, and react to any potential risks. -
Page 8: Dimensions
Thermal Driving Assistance System | User Manual 1.3.1 Dimensions Refer to the figure below for thermal lens camera dimensions. 99 mm [3.89''] 4-Φ4.2 mm [0.17 ''] 62 mm [2.44 ''] 89.3 mm Φ9 36 mm [3.51 ''] [1.42 ''] 25.4mm [1 ''] 25.4mm... - Page 9 Thermal Driving Assistance System | User Manual Φ56 4-Φ9 Φ9 99.1 mm [3.0 ''] 127.1 mm [5.0 ''] 21mm [0.83 ''] 21mm [0.83 ''] 88.3 mm [3.48 ''] Refer to the figure below for the display dimensions. 192.3mm (7.57'') 35 mm (1.38'') 156.6 mm (6.17'')
-
Page 10: Interface Description
Thermal Driving Assistance System | User Manual 1.3.2 Interface Description Refer to the figure and table for the description of the ports and interfaces of camera and display. Connect to Data input interface. Data Output Interface Export the data from the camera and provide power for the camera. -
Page 11: Installation
Thermal Driving Assistance System | User Manual 2 Installation The installation of thermal lens camera, and the installation of thermal & optical dual-lens camera are alike, here we take the installation of dual-lens camera as an example. Preparation ● Make sure the device in the package is in good condition and all the assembly parts are included. - Page 12 Thermal Driving Assistance System | User Manual Fix the camera. For non-ferromagnetic vehicle, secure the camera to the middle of the magnetic plate, and make sure the lens faces the front. Rear End Front End For ferromagnetic vehicle, secure the camera to the vehicle roof.
-
Page 13: Base Installation
Thermal Driving Assistance System | User Manual 2.2.2 Base Installation Steps: Loosen the screw on the bottom of the camera, and take apart the nuts and washer. Take the camera body away from the bracket. Note: Keep the washer, screws, and other accessories. -
Page 14: Pendent Installation
Thermal Driving Assistance System | User Manual Install the camera onto the bracket with four screws, and do not fix the screws. Adjust the tilting angle of the camera and then tighten the screws. 2.2.3 Pendent Installation Steps: Follow the step 1 to step 3 of section 2.2.2. -
Page 15: Display Installation
Thermal Driving Assistance System | User Manual Install the camera onto the bracket with four screws, and do not fix the screws. Adjust the tilting angle of the camera and then tighten the screws. Display Installation Installation with Velcro and installation with screws are selectable. -
Page 16: Installation With Velcro
Thermal Driving Assistance System | User Manual 2.3.1 Installation with Velcro Before you start: The glue of the Velcro can NOT be used repeatedly, make sure you place it in the right place at once. Steps: Install the suction cup mount (purchased separately) to the display by screwing the mount to the end. -
Page 17: Installation With Screws
Thermal Driving Assistance System | User Manual Suction Cap Switch Glass Universal Joint Tilt Adjust Screw Instrumental Panel Clear the display with the proper cloth. Tear up the Velcro film and secure the display on the vehicle with the screws. -
Page 18: Cable Connection
Thermal Driving Assistance System | User Manual Cable Connection Cigar-Lighter Camera Cigar-Lighter Data Cable Female Interface Male Interface Power Interface Data Cable Interface Display Power Interface Purpose: Connect the cables to power on the driver’s system with the vehicle. - Page 19 Thermal Driving Assistance System | User Manual Connect the display with the cigar light to power on the display. Connect the cigar lighter female interface with the male interface, and then connect the cable to the vehicle terminal box. Attention: To power up the driver’s system with the terminal box, make sure...
-
Page 20: Basic Operations
Thermal Driving Assistance System | User Manual 3 Basic Operations Power On/Off 3.1.1 Power On Make sure the system is powered, and press the Power button to turn on the system. When the live view of camera shows, and the Activating view disappears, the system is turned on successfully. -
Page 21: Menu Description
Thermal Driving Assistance System | User Manual In Non-Menu Mode: Power Press/Hold: Turn on the display. Press: Switch among three image modes. Mode Hold: Enable manual shutter. Press: Display digital zoom. E-Zoom Hold: Enable heater. Press: Switch among the image brightness,... - Page 22 Thermal Driving Assistance System | User Manual Mounting Height 120cm Elevation Angle 01.0° Distance from Vehicle Left 120cm Vehicle Width 240cm Smart Sensitivity High Audible Warning Fusion Thermal/Optical Screen Scale Widescreen Restore Default Settings Thermal & Optical Dual-lens Camera Display Menu...
- Page 23 Thermal Driving Assistance System | User Manual Thermal, Optical, and Fusion are selectable. Select Thermal/Optical certain mode and the live view shows in such mode. Set the scale of the screen display, in Widescreen mode, the screen will be overspread, and in Narrow Screen Scale Screen mode, the live view shows in original scale.
-
Page 24: System Setup
Thermal Driving Assistance System | User Manual 4 System Setup Before any further use of the system, you should firstly adjust the view, the hardware, and image, etc. System Correction Purpose: To ensure the proper working of Smart function, you should correct the system first. -
Page 25: Ice Heater Configuration
Thermal Driving Assistance System | User Manual Lane Above If the lane in the display is too short, as in the figure below. Increase the Elevation Angle. Short Lane De-Ice Heater Configuration The driver’s system supports auto-heating and manual-heating. Set the proper heating mode in concrete cold scene. -
Page 26: Palettes Settings
Thermal Driving Assistance System | User Manual When the lens temperature is heated (temperature > 10° C/32 ° F), the de-ice heater automatically turns off. Manual-Heating: When there is mist or ice on the lens, enable the heater. The heater icon △ shows, and the heater stops when the lens is warm enough. -
Page 27: Smart Detection
Thermal Driving Assistance System | User Manual brightness, image brightness, image contrast are selectable. Press to increase/decrease the value. Adjust the brightness of the screen. It works for OSD, Screen Brightness lane in the display, and image. Adjust the contrast of the screen. It works for OSD, Screen Contrast lane in the display, and image. -
Page 28: Appendix
Thermal Driving Assistance System | User Manual Audible Warning Levels: The beeper beeps every 0.2s. High The beeper beeps every 0.5s. Medium The beeper beeps every 1s. Warning level is Low by default. In the image, the target is framed in different colors: The target-to-vehicle distance is between 15 m to 40 m. -
Page 29: Common Material Emissivity Reference
Thermal Driving Assistance System | User Manual Disassembling Tool Cloth Common Material Emissivity Reference Material Temperature (° C/° F) Emissivity Water 0 to 100/32 to 212 0.95~0.98 Soil (Dry) 20/68 0.92 Soil (Moist) 20/68 0.95 Wood 17/62.6 0.962 Sand 20/68 Sandstone 19/66.2... - Page 30 Thermal Driving Assistance System | User Manual UD09142B 0100001080226 ...
