B4：
3.2 Installation
3.2.1 Check before Installation
a) The measuring pressure is in the measurement range;
b) The measuring medium is compatible with construction;
c) The measuring medium would not jam the pressure-leading hole.

3.2.2 Installation Method

Usually the transmitter should be mounted vertically up to the horizontal
direction. If the condition is unavailable, the allowed max. mount slope
angle from transmitter to the horizontal direction is 30 degree. It is not
recommended to mount the transmitter invertedly.
Take the pressure port M20×1.5 male with water line sealing of
MPM4841 pressure transmitter as an example, it can be directly installed
on the measuring pipe joint. In order to facilitate the installation and
M12×1
27
SW27
G1/8
SW27

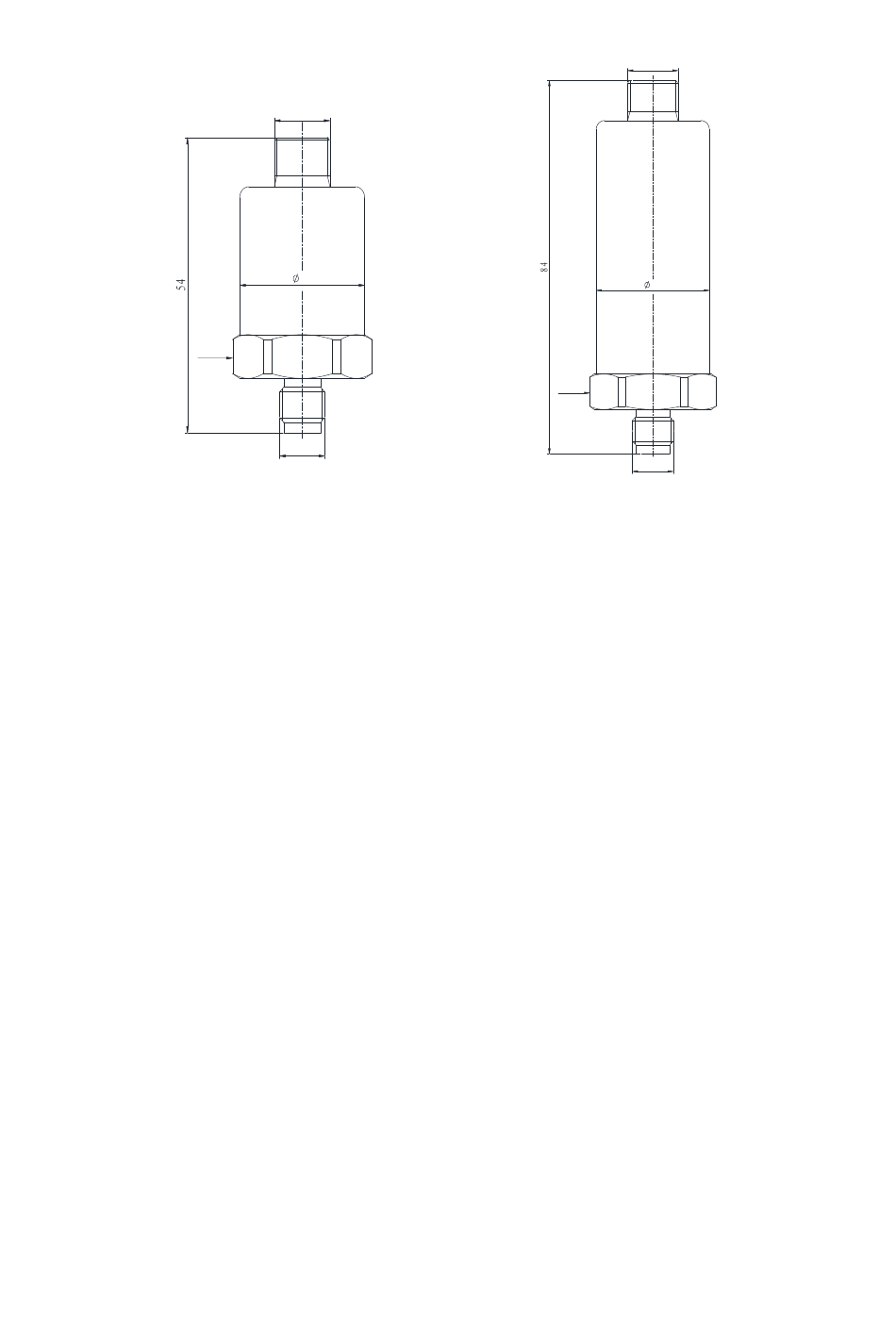

Fig. 1
4
M12×1
27
G1/8
