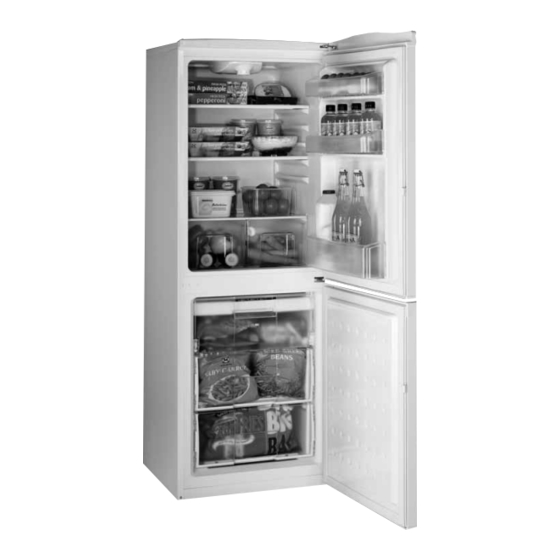

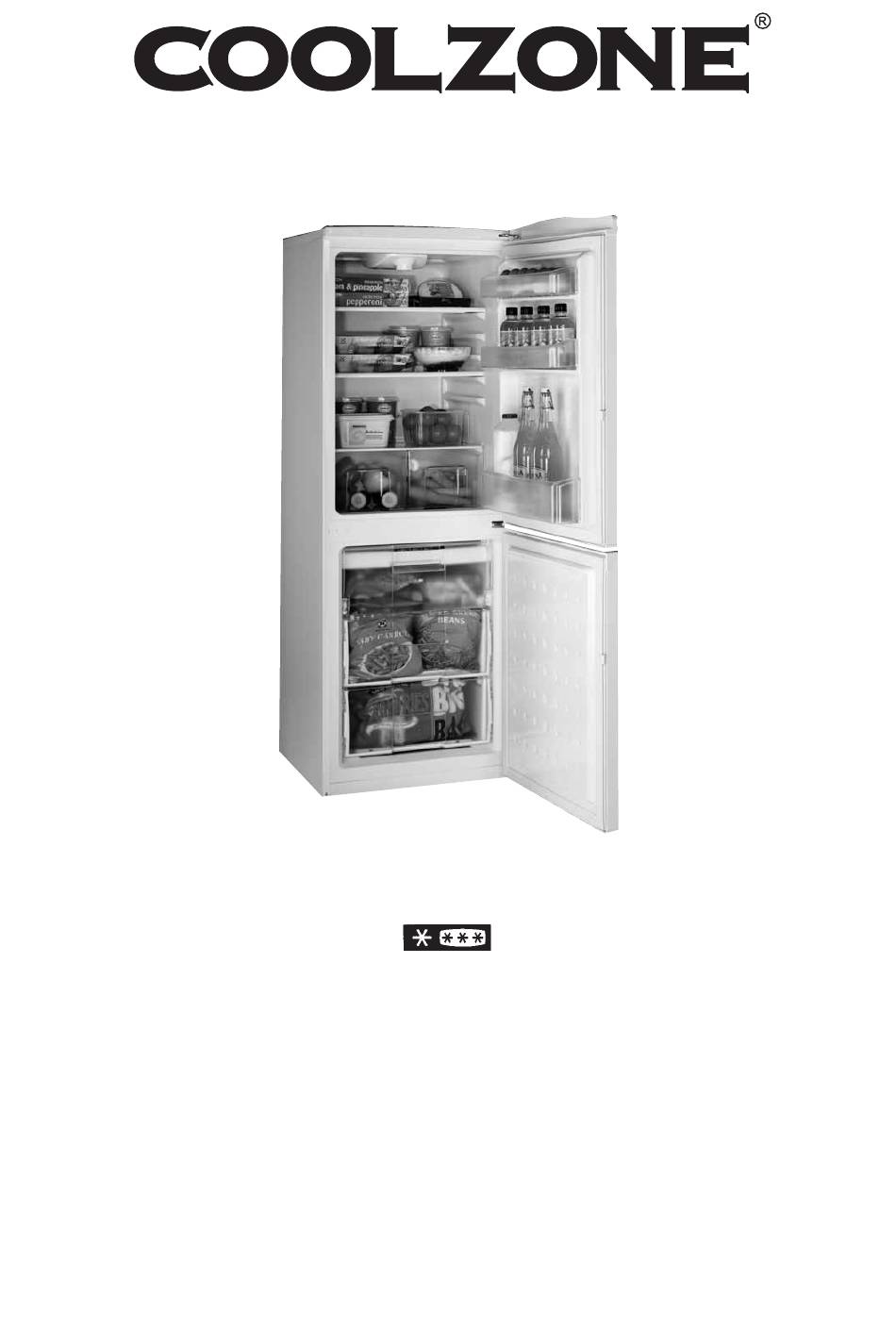

- Page 1 CZ51080 Frost free fridge freezer U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ............... . .2 Do and Don’t . -
Page 3: Parts Identification
Parts identification FIGURE 1 The parts are listed below to help identification. 1. Thermostat and lamp housing 2. 2 x wire shelves 3. Glass shelf 4. Salad/vegetable crispers 5. Ice cube tray and ice bank 6. Top freezer compartment 7. Large capacity drawer 8. -
Page 4: Door Reversal
Door reversal (cont) FIGURE 4 Gently lever the trim plates out of their recesses in the appliance housing (Figure 4). Unscrew the hinge pivot pin (Figure 5). TRIM PLATES Unscrew the hinge from the housing (Figure 6), turn it round and using the same two screws, refix it to the opposite corner of the appliance. - Page 5 Installation and controls (cont) The fridge/freezer requires space around the warmest setting, to 5, the coldest. The 0 position is casing for efficient cooling and operation. The an OFF setting. The fridge and freezer have an minimum clearances are shown in Figure 9. automatic defrost cycle.
-
Page 6: Using The Freezer
Using the freezer Precautions The freezer is capable of producing very cold the bottles may break when frozen. Drinks in temperatures which may cause injury if safety PEP plastic bottles must not be frozen. O O The freezer must only be used for the storing of precautions are not observed: edible foodstuffs. -
Page 7: Maintenance And Cleaning
Maintenance and cleaning Important The fridge/freezer must be turned off at the mains before maintenance or cleaning. General cleaning avoid the build up of impurities. Wipe the channel with a damp cloth and use the cleaning tip to clean It is recommended to clean and wipe out the fridge out any residue from the drainage hole. -
Page 8: Troubleshooting
Troubleshooting Problem Possible cause Remedy The lamp does not light The lamp has blown Replace the lamp with same type: 15W, SES, E14 There is water at the bottom Drainage hole and/or pipe blocked Clean/unblock hole and of the fridge pipe;... -
Page 9: Fuse And Mains Plug Replacement
Fuse and mains plug replacement This product is supplied with a moulded plug FIGURE 14 which contains a 13A fuse. If you are simply FUSE COVER replacing the fuse, you must use a 13A fuse which has been approved by ASTA to BS1362 (Figure 14). -
Page 10: Specification
Specification Total gross volume (litres) Dimensions: HxWxD mm 1525x540x600 Freezer net volume (litres) Refrigerator net volume (litres) Power consumption (Watts) Power supply 220/240V, 50Hz Nominal daily consumption (k Wh) 0.80 Energy efficiency class Refrigerant R600a Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be...
