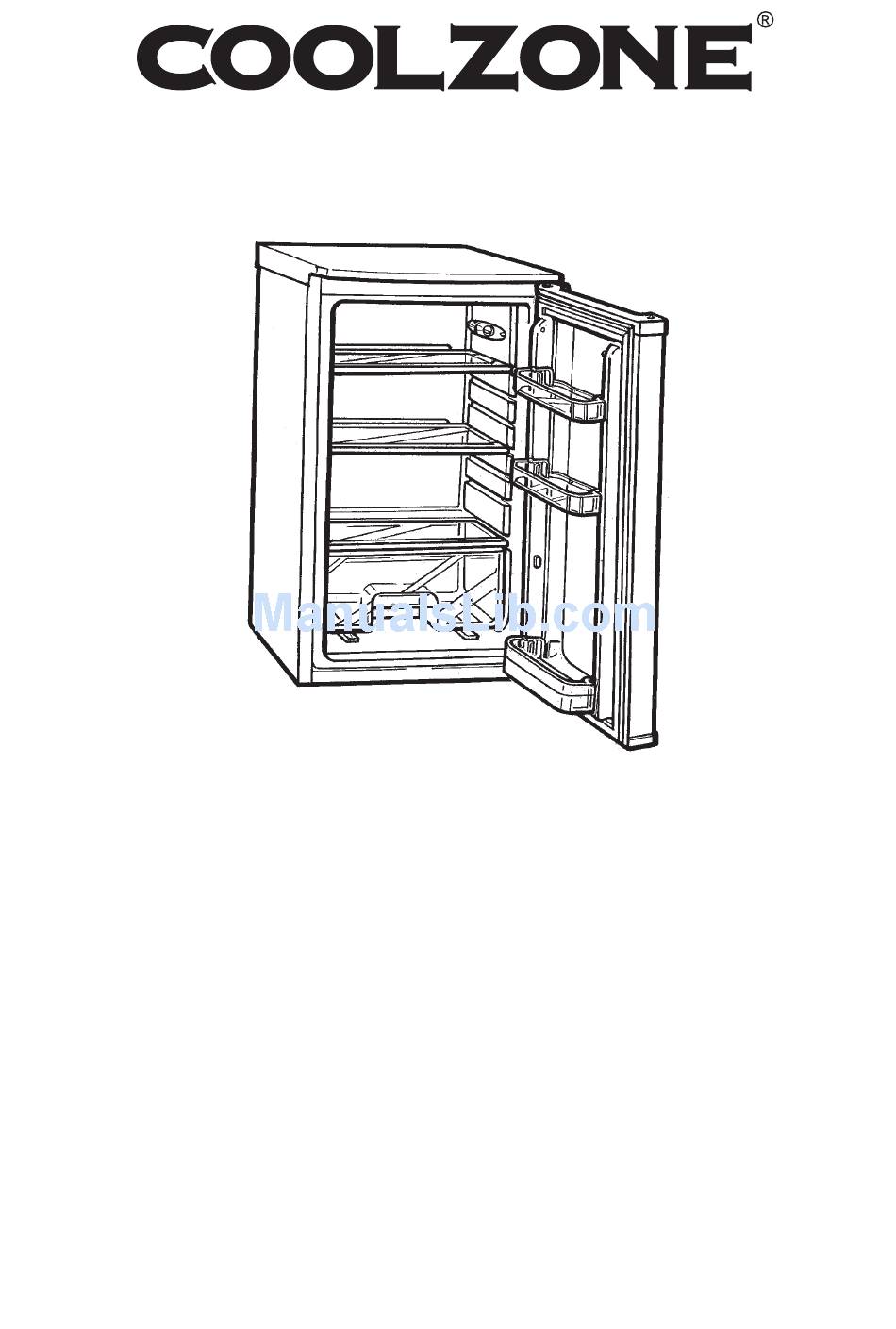

- Page 1 CZ51057L Larder fridge U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ..........2 Do and Don’t . -
Page 3: Parts Identification
Parts identification FIGURE 1 The parts are listed and numbered below to help identification. 1. Thermostat and lamp housing 2. Glass shelves 3. Salad/vegetable crisper 4. Balcony shelves 5. Bottle rack Installation Important Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your home. - Page 4 Door reversal (cont) FIGURE 5 FIGURE 4 WORKTOP BLANKING SCREW SCREWS WORKTOP Remove the two screws securing the rear of the worktop (Figure 5). Release the blanking caps and unscrew and Lift away the worktop from the appliance and place remove the screws securing the top of the worktop it safely to one side.
-
Page 5: Controls
Controls Switching on FIGURE 10 Plug the appliance into a nearby power socket and switch on. The temperature control (Figure 10) is positioned inside the fridge by the light. Turn the control to a half-way position on the dial and leave the appliance running with the door closed for approximately 2 hours. -
Page 6: Maintenance And Cleaning
Maintenance and cleaning Important The fridge must be turned off at the mains before maintenance or cleaning. FIGURE 11 General cleaning DRAINAGE HOLE It is recommended to clean and wipe out the fridge regularly or after any spillage inside or outside the appliance. -
Page 7: Troubleshooting
Troubleshooting Problem Possible cause Remedy The lamp does not light The lamp has blown Replace the lamp with same type: 15W, SES, E14 There is water at the bottom Drainage hole and/or pipe blocked Clean/unblock hole and of the fridge pipe The motor is on for long Door opened too often... -
Page 8: Specification
Specification Total net volume (litres) Dimensions: HxWxD mm 850x480x495 Power supply 220/240V, 50Hz Energy efficiency class Refrigerant R600a Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be years from date of purchase against defects in repaired or replaced at the manufacturer's option materials and workmanship only, and provided that...
