Coolzone CZ51037IFR User Instructions

Integrated larder fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CZ51037IFR
Integrated Larder Fridge
U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S
Please read these instructions carefully before using this product
and keep them safe for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CZ51037IFR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coolzone CZ51037IFR

Summary of Contents for Coolzone CZ51037IFR

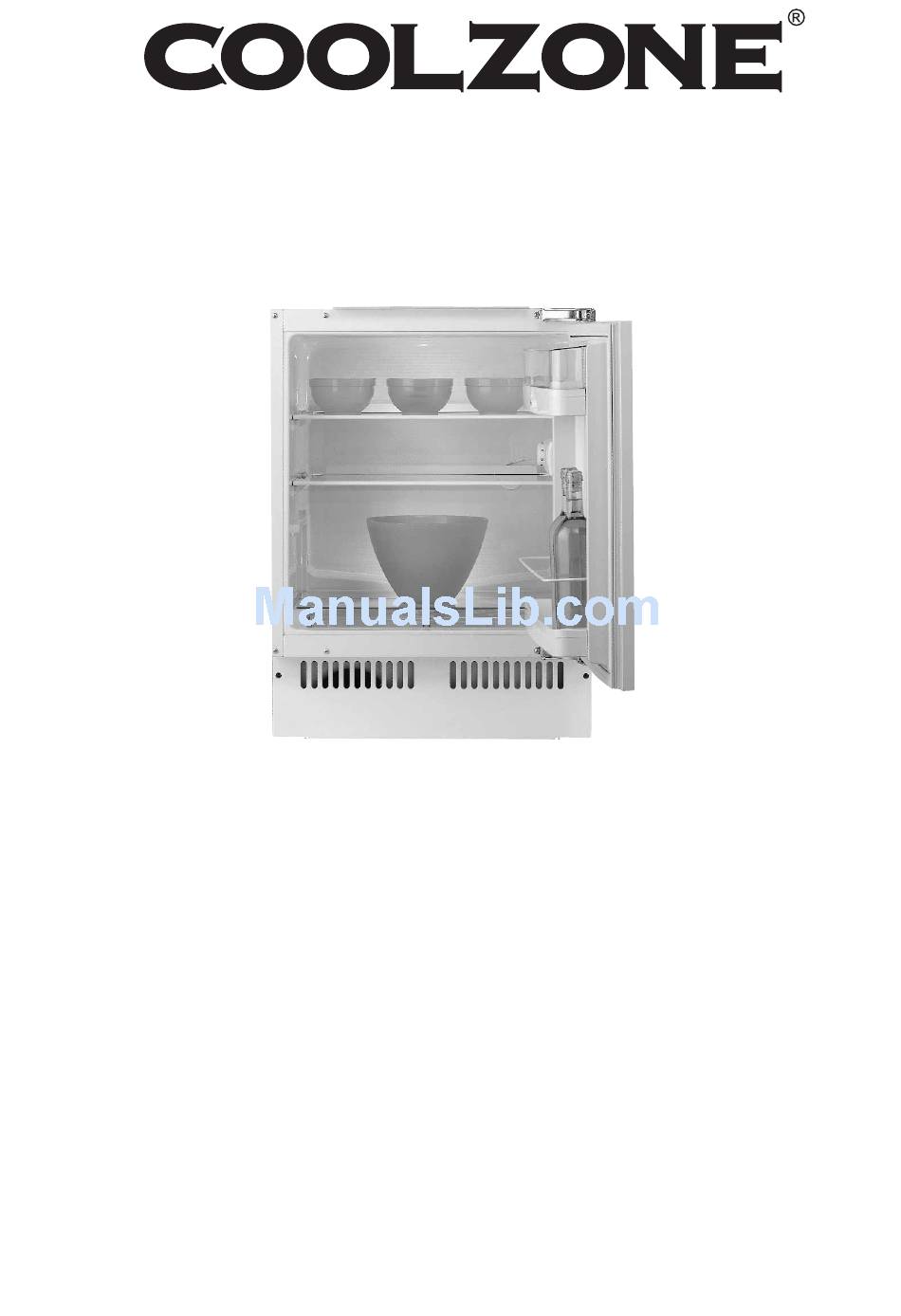

  • Page 1 CZ51037IFR Integrated Larder Fridge U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product...

  • Page 2: Table Of Contents

    Page contents Before use ............... . .2 Do and don’t .

  • Page 3: Check The Contents

    Check the contents Check the following contents are included with the product and and inspect the casing for any damage. If there is any need, contact your retailer from whom you purchased the product. Installation kit Fridge 1x unit complete with fitted door and hinges 1 x split shelf (2 parts) 1x pair white cabinet brackets 2 x glass shelves...

  • Page 4: Door Reversal

    Door reversal If you are planning to install the fridge side-by-side with the freezer (CZ51038IFZ) one of the doors must be changed so both doors open towards the middle (Figure 2). Changing the door opening might also be more convenient to fit in with the design of the kitchen. 1.

  • Page 5: Fitting The Door Facia Panel

    Fitting the door facia panel 1. Fit the door facia clips (with the door height adjuster screw at the top) into the holes provided in the door (Figure 6). 2. Fit the plain door clips to the bottom of the door with two screws (Figure 7). 3.

  • Page 6: Installing Appliance Between Kitchen Units

    Installing appliance between kitchen units 1. Plug the appliance(s) into the mains supply and slide them in the space between the kitchen units (Figure 10). 2. Adjust the feet so the top bracket of the appliance touches the underside of the worktop, is level and aligns with the adjacent cupboards (inset Figure 10).

  • Page 7: Using The Fridge

    ONLY APPLICABLE WHEN PARTNERING FRIDGE WITH FREEZER FIGURE 15 If the fridge is installed with the matching freezer, use the link bracket to join the two appliances together (Figure 15). LINK BRACKET Using the fridge Before use, allow the appliance to stand for a few FIGURE 16 hours to allow the cooling gases to stabilise after installation.

  • Page 8: Lamp Replacement

    Lamp replacement Unplug the appliance from the mains supply. FIGURE 17 To release the shade from the lamp housing, clip the shade out from the thermostat housing (Figure 11). Unscrew the lamp anti-clockwise for removing and clockwise for installing. Replace the lamp with one of the same type (E14 SES 15W.

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible cause Remedy No operation of unit Faulty plug, fuse or wiring Check fuse, plug or wiring Interior lamp not lit Lamp blown, no power supply Replace lamp, check power supply Abnormal noise and vibration Appliance not level Adjust feet to level the unit Temperature in fridge not No power...

  • Page 10: Fuse And Mains Plug Replacement

    Fuse and mains plug replacement This product is supplied with a moulded plug which FIGURE 19 contains a 13A fuse. If you are simply replacing the FUSE COVER fuse, you must use a 13A fuse which has been approved by ASTA to BS1362 (Figure 19). NOTE: Never use without fuse cover fitted.

  • Page 11: Specification

    Specification Total gross capacity (litres) Net capacity (litres) Dimensions: HxWxD mm 816–868 x 596 x 550 Power supply 220/240V, 50Hz Nominal yearly consumption (kWh/year) Energy efficiency class Product specification may vary without prior notice. Safety measures Never try to repair the appliance or the electrical Disposal of old fridge or freezer parts yourself.
  • Page 12 This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin symbol, indicates that this appliance/fitting may not be treated as household waste.
