Summary of Contents for Coolzone CZ51058

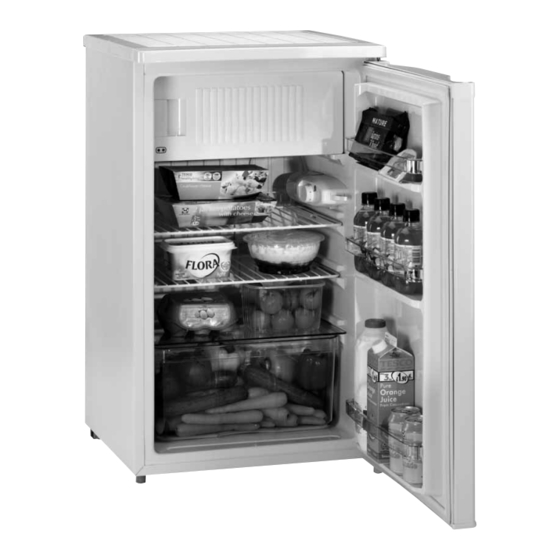

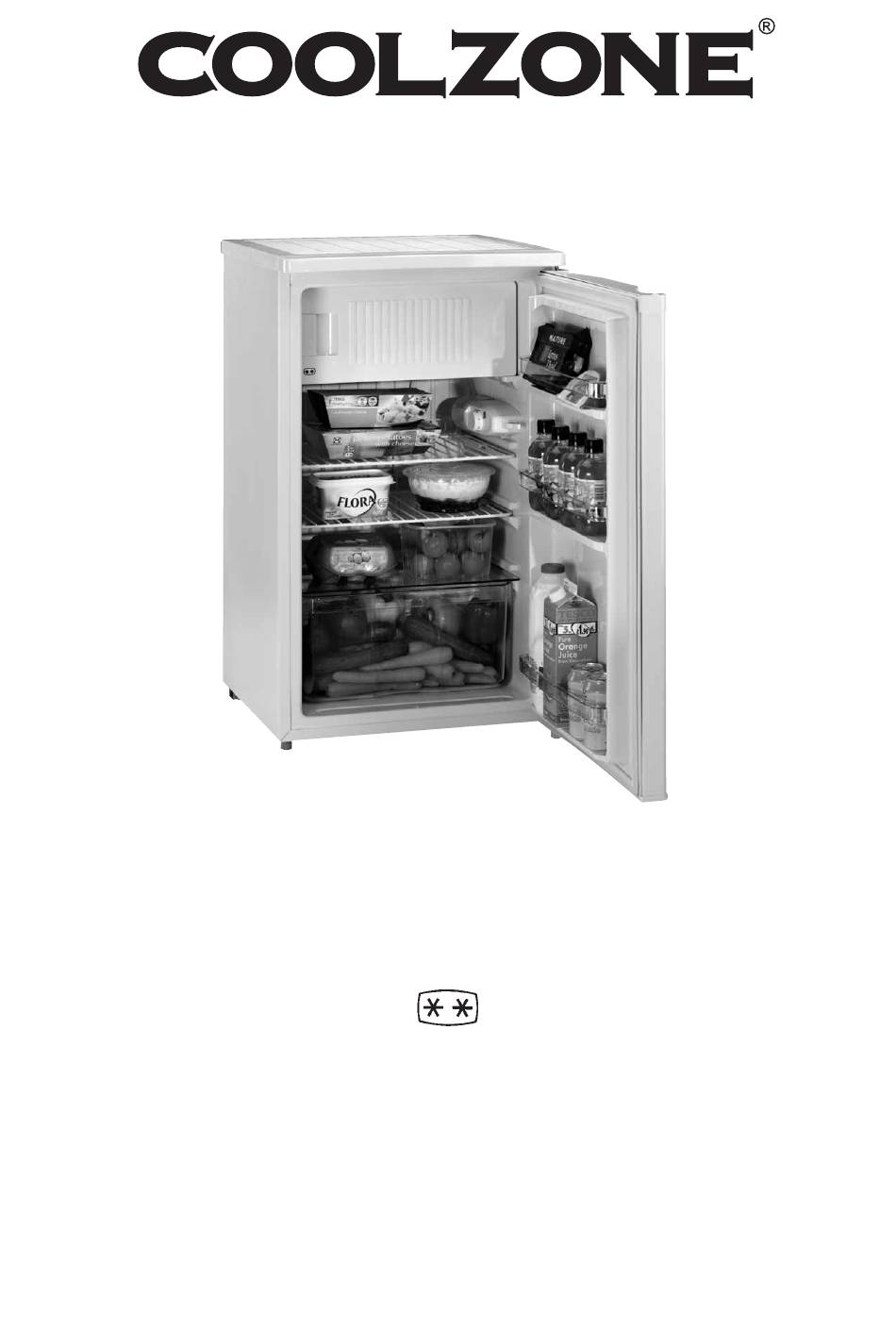

- Page 1 CZ51058 CZ51161 CZ51171 Fridge with 2-star frozen food compartment and worktop U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for future reference.
-
Page 2: Table Of Contents
Page contents Before use ..........2 Do and Don’t . -
Page 3: Parts Identification
Parts identification FIGURE 1 The parts are listed and numbered below to help identification. 1. Frozen food compartment flap 2. Interior light 3. Wire shelf 4. Salad/vegetable crisper 5. Temperature control 6. Balcony shelves 7. Bottle rack Installation and controls Important Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your home. -
Page 4: Door Reversal
Temperature control (cont’d) Notes on operation used when defrosting the frozen food compartment, During normal operation the following noises may or when the fridge is left empty for long periods. be heard: O Stifled murmur from compressor when it is The fridge has an automatic defrost cycle. -
Page 5: Maintenance And Cleaning
Maintenance and cleaning Important The fridge must be turned off at the mains before maintenance or cleaning. Defrosting the frozen food General cleaning compartment It is recommended to clean and wipe out the fridge regularly or after any spillage inside or outside the Defrost the frozen food compartment regularly to appliance. -
Page 6: Troubleshooting
Lamp replacement FIGURE 10 To remove the lamp cover, grip the diffuser and pull it away from the side wall of the fridge. No tools are required. Unscrew the lamp and replace it with one DIFFUSER of the same type, (15 watts SES E14). Clip the diffuser back into place. -
Page 7: Fuse And Mains Plug Replacement
Fuse and mains plug replacement This product is supplied with a fitted plug which FIGURE 11 contains a 13A fuse. If you are simply replacing the fuse, you must use a 13A fuse which has been approved by ASTA to BS1362. FUSE If the plug does not fit the socket or becomes damaged, a new plug must be fitted. -
Page 8: Specification
Specification Total volume (litres) Dimensions: HxWxD mm 850x505x525 Power supply 220/240V, 50Hz Energy efficiency class Energy consumption (kWh/year) Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be years from date of purchase against defects in repaired or replaced at the manufacturer's option materials and workmanship only, and provided that...
