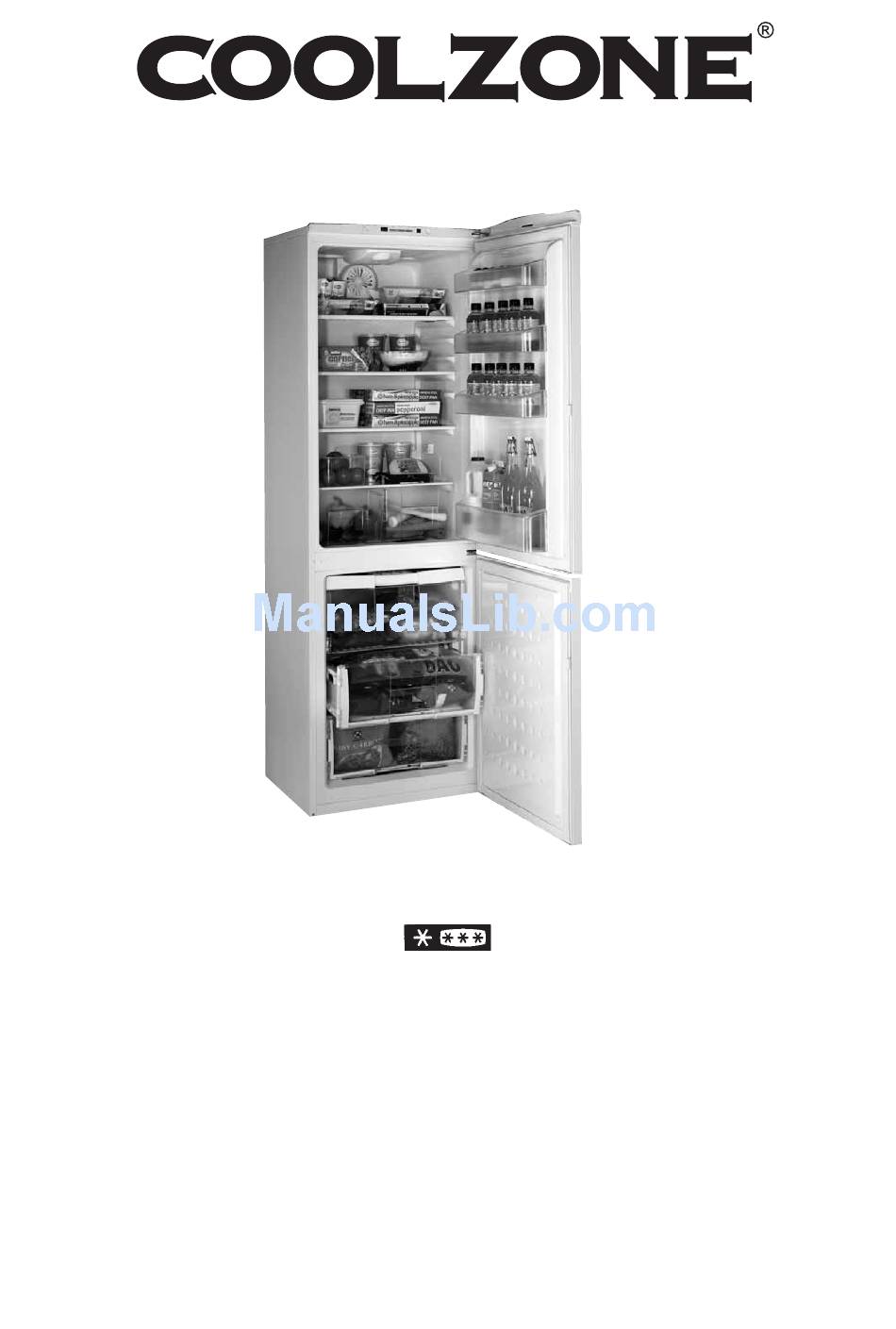

- Page 1 CZ51081 Frost free fridge freezer U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ............... . .2 Do and Don’t . -
Page 3: Parts Identification
Parts identification The parts are listed below to help identification. 1. Control panel 2. Interior light 3. Circulation fan 4. Wire shelves 5. Glass shelf 6. Salad/vegetable crispers 7. Ice cube tray and ice bank 8. Top freezer compartment 9. Large capacity drawer 10.Standard freezer drawer 11.Bottle rack 12.Alarm... -
Page 4: Door Reversal
Door reversal (cont) FIGURE 4 Gently lever the trim plates out of their recesses in the appliance housing (Figure 4). Unscrew the hinge pivot pin (Figure 5). TRIM PLATES Unscrew the hinge from the housing (Figure 6), turn it round and using the same two screws, refix it to the opposite corner of the appliance. - Page 5 Installation and controls (cont) The freezer requires space around the casing for Switching on efficient cooling and operation. The minimum Plug the appliance into a nearby power socket and clearances are shown in Figure 9. switch on. The control panel (Figure 10) is The freezer must be installed on a firm flat and positioned inside the door.
-
Page 6: Temperature Warning
Installation and controls (cont) Temperature control – freezer When fast freeze is no longer required switch it off to minimise power consumption. The temperature The thermostat setting for the fridge also regulates controller will then take over and regulate the the freezer temperature. -
Page 7: Frozen Food Storage
Using the freezer (cont) Frozen food storage that cold air is free to circulate preventing the food Food which has been purchased frozen should be kept in its original packaging. Maximum storage packages from sticking together. times and expiry dates are usually given on the When freezing fresh food do not freeze too much food packaging. -
Page 8: Fuse And Mains Plug Replacement
Maintenance and cleaning (cont) FIGURE 12 FIGURE 13 DRAIN HOSE DRIP TRAY LAMP Lamp replacement LIGHT To remove the lamp cover, squeeze the sides of the DIFFUSER light diffuser (Figure 13) and pull the diffuser downwards. Unscrew the lamp and replace it with one of the same type, (15 Watts SES E14). -
Page 9: Troubleshooting
Troubleshooting Problem Possible cause Remedy There is water at the bottom Drainage hole and/or pipe blocked Clean/unblock hole and of the freezer pipe The motor is on for long Door opened too often Do not open door periods without switching off needlessly The airflow around the unit Allow more free space... -
Page 10: Specification
Specification Total gross volume (litres) Dimensions: HxWxD mm 1865x595x600 Freezer net volume (litres) Refrigerator net volume (litres) Power supply 220/240V, 50Hz Nominal daily consumption (k Wh) 0.94 Energy efficiency class Refrigerant R600a Product specification may vary without prior notice. After sales service This appliance is guaranteed for a period of two Where this guarantee applies, the appliance will be repaired or replaced at the manufacturer's option...
