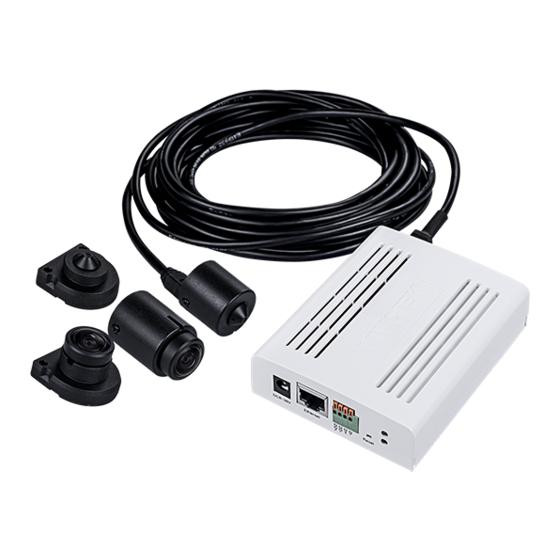

Split type network camera

Advertisement

Quick Links

VC9101, CU9171, CU9183
Split Type Network Camera
User 's Manual
5MP • Multiple Fixed or Fisheye Lens Options • Day & Night • Smart Motion Detection
Smart VCA • Smart Stream III
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIVOTEK VC9101 and is the answer not in the manual?

Questions and answers

Summary of Contents for DELTA GROUP VIVOTEK VC9101

  • Page 1 VC9101, CU9171, CU9183 Split Type Network Camera User ’s Manual 5MP • Multiple Fixed or Fisheye Lens Options • Day & Night • Smart Motion Detection Smart VCA • Smart Stream III Rev. 1.0...
  • Page 2: Table Of Contents

    VIVOTEK Table of Contents Overview ..................................Revision History ..............................4 Read Before Use ..............................4 Package Contents ..............................5 Symbols and Statements in this Document ......................5 Physical Description .............................. 6 Hardware Installation ............................. 9 Software Installation ............................. 23 Network Deployment ............................28 Ready to Use ................................
  • Page 3: Overview

    VIVOTEK Recording > Recording settings ......................151 Storage ..............................156 Storage > NAS management ........................157 Storage > Content management ......................159 Appendix ..............................URL Commands for the Network Camera ....................162 Technology License Notice ........................457 Electromagnetic Compatibility (EMC) ....................... 458 Overview VIVOTEK’s VC9101 is a high-performance Full-HD split-type camera system.
  • Page 4: Revision History

    VIVOTEK Revision History ■ Rev. 1.0: Initial release. Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system.
  • Page 5: Package Contents

    VIVOTEK Package Contents ■ VC9101 ■ Screw pack, Lens bracket. ■ Quick Installation Guide. For the contents of the lens modules, refer to their QIG. Symbols and Statements in this Document INFORMATION: provides important messages or advices that might help prevent inconvenient or problem situations.
  • Page 6: Physical Description

    VIVOTEK Physical Description DI/DO terminal Audio jacks To lens module - OR - MicroSD card slot DC8~36V PoE 802.3af DC plug Ethernet port Application View CU9171-H, CU9183-H Fisheye lens 6 - User's Manual...
  • Page 7 VIVOTEK CU9171-H, CU9183-H Pinhole User's Manual - 7...
  • Page 8 VIVOTEK Screws IMPORTANT: Below are things to notice connecting a ground wire: 1. The minimum ground screw type is 3.5mm. 2. The minimum ground wire gauge is 18AWG. 3. Use green/yellow (green yellow stripe) ground wires. 4. Use a knurled washer for securing the grounding srew. 8 - User's Manual...
  • Page 9: Hardware Installation

    VIVOTEK Hardware Installation 1. Jot down the camera's MAC address for later reference. XXXXXX Network Camera Model No: XXXXXX 0002D10766AD MAC: 0002D1083236 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 VIVOTEK 3. Connect the necessary interfaces. - OR - DC8~36V PoE 802.3af 4. The 5-meter cable has one Ethernet connector and a USB type C connector to connect the lens module. 10 - User's Manual...
  • Page 11 VIVOTEK 5. Drill a hole for your lens module. 24 / 21 / 12mm Below are the types of installation for different mount brackets and lenses. B&C User's Manual - 11...
  • Page 12 VIVOTEK A-1. Insert the lens module into the clamp bracket. A-2. Route the module cable. 12 - User's Manual...
  • Page 13 VIVOTEK Insert the module into the through hole. 24.2mm CU9183-H Note that the fisheye lens must be aligned with the edge of the through hole; otherwise, the field of view will be blocked. 180º User's Manual - 13...
  • Page 14 VIVOTEK CU9183-H The same applies to the pinhole lens. 93º 14 - User's Manual...
  • Page 15 VIVOTEK Adjust the orientation of the lens so that the field of view can be properly aligned. Tighten the retention screw on the clamp bracket. User's Manual - 15...
  • Page 16 VIVOTEK Peel off the sticker cover. You can fasten 2 screws to attach the bracket to a wall or panel. 16 - User's Manual...
  • Page 17 VIVOTEK CU9183-HF For a thinner panel, drill a hole and fasten the lens module using the included hex nut. <=0.2 inch 5.08mm CU9171-HF For a thinner panel, drill a hole and fasten the lens module using the included hex nut. <=0.1 inch 2.54mm User's Manual - 17...
  • Page 18 VIVOTEK CU9183-HF CU9171-HF For using the snap-on bracket, press fit the lens module. Secure the installation by fastening two screws from the top. 18 - User's Manual...
  • Page 19 VIVOTEK Peel off the sticker cover. Attach the bracket to a panel with a pre-drilled hole. For the hole diameters, refer to the previous description. User's Manual - 19...
  • Page 20 VIVOTEK You can also use a standard wall-mount bracket along with a clamp bracket to install the lens module. Install the clamp bracket by turing it clockwise onto the threaded pole. You can then tilt or rotate to find a best shooting direction. 20 - User's Manual...
  • Page 21 VIVOTEK You can mount the VC9101 main unit to a wall by drilling 2 screw holes 55mm apart. Hang the unit onto the screws. 55mm User's Manual - 21...
  • Page 22 VIVOTEK 8. Please visit VIVOTEK’s website to Install the "Shepherd” software utility. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. Double-click on the camera’s MAC address to open a web console to the camera. Shepherd Browser 22 - User's Manual...
  • Page 23: Software Installation

    VIVOTEK Software Installation 9. Install the Shepherd utility, which helps you locate and configure your Network Camera in the local network. If your camera comes without the CD, go to VIVOTEK’s website, and locate the utility in the Downloads > Software page. 9-1.
  • Page 24 VIVOTEK 9-3. The program will search for all VIVOTEK network devices on the same LAN. 9-4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label. You can then double-click on the address to open a management session with the Network Camera.
  • Page 25 VIVOTEK Forceful Password Configuration 10. The first time you log in to the camera, the firmware will prompt for a password configuration for security concerns. 10-1. Since your camera is used for the first time, there is no password. Enter “root” as the user name, and nothting for the password.
  • Page 26 VIVOTEK Some, but not all special ASCII characters are supported: !, $, %, -, ., @, ^, _, and ~. You can use them in the password combination. 10-3. Another prompt will request for the password you just configured. Enter the password and then you can start configure your camera and see the live view.
  • Page 27 VIVOTEK Hardware Reset The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again. Reset: Press the recessed reset button.
  • Page 28: Network Deployment

    VIVOTEK Network Deployment General Connection (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a sin- gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE- enabled switch via Ethernet cable.
  • Page 29: Ready To Use

    VIVOTEK Ready to Use 1. A browser session to the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.
  • Page 30 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below. 1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software Installation on page 20 for details.
  • Page 31 VIVOTEK For example, your router and IP settings may look like this: Device IP Address: internal port IP Address: External Port (Mapped port on the router) Public IP of router 122.146.57.120 LAN IP of router 192.168.2.1 Camera 1 192.168.2.10:80 122.146.57.120:8000 Camera 2 192.168.2.11:80 122.146.57.120:8001...
  • Page 32: Accessing The Network Camera

    VIVOTEK Accessing the Network Camera This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software. Using Web Browsers Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN. If your network environment is not a LAN, follow these steps to access the Netwotk Camera: ®...
  • Page 33 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 107.
  • Page 34 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. • If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64.
  • Page 35: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming. VLC media player VLC media player mpegable Player 1. Launch the RTSP player. 2. Choose File > Open URL. A URL dialog box will pop up. pvPlayer 3.
  • Page 36: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
  • Page 37: Using Vivotek Recording Software

    VIVOTEK Using VIVOTEK Recording Software Visit our website for download the VAST recording software that provides simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com.
  • Page 38: Main Page

    VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Digital zoom is only available in the Liveview profile. Resize Buttons VIVOTEK INC.
  • Page 39 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 43. Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
  • Page 40 VIVOTEK PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 122 for detailed information. Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream).
  • Page 41 VIVOTEK Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
  • Page 42 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2018/07/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2018/07/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 65.
  • Page 43: Client Settings

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.265/H.264 Protocol Options H.264 Protocol Options Depending on your network environment, there are four transmission modes of H.264 streaming: UDP unicast: This protocol allows for more real-time audio and video streams.
  • Page 44 VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name. Folder: Specify a storage destination on your PC for the recorded video files. The location can be changed.
  • Page 45 VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.
  • Page 46 VIVOTEK Buttons Configuration In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks. Please follow the steps below to configure your joystick buttons: 1.
  • Page 47 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips: If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.
  • Page 48: Configuration

    VIVOTEK Configuration Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.
  • Page 49: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
  • Page 50 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off. Synchronize with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer.
  • Page 51 VIVOTEK Western Argentina Summer Time (WARST) is 3 hours behind the prime meridian all year. There is a dummy fall-back transition on December 31 at 25:00 daylight saving time (i.e., 24:00 standard time, equivalent to January 1 at 00:00 standard time), and a simultaneous spring-forward transition on January 1 at 00:00 standard time, so daylight saving time is in effect all year and the initial WART is a placeholder.
  • Page 52: System > Homepage Layout

    VIVOTEK System > Homepage layout This section explains how to set up your own customized homepage layout. General settings This column shows the settings of your hompage layout. You can manually select the background and font colors in Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field.
  • Page 53 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 54 VIVOTEK ■ Follow the steps below to set up the customized homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below. 4.
  • Page 55: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log. 2.
  • Page 56 VIVOTEK You can install the included VAST recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual. VIVOTEK Network Cameras Internet 3G Cell phone...
  • Page 57 VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit. Set Parameter log VADP log contains the history of changes made to system parameters such as recording, imaging parameters, and all other parameters.
  • Page 58: System > Parameters

    VIVOTEK System > Parameters The View Parameters page lists the entire system’s parameters. If you need technical assistance, please provide the information listed on this page. 58 - User's Manual...
  • Page 59: System > Maintenance

    VIVOTEK System > Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc. General settings > Upgrade firmware This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.
  • Page 60 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 88). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 61 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload. Export configuration file: Click to export all parameters for the device and user-defined scripts.
  • Page 62: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following columns: General settings, IR control, Image settings, Exposure, Focus, Privacy mask, and Pixel Calculator. The Focus window is available only for models that come with motorized lens.
  • Page 63 VIVOTEK Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will be cleared after flip/mirror setting.
  • Page 64 VIVOTEK IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let Infrared light pass into the sensor during low light conditions. ■ Auto mode (The Day/Night Exposure Profile will not be available if Auto mode is selected) The Network Camera automatically removes the filter by judging the level of ambient light.
  • Page 65 VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 2: For special situations Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature. 1.
  • Page 66 VIVOTEK Highlight mask ■ Strong light sources will be masked from the scene, and the image contrast will be strengthened. This function is useful to prevent the spot-light effects in a high dynamic scene. False color may be observed around the edges of strong light sources. Noise reduction ■...
  • Page 67 VIVOTEK Exposure On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.
  • Page 68 VIVOTEK The inclusive window refers to the “weighted window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
  • Page 69 VIVOTEK Exposure control: ■ Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to bright). You can click and drag the semi-circular pointers on the Exposure time and Gain control slide bars to specify a range of shutter time and Gain control values within which the camera can automatically tune to an optimal imaging result.
  • Page 70 VIVOTEK You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings. If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
  • Page 71 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. ■ To configure privacy mask windows, 1. Click New to add a new window. 2. You can use 4 mouse clicks to create a new masking window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
  • Page 72 VIVOTEK Pixel calculator Click the Add button at the lower screen to create a pixel calculator window. Place your cursor on the window to move it to an area of your interest, and change the size of window to fit the area of interest. Once they are drawn, the numbers of pixels on the sides of windows will appear.
  • Page 73 VIVOTEK Take the following into consideration when using this feature: 1. Operational requirement: Identify a human or a human face. 2. Why human face? There are less variances in the size of a face than that for limbs and body. Human face is normally 16cm wide.
  • Page 74: Media > Video

    VIVOTEK Media > Video Stream settings The Viewing Window option is not available for fisheye lens. This Network Camera supports multiple streams with frame sizes ranging from 512 x 512 to 1920 x 1920 pixels The definition of multiple streams: ■...
  • Page 75: Media > Video

    VIVOTEK Please follow the steps below to set up the configurable settings for a stream: 1. Select a stream for which you want to set up the viewing region. 2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly.
  • Page 76 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera provides real-time H.265, H.264 and MJPEG compression standards (Triple Codec) for real-time viewing. If the H.265 H.264 mode is selected, the video is streamed via...
  • Page 77 VIVOTEK The frame rate will decrease if you select a higher resolution. ■ Intra frame period Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
  • Page 78 VIVOTEK With the H.265 codec in an optimal scenario and when Dynamic Intra frame is combined with the Smart Stream function, an 80% of bandwidth saving can be achieved compared with using H.264 without enabling these bandwidth-saving features. ■ Smart FPS In a static scene, the algorithm puts old frames in queue when no motions occur in scene.
  • Page 79 VIVOTEK • Smart codec: Smart codec effectively reduces the quality of the whole or the non- interested areas on a screen and therefore reduces the bandwidth consumed. You can manually specify the video quality for the foreground and the background areas.
  • Page 80 VIVOTEK As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
  • Page 81 VIVOTEK Bit rate control ■ Constrained bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, 8Mbps, 10Mbps, 12Mbps, 14Mbps, ~ to 80Mbps.
  • Page 82 VIVOTEK Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent.
  • Page 83 VIVOTEK JPEG If the mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
  • Page 84: Media > Audio

    VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
  • Page 85 VIVOTEK Audio clips ■ Output gain: Use the slide bar to change the audio output gains value. ■ Audio clip: When the camera's audio input is connected to a microphone, you can record a short period of audio recordings (1 to 10 seconds). You can also use the camera's embedded microphone to record an audio clip, if available.
  • Page 86: Media Profiles

    VIVOTEK Media profiles You can configure a different video stream for each of the 3 default profiles, Max. view, Recording, Live view, and App. The related video stream information will display, including stream number, resolution, codec used, frame rate, etc. The Multicast port number, and address for video, audio, and Metadata configuration will also be listed.
  • Page 87: Network > General Settings

    VIVOTEK Network > General settings This section explains how to configure a wired network connection for the Network Camera. Network Type Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Please rememer to click on the Save button when you complete the Network setting.
  • Page 88 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses. Secondary WINS server: The secondary WINS server that maintains the database of computer names and IP addresses.
  • Page 89 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
  • Page 90 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 91 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above. When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.
  • Page 92 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 93 VIVOTEK User's Manual - 93...
  • Page 94: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols NOTE: The metadata information can only be transmitted through the HTTP main port. Metadata is not available through the secondary HTTP port. HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first;...
  • Page 95 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3> For example, when the Access name for stream 2 is set to video1s2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter. 3.
  • Page 96 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
  • Page 97 VIVOTEK Multicast settings for streams: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for video streams. Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
  • Page 98 VIVOTEK SIP is short for Session Initiation Protocol. If necessary, you can change the default port number, 5060, to one between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
  • Page 99 VIVOTEK Network > DDNS This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device.
  • Page 100 VIVOTEK Manual setup DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
  • Page 101 VIVOTEK [Register] Successfully Your account information has been mailed to registered e-mail address 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
  • Page 102 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 103 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
  • Page 104: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
  • Page 105: Network > Ftp

    VIVOTEK Network > FTP The newer firmware disabled the FTP port for security concerns. You can manually enable the FTP server service to enable the FTP function. You can disable the FTP server function when it is not in use. FTP port: The FTP server allows the user to save recorded video clips.
  • Page 106: Bonjour

    VIVOTEK Bonjour To access the camera from a Mac computer, go to Safari, click on Bonjour and select the camera from a drop-down list. You can go to Safari > Preferences to enter your user name and password, and provide the root password the first time you access the camera.
  • Page 107: Security > User Accounts

    VIVOTEK Security > User accounts This section explains how to enable password protection and create multiple accounts. Account management The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Account management window, please apply the password for the “root” account first.
  • Page 108 VIVOTEK Privilege management PTZ control: You can modify the management privilege as operators or viewers. Select or de- select the checkboxes, and then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page. (Please refer to Configuration on page 48).
  • Page 109: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 110 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 111 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request. 4.
  • Page 112 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 113 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix. User's Manual - 113...
  • Page 114 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 114 - User's Manual...
  • Page 115 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect. 12.To begin an encrypted HTTPS session, click Home to return to the main page.
  • Page 116: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
  • Page 117 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
  • Page 118 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
  • Page 119 VIVOTEK Security > IEEE 802.1X Enable this function if your network environment uses IEEE 802.1x, which is a port-based network access control. The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802.1x settings. The 802.1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless).
  • Page 120 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
  • Page 121 VIVOTEK Security > Miscellaneous The embedded TrendMicro utitlity provides the protection against Cross-Site Request Forgery. Cross-site request forgery is also known as one-click attack or session riding and is abbreviated as CSRF. CSRF is a type of malicious exploit of a website, in this case, the camera.
  • Page 122: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings The digital PTZ applies to a fixed or pinhole lens. This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. Digital: Control the e-PTZ operation. Within a field of view,it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.
  • Page 123 VIVOTEK Home page in the E-PTZ Mode ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position. ■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.
  • Page 124 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list. 3.
  • Page 125 VIVOTEK NOTE: • The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position. • Click Patrol: The Network Camera will patrol along the selected positions repeatedly. User's Manual - 125...
  • Page 126: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 127 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 128 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 145 for detailed information. ■...
  • Page 129 VIVOTEK Once the triggers are configured, they will be listed under the VADP option. 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Backup media if the network is disconnected Select this option to backup media file on SD card if the network is disconnected. This function will only be displayed after you set up a network storage (NAS).
  • Page 130 VIVOTEK Add server It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click server to open the server setting window.
  • Page 131 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you configure the first event server, the new event server will automatically display on the Server list.
  • Page 132 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected. To verify if the FTP settings are correctly configured, click Test.
  • Page 133 VIVOTEK If key authentication is not preferred, you can specify a username and password in the section below. An RSA key fingerprint will look like this: da:47:93:b4:3a:90:5b:50:1f:20:a8:f9:b7:a1:d0:e1. Verify if this is the SFTP server you want to connect to. ■ Folder name Enter the folder where the media file will be placed.
  • Page 134 VIVOTEK Publickey mode: Selecting the Public key mode will bring up the Pairing mode options: Auto, Download, Upload. Auto Camera will generate a key pair and auto pair public key with the SFTP server. Download Camera will generate a key pair and download the public key for the user to upload it to the SFTP server.
  • Page 135 VIVOTEK Server type - HTTP Select to send the media files to an HTTP server when a trigger is activated. ■ Server name: Enter a name for the server setting. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name if necessary. ■...
  • Page 136 VIVOTEK Network storage: Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 154 for details. Note that only one NAS server can be configured. Click Save server to enable the settings. ■...
  • Page 137 VIVOTEK Click 20190120 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2019/01/20 2019/01/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all recorded data 2019/01/20 2019/01/20...
  • Page 138 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 139 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20190513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings. Note that after you set up the first media server, a new column for media server will automatically display on the Media list.
  • Page 140 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20190513_100341 File name prefix...
  • Page 141 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click the Save event button to enable the settings and click Close to exit Event Settings page.
  • Page 142: Applications > Motion Detection

    VIVOTEK Applications > Motion detection The camera comes with a Smart Motion Detection utility as its pre-loaded VCA package. Please refer to its User Guide for more information: http://download.vivotek.com/downloadfile/solutions/vadp/smart-motion-detection-manual_ en.pdf. Click on Configuration > Applications > Motion detection. The Smart Motion utility will be automatically started.
  • Page 143: Applications > Smart Vca

    VIVOTEK Applications > Smart VCA Smart VCA provides the following features: Intrusion detection, Loitering detection, Missing object detection, Unattended Object detection, Line Crossing detection, and Face detection. Please refer to Smart VCA’s user documentation for more information. Click on Configuration > Applications > Smart VCA. The Smart VCA utility will be automatically started.
  • Page 144: Applications > Di And Do

    VIVOTEK Applications > DI and DO Digital input: Select High or Low as the Normal status for the digital input connection. Connect the digital input pin of the Network Camera to an external device to detect the current connection status. Digital output: Select Grounded or Open to define the normal status for the digital output.
  • Page 145: Applications > Tampering Detection

    VIVOTEK Applications > Tampering detection This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint. Please follow the steps below to set up the camera tamper detection function: 1.
  • Page 146: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 147 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
  • Page 148: Applications > Package Management - A.k.a., Vadp (Vivotek Application Development Platform)

    VIVOTEK Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) The camera comes embedded with the Smart Motion Detection feature. The Smart Motion detection, with Human detection and tunable time filter, can eliminate the defects of traditional motion detection and facilitate the configuration at a surveillance site. To learn more about this feature, download its User Guide in: http://download.vivotek.com/downloadfile/solutions/vadp/smart-motion-detection-manual_ en.pdf...
  • Page 149 VIVOTEK To utilize a software module, acquire the software package and click Browse and Upload buttons. The screen message for a successful upload is shown below: To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button.
  • Page 150 VIVOTEK On the License page, register and activate the license for using VIVOTEK's VADP modules. You should acquire the license key elsewhere, and manually upload to the network camera. Follow the onscreen instruction on VIVOTEK's website for the registration procedure. 150 - User's Manual...
  • Page 151: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card via the camera’s web console (in the Local storage . SD card management page) when using it for the first time.
  • Page 152 VIVOTEK If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space. NOTE: ►...
  • Page 153 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1.
  • Page 154 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
  • Page 155 VIVOTEK Event f you want to enable recording notification, please click to configure event triggering settings. Please refer to Event > Event settings on page 126 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.
  • Page 156: Storage

    VIVOTEK Storage NOTE: • It is recommended to turn OFF the recording activity before you remove an SD card from the camera. • The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary. •...
  • Page 157: Storage > Nas Management

    VIVOTEK SD card control ■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one. ■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file. For example, if you enter “7 days”, the recorded files will be stored on the SD card for 7 days.
  • Page 158 VIVOTEK 2. Click Test to check the setting. The result will be shown in the pop-up window. If successful, you will receive a test.txt file on the networked storage server. 3. Click Mount to complete the settings. NAS management ■ Minimum reserved storage space: The reserved space can be used as a safe buffer especially when the cyclic recording function is enabled, during the transaction stage when a storage space is full and the incoming streaming data is about to overwrite the previously saved videos.
  • Page 159: Storage > Content Management

    VIVOTEK Storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
  • Page 160 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Numbers of entries displayed on one page Click to open a live view ■...
  • Page 161 VIVOTEK ■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example: Click to switch pages ■...
  • Page 162: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
  • Page 163 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 2. Style Convention In URL syntax and in descriptions of CGI parameters, a text within angle brackets denotes a content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets shall also be replaced.
  • Page 164 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
  • Page 165 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 4. Security Level SECURITY LEVEL SUB-DIRECTORY DESCRIPTION anonymous Unprotected. 1 [view] viewer Can view, listen, and talk to camera. 4 [operator] operator Operator access rights can modify most of the camera’s parameters except some privileges and network options. 6 [admin] admin Administrator access rights can fully control the...
  • Page 166 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
  • Page 167 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n User's Manual - 167...
  • Page 168 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] PARAMETER DESCRIPTION <parameter>...
  • Page 169 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n User's Manual - 169...
  • Page 170 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7. Available Parameters on the Server Valid values: VALID VALUES DESCRIPTION string[<n>] Text strings shorter than ‘n’ characters. The characters “,’,<,>,& are invalid. string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The characters “,’,<,>,&...
  • Page 171 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved VALID VALUES DESCRIPTION non-valid The API is listed in product WebAPIs, but is malfunction in this status. <decimal> Any decimal number expressed in 32-bits ranging from 1.18e- 38~3.40e+38. NOTE: The camera should not be restarted when parameters are changed. 7.1 System Group: system NAME...
  • Page 172 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:00 Caracas -160: GMT-04:00 Atlantic Time(Canada), La Paz -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland, Sao Paulo -121: GMT-03:00 Santiago -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape Verde Is.
  • Page 173 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul 380: GMT 09:30 Adelaide, Darwin 400: GMT 10:00 Brisbane, Canberra, Melbourne, Sydney, Guam 401: GMT 10:00 Vladivostok 440: GMT 11:00 Magadan, Solomon Is., New Caledonia, Vladivostok 480: GMT 12:00 481: GMT 12:00 Auckland, Wellington,...
  • Page 174 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) integer> reset Restart the server after <value> seconds <positive if <value> is non-negative. integer> restoreexceptnet Restore the system parameters to default <positive values except (ipaddress, subnet, router, integer>...
  • Page 175 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) parameters will be restored to the default value except for a union of the combined results. * Only available when "capability_image_c<0~(n- 1)>_remotefocus" != 0. restoreexceptlen Restore the system parameters to default <positive values except lens profile.
  • Page 176 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) Español language_i3 : Français language_i4 : Italiano language_i5 : 日 本語 language_i6 : Português language_i7 : 简 体中文 language_i8 : 繁 體中文 customlanguage_max 0,<positive Maximum number of custom languages count integer>...
  • Page 177 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) k is determined by the below criterion: The following applies for capability_extension_do_num >= * if extension_connected=1, k=capability_ndo * if extension_connected=0, k=capability_ndo+ capability_extension_do_num Otherwise, * k=capability_ndo onlinenum_rtsp 0,<positive Current number of RTSP integer>...
  • Page 178 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Group: di_i<0~(k-1)> for k is the value of "capability_ndi" (capability_ndi > 0) k is determined by the below criterion: The following applies for capability_extension_di_num >= 0 * if extension_connected=1, k=capability_ndi * if extension_connected=0, k=capability_ndi+ capability_extension_di_num Otherwise, * k=capability_ndi NAME...
  • Page 179 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) user_i0_pass password[64] Root password user_i<1~20>_pass password[64] User password user_i0_privilege view, Root privilege operator, admin user_i<1~20>_ privilege view, User privilege operator, admin 7.6 Network Group: network NAME VALUE SECURITY DESCRIPTION (get/set)
  • Page 180 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) dns1, dns2 from DHCP server at next reboot. 0 => Use preset ipaddress, subnet, rounter, dns1, and dns2. ipaddress <ip address> IP address of server. subnet <ip address> Subnet mask.
  • Page 181 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS <product dependent> (capability_naudioin > 0) eventalarm Event/alarm channel for CoS management Management channel for CoS eventtunnel...
  • Page 182 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.6.5 HTTP Subgroup of network: http NAME VALUE SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport 1025~65535 Alternate HTTP port. authmode basic, HTTP authentication mode. digest s<0~(capability_nmed string[32] Http server push access name for stream iastream*capability_n N, N= videoin)-...
  • Page 183 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) The value are shown as video1s1.mjpg = c0_s0_accessname, (channel1stream1) video1s2.mjpg = c0_s1_accessname, (channel1stream2) video2s1.mjpg = c1_s0_accessname, (channel2stream1) video2s2.mjpg = c1_s1_accessname, (channel2stream2) etc. * We support this parameter when the version number (httpversion) is equal or greater than 0311c.
  • Page 184 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) live1s4.sdp = s3_accessname, (channel1stream4) etc. * Values start with prefix “cgi-bin” are prohibited. For example, “c, cg, cgi, cgi-, cgi-b, cgi-bi, cgi-bin” are not allowed. * We modify the value of RTSP access name after version number(httpversion) is 0311c c<0~(capability_nvide...
  • Page 185 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) alwaysmulticast <boolean> Enable always multicast. ipaddress <ip Multicast video IP address. address> * We replace "network_rtsp_s<0~(n- 1)>_multicast_ipaddress" with " network_rtsp_s<0~(n- 1)>_multicast_videoipaddress ". * Reserved for compatibility, and suggest don't use this since [httpversion] >...
  • Page 186 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) videoport 1025 ~ 65535 Video channel port for RTP. audioport 1025 ~ 65535 Audio channel port for RTP. metadataport 1025 ~ 65535 Metadata channel port for RTP. 7.6.12 PPPoE Subgroup of network: pppoe (capability_protocol_pppoe >...
  • Page 187 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable access list filtering. admin_enable <boolean> Enable administrator IP address. admin_ip string[43] Administrator IP address. maxconnection Maximum number of (s). "capability_protoc ol_maxconnection" type 0, 1 Ipfilter policy : 0 =>...
  • Page 188 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) a. if "rbgain" is not supported, this means keep current white balance (Available values status. are listed in b. if "rbgain" is supported, "rgain" "capability_image_ and "bgain" are updated to the c<0~(n- current values which is got from 1)>_wbmode")
  • Page 189 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. irismode fixed, indoor, Control DC-Iris mode. "outdoor": Auto-setting DC-Iris to get outdoor <product best quality, but easy to meet rolling...
  • Page 190 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) when "capability_nvideoin > 1". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. rotate 0,90,180,270 The rotation angle of image. Support only in Rotation mode.
  • Page 191 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) minexposure <1~32000>, Minimum exposure time <product dependent> <5~32000>, 1~32000 => 1s ~ 1/32000s <1~8000>, 5~32000 => 1/5s ~ 1/32000s <5~8000>, 1~8000 => 1s ~ 1/8000s etc. 5~8000 => 1/5s ~ 1/8000s etc.
  • Page 192 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) when "capability_nvideoin > 1". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile.
  • Page 193 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) balance (2000K to 10000K). "outdoor": auto white balance mode specifically for outdoor. "indoor": auto white balance mode specifically for indoor. "sodiumauto": sodium vapor lamps. * Only available when "capability_image_c<0~(n- 1)>_wbmode"...
  • Page 194 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) "capability_image_c<0~(n- 1)>_exposure_mode" !=0 exposuremode auto, Select exposure mode. <product shutterpriority, "auto": Automatically adjust the Iris, dependent> irispriority, Gain and Shutter Speed to fit the qualitypriority, exposure level. manual, "shutterpriority": Manually adjust with variable Shutter Speed, and keep...
  • Page 195 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_sensortype" is "smartsensor") * Only available when "capability_image_c<0~(n- 1)>_iristype"=piris piris_position 1~100 Manual set P-Iris. <product 1: Open <-> 100: Close dependent> * Only valid when "piris_mode"=manual or "capability_image_c<0~(n- 1)>_sensortype"...
  • Page 196 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_exposure_rangetype" is "twovalues". gainvalue 0~100 Gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n- 1)>_agc_maxgain" != "-" and "capability_image_c<0~(n- 1)>_exposure_rangetype" is "onevalue". * Normalized range. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 197 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) imprinttimesta <boolean> Overlay time stamp on video. textonvideo_p top, bottom Text on video string position osition textonvideo_si 20~40 Text on video font size textonvideo_fo /usr/share/font/Default.ttf Choose camera default font file ntpath , /mnt/flash2/upload.ttf (/usr/share/font/Default.ttf) or user...
  • Page 198 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) "piris_mode"=manual or "irismode"=fixed * Only available when "capability_image_c<0~(n- 1)>_exposure_rangetype" is "twovalues". shuttervalue <1~32000>, Exposure time <product <5~32000>, 1~32000 => 1s ~ 1/32000s dependent> <1~8000>, 5~32000 => 1/5s ~ 1/32000s <5~8000>, 1~8000 =>...
  • Page 199 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) (x,y) crop_size <window size> Crop width and height. (WxH) (width must be 16x or 32x and height must be 8x) zoomratiodispl <boolean> Indicates multiple of zoom in is “on- screen display”...
  • Page 200 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) s<0~(m- <boolean> Enable "Smart fps" function. 1)>_smartfps_ * Only available when enable "capability_videoin_c<0~(n- 1)>_smartfps_support" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309a.
  • Page 201 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_h264_max _c<0~(n- quality mode. vbrbitrate 1)>_h264_maxbitrate" When the bit rate exceeds this value, frames will be dropped to restrict the bit rate. * Only valid when "h264_ratecontrolmode"= vbr s<0~(m- 1~5, 100 Set the pre-defined quality level:...
  • Page 202 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_h264_sma * Only available when rtq_enable "capability_videoin_c<0~(n- 1)>_smartq_support" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309a. s<0~(m- <boolean>...
  • Page 203 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) s<0~(m-1)>_h265_quant = 99. s<0~(m- 1~100 Select customized quality in a 1)>_h265_qpe normalized full range. rcent 1: Worst quality 100: Best quality * Only available when h265 is listed in "capability_videoin_codec".
  • Page 204 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) * Only valid when "h265_ratecontrolmode"= cbr s<0~(m- framerate,imagequality Set prioritypolicy 1)>_h265_prio * Only available when h265 is listed in ritypolicy "capability_videoin_codec". * Only valid when "h265_ratecontrolmode"= cbr s<0~(m- 1~"capability_videoin_c<0 The maximum frame rates of a H265...
  • Page 205 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) alue "capability_api_httpversio library directly. n" format is XXXXX_1 or * Only valid when XXXXX_3 or XXXXX_4 "mjpeg_ratecontrolmode"= vbr and ex: 0301a_1 or 0301a_3 or s<0~(m-1)>_mjpeg_quant = 99 0301a_4) or 1~99 (Only valid when...
  • Page 206 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_mjpeg_bit _c<0~(n- mode. rate 1)>_mjpeg_maxbitrate" * Only valid when "mjpeg_ratecontrolmode"= cbr s<0~(m- framerate,imagequality Set prioritypolicy 1)>_mjpeg_pri * Only valid when oritypolicy "mjpeg_ratecontrolmode"= cbr s<0~(m- 1~"capability_videoin_c<0 The maximum frame rates of a mjpeg 1)>_mjpeg_ma ~(n- stream at different...
  • Page 207 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1)>_wdrc_mode" is 1 aespeed_mod <boolean> Turning AE converge speed on or off. 0: off <product 1: on dependent> * Only available when "capability_image_c<0~(n- 1)>_aespeed" is 1 aespeed_spee 1~100 The speed level of AE converge speed.
  • Page 208 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY( DESCRIPTION get/set) 1: Add watermarks on images <product * Only available when dependent> "capability_fisheye" > 0 s<0~(m- ‘1O, 1P, 2P, 1R, 4R’ for Local dewarp mode. 2)>_fisheyede ceiling/floor mount “1O”...
  • Page 209 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) video quality of ROI is better than the non-ROI areas. The level is from 1 to 5. Level 5 is the maximum level of the quality difference between the ROI and non-ROI areas.
  • Page 210 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) (httpversion) is equal or greater than 0301a. * "policy=night" is only available when "capability_daynight_c<0~(n- 1)>_support > 0". begintime hh:mm Begin time of schedule mode. endtime hh:mm End time of schedule mode. minexposure <1~32000>, Minimum exposure time...
  • Page 211 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "twovalues". shuttervalue <1~32000>, Exposure time <product <5~32000>, 1~32000 => 1s ~ 1/32000s dependent> <1~8000>, 5~32000 => 1/5s ~ 1/32000s <5~8000>, 1~8000 => 1s ~ 1/8000s etc. 5~8000 => 1/5s ~ 1/8000s * Available value is listed etc.
  • Page 212 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 10: EV +1.3 11: EV +1.7 12: EV +2.0 *Only available when "capability_image_c0_exposure_mod e" != 0 exposuremode auto, Select exposure mode. "auto": Automatically adjust the Iris, <product shutterpriority, dependent>...
  • Page 213 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "outdoor": auto white balance mode specifically for outdoor. "indoor": auto white balance mode specifically for indoor. "sodiumauto": sodium vapor lamps. * Only available when "capability_image_c<0~(n- 1)>_wbmode" !="-" rgain 0~100 Manual set rgain value of gain control...
  • Page 214 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "piris_mode"=manual or "irismode"=fixed * Normalized range. * Only available when "capability_image_c<0~(n- 1)>_exposure_rangetype" is "twovalues". gainvalue 0~100 Gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n- 1)>_agc_maxgain"...
  • Page 215 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) <product 1: Open <-> 100: Close dependent> * Only valid when "piris_mode"=manual or "capability_image_c<0~(n- 1)>_sensortype" is "smartsensor" * Only available when "capability_image_c<0~(n- 1)>_iristype"=piris irismode fixed, indoor, outdoor Control DC-Iris mode.
  • Page 216 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 0: off <product 1: on dependent> * Only available when "capability_image_c<0~(n- 1)>_aespeed" is 1 aespeed_spee 1~100 The speed level of AE converge speed. dlevel 1~20: level 1 <product 21~40: level 2 dependent>...
  • Page 217 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved ipaddress <ip address> Multicast video IP address. port 1025 ~ 65535 Multicast video port. ipversion IPv4, IPv6 The version of internet protocol. 1 ~ 255 Multicast video time to live value. 7.9 Time Shift Settings Group: timeshift for n channel products and m stream n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"...
  • Page 218 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, Set IR cut control mode <Not day, * We replace this parameter with recommended to night, “ircutcontrol_c0_mode” when the use this> version number (httpversion) is equal schedule…etc or greater than 0312a.
  • Page 219 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) disableirled <boolean> Enable/disable built-in IR led <Not * Only available when " recommended to capability_daynight_c<0~"capability_ use this> nvideoin"-1>_builtinir > 0". * We replace this parameter with "ircutcontrol_illuminators_builtin_irle d_enabled"...
  • Page 220 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) use this> "capability_daynight_c<0~(n-1)>_ blackwhitemode" is 1. * We replace this parameter with “ircutcontrol_c<0~(n-1)>_bwmode” when the version number (httpversion) is equal or greater than 0312a. * We do not support this parameter when "capability_nvideoin >...
  • Page 221 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) after the version number (httpversion) is equal or greater than 0400a. 7.10.1 IR cut control setting per channel Group: ircutcontrol_c<0~(n-1)> for n channel products (capability_daynight_c<0~(n-1)>_support > 0) n denotes the value of "capability_nvideoin"...
  • Page 222 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved equal or greater than 0312a. sensitivity low,normal,high,1 Sensitivity of day/night control. ~100 There are two value format: "low,normal,high": if capability_daynight_c<0~(n- 1)>_ircutsensitivity_type=options "1~100": if capability_daynight_c<0~(n- 1)>_ircutsensitivity_type=normalize * Only available when "capability_daynight_c<0~(n-1)> _ircutsensitivity_type" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0312a.
  • Page 223 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved "capability_daynight_illuminators_buil tin_support > 0" and "whiteled" is listed in "capability_daynight_ illuminators _builtin_type" * We support this parameter when the version number (httpversion) is equal or greater than 0312a. external_do_enabled <boolean> Enable/disable external led mounted on do1 * Only available when "capability_daynight_illuminators_ext...
  • Page 224 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Group: image_c<0~(n-1)> for n channel products and m profile n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile" NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5,100 -5: Darker <-> 5: Bright <Not 100: Use "...
  • Page 225 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "sharpnesspercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. brightnesspercent 0~100 Set brightness in the normalized range. 0: Darker <->...
  • Page 226 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) lowlightmode <boolean> Enable/disable low light mode. <product * Only available when dependent> "capability_image_c<0~(n- 1)>_lowlightmode" is 1 <boolean> Enable/disable hightlight mask. <product * Only available when dependent> "capability_image_c<0~(n-1)>_hlm" is dnr_mode <boolean>...
  • Page 227 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) <product * Only available when 'dis' is listed in dependent> "capability_image_c<0~(n- 1)>_is_mode". scene_mode visibility, Value of scene mode <product noiseless, * Only available when dependent> lpcparkinglot, "capability_image_c<0~(n- lpcstreet, 1)>_scenemode_support"...
  • Page 228 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) xoffset 0~100 Adjusting the image to proper position horizontally. * Only available when the bit 4 of capability_image_c<0~(n- 1)>_basicsetting is 1. yoffset 0~100 Adjusting the image to proper position vertically.
  • Page 229 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) recommended to use this> * Only available when bit 0 of "capability_image_c<0~(n- 1)>_basicsetting" is 1 * We replace "profile_i0_brightness" with "profile_i0_brightnesspercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a.
  • Page 230 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * We replace "profile_i0_saturation" with "profile_i0_saturationpercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. profile_i<0~(m- 0~100 Set brightness in the normalized 1)>_brightnessperc range.
  • Page 231 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "capability_image_c<0~(n- 1)>_gammacurve" is 1 profile_i<0~(m- <boolean> Enable/disable low light mode. 1)>_lowlightmode * Only available when <product "capability_image_c<0~(n- dependent> 1)>_lowlightmode" is 1 profile_i<0~(m- <boolean> Enable/disable hightlight mask. 1)>_hlm * Only available when <product "capability_image_c<0~(n-1)>_hlm"...
  • Page 232 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "capability_image_c<0~(n- 1)>_is_mode". profile_i<0~(m- 1~100 Strength of digital image stabilizer 1)>_dis_strength * Only available when 'dis' is listed in <product "capability_image_c<0~(n- dependent> 1)>_is_mode". 7.12 Exposure Window Setting per Channel Group: exposurewin_c<0~(n-1)>...
  • Page 233 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) listed in "capability_image_c<0~(n- 1)>_exposure_wintype". home <0~320,0~240> Left-top corner coordinate of the window. * Only available when qvga is listed in "capability_image_c<0~(n- 1)>_exposure_windomain". size <0~320x0~240> Width and height of the window. * Only available when qvga is listed in "capability_image_c<0~(n- 1)>_exposure_windomain".
  • Page 234 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) in "capability_image_c<0~(n- "auto": Use full view as the only one 1)>_exposure_winmode" exposure window. "custom": Use inclusive and exclusive window. "blc": Use BLC(Back Light Compensation), and the only exposure window is located at the center of view.
  • Page 235 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 1)>_exposure_windomain". homepx <0~W,0~H> Left-top corner coordinate of the window. W: 0~ The current image width - * Only available when px is listed in H: 0~ The current image height - "capability_image_c<0~(n- 1)>_exposure_windomain".
  • Page 236 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) is showed on product, this value is updated during booting to fit switch status. volume_internal 0~100 Volume when take internal microphone as input source. 0: Minimum 100: Maximum * Only available when the channel supports internal microphone (The related bit of...
  • Page 237 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * We replace "boostmic" with "volume_internal" and "volume_external". More details, please refer the parameter description of "volume_internal" and "volume_external". s0_codectype aac4, gamr, g711, Set audio codec type for input. g726 aac4: Advanced Audio Coding (AAC) (Available codec are...
  • Page 238 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) aec_enable <boolean> Enable acoustic echo cancellation. * Only available when "capability_audio_aecmode" is "manual". * We support this parameter when the version number (httpversion) is equal or greater than 0306b. alarm_enable <boolean>...
  • Page 239 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved n denotes the value of "capability_naudioout" NAME VALUE SECURITY DESCRIPTION (get/set) volume 0~100 Adjusting audio volume 7.15 Play an Audio Clip Group: audioclip_i<0~1> (capability_audio_audioclip=1) NAME VALUE SECURITY DESCRIPTION (get/set) name string[40] Specify the audio clip name that can be played when an event occurs.
  • Page 240 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) polygonstd 0 ~ 9999,0 ~ 9999, 0 Coordinate of polygon window ~ 9999,0 ~ 9999, 0 ~ position. 9999,0 ~ 9999, 0 ~ (4 points: x0,y0,x1,y1,x2,y2,x3,y3) 9999,0 ~ 9999 * Only available when "capability_motion_wintype"...
  • Page 241 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. 0 ~ 240 Top coordinate of window position.
  • Page 242 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * Not support "policy=day" anymore when the version number (httpversion) is equal or greater than 0301a. * "policy=night" is only available when "capability_daynight_c<0~(n- 1)>_support > 0". begintime hh:mm Begin time of schedule mode.
  • Page 243 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) image height -1 * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. polygon 0 ~ 320,0 ~ 240, 0 ~ Coordinate of polygon window position.
  • Page 244 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) <Not recommended * Only available when to use this> "capability_motion_wintype" = rectangle. * Only available when qvga is listed in "capability_motion_windomain". * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a.
  • Page 245 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) blurry_duration 1~10 If image too blurry value exceeds the "threshold" for more than "duration" second(s), then image too blurry detection is triggered. 7.18 DDNS Group: ddns (capability_protocol_ddns > 0) NAME VALUE SECURITY...
  • Page 246 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.21 UPnP Port Forwarding Group: upnpportforwarding NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.22 System Log Group: syslog...
  • Page 247 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) <boolean> SNMP v2 enabled. 0 for disable, 1 for enable <boolean> SNMP v3 enabled. 0 for disable, 1 for enable secnamerw string[31] Read/write security name secnamero string[31] Read only security name authpwrw string[8~128]...
  • Page 248 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) theme_option 1~3: One of the default themes. 4: Custom definition. theme_color_font string[7] Font color theme_color_configfont string[7] Font color of configuration area. theme_color_titlefont string[7] Font color of video title. theme_color_controlba string[7] Background color of control area.
  • Page 249 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.25 Privacy Mask Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window. n denotes the value of "capability_nvideoin" and m denotes the value of "capability_videoin_c<0~(n-1)>_nprivacymask" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean>...
  • Page 250 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "capability_image_c<n>_privacymask _wintype" = polygon. * Only available when qvga is listed in "capability_image_c<0~(n- 1)>_privacymask_windomain". win_i<0~(m- 0 ~ W,0 ~ H, Coordinate of polygon window 1)>_polygonpx 0 ~ W,0 ~ H, position.
  • Page 251 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 1)>_maxpan" "capability_camctrl_c<0~(n- 1)>_buildinpt" is "1" win_i<0~(m-1)>_tilt "capability_ptz_c<0~(n- Tilt position of window position. 1)>_mintilt" ~ * Only available when bit1 of "capability_ptz_c<0~(n- "capability_camctrl_c<0~(n- 1)>_maxtilt" 1)>_buildinpt" is "1" win_i<0~(m-1)>_zoom "capability_ptz_c<0~(n- Zoom position of window 1)>_minzoom"...
  • Page 252 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) distinguish between different platforms API version format: MMmmr_k Where "MM" is the major version, "mm" is the minor version and "r" is the revision. 'M' and 'm' and 'k' are decimal digit from 0 to 9, while 'r' is an alphabetic.
  • Page 253 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) <positive integer> Number of virtual inputs (manual <positive integer> trigger) Number of digital outputs. <positive integer> naudioin The number of audio input channel. 0 <positive integer> means no audio input support. naudioout The number of audio output channel <positive integer>...
  • Page 254 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) Bit 1 => (only available when bit0 is 1) Built-in or external video source; 0(external), 1(built-in) Bit 2 => (only available when bit0 is 1) Support pan operation; 0(not support), 1(support) Bit 3 =>...
  • Page 255 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) use this. * This is reserved for compatibility and will not be used after the version number (httpversion) is equal or greater than 0400a. * We replace "capability_remotefocus"...
  • Page 256 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) is reserved for full view of the channel. For some dual-stream products, both streams support ePTZ. nanystream 0, <positive integer> number of any media stream per channel <boolean>...
  • Page 257 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "visignal" = Video input signal loss. "backup" = Backing up recorded files. "smartsd" = Lifetime detection of SD card. "shockalarm" = Shock detection. "virestore" = Video input signal restore.
  • Page 258 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) protocol_rtp_http <boolean> Indicate whether to support RTP over HTTP. protocol_spush_mj <boolean> Indicate whether to support server push MJPEG. protocol_snmp <boolean> Indicate whether to support SNMP. protocol_ipv6 <boolean> Indicate whether to support IPv6.
  • Page 259 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) videoin_mjpeg_ma A list of <Integer> and This equals xframerate "-" "capability_videoin_c0_mjpeg_maxfra merate". * This is kept for compatibility. videoin_h264_max A list of <Integer> and This equals framerate "-"...
  • Page 260 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it.
  • Page 261 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) audio_intmic <0~Positive Integer> Internal (Built-in) Microphone. 0: Not support 1: Support Bit 0 for CH0, bit 1 for CH1, and so on. audio_extmic <0~Positive Integer> External Microphone. 0: Not support 1: Support Bit 0 for CH0, bit 1 for CH1, and so on.
  • Page 262 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) motion_wintype rectangle, polygon,- The supported motion window type. "polygon": The window is a 2D polygon shape. "rectangle": The window is a 2D rectangle shape. "-": Not supported. motion_windomai qvga, px, std, - The domain to set an motion window.
  • Page 263 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * Only available when "capability_smartstream_support" is 1 smartstream_nwin <positive integer> Maximum number of tracking window dow_manual of manual. * Only available when "capability_smartstream_support" is 1 smartstream_nwin <positive integer> Maximum number of tracking window dow_hybrid_autotr of autotracking in hybrid mode.
  • Page 264 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "capability_camctrl_c0_ptztunnel". * This is kept for compatibility. * Only available when capability_ptzenabled > 0 camctrl_privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the security page.
  • Page 265 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) wireless_encrypt_ <boolean> Indicate whether to support wireless WPA. wireless_encrypt_ <boolean> Indicate whether to support wireless wpa2 WPA2. wireless_apmode_ <boolean> Indicate whether wireless AP mode is enable supported. * Only available when "capability_network_wireless"...
  • Page 266 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) media_videoclip_ <positive integer> Maximum size (KB) of a videoclip. maxsize media_videoclip_ <positive integer> Maximum length (second) of a maxlength videoclip. media_videoclip_ <positive integer> Maximum duration (second) after maxpreevent event occurred in a videoclip.
  • Page 267 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) One bit represents one channel. Ex: “3” means channel 0 and channel1 support seamless recording . * Only available when "capability_supportsd" is 1 or "capability_storage_dbenabled" is 1. localstorage_modn The maximum MOD connection <positive integer>...
  • Page 268 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) card's remaining lifetime information. 0: Non-support this feature 1: Support this feature * Only Sony, Micron SD card can support this function now. * Only available when "capability_supportsd"...
  • Page 269 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) taics_support <boolean> Support the feature for Video Surveillance System Security from TAICS. * We support this parameter when the version number (httpversion) is equal or greater than 0314b. taics_level 0, <positive integer>...
  • Page 270 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the security page in this video input. 1: support both /cgi- bin/camctrl/camctrl.cgi and /cgi- bin/viewer/camctrl.cgi 0: support only /cgi- bin/viewer/camctrl.cgi rs485...
  • Page 271 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) focusmode auto,onetimeauto,sp Focus mode selection: "auto": Camera will automatically otlight,manual <product adjust the focus position full time to dependent> adapt a clear picture. "onetimeauto": Camera will automatically adjust the focus position one time, which follows any PTZ control.
  • Page 272 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) minpan 0, <positive integer> 0/7 The lower limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n- 1)>_buildinpt" is "1" maxpan 0, <positive integer> 0/7 The upper limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n- 1)>_buildinpt"...
  • Page 273 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) minzoom 0, <positive integer> 0/7 The lower limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n- 1)>_zoommodule" is "1" maxzoom 0, <positive integer> 0/7 The upper limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n- 1)>_zoommodule"...
  • Page 274 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) builtinwled <boolean> Indicate whether to support built-in white led. * We replaced this parameter with “capability_daynight_illuminators_builti n_type=whiteled” when the version number (httpversion) is equal or greater than 0312a. externalir <boolean>...
  • Page 275 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) ircutsensitivity_type <string> Indicate the cgi interface of "ircutcontrol_sensitivity". "options": the value of "ircutcontrol_sensitivity" parameter is "low, normal,high". "normalize": the value of "ircutcontrol_sensitivity" parameter is "1~100" "-":not support * Only available when "capability_daynight_c<0~(n- 1)>_support"...
  • Page 276 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) spectrum_support <boolean> Indicate whether to support proposed a brightness enhancement method based on CCM(Color Correction Matrix) model to improve the brightness effect of the images if the IR and blue light exists. * Only available when "capability_daynight_c<0~(n- 1)>_support"...
  • Page 277 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) mode auto,daynight,di,di2, Indicate the day / night switch mode. di3,di4,schedule,- "auto": The Camera automatically <product judges the current operation mode by dependent> the level of ambient light detected. "daynight": support day mode and night mode.
  • Page 278 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved builtin_type irled,whiteled,- Indicate whether to support built-in led <product type. "irled": IR led dependent> "whiteled": white led "-": not support * We support this parameter when the version number (httpversion) is equal or greater than 0312a.
  • Page 279 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved spectrum_mode visible,ir,irenhanced, Indicate the spectrum mode. blueenhanced "visible": The ideal default setting for <product visible light. dependent> "ir": The ideal default setting for IR light. "irenhanced": This CCM model increases the brightness effect of IR light. "blueenhanced": This CCM model increases the brightness effect of blue light.
  • Page 280 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) lens_type fisheye, fixed, The lens type of this channel. varifocal, "fisheye": Fisheye lens changeable, "fixed": Build-in fixed-focus lens. "varifocal": Build-in varifocal lens. motor, ics,- <product "changeable": changeable lens.
  • Page 281 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) rotationaffect When rotation is enabled, some features <product may become malfunction or be forced to a dependent> given value. The affected functions are list here. The format is "Affect API name":"Policy":"Description"...
  • Page 282 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) orientation flip,mirror,rotatio Indicates the camera supports flip, mirror or rotation. <product * We support this parameter when the dependent> version number (httpversion) is equal or greater than 0309b. streamcodec <positive integer>...
  • Page 283 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) maxframerate A list of <Integer> 0/7 Indicate frame rate that the video source outputs in current video mode. One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
  • Page 284 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) h264_maxframerate A list of <Positive Maximum fps that the device can encoded Integer> and "-" with H.264 on resolutions in current video mode. "-" means not support. * One to one mapping to the resolution in "resolution".
  • Page 285 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) h265_profile main,main10 Indicate H265 profiles <product * Only available when 'h265' is listed in dependent> "capability_videoin_codec". * We support this parameter when the version number (httpversion) is equal or greater than 0309a.
  • Page 286 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) cmosfreq_support <boolean> 0: The power line frequency(50/60Hz) is detected by camera automatically. 1: The power line frequency(50/60Hz) can be set by user. * We support this parameter when the version number (httpversion) is equal or greater than 0308a.
  • Page 287 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) panorama_pancontrol <Boolean> Indicate whether to support localdewarp panorama pan control. * We support this parameter when the version number (httpversion) is equal or greater than 0312b. 7.27.8 Capability for Video Mode Group: capability_videoin_c<0~(n-1)>_mode<0~(m-1)>...
  • Page 288 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) eptz 0, <positive integer> 0/7 Indicate this mode whether support eptz. For "nvideoin" = 1, the definition is as following: A 32-bits integer, each bit can be set separately as follows: Bit 0 =>...
  • Page 289 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) outputsize <WxH> The output size of source, equal to the captured size by device, in this video mode. The unit is pixel. This value is used as a basic coordinate system for many features, like ePTZ, privacy mask, motion, etc.
  • Page 290 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) maxframerate A list of <Positive Indicates frame rate that the video Integer> source outputs in this video mode. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
  • Page 291 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) maxfps_h265 A list of <Positive Maximum fps which the device can Integer> and "-" encoded with H.265 on resolutions in this video mode. "-" means not support. * One to one mapping to the resolution in "resolution".
  • Page 292 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 1)>_wdrpro"=1, this may be either 0 or 1. wdrpro_supportlevel 0, <positive This contains a list of positive integers, integer> split by comma. If "wdrpro_mode" =1, then the value indicate the support strength level of WDR Pro.
  • Page 293 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) For example: "exposurelevel:fixed:6/8/12" which means exposurelevel is fixed to level 6, level 8 and level 12. "-" means no feature is affected. * When "wdrpro"=0, this value must be "-"...
  • Page 294 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) integer or string or NULL. For example: "exposurelevel:fixed:6/8/12" which means exposurelevel is fixed to level 6, level 8 and level 12. "-" means no feature is affected. * When "wdrc"=0, this value must be "-"...
  • Page 295 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) equal or greater than 0302a. is_supportlevel 0, <positive Indicate the support strength level of integer> image stabilizer mode. * Only available when "capability_image_c<0~(n- 1)>_is_mode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 296 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) the version number (httpversion) is equal or greater than 0302a. scenemode_support 0: Non-support scene mode 1: Support scene mode scenemode_supportty visibility, list all the scene mode which are noiseless, supported in the camera.
  • Page 297 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected. * Only available when "signallight" is listed in "capability_image_c<0~(n- 1)>_scenemode_supporttype"...
  • Page 298 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) integer or string or NULL. "-" means no feature is affected. * Only available when "railtrack" is listed in "capability_image_c<0~(n- 1)>_scenemode_supporttype" and "capability_image_c<0~(n- 1)>_scenemode_support" is 1. wbmode auto, Available white balance mode.
  • Page 299 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "twovalues": Need two parameters to indicate the exposure range. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
  • Page 300 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "shutterpriority" is listed in "capability_image_c<0~(n-1)>_ exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_automode_ When exposure auto mode is affect...
  • Page 301 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_shutterprior When exposure shutter priority mode itymode_affect exposurewin.mode is enabled, some features may .blc:hidden:, become malfunction or be forced to a...
  • Page 302 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) exposure_irispriority When exposure iris priority mode is mode_affect exposurewin.mode enabled, some features may become .blc:hidden:, malfunction or be forced to a given defog:disabled:, value. The affected functions are list wdrpro:disabled:, here.
  • Page 303 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) wdrpro:disabled:, are list here. exposurelevel:hidd The format is "Affect API en:, name":"Policy":"Description" defaultgain:fixed:x "Policy" can be categorized into or others following groups: <x>: nonnegative - (disabled) : UI turns grey and users integer can't select it.
  • Page 304 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) upport: following groups: or others - (disabled) : UI turns grey and users <x>: nonnegative can't select it. integer - (unchanged) : UI keeps the status as <product before and dependent>...
  • Page 305 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) value must be set to "-". <product * Only available when dependent> "capability_image_c<0~(n-1)>_ exposure_mode" is 1. exposure_meteringm auto, Available options for "videoin_c<0~(n- blc, 1)>_meteringmode" * Only available when <product "capability_image_c<0~(n-1)>_ dependent>...
  • Page 306 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and hlc is listed in "capability_image_c<0~(n-1)>_ exposure_winmode".
  • Page 307 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0301a. exposure_pal_totalra A list of <Positive Available total range for PAL analog Integer>...
  • Page 308 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0310a. exposure_bracketing_ A list of ratio The input parameter decides how range For example:...
  • Page 309 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) flickerlessaffect When flickerless is enabled, some minexposure.lower features may become malfunction or bound:fixed:x be forced to a given value. The or others affected functions are list here. <x>: nonnegative The format is "Affect API integer...
  • Page 310 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) wdrc:unchanged: may become malfunction or be forced contrast:hidden: to a given value. The affected or others functions are list here. <x>: nonnegative The format is "Affect API integer name":"Policy":"Description"...
  • Page 311 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) "capability_image_c<0~(n- 1)>_aespeed" is 1. gammacurve 0: Non-support tuning Gamma curve 1: Support tuning Gamma curve lowlightmode -,0,1 Internal parameter, must not open to user. 0: Non-support low light mode 1: Support low light mode focusassist 0: Non-support focus assist...
  • Page 312 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) autotrack_support <boolean> 0: Non-support auto tracking feature 1: Support auto tracking feature * We support this parameter when the version number (httpversion) is equal or greater than 0302a. smartsensor_iristotalr A list of iris value Available total step for iris value.
  • Page 313 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) The color tones correspond to the apparent surface temperatures of the target. * We support this parameter when the version number (httpversion) is equal or greater than 0310a. palette_mode A list of palette Palette options used in thermal...
  • Page 314 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) devicemonitor_tempnu <integer> Number of temperature sensors that can be monitored. * Only available when "capability_peripheral_c<0~(n- 1)>_devicemonitor_support" > 0 devicemonitor_heatern <integer> Number of sensor sensors that can be monitored.
  • Page 315 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: "0"= low priority "1"= normal priority "2"= high priority delay...
  • Page 316 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) mdwin 0,<positive Indicate the source window id of motion integer> detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window.
  • Page 317 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) begintime hh:mm Begin time of the weekly schedule. endtime hh:mm End time of the weekly schedule. (00:00 ~ 24:00 sets schedule as always lowlightcondition 0, 1 Switch on white light LED in low light <product dependent>...
  • Page 318 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) foldername string[128] Path to store media. * We support this parameter when the version number (httpversion) is equal or greater than 0312a. action_cf_media NULL, 0~4,101 Index of the attached media. 101 means “Recording Notify”...
  • Page 319 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) action_autotrack_name string[40] Indicate the source name of smart <product dependent> tracking advanced when an event is triggered. * Only avaliable when the bit4 of capability_ptzenabled is 1 and the bit7 of capability_ptzenabled is 0, and the camera supports “Smart Tracking Advanced”...
  • Page 320 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) tampering 0,<positive Indicate the source channel id of integer> tampering detection. A 4-bit integer, each bit represents each channel. bit 0 => tampering detection for first channel. bit 1 =>...
  • Page 321 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) ftp_passwd string[64] Password of the user. ftp_port 0~65535 Port to connect to the server. ftp_location string[128] Location to upload or store the media. ftp_passive <boolean> Enable or disable passive mode. 0 = disable passive mode 1 = enable passive mode email_address...
  • Page 322 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved loginmode passwd, authentication method: publickey ”passwd” = password authentication. You have to setup sftp_passwd for this login mode to work. ”publickey” = Public key authentication is more secure than password authentication. Please see sftpclient.cgi for more detail settings.
  • Page 323 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) Type snapshot, Media type to send to the server systemlog, or store on the server. videoclip, recordmsg snapshot_channel 0~"capability_nvideoin"-1 Indicate the source of media channel. 0 means the first channel. 1 means the second channel.
  • Page 324 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) videoclip_channel 0~"capability_nvideoin"-1 Indicate the source of media channel. 0 means the first channel. 1 means the second channel. 2 means the third channel. 3 means the fourth channel. * We support this parameter when the version number (httpversion) is equal or greater...
  • Page 325 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) trigger schedule, The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection. enable <boolean> Enable or disable this recording.
  • Page 326 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4.
  • Page 327 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) maxduration 60~3600 Unit: Second When this condition is reached, recording file is truncated. adaptive_enable <boolean> Indicate whether the adaptive recording is enabled adaptive_preevent 0~9 Indicate when is the adaptive recording started before the event trigger point (seconds) adaptive_postevent 0~10...
  • Page 328 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) organizationname string[64] Organization name in the certificate VIVOTEK Inc. information. unit string[64] Organizational unit name in VIVOTEK Inc. thecertificate information. commonname string[64] Common name in the certificate www.vivotek.com information.
  • Page 329 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) autocleanup_enabled <boolean> Enable automatic clean up method. <Not recommended to Expired and not locked media files will be use this> deleted. * For forward compatibility reservations, but only group disk_i0_autocleanup is effective.
  • Page 330 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.34 Region of Interest Group: roi_c<0~(n-1)> for n channel product and m is the index of video stream which support ePTZ. (capability_eptz > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home <W,H> ROI left-top corner coordinate. <product * If the minimal window size is 64x64, dependent>...
  • Page 331 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) tiltspeed -5 ~ 5 Tilt speed (It should be set by eCamCtrl.cgi rather than by setparam.cgi.) panspeed -5 ~ 5 Pan speed (It should be set by eCamCtrl.cgi rather than by setparam.cgi.) zoomspeed -5 ~ 5...
  • Page 332 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) preset_i<0~19>_size <WxH> Width and height of the preset. <product (It should be set by ePreset.cgi rather dependent> than by setparam.cgi.) 7.36 Focus Window Setting Group: focuswindow_c<0~(n-1)> for n channel products n denotes the value of "capability_nvideoin".
  • Page 333 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) diskmode seamless, “seamless” indicates enable seamless manageable recording. “manageable” indicates disable seamless recording. * We replace this parameter with “seamlessrecording_c<0~(n-1)>_diskmode” when the version number (httpversion) is equal or greater than 0312a. * We do not support this parameter when "capability_nvideoin >...
  • Page 334 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) guid<0~2>_id string[127] The connected seamless streaming ID. (Read only) * We replace this parameter with “seamlessrecording_c<0~(n- 1)>_guid<0~2>_id” when the version number (httpversion) is equal or greater than 0312a. * We do not support this parameter when "capability_nvideoin >...
  • Page 335 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved triggerrecord <boolean> Indicate whether seamless recording is recording to local storage or not at present. (Read only) * We support this parameter when the version number (httpversion) is equal or greater than 0312a. guid<0~(k-1)>_id string[127] The connected seamless streaming ID.
  • Page 336 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) upload it. If the value is false, save module to the internal storage space and it will occupy storage size. * This feature is not supported when "capability_securecam_support=1"...
  • Page 337 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) If yes, also add the index of this module to the module_order. name string[40] Module name extendedname string[40] Extended module name. If this value is not blank, it will be shown on the VADP UI first instead of vadp_module_i<n>_name.
  • Page 338 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.38.4. VADP Event Settings Group: vadp_event NAME VALUE SECURITY DESCRIPTION (get/set) ntrigger 0,<positive Indicate the number of topics to be integer> transferred to event manager for trigger. triggerlist_i<0~(n- string[256] Indicate the event notification with this 1)>_topic topic will be transferred to event manager as trigger.
  • Page 339 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) capability_camctrl_c0_rs485=2 cameraid 0~255 Camera ID controlling external PTZ camera. isptz 0 ~ 2 0: disable PTZ commands. 1: enable PTZ commands with PTZ driver. 2: enable PTZ commands with UART tunnel.
  • Page 340 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) values are listed in "capability_cam ctrl_c<0~(n- 1)>_focusmode " uart Select corresponding uart "capability_nua (capability_nuart>0). rt"-1 * only available when capability_camctrl_c0_rs485=2 isptz 0 ~ 2 0: disable PTZ commands. 1: enable PTZ commands with PTZ driver.
  • Page 341 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) separated by “,” * only available when capability_camctrl_c0_rs485=2 disablemdonptz <boolean> Disable motion detection on PTZ operation. defaulthome <boolean> This field tells system to use default home position or not. axisz capability_ptz_ Custom home zoom position.
  • Page 342 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) PTZ camera. Note: Please set your speed dome to the appropriate baud rate, and Camera ID, e.g. 2400bps, camera ID 1,2,3,,,,etc. All Camera IDs on the same controlling system (NVR or rs485 keyboard) have to be distinct.
  • Page 343 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 1)>_name.” * We support this parameter when the version number (httpversion) is equal or greater than 0305b. preset_i<0~(k-1)>_fliped <boolean> Flip side at each preset location. patrol_i<0~39>_name string[40] (For internal device) The name of patrol location patrol_i<0~39>_...
  • Page 344 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) enhancement tour_index -1, 0~19 Index of the enabled tour group, from 0 to 19. Set -1 to disable all the tour groups. tour_i<0~19>_name string[40] Name of the tour. tour_i<0~19>_type <boolean>...
  • Page 345 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.42 UART Control Group: uart (capability_nuart > 0 and capability_fisheye = 0) NAME VALUE SECURITY DESCRIPTION (get/set) ptzdrivers_i<0~19, string[40] Name of the PTZ driver. 127>_name ptzdrivers_i<0~19, string[128] Full path of the PTZ driver. 127>_location enablehttptunnel <boolean>...
  • Page 346 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) 128 (no driver) * only available when capability_camctrl_c0_rs485=2 7.43 UART Control (SD Series) Group: uart_i<0~(n-1)> n is uart port count (capability_nuart > 0 and the bit7 of capability_ptzenabled is 0, the bit4 of capability_ptzenabled is 1) NAME VALUE...
  • Page 347 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Group: uart_i<0~(n-1)> n is uart port count (capability_nuart > 0 and capability_ibis = 1) NAME VALUE SECURITY DESCRIPTION (get/set) baudrate 1200,2400,4800,960 Set baud rate of COM port. 0,19200,38400 databit 5,6,7,8 Data bits in a character frame. paritybit none, For error checking.
  • Page 348 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Group: lens_default_i<0~(n-1)> n denotes the value of "lens_default_totalnumbers" NAME VALUE SECURITY DESCRIPTION (get/set) name <string> Default lens name Group: lens_user_i<0~(n-1)> n denotes the value of "lens_user_totalnumbers" NAME VALUE SECURITY DESCRIPTION (get/set) name <string>...
  • Page 349 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved NAME VALUE SECURITY DESCRIPTION (get/set) Tilt range of wall mount is [-90~90]. s<0~(m- 100~300 Zoom home ratio of regional view (for 2)>_region_zoom 1R mode) s<0~(m- -90~359 Pan home angle of regional view (for 2)>_region_r<0~(i- 4R mode, i is the view index and range 1)>_pan...
  • Page 350 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) sensitivity Tracking sensitivity. 0: Low 1: Medium 2: High 7.50 Wireless Group: wireless (capability_network_wireless > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) ssid string[32] SSID for wireless lan settings. wlmode Infra, Wireless mode.
  • Page 351 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) key2 password [26] WEP key2 for encryption. * Only valid when "wireless_encrypt" is "wep" key3 password [26] WEP key3 for encryption. * Only valid when "wireless_encrypt" is "wep"...
  • Page 352 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) occupied <boolean> Indicates the action of creating profile. Ex. If occupied=1 indicates the current profile is to be created; otherwise, if occupied=0 indicates the current profile is to be deleted. alwaysmulticast <boolean>...
  • Page 353 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 7.53 Multicast Settings for Metadata Streaming Group: metadata_c<0~(n-1)>_s0_multicast (capability_media_streamprofiles_support = 1) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY( DESCRIPTION get/set) ipaddress <ip address> Multicast metadata IP address. port 1025 ~ 65535 Multicast metadata port.
  • Page 354 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) gotopreset_enable <Boolean> Enable the PTZ preset function of the receiving camera. gotopreset_type mechanical, digital 6/6 PTZ type of the receiving camera. gotopreset_index 0, <positive PTZ preset index of the receiving camera. integer>...
  • Page 355 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE SECURITY DESCRIPTION (get/set) focusshift_day_lastdate <blank>, A recorded UTC time when IR offset value <YYYY/MM/DD is saved during day mode. HH:MM:SS> <blank>: IR offset value hasn't been saved before. focusshift_night_position <blank>, A customized IR offset value in lens <positive integer>...
  • Page 356 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8. Useful Functions 8.1 Drive the Digital Output (capability_ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do0=<value> [&do1=<value>] [&do2=<value>][&do3=<value>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state, and trigger time is indicated in seconds.
  • Page 357 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n [di1=<state>]\r\n [di2=<state>]\r\n [di3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital input #1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di0 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di0=1\r\n...
  • Page 358 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n do0=1\r\n 8.4 Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the request contains invalid parameters, a full FOV snapshot will return. PARAMETER VALUE DESCRIPTION channel...
  • Page 359 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved [Content-Length: <image size>\r\n] <binary JPEG image data> 8.5 Account Management Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the“username”...
  • Page 360 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Response of success: HTTP/1.1 200 OK\r\n Content-Type: text/html\r\n Content-Length: 2\r\n \r\n Response of failure: HTTP/1.1 200 OK\r\n Content-Type: text/html\r\n Content-Length: <Error Message Length>\r\n \r\n <Error Message> List of error message: ERROR: Add user fail! ERROR: Delete user fail! ERROR: Update user's password fail! ERROR: Update user's privilege fail!
  • Page 361 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.7 ePTZ Camera Control (capability_eptz > 0 and Capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] –Zoom in, out [&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick [&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific...
  • Page 362 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=tele&zs=1 http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5 zooming is used to indicate the moving direction, and zs is used to indicate the speed. To stop a continuous movement, you have to use the command as below: http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0 2.
  • Page 363 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION <integer> resolution <window size> The resolution of streaming. <integer> The direction of movement, used for joystick control. <integer> 0 ~ 7 Set the speed of movement, “0” means stop. <integer>...
  • Page 364 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.8 ePTZ Recall (capability_eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)>...
  • Page 365 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> should be the relative path according to the root of camera.
  • Page 366 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/operator/uartchannel.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache cache-control : no-cache content-length: 32767 expires: Sun, 9 Jam 1972 00:00:00 GMT User must use GET and POST to establish two channels for downstream and upstream. The x- sessioncookie in GET and POST should be the same to be recognized as a pair for one session.
  • Page 367 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache cache-control : no-cache content-length: 32767 expires: Sun, 9 Jam 1972 00:00:00 GMT User must use GET and POST to establish two channels for downstream and upstream. The x- sessioncookie in GET and POST should be the same to be recognized as a pair for one session.
  • Page 368 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.14 Open the Network Stream Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<0~m-1>_accessname> For RTSP (MP4), the user needs to input theURL below into an RTSP compatible player. rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>...
  • Page 369 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Content-Length: <system information length>\r\n \r\n <hex decimal data>\r\n Where hexadecimal data is digits from 0 ~ 9, A ~ F. 8.16 Storage Managements (capability_storage_dbenabled > 0) Method: GET and POST Note: This request requires administrator privileges.
  • Page 370 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION resolution <text> Optional. Indicate the media file resolution. Please embrace your input value with single quotes. Ex. resolution=’800x600’ isLocked <boolean> Optional. Indicate if the file is locked or not. 0: file is not locked.
  • Page 371 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript There are two cgi commands for download and composing jpegs to avi format. For download single selected file, you can use “/cgi-bin/admin/downloadMedias.cgi”. Just assign the request file path to this cgi. Syntax: http://<servername>/cgi-bin/admin/downloadMedias.cgi?<File_Path>...
  • Page 372 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION resolution <width>x<height> Resolution <positive integer> Frame rate list <fileList> The JPEG file list. The file path should be embraced by single quotation marks <servername> http:// /cgi-bin/admin/ jpegtoavi.cgi ?resolution=800x600&fps=1&list=’/mnt/auto/CF/NCMF/video1650.jpg’, ’/mnt/auto/C F/NCMF/video1651.jpg’, ’/mnt/auto/CF/NCMF/video1652.jpg’, 8.17 Virtual Input (capability_nvi >...
  • Page 373 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved No multiple duration. setvi.cgi?vi3=0 VI index is out of range. setvi.cgi?vi=1 No VI index is specified. The resource is unavailable, ex. Virtual input is waiting for next state. Examples: setvi.cgi?vi0=0(15000)1 setvi.cgi?vi0=1 Request 2 will not be accepted during the execution time(15 seconds). 8.18 Open Timeshift Stream (capability_timeshift >...
  • Page 374 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DEFAULT DESCRIPTION (normal, adaptive), unknown parameters are always ignored. reftime mm:ss The time Reference time for maxsft and minsft. camera (This provides more precise time control to eliminate receives the the inaccuracy due to network latency.) request.
  • Page 375 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION function zoom, zoom - Move focus motor focus, focus – Move focus motor auto – Perform auto focus auto, scan, scan – Perform focus scan stop, stop – Stop current operation positioning, positioning –...
  • Page 376 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved function getstatus Information of motors, return value as below: remote_focus_zoom_motor_max: Maximum steps of zoom motor remote_focus_focus_motor_max: Maximum steps of focus motor remote_focus_zoom_motor_start: Start point of zoom motor remote_focus_zoom_motor_end: End point of zoom motor remote_focus_focus_motor_start: Start point of effective focal length remote_focus_focus_motor_end: End point of effective focal...
  • Page 377 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION function focus, focus – Move focus motor auto, auto – Perform auto focus scan – Perform focus scan scan, stop, stop – Stop current operation positioning, positioning – Position the motors irisopen, resetfocus –...
  • Page 378 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved function getstatus Information of motors, return value as below: remote_focus_focus_motor_max: Maximum steps of focus motor remote_focus_focus_motor_start: Start point of effective focal length remote_focus_focus_motor_end: End point of effective focal length remote_focus_focus_motor: Current position of focus motor remote_focus_focus_enable: Current function of focus motor...
  • Page 379 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://<servername>/cgi-bin/admin/export_backup.cgi?backup 8.22 Upload Files Note: This request requires Administrator privileges. Method: POST Syntax: For daylight saving time configuration file: * This CGI is not supported when the version number (httpversion) is equal or greater than 0314b, please use “system_tz”...
  • Page 380 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Note: This request requires Administrator privileges. Method: GET Syntax: For list a name of lens currently used: http://<servername>/cgi-bin/admin/update_lens.cgi?get_currentlens For list all names of lens installed in camera: http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens For choose selected lens configuration: http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value>...
  • Page 381 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.24 Media on Demand (capability_localstorage.modnum > 0) Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand. Note: This request requires Viewer access privileges. Syntax: rtsp://<servername>/mod.sdp?[&stime=<value>][&etime=<value>][&length =<value>][&loctime =<value>][&file=<value>][&tsmode=<value>] PARAMETER VALUE DEFAULT DESCRIPTION...
  • Page 382 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.25 3D Privacy Mask (Capability_image_c<0~(n- 1)>_privacymask_wintype = 3Drectangle) n denotes the value of "capability_nvideoin" Note: This request requires admin user privilege Method: GET/POST Syntax: http://<servername>/cgi- bin/admin/setpm3d.cgi?method=<value>&maskname=<value>&[maskheight=<value>&maskwidth= <value>&videosize=<value>&return=<return page>] PARAMETER VALUE DESCRIPTION method Add a 3D privacy mask at current location delete Delete a 3D privacy mask...
  • Page 383 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.26 Camera Control (capability_camctrl_c<0~(n- 1)>_zoommodule = 1) Note: This request requires Viewer privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&zoom=<value>] –...
  • Page 384 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION right Move camera right. speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed.
  • Page 385 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION fixcurrent Applies the current focus position to this preset. * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20. getsetpreset Adds a named preset at current position, and return the preset index.
  • Page 386 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION getminspeedlv 0, <positive integer> Get the minimum speed level of the PTZ control. Normally, the speed level is ‘0,’ which denotes halting a continuous movement. getmaxptspeedlv 0, <positive integer> Get the maximum speed level of pan/tilt moving. *Only available when "capability_camctrl_c<0~(n- 1)>_buildinpt"...
  • Page 387 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.27 Recall (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Viewer privileges. Method: GET Syntax: http://<servername>/cgi-bin/viewer/recall.cgi? recall=<value>[&channel=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION recall string[30] One of the present positions to recall. channel 0~" Channel of the video source. capability_nvideoin"- User's Manual - 387...
  • Page 388 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.28 Preset Locations (capability_camctrl_c<0~(n- 1)>_zoommodule = 1) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos string[30] Add one preset location to the preset list. channel 0~"capability_nvideoin"- Channel of the video source.
  • Page 389 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION function getstatus Function type getstauts : Information of smartSD internal status return value as below: smartsd_lifetime_num: Accumulated amount of data that has been written smartsd_lifetime_den: Card-guaranteed amount of data that can be written smartsd_lifetime_rate: The ratio of smartsd_lifetime_num to smartsd_lifetime_den.
  • Page 390 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.31 Get Wireless Information (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/getwirelessinfo.cgi PARAMETER VALUE DESCRIPTION Get wireless information. Camera will return following information. 1. Wireless channel 2. Link quality 3.
  • Page 391 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION Get wireless signal strength. 8.33 WPS Transaction (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/start_wps.cgi PARAMETER VALUE DESCRIPTION Start WPS transaction. 8.34 Peripheral Control (capability_peripheral_c<0~(n-1)>_ devicecontrol >...
  • Page 392 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source. washer_mode wiper Apply the wiper to the mode of washer control system. washer Apply the washer to the mode of washer control system. washer_status Enable the functionality of washer control system.
  • Page 393 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION It return the value of "washer_mode" washer_status Get the current status of washer control module. The status is 'off' as default, which means the washer is stopped; and the status 'on' means the washer is running.
  • Page 394 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved 8.35 Device monitor (capability_peripheral_c<0~(n-1)>_ devicemonitor_support > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/devicemonitor.cgi PARAMETER VALUE DESCRIPTION Return a status overview of all sensors and peripheral devices on camera. Response: devicemonitor_tempsensor_iX_name: the name of temperature sensor...
  • Page 395 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://myserver/cgi-bin/admin/devicemonitor.cgi Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n devicemonitor_tempsensor_i0_name=front glass devicemonitor_tempsensor_i0_celsius=30 devicemonitor_tempsensor_i0_fahrenheit=86 devicemonitor_heater_i0_name=front glass devicemonitor_heater_i0_status=off 8.36 Optimized IR control (capability_daynight_c<0~(n- 1)>_optimizedir > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/optimizedir.cgi?function=<value>[&channel=<value>] PARAMETER VALUE...
  • Page 396 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION function getstatus, "onetimeauto": Camera will automatically adjust the IR onetimeauto zone one time only. "getstatus": Information of optimized IR control status and return value as below: optimizedir_c<0~(n-1)>_irmode: Indicate the IR current mode, available value is “auto” and “manual”...
  • Page 397 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved PARAMETER VALUE DESCRIPTION "set": set the strength of each IR LED separately operation set, settoall "settoall": use fixed strength for all IR LED irmode auto, Irmode needs to be set as manual for adjusting IR manual LED strength.
  • Page 398 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://myserver/cgi- bin/admin/optimizedir.cgi?channel=0&operation=set&irmode=auto&strength=50,70,50,50,50 Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n ERROR: Parameter "irmode" must be set as "manual"! Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&strength=50,70,50,50,50 Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n ERROR: Must have the "irmode=manual" argument! Syntax: (for query API) http://<servername>/cgi-bin/admin/optimizedir.cgi?channel=<value>&operation=get...
  • Page 399 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=get&irmode Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irmode='auto'" 8.37 Lens Thermal Control (capabiltiy_image_c<0~(n- 1)>_sensortype=thermalsensor) Note: This request requires Administrator privileges. Method: GET/POST (for control API) Syntax: http://<servername>/cgi-bin/admin/thermalctrl.cgi?operation=set &action=<value> Example: http://myserver/cgi-bin/admin/thermalctrl.cgi?operation=set&action=shuttercompensate Response: HTTP/1.0 200 OK\r\n...
  • Page 400 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n ERROR: fail PARAMETER VALUE DESCRIPTION action shuttercompensate Camera will do shutter compensate. Syntax: (for query API) http://<servername>/cgi-bin/admin/thermalctrl.cgi?operation=get&version=<value> PARAMETER VALUE DESCRIPTION version Indicate lensctrl thermal version Example: http://myserver/cgi-bin/admin/thermalctrl.cgi?operation=get&version Response:...
  • Page 401 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved "download" = Download a clip to the client. * Recording time is limited to 60 seconds. name <string> Name of the audio clip. The audio clip the action applies to. We support two interfaces (name or index) to specify the media clip to be played.
  • Page 402 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved at the start of the format index which one SD card Example: Request of format SD card: http://myserver/cgi-bin/admin/format_sdcard.cgi?operation=set&fstype=ext4 Response of success: HTTP/1.1 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 2\r\n \r\n Response of formatting fail: HTTP/1.1 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <Error Message Length>\r\n...
  • Page 403 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved ERROR: You cannot format an SD card repeatedly ERROR: Format SD failed, but removed all contents success ERROR: Format SD failed, and failed to remove all contents ERROR: Please insert SD card ERROR: Please use ext file system ERROR: File system type is not supported ERROR: The device does not exist or is busy...
  • Page 404 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved SDP for always multicast 8.39.2 Get (capability_media_streamprofiles_support = 1) Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>:<port>/media2/<streamprofile_i<0~(n- 1)>_profilename>.sdp?[<parameter>=<value>] “n” is the maximum stream profile number (capability_media_streamprofiles_num) ⚫ “streamprofile_i<x>_profilename” is a friendly name for certain profile, x is within ⚫...
  • Page 405 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Syntax: (for control API) http://<servername>/cgi-bin/admin/sftpclient.cgi?operation=<value>[&parameter=<value>] PARAMETER VALUE DESCRIPTION operation automode, manualmode "automode": Key pair will be generated, and automatically copy public key to server. "manualmode": Key should be downloaded or uploaded by user. * This field is required.
  • Page 406 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved key=upload. location string[128] sftp server file location name string[40] Username for server_i<index>_name * The default value is sftp<index>. keytype ed25519, rsa, ecdsa "ed25519": faster to generate with higher security level, some old server might not support. "rsa": slower to generate with slightly lower security level than ed25519.
  • Page 407 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Content-Type: multipart/form-data; boundary=---------------------------7e1309282ed0f1a Accept-Encoding: gzip, deflate Host: 172.16.219.217 Content-Length: 6123 Connection: Keep-Alive Pragma: no-cache Cookie: webptzmode=continuous; activatedmode=digital; g_mode=1; viewsizemode=Auto; 4x3=false; lan=8 Authorization: Basic cm9vdDpGREQwMDAwMA== -----------------------------7e1309282ed0f1a Content-Disposition: form-data; name="parameter" operation=manualmode&key=upload&index=1 -----------------------------7e1309282ed0f1a Content-Disposition: form-data; name="uploadKeyFile"; filename="id_rsa" Content-Type: text/plain -----BEGIN RSA PRIVATE KEY----- Proc-Type: 4,ENCRYPTED...
  • Page 408 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved -----END RSA PRIVATE KEY----- -----------------------------7e1309282ed0f1a-- Syntax: (for query API) http://<servername>/cgi-bin/admin/sftpclient.cgi?operation=<value>[&parameter=<value>] PARAMETER VALUE DESCRIPTION operation getserverhostkey " getserverhostkey ": Auto scan SFTP server host key. * This field is required. address <sftp server address or hostname> sftp server address or hostname * This field is required.
  • Page 409 VIVOTEK © 2022 VIVOTEK INC. All Right Reserved Example of re-generate host key: Request: http://<servername>/cgi-bin/admin/sftpserver.cgi?operation=updatehostkey Response of success: HTTP/1.1 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <Success Message Length>\r\n \r\n Syntax: (for query API) http://<servername>/cgi-bin/admin/sftpserver.cgi?operation=<value> PARAMETER VALUE DESCRIPTION "gethostkey": Get host key for operation gethostkey SFTP server.
