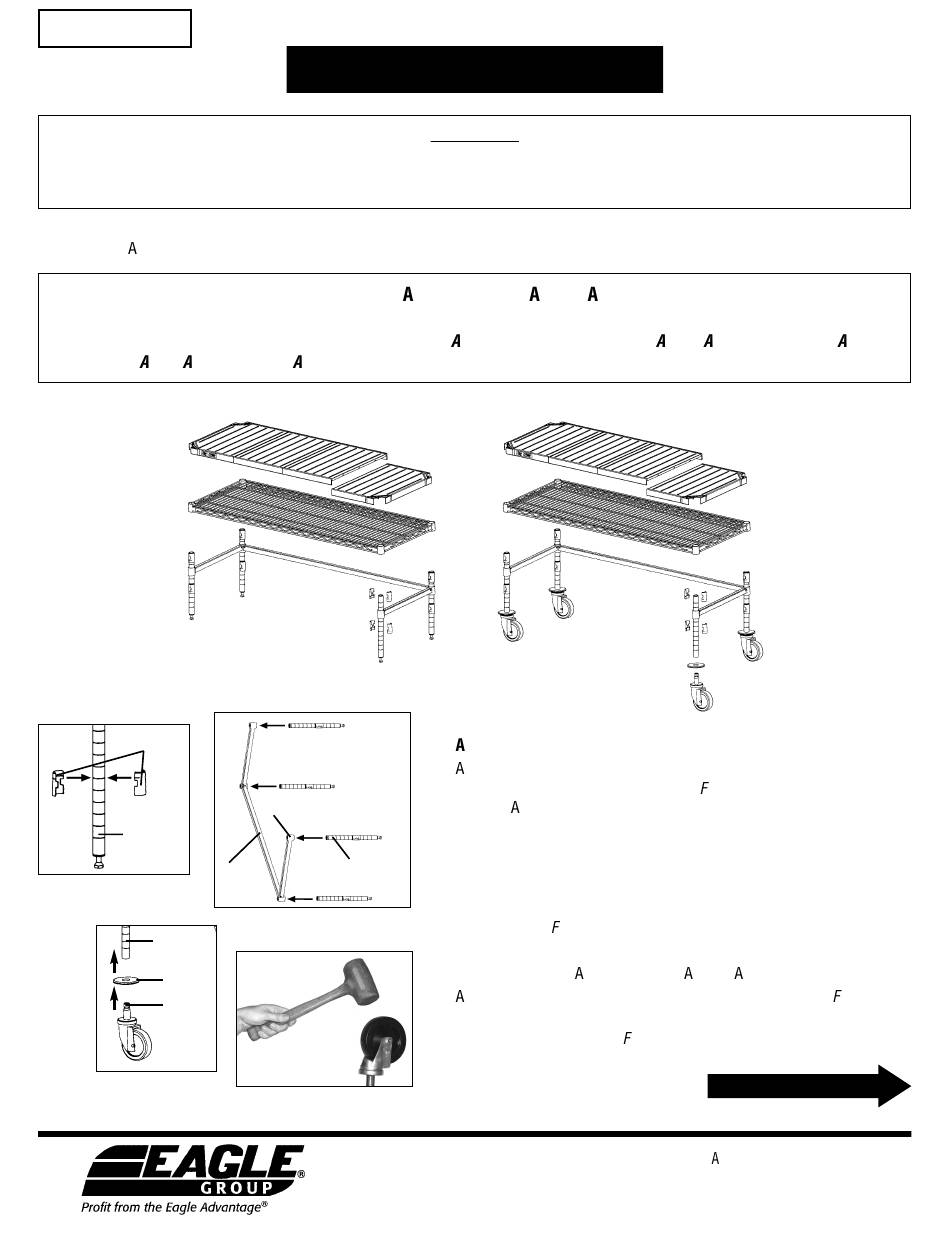

Eagle Group QuadPLUS Polymer Assembly Instructions

QuadPLUS
instruction sheet
#A226046
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
Thank you for your purchase. Before assembly, read this instruction sheet carefully to ensure correct use.
fter reading, be sure to store this instruction sheet in a safe place, should it be needed for future reference.
It is recommended to assemble truss frames and/or shelves onto posts—and to secure frame and/or shelf by tapping
with a mallet—BEFORE installing polymer mats. IMPORT NT: DO NOT HIT TRUSS FR MES ND/OR SHELVES FTER
POLYMER M TS H VE BEEN INST LLED! Remove polymer mats before readjusting truss frame.
split sleeves
post
3-sided
Figure 1a
caster
post
bumper
caster
stem
Figure 1c
eagle Foodservice equipment, eagle Mhc, specFAB
® Polymer Dunnage Rack
ASSEMBLY INSTRUCTIONS
SAVE YOUR BOX AND ALL PACKING MATERIALS.
BEFORE SSEMBLY, PLE SE RE D:

Stationary Units

corner collar
post
frame
Figure 1b
Figure 1d
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
®
CAUTION

Mobile Units

1. ssemble 3-sided frame to posts.
. Snap plastic tapered split sleeves onto each post at the desired
position for the 3-sided frame (see igure 1a).
Note: lthough the 3-sided frame should be mounted as low as
possible for the most stability, NSF requires a minimum of 6˝
clearance below the frame. For NSF-approved installation, mount
frame at the 6th groove or above on each post.
B. Holding the 3-sided frame on its side, insert the posts through the
corner collars until the split sleeves are seated snugly within the
collars (see igure 1b).
IF YOU ORDERED MOBILE UNIT, FFIX C STERS TO POSTS...
. Place donut bumper onto bottom end of each post (see igure 1c).
B. Insert caster stem into bottom of each post. Drive in caster using a
hammer or mallet (see igure 1d).
, and retail Display are divisions of eagle Group. ©2018 by the eagle Group
(continued on back page)
eG9942 revised 11/18
