Eagle Group Quik-Set 908858 Assembly Instructions

PART #908858
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

Helpful Suggestions:

• ll shelves can support an evenly distributed static load of 1,000 lbs.
• IMPORT NT: Shelving units should not exceed 4,000 lbs. per set of four posts.
• Large installations are easier if all posts are marked first. Lay posts on floor with leveling bolts against a wall or straight edge.
Mark all posts using a magic marker or grease pencil.
• Caster Load: 3 times the caster rating. Unit total not to exceed 900 lbs.

For Best Performance:

• Units over 50˝ high should be assembled with no less than 3 shelves—preferably 4 or more—and the bottom shelf should be
placed as low as possible or practical.
• On mobile units with 18˝-wide shelves, the overall post height should be no greater than 74˝.
• On mobile units with 24˝-wide shelves, the overall post height should be no greater than 86˝.
(For Mobile Units, see page 3 on how to install casters BEFORE assembling unit.)

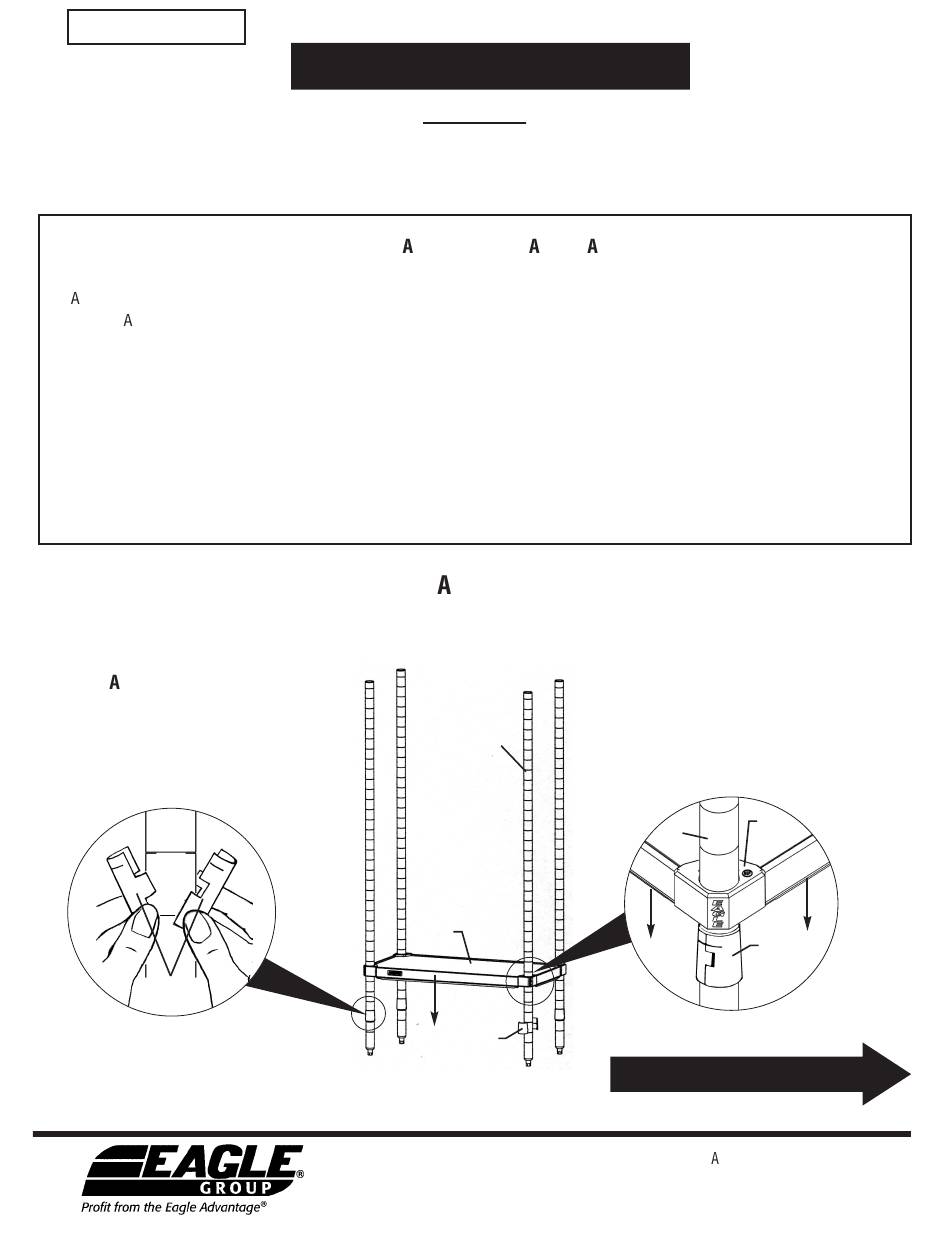

Step 1 - ttach split sleeves
(for bottom shelf) to posts.
• The wider part of the taper goes toward
the bottom.
• Make sure rib on split sleeve is seated into
a groove on the post.
split
sleeves
Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2014 by the Eagle Group
Quik-Set
ASSEMBLY INSTRUCTIONS
CAUTION
SAVE YOUR BOX AND ALL PACKING MATERIALS.
BEFORE SSEMBLY, PLE SE RE D:
FOR ST RTER UNITS:
bottom
shelf
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: 302/653-2065
® Shelving
post

Step 2 - Mount bottom shelf.

split
sleeve
shelf
post
corner
split
sleeve
(continued on page 2)
EG9980 Revised 08/14
