Breath Testing - Bedfont GastroCH4ECK Gastrolyzer User Manual

Breath Testing

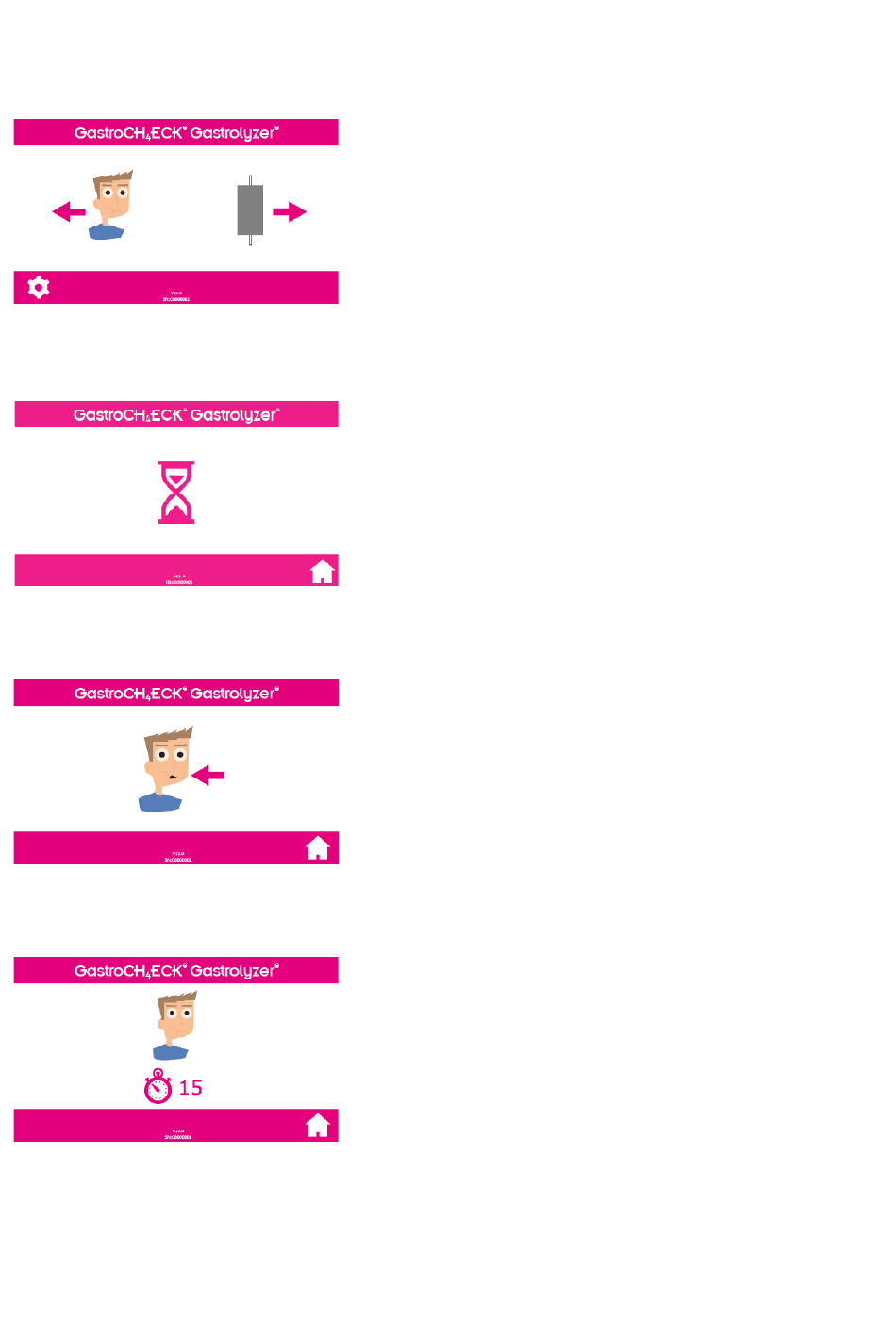

Attach the sample line to the GastroCH ECK® via the sample
4
connecter.
Then attach a new mouthpiece to the other end of the
sample line.
Press the breath test icon to begin.
A timer will be shown onscreen whilst the sensors are
zeroing. This may take up to 75 seconds if a test has just
been carried out.
NOTE: If GastroCHART™ is being used to record the readings,
on the patient's profile click 'capture reading' now.
The inhale symbol will be shown onscreen for 3 seconds, to
prompt the user to take a deep breath.
The timer screen will be shown to prompt the user to hold
their breath for the 15 second countdown.
9
